General features

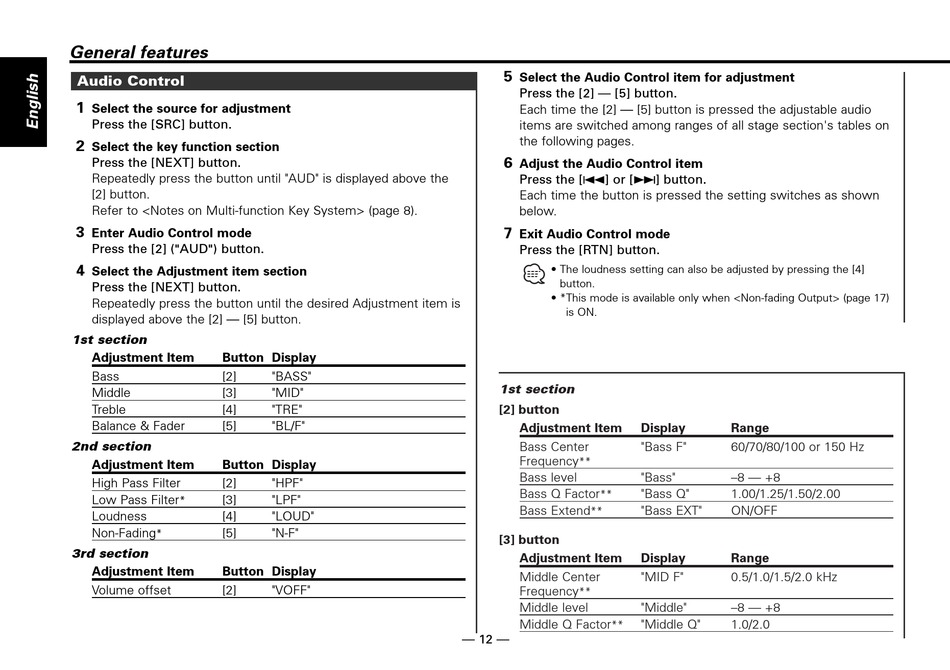

Audio Control

1
Select the source for adjustment
Press the [SRC] button.
2
Select the key function section
Press the [NEXT] button.
Repeatedly press the button until "AUD" is displayed above the
[2] button.
Refer to <Notes on Multi-function Key System> (page 8).
3
Enter Audio Control mode
Press the [2] ("AUD") button.
4
Select the Adjustment item section
Press the [NEXT] button.
Repeatedly press the button until the desired Adjustment item is
displayed above the [2] — [5] button.
1st section
Adjustment Item Button Display
Bass [2]
Middle [3]
Treble [4]
Balance & Fader [5]
2nd section
Adjustment Item Button Display
High Pass Filter [2]
Low Pass Filter [3]
*
Loudness [4]
Non-Fading [5]
*
3rd section
Adjustment Item Button Display
Volume offset [2]
"BASS"
"MID"
"TRE"
"BL/F"
"HPF"
"LPF"
"LOUD"
"N-F"
"VOFF"
5
Select the Audio Control item for adjustment
Press the [2] — [5] button.
Each time the [2] — [5] button is pressed the adjustable audio
items are switched among ranges of all stage section's tables on
the following pages.
6
Adjust the Audio Control item
Press the [4] or [¢] button.
Each time the button is pressed the setting switches as shown
below.
7
Exit Audio Control mode
Press the [RTN] button.
• The loudness setting can also be adjusted by pressing the [4]
button.
• *This mode is available only when <Non-fading Output> (page 17)
is ON.
1st section
[2] button
Adjustment Item Display
Bass Center "Bass F"
Frequency
**
Bass level "Bass"
Bass Q Factor "Bass Q"
**
Bass Extend "Bass EXT"
**
[3] button
Adjustment Item Display
Middle Center "MID F"
Frequency
**
Middle level "Middle"
Middle Q Factor "Middle Q"
**
— 12 —
Range
60/70/80/100 or 150 Hz
–8 — +8
1.00/1.25/1.50/2.00
ON/OFF
Range
0.5/1.0/1.5/2.0 kHz
–8 — +8
1.0/2.0
