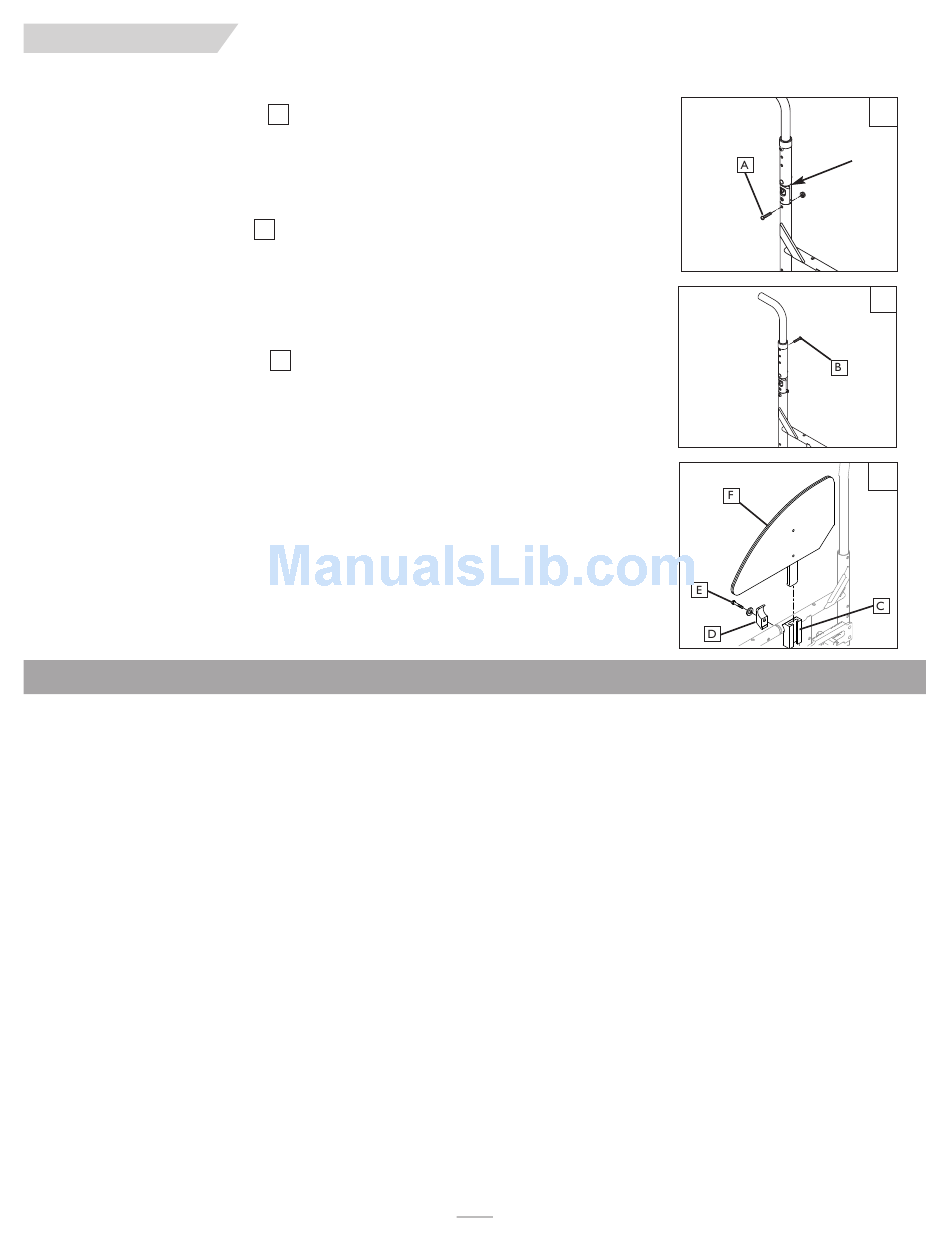

2. Pivot Point Height Adjustment
a. Remove button head screw (A) from the frame.
b. Adjust backrest to obtain desired pivot point height.
c. Replace and tighten button head screw.
d. Repeat for opposite side.
3. Backrest Height Adjustment
a. Remove button head screw (B).
b. Adjust back tube to desired height.
c. Replace and tighten button head screw.
d. Repeat for opposite side.
NOTE–
Use a torque setting of 144 in-lbs. when adjusting backrest.
R. SIDEGUARD HARDWARE
Installation of sideguard hardware
a. Position outer receiver hardware (C) on frame.
b. On corresponding inside of the frame position inner clamping hardware (D)
c. Insert two bolts (E) with washer and tighten using 3/16 inch hex key
d. Your sideguard (F) can now be inserted into the receiver.
S. CHECK-OUT
After the wheelchair is assembled and adjusted, it should roll smoothly and easily. All accessories should also
perform smoothly. If you have any problems, follow these procedures:
1. Review the set-up and check-out sections and operating guide to make sure chair was properly prepared.
2. Review troubleshooting guide.
3. If your problem persists, contact your authorized supplier. If you still have a problem after contacting
your authorized supplier, contact Sunrise customer service. See the introduction page for details on
how to contact your authorized supplier or Sunrise customer service.
A. FOR LIFETIME
Frame and cross-brace (if applicable) warranty:
1. Although the anticipated useful service time of this wheelchair is five
years, Sunrise guarantees the frame and cross brace against defects
in material and workmanship for life or for as long as the original
purchaser owns the chair.
2. This warranty does not apply if:
a. The chair is subject to abuse
b. The chair is not maintained as recommended in the owner's manual
3. The chair is transferred to a different person from the original owner
B. FOR ONE (1) YEAR
We warrant all Sunrise-made parts and components of this wheelchair
against defects in materials and workmanship for one year from the date of
first consumer purchase.
C. LIMITATIONS
1. We do not warrant:
a.
Tires and tubes, upholstery, pads and push-handle grips.
b. Damage from neglect, accident, misuse, or from improper installa-
tion or repair.
c. Products modified without Sunrise Medical's express written con-
sent.
d. Damage from exceeding the weight limit.
2. This warranty is VOID if the original chair serial number tag is removed
or altered.
3. This warranty applies in the USA only. Check with your supplier to find
out if international warranties apply.
45
46
47
IX. DEALER SERVICE AND ADJUSTMENT
X. SUNRISE LIMITED WARRANTY
4. This warranty is not transferable and only applies to the first consumer
purchase of this wheelchair through an authorized Sunrise Medical
dealer.
D. WHAT WE WILL DO
Our sole liability is to repair or replace covered parts. This is the exclusive
remedy for consequential damages.
E. WHAT YOU MUST DO
1. Obtain from us, while this warranty is in effect, prior approval for
return or repair of covered parts.
2. Return the wheelchair or part(s), freight pre-paid, to Sunrise Medical
at: 2842 Business Park Avenue, Fresno, CA 93727-1328.
3. Pay the cost of labor to repair, remove or install parts.
F. NOTICE TO CONSUMER
1. If allowed by law, this warranty is in place of any other warranty
(written or oral, express or implied, including a warranty of mer-
chantability, or fitness for a particular purpose).
2. This warranty gives you certain legal rights. You may also have other
rights that vary from state to state.
Record your serial number here for future reference:
____________________________________________
23
45
pivot
point
46
47
128226 Rev. A
