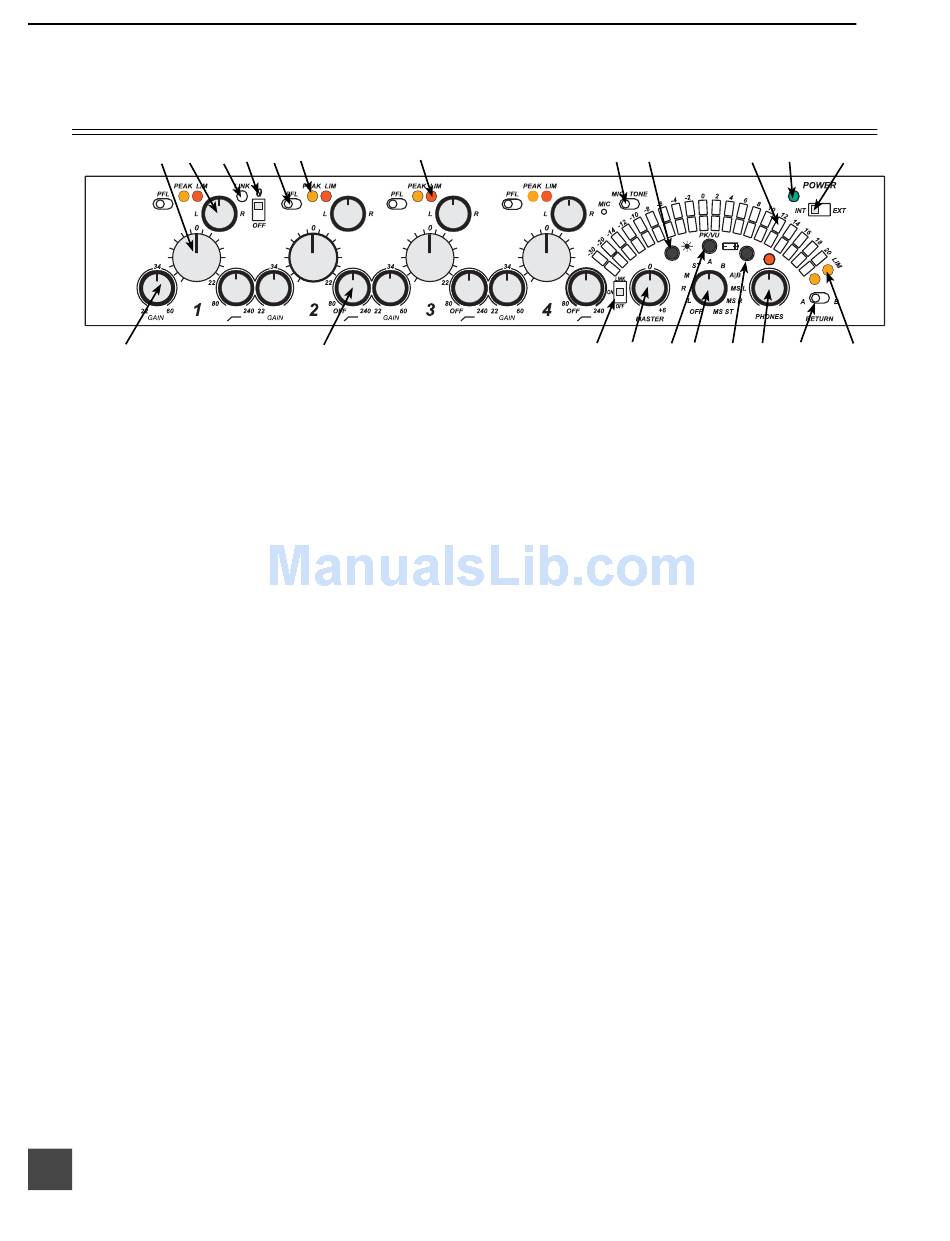

Front Panel Descriptions

2 3
1
1. Gain (Trim)
Controls the gain of the microphone preamp.
Range is from +22 dB to +60 dB to accomodate
different input sources. Can be thought of as a
"coarse" gain adjustment.
2. Channel Fader
Controls a channel's gain. Ranges from 'off' to
+15 dB. Nominal setting is in the middle (0 dB).
Can be thought of as a "fine" gain adjustment.
3. Channel Pan
Controls the Left/Right balance of the input signal
to the outputs. Signal is 3 dB greater than center
position when panned hard right or left.
4. LINK LED
Indicates that channels 1 and 2 are linked as a
stereo pair, set via the Link Switch on the input
panel.
5. Channel 2 Polarity Reverse
Reverses the polarity of input channel 2.
6. PFL (Solo)
Sends the channel signal to the headphones for
troubleshooting and gain set-up. Does not affect
master output signal at all.
7. Peak LED
Indicates that the input signal is 3 dB from clip-
ping. Indicates that Gain is set too high if LED
comes on.
8. High-Pass Filter
Adjusts corner (-3 dB) frequency of high-pass
filter. Fully counter-clockwise (detented) removes
the high-pass filter. Range is 80 Hz to 240 Hz,
12dB/oct to 6 dB/oct.
9. Input Limiter LED
Illuminates orange in proportion to the amount of
input limiting. Indicates that Gain Trim is set too
high if significant limiting is occurring.
4
