INSTALLER: PLEASE FAMILIARIzE YOURSELF WITH vENTING/DRAINING SECTIONS OF
THIS MANUAL BEFORE PROCEEDING WITH THE INSTALLATION. LEAvE
THIS MANUAL WITH THE APPLIANCE FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

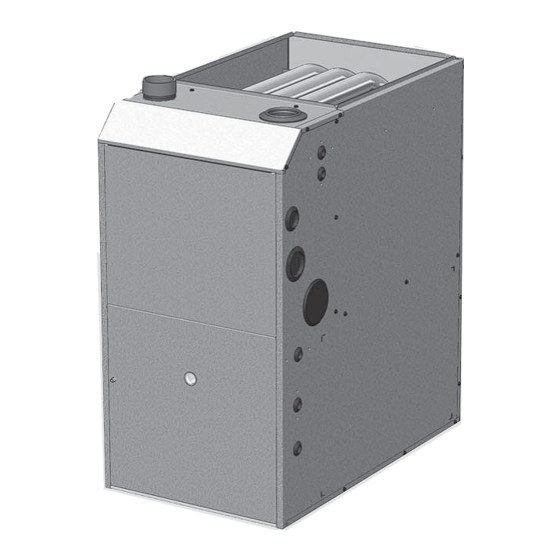

9600 SERIES
TWO STAGE MULTI POSITION HIGH EFFICIENCY
(CONDENSING) FORCED AIR GAS FURNACE
SAFETY INFORMATION
WARNING
!
ELECTRICAL SHOCK, FIRE OR
ExPLOSION HAzARD
Failure to follow safety warnings exactly
could result in serious inquiry, death or
property damage.
Improper servicing could result in
dangerous operation, serious injury, death
or property damage.
- Installation and service must be performed by a
qualifi ed installer, service agency or the gas supplier.
- Before servicing, disconnect all electrical power to
furnace.
- When servicing controls, label all wires prior to
disconnecting. Reconnect wires correctly.
- verify proper operation after servicing.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fi re
department.
phone (705)721-1212 • Fax (705)722-6031 • www.napoleonheatingandcooling.com • ask@napoleonheatingandcooling.com
$10.00
OPERATING INSTRUCTIONS
CERTIFIED To ANSI Z21.47b / CSA 2.3b-2008
!
Wolf Steel ltd., 24 Napoleon Rd., barrie, oN, l4m 0g8 Canada /
103 miller Drive, Crittenden, kentucky, uSA, 41030
INSTALLATION AND
MANUFACTURER RESERvES THE RIGHT TO DISCONTINUE, OR CHANGE
AT ANY TIME, SPECIFICATIONS OR DESIGNS WITHOUT NOTICE AND
WITHOUT INCURRING OBLIGATIONS.
1
Patent Pending
W415-0919 / D / 03.27.13
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Napoleon 9600 Series
Summary of Contents for Napoleon 9600 Series
-
Page 1: Safety Information
AT ANY TIME, SPECIFICATIONS OR DESIGNS WITHOUT NOTICE AND department. WITHOUT INCURRING OBLIGATIONS. Wolf Steel ltd., 24 Napoleon Rd., barrie, oN, l4m 0g8 Canada / 103 miller Drive, Crittenden, kentucky, uSA, 41030 phone (705)721-1212 • Fax (705)722-6031 • www.napoleonheatingandcooling.com • ask@napoleonheatingandcooling.com W415-0919 / D / 03.27.13... -
Page 2: Table Of Contents
Table of ConTenTs INTRODUCTION SAFETY SYMBOLS AND WARNINGS SAFETy RulES CoDES FURNACE SIzING LOCATION OF UNIT gENERAl guIDElINES oThER CoNSIDERATIoNS INSTAllATIoN IN upFloW, DoWNFloW oR hoRIZoNTAl poSITIoNS AIR CoNDITIoNINg COMBUSTIBLE CLEARANCES DUCTWORK DuCTWoRk STEpS vENTING AND COMBUSTION PIPING ACCEpTAblE mATERIAlS IN CANADA ACCEpTAblE mATERIAlS IN uNITED STATES NON-DIRECT vENT FURNACE INSTALLATIONS USING INDOOR COMBUSTION AIR (ONE PIPE SYSTEM) DETERmININg CombuSTIoN AIR... -
Page 3: Introduction
15.0 LOW vOLTAGE WIRING 15.1 SINglE STAgE ThERmoSTAT 15.2 TWo STAgE ThERmoSTAT 15.3 ThERmoSTAT loCATIoN 16.0 OPTIONAL ACCESSORIES (FIELD SUPPLIED/INSTALLED) 16.1 ElECTRIC AIR ClEANER 16.2 poWER humIDIFIER 16.3 EmERgENCy hEAT moDE 17.0 STARTUP PROCEDURES 17.1 To START ThE FuRNACE 17.2 To ShuT DoWN ThE FuRNACE 17.3 SEquENCE oF opERATIoN... -
Page 4: Safety Symbols And Warnings
2.0 safeTY sYMbols anD WaRnInGs understand and pay particular attention to the words DANgER, WARNINg, and CAuTIoN and the following defined symbols are used throughout this manual to notify the reader of potential hazards of varying risk levels. DANgER INDICATES AN IMMINENTLY HAzARDOUS SITUATION WHICH, IF NOT AvOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY. -
Page 5: Safety Rules
WARNINg IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERvICE OR MAINTENANCE CAN CAUSE INJURY, PROPERTY DAMAGE OR LOSS OF LIFE. REFER TO THIS MANUAL. INSTALLATION AND SERvICE MUST BE PERFORMED BY A qUALIFIED INSTALLER, SERvICE AGENCY OR THE GAS SUPPLIER. THESE INSTRUCTIONS ARE INTENDED AS AN AID TO qUALIFIED SERvICE PERSONNEL FOR PROPER INSTALLATION, ADJUSTMENT AND OPERATION OF THIS FURNACE. - Page 6 a. Any applicable local codes, by-laws and regulations. b. Canada: current edition of CAN/CSA C22.1, Canadian Electrical Code (part 1). c. united States: current edition of ANSI/NFpA 70, National Electrical Code. Codes and additional information may be obtained from: Canadian Standards Association American gas Association 5060 Spectrum Way 400 North Capitol Street, NW, Suite 450...
- Page 7 WARNINg WHEN THIS FURNACE IS INSTALLED IN A RESIDENTIAL GARAGE, IT MUST BE INSTALLED SO THE BURNERS AND IGNITION SOURCE ARE LOCATED NO LESS THAN 18” ABOvE THE FLOOR TO PREvENT THE RISK OF IGNITING FLAMMABLE vAPORS WHICH MAY BE PRESENT IN THE GARAGE. THE FURNACE MUST BE LOCATED OR PROTECTED TO AvOID PHYSICAL DAMAGE BY vEHICLES.
-
Page 8: Furnace Sizing
3.0 fURnaCe sIzInG The maximum hourly heat loss for each heated space shall be calculated in accordance with the procedures described in the manuals of the Heating, Refrigeration and Air Conditioning Institute of Canada (HRAI), or by any other method which is suitable for local conditions, provided the results obtained are in substantial agree- ment with, and not less than those obtained using the procedure described in their manuals. -
Page 9: Location Of Unit
4.0 loCaTIon of UnIT GeneRal GUIDelInes 1. Select a location where the exhaust and combustion air piping can be routed between the furnace and their terminations with a minimum of lengths and fittings. be sure to check that the proposed termination location will meet code requirements with respect to location and minimum clearances. -
Page 10: Installation In Upflow, Downflow Or Horizontal Positions
• “Airplane glue” and similar adhesives and cements • Ammonia, as commonly found in permanent wave solutions used in hair dressing salons • Anti-static fabric softeners used in clothes dryers • Carbon tetrachloride • Chlorinated cleaners and waxes • Chlorine and bromine based swimming pool chemicals •... -
Page 11: Air Conditioning
NOTE This furnace is approved for installation in attics, alcoves, utility rooms, closets and crawl spaces. If this furnace is to be installed in a utility room, be sure that it is located in such a way as to allow access for servicing or the removal of other appliances installed in the room (hot water heater, for example). -
Page 12: Ductwork
6.0 DUCTWoRK proper airflow is required for the correct operation of this furnace. Insufficient airflow may cause erratic opera- tion, could cause the furnace to cycle on the high temperature limit, and may damage the heat exchanger. Excessive airflow may result in an excessively noisy duct system and may result in undesirable consequences such as creating uncomfortable drafts. -
Page 13: Ductwork Steps
DUCTWoRK sTeps 1. position the furnace to minimize ductwork length and fittings. 2. Cut open a return air inlet. The choices are furnace bottom, either side, or any combination thereof (i.e., two sides or a side and the bottom).In all cases, cut the return air opening the full width of the return air markers on the side panel. -
Page 14: Venting And Combustion Piping
7.0 venTInG anD CoMbUsTIon pIpInG WARNINg READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS IN THIS SECTION. FAILURE TO PROPERLY vENT OR SUPPLY COMBUSTION AIR TO THIS FURNACE CAN CAUSE CAR- BON MONOxIDE POISONING, OR AN ExPLOSION OR FIRE, RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. -
Page 15: Non-Direct Vent Furnace Installations Using Indoor Combustion Air (One Pipe System)
8.0 non-DIReCT venT fURnaCe InsTallaTIons UsInG InDooR CoMbUsTIon aIR (one pIpe sYsTeM) The furnace, although designed as a direct vent type appliance, may be installed with the intake vent inside the structure. WARNINg THIS FURNACE AND ANY OTHER FUEL BURNING APPLIANCE MUST BE PROvIDED WITH ENOUGH FRESH AIR FOR PROPER COMBUSTION AND vENTILATION OF THE FLUE GASES. -
Page 16: Determining Combustion Air
DeTeRMInInG CoMbUsTIon aIR 8.1.1 Case 1: fURnaCe loCaTeD In a UnConfIneD spaCe unconfined space does not necessarily mean that ventilation will not have to be introduced from the outdoors, particularly in airtight homes. The minimum requirement for unconfined space is a volume of 50 cubic feet for each 1000 btu/hr for all fuel burning appliances located within the unconfined area. -
Page 17: Case 3: Furnace Located In A Confined Space, Outdoor Air From Attic Or Crawl Space
IMPORTANT: IF AN ExhAuST FAN, FIREplACE, CloThES DRyER oR ANy SImIlAR DEVICE IS pRESENT IN ThE INDooR AREA FRom WhICh ThE CombuSTIoN AND VENTIlATIoN AIR WIll bE DRAWN, NEgATIVE pRESSuRE CoulD bE A pRoblEm IF NATuRAl INFIlTRATIoN FRom ThE ouTDooRS DoES NoT mATCh ThE RATE AT WhICh AIR IS ExhAuSTED. -
Page 18: Case 4: Furnace Located In A Confined Space, Outdoor Air Ducted Horizontally
8.1.4 Case 4: fURnaCe loCaTeD In a ConfIneD spaCe, oUTDooR aIR DUCTeD hoRIzonTallY Similar to Case 3, outdoor air for combustion and ventilation may be drawn through horizontal ducting. The free area for each opening is calculated on the basis of a minimum of 1 square inch per 2000 btu/hr input. The following table shows minimum free areas and round pipe sizes when drawing combustion air horizontally from the outdoors for the furnace only. -
Page 19: Venting Guidelines
9.0 venTInG GUIDelInes CAuTIoN FAIluRE To FolloW All VENTINg guIDElINES mAy RESulT IN ERRATIC FuRNACE opERATIoN, FREEZE-up oF ThE ExhAuST AIR pIpINg, oR SooTINg oF ThE FuRNACE. WARNINg READ AND FOLLOW ALL INSTRUCTIONS IN THIS SECTION. FAILURE TO PROPERLY vENT THIS FURNACE CAN CAUSE CARBON MONOxIDE POISONING OR AN ExPLOSION OR FIRE RESULTING IN PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. -
Page 20: Vent Termination
Take the building orientation and the presence of FIGURE 8 - STANDARD (STRAIGHT) HORIzONTAL other buildings or other nearby structures into consid- vENT DETAIL eration when planning the venting system location. RECOMMENDED Certain external structures could create air turbulence *3” around the vent termination leading to downdrafts and MIN. -
Page 21: In Canada
FIGURE 10 - vERTICAL vENTING FIGURE 9 - PERISCOPED vENT DETAIL *3” MIN. ROOF TERMINATION EXHAUST 12” MIN. 18” MIN. EXHAUST 12” MIN. INTAKE GRADE *18” MIN. FOR COLD CLIMATES (SUSTAINED 0°F (-17°C) FOR 24 OR MORE CONSECUTIVE HOURS CAuTIoN moISTuRE IN ThE FluE gASES CoNDENSES AS IT lEAVES ThE TERmINAl. -
Page 22: Furnace Venting Installations
• locate the vent terminal 3 feet above any forced air inlet located within 10 feet. Any fresh air or make-up air inlet, such as for a dryer or furnace area is considered a forced air inlet. The vent terminal should be located no fewer than 6 feet from an inside corner formed by two exterior walls; a 10 foot distance is recommended. -
Page 23: Terminations
10.0 TeRMInaTIons 10.1 CoMbUsTIon aIR HORIzONTAL - The combustion air termination is made up of a FIGURE 11 - STANDARD vERTICAL medium or long sweep 90° elbow pointing downward to prevent vENTING DETAIL rain from readily entering the combustion air intake piping. If the required clearance to grade cannot be obtained with the “straight through”... -
Page 24: Multiple Venting
Avoid locating the termination too close to shrubs and other vegetation. The condensate may stunt or kill them. Caulk all cracks, seams or joints within a 6 foot radius of the termination. Do not terminate under a deck unless there is adequate clearance to prevent damage from the flue gases. A termination may be located at the end of a patio deck. - Page 25 FIGURE 14A - DIRECT vENT TERMINAL CLEARANCES W415-0919 / D / 03.27.13...
- Page 26 FIGURE 14B - NON-DIRECT vENT TERMINAL CLEARANCES W415-0919 / D / 03.27.13...
-
Page 27: Routing Options
11.0 RoUTInG opTIons This furnace can be installed in any of four positions. Figures 22-25 on the following pages show the four posi- tions. The installer must consider the following services: gas pipe, electrical power, drain trap, intake and exhaust vents. -
Page 28: Condensate Drains
Affix the condensate trap assembly to the interior of the side panel in the blower compartment for upflow posi- tions; the interior of the side panel in the burner compartment for downflow positions. For horizontal positions affix the condensate trap assembly to the exterior side panels. Three plastic drain hose clamps are provided in the parts bag. - Page 29 FIGURE 27 IMPORTANT: CONNECT ½” TEE FITTING (FIELD SUPPLIED) TO THE OUTLET OF THE CONDENSATE TRAP. WARNINg THERE MUST NOT BE ANY OPENINGS BETWEEN THE BLOWER DIvISION PANEL AND THE COMBUSTION COMPARTMENT. THE BLOWER COMPARTMENT IS UNDER GREATER SUCTION THEN THE COMBUSTION COMPARTMENT AND CAN PULL COMBUSTION AIR FROM THE BURNERS AND CAUSE INCOMPLETE COMBUSTION AND ERRATIC FURNACE OPERATION.
- Page 30 FIGURE 22 - UPFLOW vENT AND DRAINING OPTION CONTINUED RIGHT vENT INSTALLATION IMPORTANT: • PRIME CONDENSATE TRAP WITH WATER AND CUT DRAIN HOSES TO PROPER LENGTH. • CUT PRESSURE SWITCH TUBING TO PROPER LENGTH. NOTE upflow Vent Right - condensate trap must be installed on left side.
- Page 31 FIGURE 24 - HORIzONTAL RIGHT vENT AND DRAINING OPTION RIGHT vENT INSTALLATION TOP vENT INSTALLATION IMPORTANT: • PRIME CONDENSATE TRAP WITH WATER AND CUT DRAIN HOSES TO PROPER LENGTH. • CUT PRESSURE SWITCH TUBING TO PROPER LENGTH. FIGURE 25 - DOWNFLOW vENT AND DRAINING OPTION RIGHT vENT INSTALLATION LEFT vENT INSTALLATION NOTE...
-
Page 32: Drain Hose Installation
CAuTIoN ThE TWo INlETS To ThE DRAIN TRAp ARE FoR VENT pIpE AND CoNDENSATE CollECTIoN. ThE VENT pIpE INlET IS SmAllER ThAN ThE CoNDENSATE CollECTIoN INlET. ENSuRE ThAT ThE DRAIN hoSES ARE pRopERly CuT To ThE REquIRED lENgTh CoNNECTED AND SECuRED. 11.4 DRaIn hose InsTallaTIon 1. -
Page 33: Alternate Condensate Drain Piping Installation Using 1/2" Pvc Or 3/4" Cpvc
NOTE It is recommended that the condensate drain assembly not be cemented to the condensate trap outlet, if removal of the condensate trap is required in the future. Use a piece of the provided 1/2” drain hose if removal of the condensate trap is anticipated. IMPORTANT: IF AN AIR CoNDITIoNINg EVApoRAToR CoIl DRAIN IS To ShARE ThE FuRNACE DRAIN lINE, IT ShoulD bE CoNNECTED WITh A TEE FITTINg DoWNSTREAm FRom ThE... -
Page 34: Condensate Neutralizers
FIGURE 21 FIGURE 22 If extra security is desired, it is recommended to secure a strip of strapping around the drain. utilize the exist- ing condensate drain screws to secure the strapping. IMPORTANT: IF AN AIR CoNDITIoNINg EVApoRAToR CoIl DRAIN IS To ShARE ThE FuRNACE DRAIN lINE, IT ShoulD bE CoNNECTED WITh A TEE FITTINg DoWNSTREAm FRom ThE TRAp. -
Page 35: Gas Supply And Piping
12.0 Gas sUpplY anD pIpInG 12.1 Gas sUpplY WARNINg THIS FURNACE IS FACTORY EqUIPPED TO BURN NATURAL GAS ONLY. CONvERSION TO LP GAS REqUIRES A NATURAL GAS TO LP CONvERSION KIT (W370-0018). FAILURE TO USE THE PROPER CONvERSION KIT CAN CAUSE FIRE, ExPLOSION, CARBON MONOxIDE POISONING, PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. -
Page 36: Gas Inlet Pressure
IMPORTANT: ALWAYS USE A BACKUP WRENCH TO PREvENT TWISTING OF THE GAS vALvE. ANY STRAINS ON THE GAS vALvE CAN AFFECT POSITIONING OF THE ORIFICES RELATIvE TO THE BURNERS. THIS COULD RESULT IN FAULTY BURNER OPERATION. Install a manual gas shut-off valve and dirt pocket as close to the furnace as possible. Some local codes call for the manual gas shut-off valve to be located between 4 to 5 feet above floor level to prevent tampering by small children. -
Page 37: Conversions
13.0 ConveRsIons hIgh AlTITuDE: In Canada, this furnace does not need to be converted for high altitude (2000 - 4500 feet). It has been certified to operate at high altitude as manufactured. In the united States, the modifications for high altitude are based on a 4% reduction of input capacity for every 1000 feet above 2000 feet above sea level. -
Page 38: Setting The Manifold Gas Pressure
indicate a leak. ShuT oFF gAS AND FIx All lEAkS ImmEDIATEly! 8. Turn gas back on and test inlet pressure boss with leak detector. 9. If working on a natural gas system, contact the gas utility. They may insist on any service regulator adjust- ments being made by their own staff If problems were encountered with obtaining enough pressure on the manifold, first examine the gas piping system to ensure that it is correctly sized. -
Page 39: Checking Furnace Input
6. Turn off the gas and electrical supply to the furnace. WARNINg ALL REGULATOR ADJUSTMENTS MUST BE DONE BY A TRAINED, qUALIFIED TECHNI- CIAN. IMPROPER MODIFICATIONS OR ADJUSTMENTS CAN RESULT IN FIRE OR ExPLO- SION CAUSING PROPERTY DAMAGE, SEvERE PERSONAL INJURY OR LOSS OF LIFE. 7. -
Page 40: Electrical Specifications
14.0 eleCTRICal speCIfICaTIons 14.1 eleCTRICal WIRInG anD ConneCTIons before proceeding with the electrical connections, ensure that the available electrical supply is compatible with the voltage, frequency and phase listed on the appliance rating plate. All furnaces are rated 120 vac, 60 hz, 1 Ø. The amperage rating is 15 amps or less. Each furnace requires a dedicated 15 amp over-current device, either a 15 amp circuit breaker or a 15 amp Type D time delay fuse. -
Page 41: Furnace Connection
FIGURE 36 - INTEGRATED FURNACE IGNITION CONTROL 5A FUSE 24 VAC MOLEX PARK TERMINALS INTERFACE ELECTRONIC AIR CLEANER POWER THERMOSTAT HUMIDIFIER TERMINALS 120 VAC MOLEX FAULT CODE BUTTON 120 VAC NEUTRAL RED STATUS HEAT STAGING CONNECTIONS JUMPER P5 14.2 fURnaCe ConneCTIon The furnace is shipped fully wired except for the connections to the house wiring. -
Page 42: Low Voltage Wiring
15.0 loW volTaGe WIRInG The thermostat and control wiring should be a minimum of 18 AWg copper. Excessive lengths of wire may result in enough voltage drop to impair the proper functioning of the furnace. For thermostat wires in excess of 25 feet, use 16 AWg;... -
Page 43: Optional Accessories (Field Supplied/Installed)
16.0 opTIonal aCCessoRIes (fIelD sUpplIeD/ InsTalleD) 16.1 eleCTRIC aIR CleaneR The integrated furnace control has provisions to supply power and control an electronic air cleaner rated at 120vac, 1.0 amp max. 120 volt power will be available at these terminals whenever the circulating fan is operating in the heating, cooling, and continuous fan modes. -
Page 44: Startup Procedures
17.0 sTaRTUp pRoCeDURes This furnace is equipped with a hSI (hot Surface Ignition) device. Each time that the room thermostat calls for heat, the hSI lights the main burners directly. See the lighting instructions on the furnace. NOTE It is recommended that the drain trap assembly be primed before the initial startup. Refer to the instructions on how to prime the condensate trap on the previous pages in this manual. -
Page 45: Sequence Of Operation
The control flashes “8” on the Red lED if lockout is due to too many flame dropouts (1 hour lockout). 17.4 pRoGRaMMable TheRMosTaT (opTIon) The 9600 Series furnace has an optional programmable two stage Napoleon® Elite Thermostat. For instruction on how to operate and program this unit, please refer to the manual and installation instructions provided with the Napoleon®... -
Page 46: Air Flow
18.0 aIR floW For proper furnace operation, air flow over the heat exchanger is of utmost importance. Insufficient airflow ac- celerates metal fatigue and possible failure in the heat exchanger, as well as decrease efficiency. Excessive airflow promotes accelerated corrosion of the heat exchanger. TAblE 1 - RANgE oF TEmpERATuRE RISE IMPORTANT: Furnace models... -
Page 47: Calculating Air Flow
TABLE 10C - AIR FLOW ECM x-13 ESp 0.1” to 1.0” w.c. 45000 btu Two Stage 100000 btu Two Stage Tap # Tap # W1/g y (1.5 Ton) y (2 Ton) y (2.5 Ton) W1/g y (3 Ton) y (4 Ton) y (5 Ton) hEAT 1 hEAT 2... -
Page 48: Dehumidification - Ecm
FIGURE 36 - INTEGRATED FURNACE IGNITION CONTROL FIGURE 39 5A FUSE 24 VAC MOLEX PARK TERMINALS INTERFACE ELECTRONIC AIR CLEANER POWER THERMOSTAT HUMIDIFIER TERMINALS 120 VAC MOLEX FAULT CODE BUTTON 120 VAC NEUTRAL RED STATUS HEAT STAGING CONNECTIONS JUMPER P5 18.4 DehUMIDIfICaTIon - eCM 2.3 For situations where humidity control is a problem, a dehumidification feature has been built into the variable speed motor. -
Page 49: Maintenance And Troubleshooting
19.0 MaInTenanCe anD TRoUbleshooTInG WARNINg DISCONNECT THE ELECTRICAL POWER SUPPLY TO THE FURNACE BEFORE ATTEMPTING ANY MAINTENANCE. FAILURE TO DO SO CAN CAUSE ELECTRICAL SHOCK RESULTING IN PERSONAL INJURY OR LOSS OF LIFE. CAuTIoN lAbEl All WIRES pRIoR To DISCoNNECTIoN WhEN SERVICINg CoNTRolS. WIRINg ERRoRS CAN CAuSE ImpRopER AND DANgERouS opERATIoN. -
Page 50: Troubleshooting Flowchart
19.3 TRoUbleshooTInG floWChaRT SEqUENCE OF OPERATION Troubleshooting Flowchart Apply Power To Furnace Thermostat Calls For Heat Wait For Limit Circuit Air Proving Switches Wait For Air Proving Switch to Close and/or Reset Proved Open & Limit to Open. Flash "3" of Flame Rollout. -
Page 51: Diagnostic Codes For Status Led
19.4 DIaGnosTIC CoDes foR sTaTUs leD STATUS FAULT CONDITION LEDs lED oFF No power to control or control hardware fault detected lED oN Normal operation 1 Flash high limit switch open 2 Flashes pressure switch open with exhauster on 3 Flashes pressure switch closed with exhauster off 4 Flashes lockout due to too many failed ignition attempts (1 hour lockout) -
Page 52: Wire Diagram For Two Stage Furnace With Ecm
20.0 WIRe DIaGRaM foR TWo sTaGe fURnaCe WITh eCM 2.3 BLACK INDUCER WHITE 120 VAC GAS VALVE WHITE 24 VAC GREY WHITE IGNITOR 24 VAC BLACK FMC -0.15 YELLOW PRESSURE SWITCH YELLOW 24 VAC IND. LOW -0.20 YELLOW PRESSURE SWITCH YELLOW 24 VAC IND. - Page 53 120 VAC BLACK JUNCTION WHITE TO UPPER GREEN HARNESS BLACK WHITE 120 VAC GREEN BLACK 5 PIN MOLEX BLACK POWER FACTOR TO UPPER CORRECTOR CHOKE HARNESS COIL ¾ hp & 1 hp MODELS ONLY 24 VAC TRANSFORMER + 120 VAC - 24 VAC CONTROL HOUSING VIEW FROM...
-
Page 54: Warranty
WaRRanTY Napoleon® products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from Napoleon®. -
Page 55: Replacement Parts List
22.0 ReplaCeMenT paRTs lIsT Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts can be ordered through your Authorized dealer / distributor. FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INvOICE WILL BE REqUIRED TO HONOUR THE CLAIM. - Page 56 FIGURE 2 - FURNACE COMPONENTS LEGEND 1. Combustion Air Intake Fitting 11. burner Assembly 2. Flame Roll-out Switch (2) 12. hot Surface Igniter (HSI) - located underneath 3. Flame Sensor - located underneath 13. Two Speed Exhauster 4. Two Stage gas Valve 14.
-
Page 57: Service History
23.0 seRvICe hIsToRY 43.1 W415-0919 / D / 03.27.13...
Need help?
Do you have a question about the 9600 Series and is the answer not in the manual?
Questions and answers

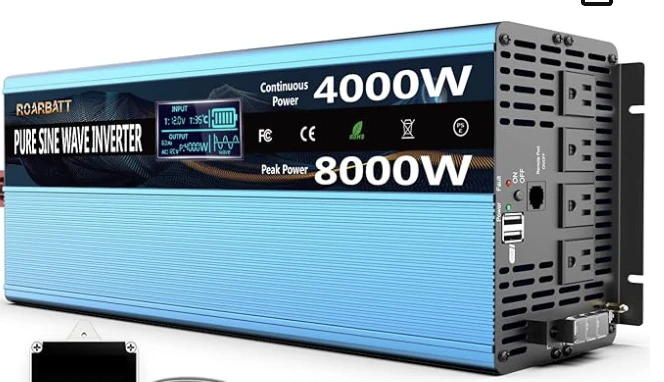

my power is out...can I hook my 9600 Napolean gas furnace to a 4000/8000 pure sine inverter hooked to 2 very large fully charged truck batteries
A Napoleon 9600 Series gas furnace requires a 120 VAC power supply and is protected by a 15 amp over-current device (circuit breaker or fuse). If a 4000/8000 pure sine inverter can supply 120 VAC with sufficient continuous power (at least 15 amps or 1800 watts) and is connected to two large fully charged truck batteries that can support the furnace's power draw, then the furnace can be connected to it during a power outage. Proper grounding and safety precautions must be followed.
This answer is automatically generated
my power is out...can I hook my 9600 Napolean gas furnace to a 4000/8000 pure sine inverter hooked to 2 very large fully charged truck batteries
A Napoleon 9600 Series gas furnace requires a 120 VAC power supply and is protected by a 15 amp over-current device. If the 4000/8000 pure sine inverter can provide a continuous 120 VAC output with at least 15 amps capacity and the two truck batteries can supply enough current to support that inverter output for the needed duration, then the furnace can be connected to it during a power outage. The furnace must also be properly grounded, and all wiring must follow safety codes.
This answer is automatically generated

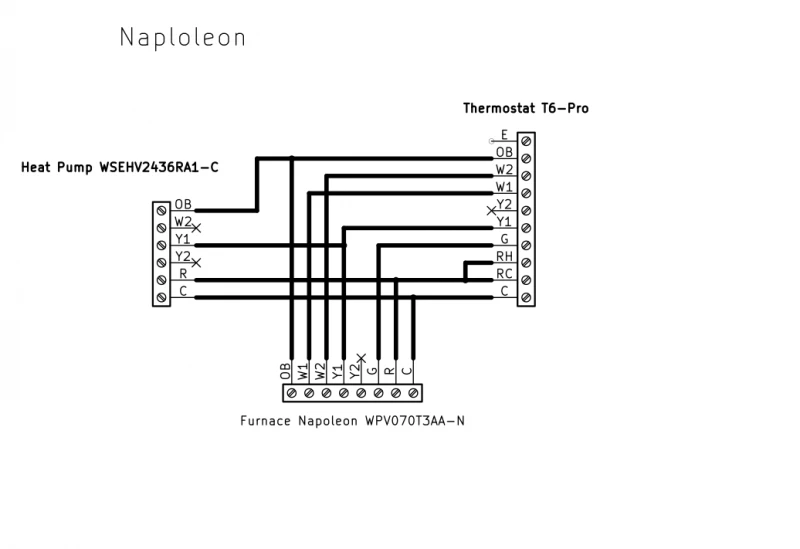

I need help with my furnace connections. I have the Napoleon 2 stage gas furnace WPV070T3AA-N and a Napoleon Heat Pump WSEHV2436RA1-C. Please find attached a connection diagram of my system. My installer does not know where the W1 terminal on the heat pump goes on the furnace connection terminal strip. (Accidentally indicated as W2 on my diagram) I have a G wire so I can control my **** when not calling for heat, I **** having my thermostat control the high/low heat and that is why I have W1 and W2 going to my furnace from the T6-Pro thermostat. I have already put Jumper 5 to the 'NONE" position and I have cut the W39 jumper as outlined on your installation manual. Now, I know you will tell me to talk to my installer, but I have has 3 different "professionals" to my place to find a solution to this problem, but 2 of them did not even know what 'G" wire was used for, and my installer is completely incompetent. I have already spent $300 trying to solve this wiring and I think of all people you guys should know how to wire it properly. Thanks for your help.
