Connecting the Antenna and USB Cable
Connect a suitable antenna to the ANT connector.
1.
The USB cable uses 500mA from the USB power line. Connect one end of the USB cable to your computer or
2.
other USB high power device, such as a hub. Connect the other end to the modem USB connector.

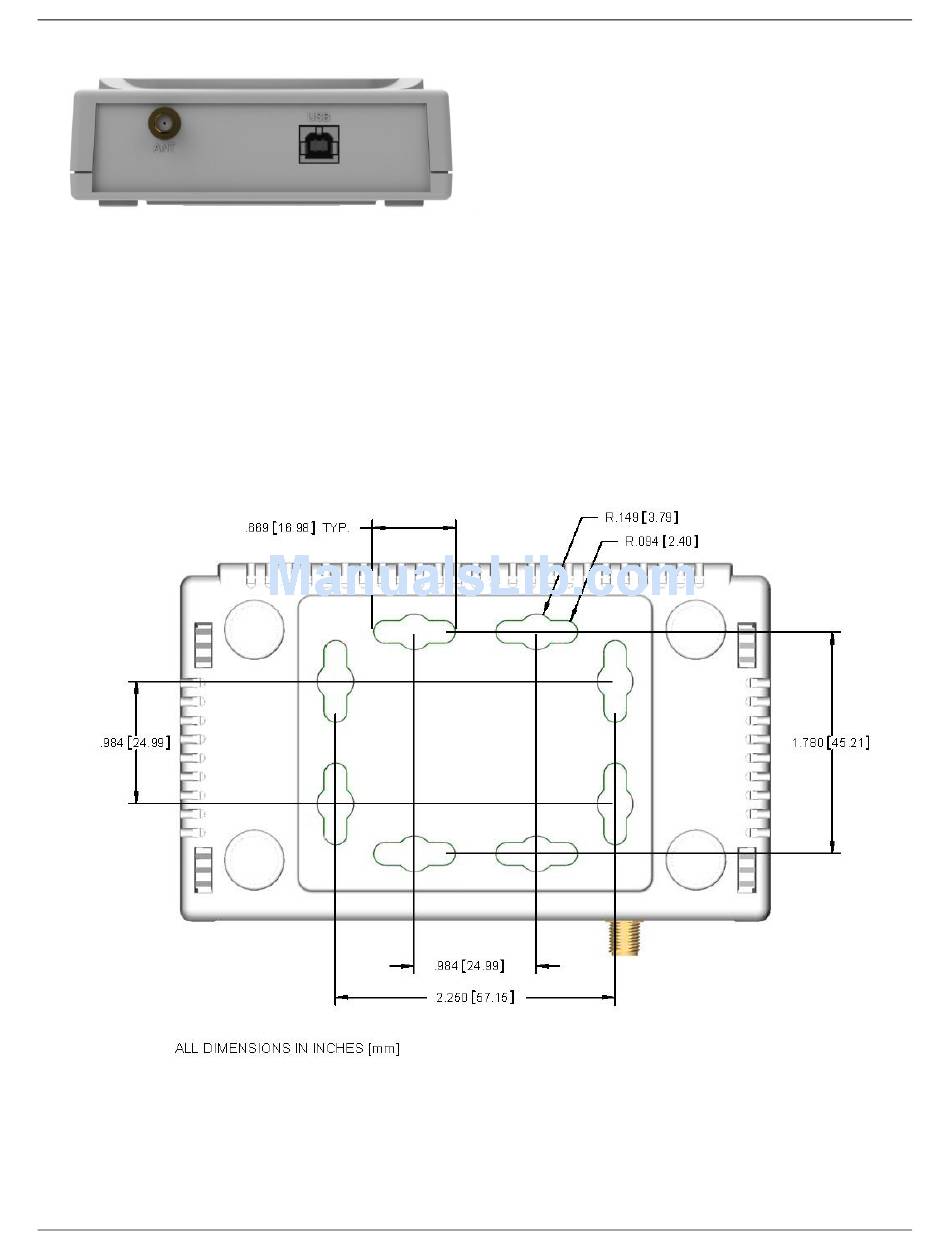

Mounting the Modem on a Flat Surface
You can mount the modem on a flat surface, if desired. To properly place mounting screws, use the
measurements shown in the illustration that follows.
Use #6 pan head screws for all mount locations.
Multi-Tech Systems, Inc. MultiModem Cell User Guide
Chapter 2 – Activating and Installing the Modem
11
