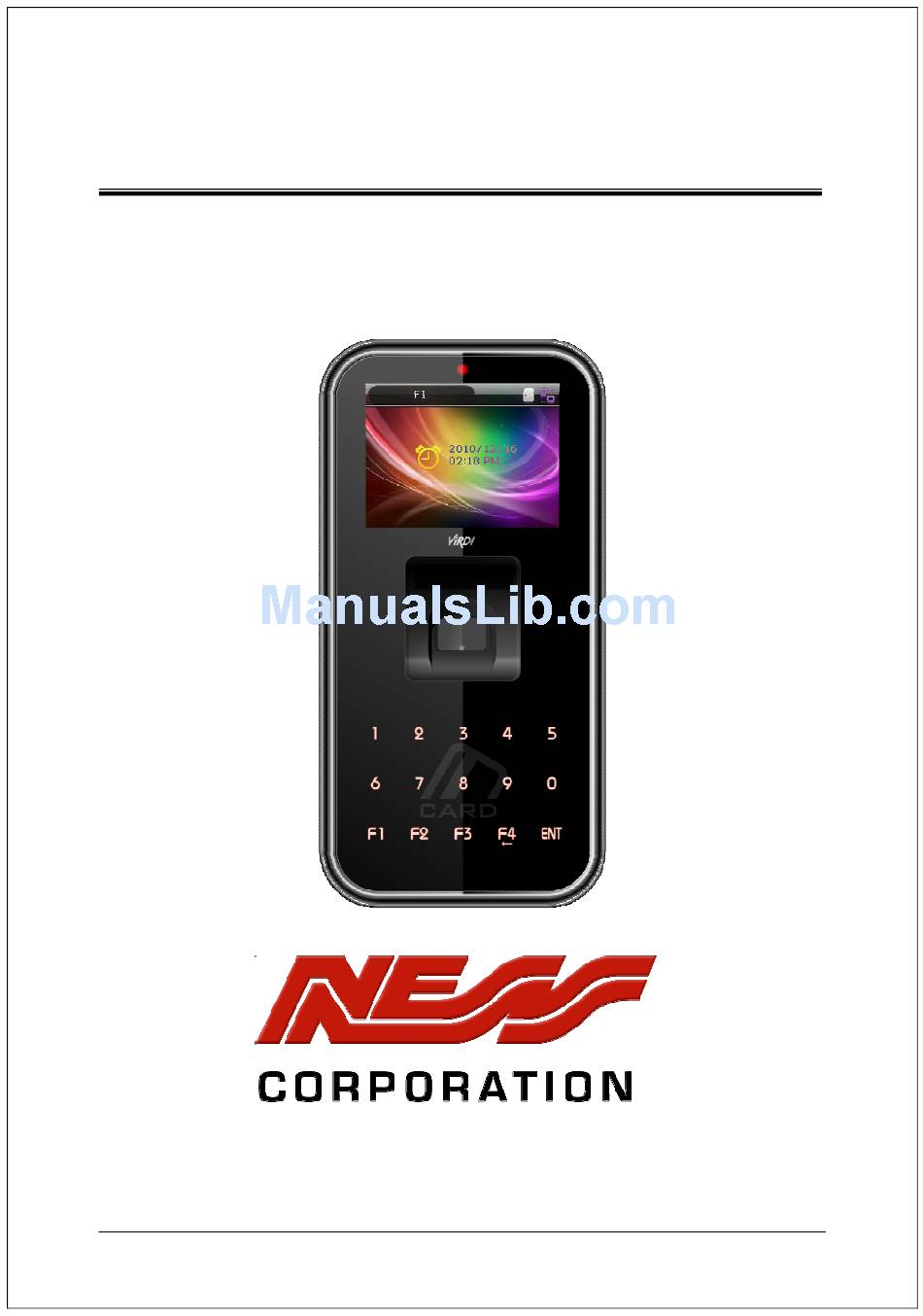

AC-5000 .User Guide
Version eng-1.00
Copyright 2000 By Union Community Co., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ac-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ness Ac-5000

Summary of Contents for Ness Ac-5000

  • Page 1 AC-5000 .User Guide Version eng-1.00 Copyright 2000 By Union Community Co., LTD.

  • Page 2: Glossary

    AC-5000 User Guide <Revison History> Version Date Description Firmware Version 1.00 2011-01-10 Initial Release 10.51.00-000.00 <Glossary> Admin (Administrator) - As a user who can enter the terminal menu mode, he/she is authorized to register/modify/delete terminal users and change the operating environment by changing the settings.

  • Page 3: Table Of Contents

    AC-5000 User Guide Table of Contents <Revison History> ....................2 <Glossary> ........................ 2 Table of Contents ............Error! Bookmark not defined. 1. Before use ......................5 1.1. Safety precautions ..................5 1.2. Terminal description ................... 6 1.3. Screen description (during operation) ............6 1.3.1.
  • Page 4 AC-5000 User Guide 3.6.6. Database .................... 38 3.7. Terminal ...................... 40 3.7.1. Terminal Option .................. 41 3.7.2. Volume Control ................... 41 3.7.3. Door ....................42 3.7.4. Wiegand ..................... 43 3.7.5. Card Reader ..................44 3.7.6. External Device .................. 45 3.8. Information ....................45 3.8.1.

  • Page 5: Before Use

    AC-5000 User Guide 1. Before use 1.1. Safety precautions Warning Do not handle the unit with wet hands and do not allow Do not place a fire source liquid to flow into it. near the unit. -> cause -> It may cause a fire.

  • Page 6: Terminal Description

    AC-5000 User Guide 1.2. Terminal description State Display LED Fingerprint Sensor Touch Key Normally, the figure is invisible as LED is off, but LED is on and the figure is shown when the user touches this area lightly. Card Input Area 1.3.

  • Page 7: Icon Shown During Operation

    AC-5000 User Guide 1.3.1. Icon shown during operation None : Normal ① Fire Detection : State that fire is detected by fire sensor (subject to the connection with fire sensor) None : Normal ② Warning : Abnormal state that terminal is disassembled or door has...
  • Page 8 AC-5000 User Guide - When any unregistered card is input - When fingerprint input is failed - When the user took the finger off too fast before the fingerprint is input - When Anti-pass back is in error (in the event the user uses...
  • Page 9 AC-5000 User Guide - When it is not the meal time (in the event it is set to Cafeteria) - When the authentication may not be treated as there are too many authentication requests from the terminal during the server authentication.

  • Page 10: Led Signal Shown During Operation

    AC-5000 User Guide - When waiting for the response after the user attempted authentication to the server - When upgrading the terminal program (Be sure not to power off the terminal during the time the message is output) 1.4. LED signal shown during operation On: Normal ●...

  • Page 11: Voices Used During Operation

    AC-5000 User Guide seconds or longer - Used to apply the configuration to the current screen in the menu mode and then exit to the parent menu. 1.6. Voices used during operation Type of operation Voice For fingerprint input Please enter your fingerprint.

  • Page 12: Product Introduction

    AC-5000 User Guide It will facilitate the accurate and stable input of fingerprint. Please check if the fingerprint is not clear or has any scar. Too dry or wet fingerprint, ambiguous fingerprint, fingerprint with scar, etc. may not be recognized. In this case, use/register the fingerprint of another finger.
  • Page 13 AC-5000 User Guide - Easy to install as it is designed in a standing type; Slim and elegant design using Color LCD and Touch Key Download function of Server – Enables to change background image and voice - Provides a variety of info messages through color LCD and voice; User can download background image and voice from the server according to his/her preference.
  • Page 14 AC-5000 User Guide Card or fingerprint authentication Card & FP Card and fingerprint registration Card authentication and then fingerprint authentication Card or PW Card and password registration Card or password authentication Card and PW Card and password registration Card authentication and then password authentication (ID or Card) &...

  • Page 15: Configuration

    AC-5000 User Guide 2.2. Configuration 2.2.1. Standalone (Access) DC12V Adapter Electromagnetic Lock (Lock+, Lock-, Monitor) 2.2.2. Connect with PC SERVER (Access, Time & Attendance, Cafeteria) TCP/IP TCP/IP Fingerprint authentication TCP/IP server (Fixed IP) UDB Server Internet / Database (MDB or MSSQL)

  • Page 16: Specification

    AC-5000 User Guide 2.3. Specification Division SPEC REMARK 32Bit RISC CPU (400MHz) Rainproof IP65 2.8” TFT Color (320*240) Touch Key 15key (0~9, F1~F4, Enter) 32M SDRAM 20,016 User MEMORY 32M FLASH 20,016 Finger 61,439 Log Fingerprint sensor Optical Authentication speed...

  • Page 17: Environment Settings

    AC-5000 User Guide 3. Environment settings 3.1. Items to be checked before environment settings 3.1.1. Enter the Menu Press [ENT] key for two seconds or longer, then the user can access the screen for menu selection as follow; <Figure 3-1>...
  • Page 18 AC-5000 User Guide ② With the lid open, as shown in the figure below, connect pin No. 1 with pin No. 3, and pin No. 2 with pin No. 4 of J404 connector respectively at backside. <Figure 3-3> ③ Access the menu by pressing [F4(←)]key for 2 seconds or longer, fill Admin ID with ‘0’...

  • Page 19: Save Environment Settings

    AC-5000 User Guide In case of selecting an item out of the given sample like ‘Fake Finger Detect’, user must modify the item selection ( ) by pressing the relevant number key, provided that, user must select the item after moving the focus from the input box by pressing [ENT] key if the focus is located at the input box as shown in <Figure 3-5>.
  • Page 20 AC-5000 User Guide the initial screen. If there is no revised contents, it exits from the environment settings menu without the aforementioned process of “Save?”. When the settings are changed in the menu, if there is no input for a certain period of time, it exits from the environment setting menu.

  • Page 21: Menu Configuration

    AC-5000 User Guide 3.2. Menu Configuration 1. User 1. Add 2. Delete 3. Modify 4. Delete All 2. Network 1. IP 1. Static IP / 2. DHCP ▶IP Address ▶Subnet Mask ▶Gateway ▶Server IP 2. Server IP ▶Server Port ▶Terminal ID 3.

  • Page 22: System

    AC-5000 User Guide ▶UserID Length 4. System 1. System Setting ▶Display Option ▶User GroupIP 2. Authentication ▶Enable 1:N ▶Card Only ▶Template On Card ▶Verify Multi-FP ▶Blocking Time (sec.) ▶1:1 Level [1~9] 3. Fingerprint ▶1:N Level [3~9] ▶Fake Finger Detect □Check SameFP 4.
  • Page 23 AC-5000 User Guide 3.3. User Select “1. User” in the main menu, then the following screen will appear. Press [1] key to register new user, [2] key to delete user, [3] key to modify user, and [4] key to delete all users.
  • Page 24 AC-5000 User Guide Therefore, special care is required for the registration of the admin. 3.3.1.1. Auth Type Delete the existing value by pressing [F4(←)] key, enter one of the 12 authentication types shown on the screen, and then press [ENT] key.
  • Page 25 AC-5000 User Guide 3.3.1.3. Card Register When registration screen appears, put the card on it. If you want to exit without registration, press [F4(←)] key. 3.3.1.4. PW Register Input the password in 1~8 digits on the password input screen and press [ENT] key. The ‘Confirm Password’...
  • Page 26 AC-5000 User Guide successfully authenticate using fingerprint without any user ID or card. 3.3.1.6. Save When registration process is finally completed, press [6] key to save it. In this case, the user is not saved if the user doesn’t press [6] key but exits by pressing [F4(←)] key..
  • Page 27 AC-5000 User Guide In the case of [3. Card Register] When the user intends to register a card that has been already registered In case of [2. FP Register], when the user intends to register again the fingerprint that has already been registered.
  • Page 28 AC-5000 User Guide When it is deleted normally When the user inputs an unregistered ID 3.3.3. Modify When the user selects ◆ [ENT~] [3. Modify] in the initial screen ◆, the [1. User] following screen will appear. Press [ENT] key after inputting the user ID to be changed.
  • Page 29 AC-5000 User Guide 3.3.4. Delete All When the user selects ◆ [ENT~] [4. Delete All] in the initial screen ◆, the [1. User] following screen will appear. If the user is sure to delete all users, press [1.Yes] while press [ENT] key after selecting [2.No] to cancel it.

  • Page 30: Authentication

    AC-5000 User Guide finishing the setting while using [F4(←)] key to cancel input during setting. In this case, the user can exit only by pressing the key for 2 seconds or longer if he/she is inputting the value in the input box.
  • Page 31 AC-5000 User Guide However, authentication is made by the server when the input user ID or card is not registered in the terminal. (It doesn’t attempt server authentication in case of 1:N fingerprint authentication) 3. Server Only Although the user is registered in the terminal, authentication is made through the server.
  • Page 32 AC-5000 User Guide When the user selects ◆ [ENT~] [3. Application] [2. Time Schedule] in the initial screen ◆, the following screen will appear. ▶Initial setting: Identical with the screen at the left The user can set the time zone by authentication modes;...
  • Page 33 AC-5000 User Guide When releasing the check box ( ), each user is allowed for one authentication by meal only, but when the user checks the box ( ) he/she is allowed for several authentications regardless of the existing authentication.
  • Page 34 AC-5000 User Guide [F1]~[F4] key. ----------------------------------------------------------------------------------------------------------- Ex) In case the number of extended keys is 16, press [F4] key in the initial screen, then the following screen will appear. If the user has to select ExtMode 12, move to the next page with [F2] key and then press [2] key.
  • Page 35 AC-5000 User Guide 3.6. System When selecting ‘4. System’ in the main menu, the following screen will appear. Press the applicable key that represents the item to be changed. 3.6.1. System Setting When the user selects ◆ [ENT~] [4. System] [1.
  • Page 36 AC-5000 User Guide ▶User GroupIP As the method of authentication regarding the initial digit of ID as the same group, it can finish 1:N authentication more quickly if at least 5,000 users are registered. When this method is checked, it authenticates the fingerprint out of the users whose ID starts with the input letter.

  • Page 37: Fingerprint

    AC-5000 User Guide 3.6.3. Fingerprint When the user selects ◆ [ENT~] [3. Fingerprint] in the initial screen ◆, [4. System] the following screen will appear. ▶Initial setting: Identical with the screen at the left ▶1:1 Level Authentication level that is used for 1:1 Fingerprint Authentication, provided that, 1:1 authentication level of the relevant user shall apply for the user whose 1:1 authentication level is not set to ‘0’...

  • Page 38: Data Time

    AC-5000 User Guide ▶Initial setting: ‘1. English’ When changing the language settings, the voice message and on-screen message are changed into the language set. The user can exit to the parent menu using [ENT~] key to apply the changed value after finishing the setting while using [F4(←)] key to cancel input during setting.
  • Page 39 AC-5000 User Guide Press the following keys; [1] key to initialize the configuration, [2] key to delete all users, [3] key to initialize the authentication record, and [4] key to initialize the terminal. 3.6.6.1 Init Config When the user selects ◆ [ENT~] [4.

  • Page 40: Terminal

    AC-5000 User Guide 3.6.6.3. Clear Log Data When the user selects ◆ [ENT~] [4. System] [6. Database] [3. Clear Log Data] in the initial screen ◆, the following screen will appear. Press [1.Yes] key to delete all the authentication records saved in the terminal while select [2.No] and press [ENT] key to cancel it.

  • Page 41: Terminal Option

    AC-5000 User Guide Press the applicable key that represents the item to be changed 3.7.1. Terminal Option When the user selects ◆ [ENT~] [5. Terminal] [1. Terminal Option] in the initial screen ◆, the following screen will appear. ▶Initial setting: Identical with the screen at the left ▶Dooropen...

  • Page 42: Door

    AC-5000 User Guide ▶Initial setting: Identical with the screen at the left Sets Voice Volume and Beeper Volume. When set to ‘0’, no voice or buzzer sound is generated. The user can exit to the parent menu using [ENT~] key to apply the changed value after finishing the setting while using [F4(←)] key to cancel input during setting.

  • Page 43: Wiegand

    AC-5000 User Guide opened, and generates a warning sound once it exceeds the preset time (min. 5 sec~ max 30 sec). When set to ‘00’, warning doesn’t sound at all. Even if set to 01~04, it starts sounding when it exceeds at least 5 seconds.

  • Page 44: Card Reader

    AC-5000 User Guide only. The setting type can only be inquired at the terminal. However, when Bypass is checked, regardless of Wiegand Out settings, it transmits the data received by Wiegand Input at the time when authentication was successful to the Wiegand Output as it is.

  • Page 45: External Device

    AC-5000 User Guide number Decimal Hexadecimal number 529D06E3 to be expressed in 1386022627 number a 10-digit decimal number Decimal Hexadecimal number E3069D52 to be expressed in 3808861522 number 35 a 10-digit decimal number The user can exit to the parent menu using [ENT~] key to apply the changed value after finishing the setting while using [F4(←)] key to cancel input during setting.

  • Page 46: System Info

    AC-5000 User Guide 3.8.1. System Info Select ◆ [ENT~] [6. System Info] in the initial screen ◆ [6. Information] Press [F4(←)] key to exit to the parent menu. 3.8.2. Network Info Select ◆ [ENT~] [2. Network Info] in the initial screen ◆...

  • Page 47: View Log

    AC-5000 User Guide 3.8.4. View Log Select ◆ [ENT~] [4. View Log] in the initial screen ◆ [6. Information] - All Log: Number of logs saved in the terminal - Max Log: Maximum number of logs that can be saved Press [F4(←)] key to exit to the parent menu.

  • Page 48: Change Voice Message

    AC-5000 User Guide To change background image, the user can directly select it from ‘3.5.5 Display”. 3.9.2. Change Voice Message When selecting ‘Download customized file’ in UNIS program, the following screen will appear. Designate the file as ‘Success voice file (.wav)’, select Wav file (.wav) and click the ‘Send’...
  • Page 49 AC-5000 User Guide ‘User Text’ item in ‘3.5.5 Display’.

  • Page 50: How To Use The Terminal

    AC-5000 User Guide 4. How to use terminal 4.1. Change of authentication mode Press the desired mode key Touch the hand <Figure 4-1> Normally, it is not visible; but when the user touches the hand on the card input area as shown in the Figure at the left, LED will be powered ON and a keypad will appear as shown in the Figure at the right.

  • Page 51: Authentication

    AC-5000 User Guide Delete with [F4(←)] key if the figure is wrongly input during the input process. When pressing [ENT] key after inputting ID, the fingerprint input or password input screen appears depending on the method of user authentication. However, authentication will fail if a card user inputs ID first. Therefore, be sure to use the card.
