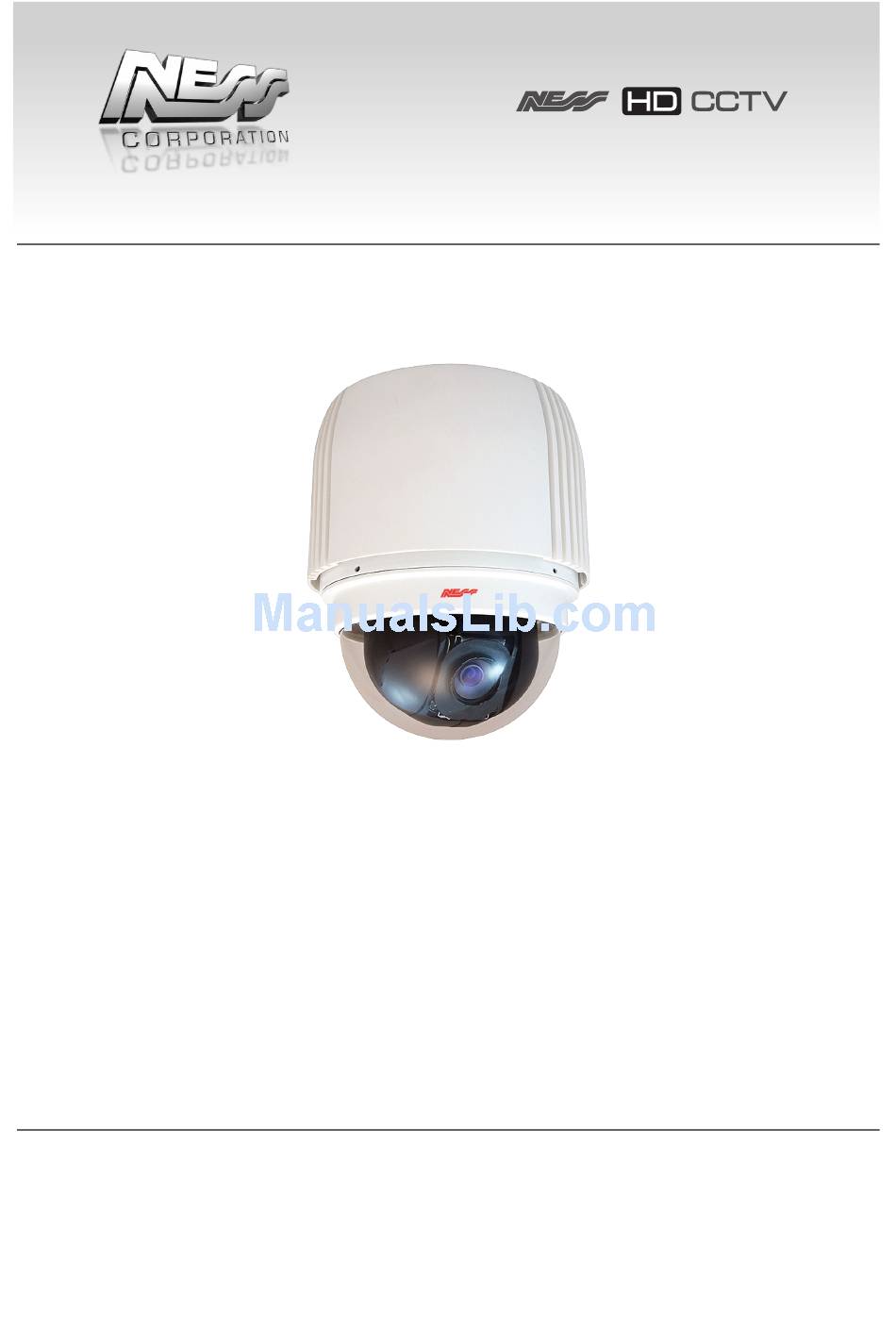

- Page 1 104-462 NIP700PTZ Full HD Speed Dome IP Camera USer’S MaNUal www.ness.com.au REV1.5...
- Page 2 All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
-
Page 3: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ......................3 Dimensions........................5 Switch/Connector Definition ..................6 Camera Cabling........................7 Connect Power......................7 Connect Ethernet Cable ....................7 Apply Alarm I/O ......................8 Apply Audio ........................8 System Requirements ......................9 Access Camera ........................ -
Page 4: Overview
Overview The Full HD Speed Dome IP Camera transmits digital video and audio data using wire connection. Live video can be monitored and recorded from window-based computer via network. The video encoder supports real-time Main Profile H.264 Full HD resolution. Simultaneous dual streams, H.264/H.264 and H.264/MJPEG, are available for various network applications via speeding or limited bandwidth. -
Page 5: Package Contents
Package Contents Please check the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. Indoor Dome Camera Package Hard Ceiling Mount M3 Screw (x3) M4 Screw (x4) Fixing Plate Plastic Anchors (x4) - Page 6 Outdoor Dome Camera Package M3 Standard Screw (x1) M3 Security Screw (x1)* M5 Standard Screw (x1) M5 Security Screw (x1)* Dome Camera with Outdoor Mount Kit Waterproof Rubber Quick Guide CD: Operation Manuals Lubricant Security Torx* Optical Cover *Optional: For Vandal Proof Cover only.
-
Page 7: Dimensions
Dimensions Indoor Outdoor... -
Page 8: Switch/Connector Definition
Switch/Connector Definition There are various connectors located on the Dome Camera’s back plate as shown in the figures below. Please refer to the diagrams and tables accompanied with for use of each switch/connector. Indoor Outdoor RJ-45 Connector ALARM I/O Power Micro SD Card Slot Factory Reset Button Audio I/O... -
Page 9: Camera Cabling
Camera Cabling Please follow the instructions below to complete network Speed Dome Camera connection. Connect Power Please refer to the illustrations below to connect power core through the supplied power adaptor. Definition AC 24_1 AC 24_2 Connect Ethernet Cable Use of Category 5 Ethernet cable is recommended for network connection; to have best transmission quality, cable length shall not exceed 100 meters. -
Page 10: Apply Alarm I/O
Apply Alarm I/O The network Speed Dome Camera supports 4 digital alarm inputs and 2 digital alarm outputs. Please make sure the alarm connections are properly wired before starting to configure alarm related settings on this “Application” page. Please refer to the pin definition table below for alarm system wiring. Definition Definition ALARM_OUT_COM_2... -
Page 11: System Requirements
System Requirements To perform the network Speed Dome Camera via web browser, please ensure your PC is in good network connection, and meet system requirement as described below. Items Minimum Requirement ® ® ® 1. Intel Pentium IV, 3 GHz or higher, Intel Core2 Duo, 2 GHz or higher Personal Computer... -
Page 12: Access Camera
Access Camera For initial access to the network Speed Dome Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Device Search Software Setup Step 1: Double click on the program Device Search.exe. After its window will appear, click on the <Device Search>... - Page 13 Additionally, users can change the network Speed Dome Camera’s network property, either DHCP or Static IP directly in the device finding list. Refer to the following section for changing the network Speed Dome Camera’s network property. Example of Changing IP Camera’s Network Property Users can directly change a Network Speed Dome Camera’s network property, ex.
- Page 14 The Information Bar (just below the URL bar) may come out and ask for permission to install the ActiveX Control for displaying video in browser. Right click on the Information Bar and select <Install ActiveX Control…> to allow the installation. Then the security warning window will pop up. Click on <Install> to carry on software installation.
-
Page 15: Setup Video Resolution
Setup Video Resolution Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. -
Page 16: Video Format
Video Format Under Video Resolution section, select a preferred resolution setting. The available Video Resolution for MJPEG & H.264 format includes: MJPEG+ H.264 H.264 MJPEG BNC SUPPORT 720 x 480 (30fps)* √ 1920 x 1080 (30fps) 640 x 480 (30fps) √... - Page 17 640 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ H.264 + H.264 H.264-1 H.264-2 BNC SUPPORT 720 x 480 (30fps)* √ 1920 x 1080 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ 1920 x 1080 (15fps) √...
- Page 18 640 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ MJPEG ONLY MJPEG BNC SUPPORT 1920 x 1080 (30fps) √ 1280 x 1024 (30fps) √ 1280 x 720 (30fps) √ 1024 x 768 (30fps) √ 800 x 600 (30fps) √...
-
Page 19: Appendix A: Technical Specifications
Appendix A: Technical Specifications 104-462 CAMERA Sensor 1/2.8” Sony Progressive Scan CMOS Sensor Optical Zoom Digital Zoom 1~8x variable Focal Length Focus Mode Auto / Manual White Balance Auto/ Indoor/ Outdoor/ ATW Iris Control Auto / Manual Electronic Shutter 1/30 ~ 1/10k sec. Auto / Manual AGC control Back Light... - Page 20 Items 104-462 Video Compression H.264 Main Profile/ MJPEG Video Streaming Multiple Streams, H.264 + MJPEG/ H.264 + H.264 Video Resolution 1080P/ 720P/ VGA/ D1 Frame Rate 30/25 fps @ 1080P 60/50 fps @ 720P G711/ G.726 ADPCM/AAC Audio Compression Audio Streaming Two-way Interface 10/100 Mb Ethernet (RJ-45)
-
Page 21: Appendix B: Delete The Existing Dc Viewer
Appendix B: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing to the network Speed Dome Camera. Deleting the DC Viewer Activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 22: Appendix C: Setup Internet Security
Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>...
