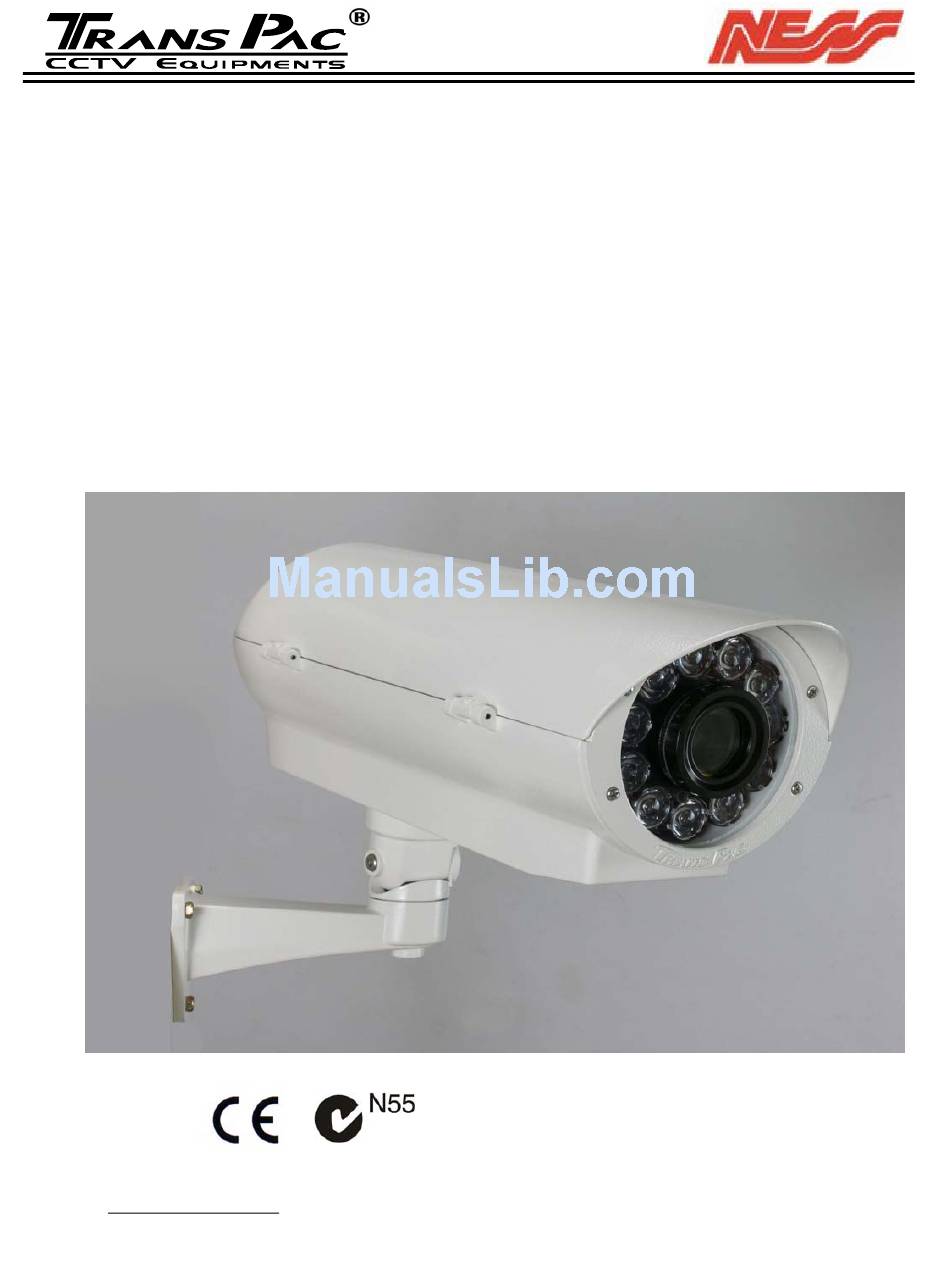

- Page 1 INSTRUCTION MANUAL 104-261 series Infrared Illuminator Housing and Infrared Day & Night True Color Camera IP66 RoHS www.ness.com.au...
-
Page 2: Important Note
SAFETY WARNING / IR Illuminator Housing SPECIFICATIONS CAUTION: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. UNPACKING: Unpack carefully. Electronic components can be damaged if improperly handled or dropped. -
Page 3: Camera Specifications
CAMERA SPECIFICATIONS Image device SONY 1/3" interline transfer Super HAD CCD Signal system Picture Elements 752(H) x 582(V) Scanning system 625 lines. 2:1 interlace Lens 7.5 ~ 50mm Vari-focal ED-IR Lens Horizontal resolution 540 TV lines 0.1 lux at F1.2(30 IRE,AGC on) Minimum Illumination 0.001lux at F1.2(B/W mode, AGC on, sense up on) 0 lux under infrared illumination... -
Page 4: Camera Functions
CAMERA FUNCTIONS DIGITAL NOISE REDUCTION COLOR VIDEO CAMERA The digital noise reduction technology is built into the camera to eliminate any noise associated with low night environment. Ghost and blooming effects are reduced dramatically, leaving the Image clean and vivid. DAY AND NIGHT MECHANICAL FILTER REMOVABLE The smart day and night mechanical filter removable allows changing between color monochrome Mode, and user could define the filter to work correctly during day time and night time (invisible... -
Page 5: Part Description
Part Description 250V / 3.15A P2TPTR0001 TRANSPAC OUTPUT_1 OUTPUT_2 AC IN Monitor Lens Cap with Heater Temper Glass Camera IR LED : 11pcs super high power IR LED with refractor . IR Board and IR Board Bracket Universal IR Control Circuit Board : When the IR light turn on, automatically adjusts any type of color camera from color to monochrome through the universal IR control circuit. - Page 6 Part Description / Power Connection Camera Bracket Power Supply Unit : AC24V power input , DC12V output. Blower and Blower Bracket Thermostat Switch : Turn on at 18ﾟC and turn off at 28ﾟC for Heater . Video Input BNC Male Connector: Connect to camera. Video Out BNC Female Connector: Connect to monitor.
-
Page 7: Installation
INSTALLATION Loosen two screws on both sides of the camera bracket first. Use provided screw to fix the camera on the camera bracket. Adjust zoom, focus and iris of the lens on the camera. Adjust the direction of the camera for proper position, after finished tighten all screws. How to install Cables through the Mounting Bracket... - Page 8 Brisbane www.ness.com.au Unit 3A / 471 Lytton Road Sydney (Head Office) Morningside QLD 4170 Ness Security Products Pty Ltd Phone: 07 3399 4910 ABN 28 069 984 372 Fax: 07 3217 9711 4/167 Prospect Highway Nessper@ness.com.au Seven Hills NSW Australia 2147...
