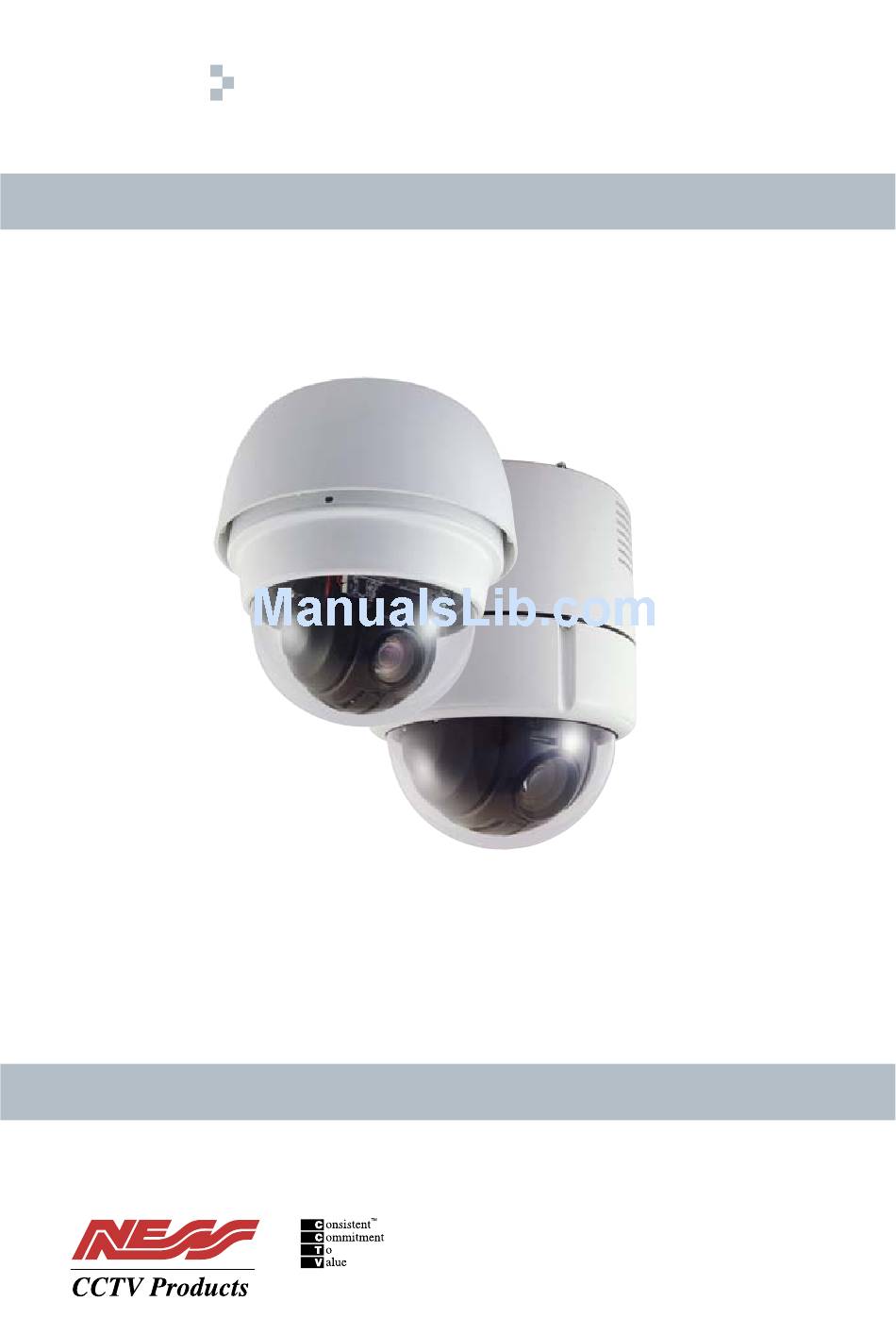

- Page 1 Ness Ultimate Series 10x Mini Rugged Speed Dome Installation Manual Installation Manual revision 2.5...
- Page 2 Installation Guide Preface The information given in this manual was current when published. The company reserves the right to revise and improve its products. All specifications are subject to change without notice. Notice This manual provides the installation information for indoor and outdoor Vandal Proof Mini Speed Domes.
- Page 3 Installation Guide This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 4: Warnings And Cautions
Installation Guide Warnings and Cautions • Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. • Installing electricity wiring carefully Ask qualified personnel of electrical wiring for the installation. Please note that input electricity to the unit is at tolerance of DC12V/AC24V ±... - Page 5 Installation Guide • Do not use strong or abrasive detergents when cleaning the camera body Use a dry cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently. •...
-
Page 6: Table Of Contents
Installation Guide Table of Contents Introduction.........................7 Standard Package Content ..................9 Dome Setups and Cable Connection ..............11 Preparations for Indoor Dome Camera Setups..........11 Preparations for Outdoor Dome Setups.............12 Dome Setups .....................13 3.3.1 Switch Definition...................14 3.3.2 Communication Switch Setting.............14 3.3.3 Dome ID Setting ...................15 3.3.4 Dome Control Protocol Setting .............15... - Page 7 Installation Guide System Integration ....................53 Using Pelco Keyboard ..................53 Using Philips Allegiant Keyboard ...............54 Appendix A: Technical Specification ................55...
-
Page 8: Introduction
Installation Guide Introduction The Vandal Proof Mini Speed Dome Camera is a new subcompact high speed dome camera designed to deliver superb performance and durability with an intelligent and stylish housing that is suitable in any security and surveillance installation. With weather resistant housing (IP66 standard) and optional sunshield, the outdoor dome camera can face harsh circumstances. - Page 9 Installation Guide Connect dome cameras to other devices, as shown in the diagram, to complete a video surveillance system. NOTE: To extend the network distance up to 1.2 km (4000 feet) and to protect the connected devices, it is highly recommended to place a repeater at the mid-point.
-
Page 10: Standard Package Content
Installation Guide Standard Package Content Before proceeding, please check the box contains the items listed here. If any item is missing, or if damage is evident, DO NOT install or operate the product and contact your dealer for assistance. Indoor Vandal Proof Mini Speed Dome 12V DC Power Adaptor Power Hard Ceiling Mount and Cord (12V DC Only) - Page 11 Installation Guide Outdoor Vandal Proof Mini Speed Dome Data Cable for Power Lubricant & Screws Dome Body Supply, Video and RS-485 50-cm, 13-pin Alarm Cable Water-proof Rubber 5.4” Optical Cover Quick Guide CD: Operation Manuals...
-
Page 12: Dome Setups And Cable Connection
Installation Guide Dome Setups and Cable Connection Before installing or connecting the dome camera, please refer to this section and complete preparation, switch setting and communication switch settings. Preparations for Indoor Dome Camera Setups Follow the steps below to remove the PE cushion inside the dome cover and take off the lens cap to prepare for subsequent switch setting. -
Page 13: Preparations For Outdoor Dome Setups
Installation Guide Preparations for Outdoor Dome Setups This installation procedure is for the outdoor dome equipped with sunshield housing. Please follow the steps below to complete dome housing installation. STEP 1 Unpack the dome package and take out the dome body. STEP 2 Rotate the top holder and take it off from the dome body. -
Page 14: Dome Setups
Installation Guide Note that the tiny protrusion on the dome cover must align with one of the four holes on the dome body. STEP 5 Gently pressure the dome cover downward with two hands on the side of it. DO NOT press the cover, as shown in the figure;... -
Page 15: Switch Definition
Installation Guide 3.3.1 Switch Definition Please refer to the following figures and table for switch location and definitions. Indoor Dome Outdoor Dome Reserved Communication Switch Dome ID Switch Dome Control Protocol Switch RJ-45 Connector (for IP Dome only) 22-Pin Connector ISP Connector (for FW upgrade) 3.3.2 Communication Switch Setting... -
Page 16: Dome Id Setting
Installation Guide RS-485 Setting Half-duplex Full-duplex 3.3.3 Dome ID Setting Please change the dome ID if there is more than one dome on the same installation site. Before installing the dome camera, use the switch to change your speed dome ID by turning the arrow to the desired number respectively. For instance, if the dome ID is 123, the ID switch should be set as shown below. -
Page 17: Dome Cable Definition And Requirements
Installation Guide Switch No. Protocol Baud Rate 9600 Pelco D 2400 Pelco P 4800 Chiper 9600 Philips 9600 DSCP 9600 AD422 4800 DM P 9600 Pelco D 4800 Pelco D 9600 Pelco P 2400 Pelco P 9600 9600 Select protocol: Pelco D, with switch no. 01 and baud rate 2400, for instance, the protocol switch should be set as below. -
Page 18: 22-Pin Data Cable
Installation Guide • RS-485 cable carries commands from a control device to the dome cameras. A CAT 5, 24 gauge cable is recommended. • The power cable provides either AC 24V or DC 12V power supply to the dome. NOTE: Ensure power supply corresponds with the dome’s power requirement, or product impairment will occur. -
Page 19: 22-Pin Connector Definition
Installation Guide 3.4.3 22-Pin Connector Definition With the 22-pin connector, installers can simply connect the power, video and RS-485 cables to the dome at once. Particularly, the alarm pins are serviceable for connecting alarm input and output devices, such as alarm sensors, sirens or flashing lights with the surveillance system. -
Page 20: Rs-485 Connector
Installation Guide 3.4.4 RS-485 Connector RS-485 is the interface that communicates the dome camera and its control device. Please connect the control keyboard to the speed dome through the terminal block. The recommended cables for RS-485 communication are CAT 5 cables; maximum cable length for over 24-gauge wire is 4000 feet (1219 meters). - Page 21 Installation Guide Insert the terminal into the pin holes connector housing, with hook outward, as indicated in the figure. To unlock the terminal, press the hook, as indicated in the figure, with a proper tool and pull it out gently. Connect the 22-pin connector to the dome camera.
-
Page 22: Dome Installation
Installation Guide Dome Installation Basing on user’s installation environments, the dome can be installed on ceiling, on wall or on pole. In the following sections, various indoor dome installation accessories, installation methods and installation procedures will be described in detail. In addition, the next section will provide both indoor and outdoor domes’... -
Page 23: Optional Accessories
Installation Guide Optional Accessories Indoor Dome Camera Accessories Vandal Proof Cover Diameter: 137 mm (5.4 inches) Security Screw Set (equipped with Vandal Proof Cover) Indoor Mount Kit For mounting the indoor dome camera onto a gooseneck/straight tube. White; Diameter: 140 mm (5.5 inches); Height: 74 mm (2.9 inches); 0.3 kg (0.7 lbs) Attached Components: Waterproof Rubber, Hexagon Key, Lock Screw Plate, M5*8 screw×1, M5*8 security screw×1, M3*6 screw×1 Power Adapter... - Page 24 Installation Guide Outdoor Dome Camera Accessories Vandal Proof/Transparent/Smoke Cover Diameter: 137 mm (5.4 inches) Security Screw Set (equipped with Vandal Proof Cover) Power Adapter 77H07-A1030 (Input: 100~115VAC/Output: 24VAC 72VA) 77H07-A2030 (Input: 220~230VAC/Output: 24VAC 72VA) NOTE: When wiring, make sure the G/Y wire (Ground) inserted into the mid-pin of the terminal block Sunshield (Outdoor Dome) White Color, Height: 89.9 mm (3.54 inches);...
- Page 25 Installation Guide T-Bar Ceiling Mount, T-Bar Body Holder and Red Sticker For in-ceiling Installation use. T-Bar Ceiling Mount: Height: 85 mm (3.35 inches); Diameter: 180 mm (7.1 inches); 0.5 kg (1.1 lbs).Red Sticker: 155 +/- 3 mm (6.1 +/- 1.2 inches) Ceiling Panel For ceiling mounting.
- Page 26 Installation Guide Mini Pendant Mount White; 184×104×115.2 mm (7.24×4.09×4.54 inches); 0.6 kg (1.2 lbs). Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and M8*12 screw×1. Straight Tube White, Iron, Height: 250/500 mm (9.8/19.7 inches) ,Diameter: 50 mm (2 inches) 1 kg (2.2 lbs) / 1.8 kg (4 lbs), Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and waterproof rubber×1, M8*12 screw×1.
- Page 27 Installation Guide Corner Standard Mounting Plate White, 222×204×117 mm (8.7×8×4.6 inches); 2 kg (4.4 lbs); Supplied with washer-8×4, spring washer×4, M8*16 screw×4, M8 nut×4. Corner Thin Box White/Ivory, 300×164×222 mm (11.8×6.5×8.7 inches); 3 kg (6.7 lbs); Supplied with washer×4, M8*16 screw×4 and spring washer×4. Corner Wide Box White/Ivory;...
- Page 28 Installation Guide Pole Thin Box White/Ivory; 291×136×242 mm (11.5×5.4×9.5 inches); 3.1 kg (6.9 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. Pole Wide Box White/Ivory, 270×166×155 mm (10.6×6.5×6.1 inches); 3.2 kg (7.1 lbs); Supplied with M8*16 screw×4, washer×4, spring washer×4, stainless steel straps×4. Wall Box Mounting Ivory, 270(L)×166(W)×95(D) (10.6×6.5×3.7 inches);...
- Page 29 Installation Guide Pole Thin Direct Mounting White/Ivory, 232×136×60 mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs); Supplied with stainless steel straps×4, M8*16 screw×4, washer×4. Pole Wide Direct Mounting White/Ivory, 270×170×60 mm (10.6×6.7×2.4 inches); Diameter: 112~130 mm (4.4~5 inches);...
- Page 30 Installation Guide Other Application Accessories Repeater/Converter D77R1: RS-485/RS-422 Repeater D77R2: RS-232 between RS-485/RS-422 D77R3: Bi-phase to RS-485/RS-422 D77R1 D77R2 D77R3 Connector Box (Indoor Application) Recommended for wiring indoor dome alarm cables. White Color. 92×42 mm (3.7×1.7 inches); 0.13 kg (0.3 lbs); Supplied with cable×1, bracket×1 and M3*6 screw×2. Power Box White, 186.5×147 mm (7.3×5.8 inches);...
-
Page 31: Ceiling Mount
Installation Guide Ceiling Mount Generally, there are three kinds of dome camera ceiling mounting methods: hard-ceiling, in-ceiling and mounting with straight tube. Refer to the following sections for more details. The following figures show how cables connect to the dome camera in different ways. - Page 32 Installation Guide STEP 1 Screw the Fixing Plate to your dome body. STEP 2 Remove Hard Ceiling Mount from the Decoration Cover. STEP 3 Attach the Mount to the ceiling. Mark the locations where all three ceiling holes should go. STEP 4 Drill these holes on the hard ceiling.
-
Page 33: In-Ceiling Mounting (Indoor)
Installation Guide STEP 7 Attach the dome body to the Mount and rotate the dome body clockwise. Tighten the fixing screw on the fixing plate. STEP 8 Assemble the Decoration Ring to the Mount. Completion 4.3.2 In-Ceiling Mounting (Indoor) Here lists the items and tools needed to mount the dome camera into the ceilings. - Page 34 Installation Guide Tools Needed: • Tool for cutting a circle on the ceiling • (+,–) Screw Driver Follow the steps to install the integrated high speed dome camera with T-Bar Ceiling mount accessory for in-ceiling mounting. STEP 1 Screw the T-Bar Body Holder, which is equipped with the T-Bar, onto the dome back, as shown in the figures.
- Page 35 Installation Guide STEP 4 Rotate the T-Bar’s wings to fix the T-Bar at the edge of the ceiling opening. STEP 5 Tighten the screws on the wings. STEP 6 Connect the data cable to the dome body through the center hole of the bracket.
-
Page 36: In-Ceiling Mounting With Ceiling Panel
Installation Guide STEP 8 Assemble the Decoration Ring to the T-Bar. Completion 4.3.3 In-ceiling Mounting with Ceiling Panel To mount the dome camera to a suspended ceiling with the T-Bar, the ceiling panel could be employed, as shown in the figure below. Follow the steps below for installing the ceiling panel. -
Page 37: Ceiling Mounting With Straight Tube
Installation Guide 4.3.4 Ceiling Mounting with Straight Tube The straight tube is available in different length: 25 cm and 30 cm. Items Needed: • Dome Camera • Straight Tube and other equipped items (optional accessory) • Waterproof Rubber (standard accessory for the outdoor dome) •... -
Page 38: Wall Mount
Installation Guide Ceiling Mount: Straight Tube + Waterproof Rubber Wall Mount 4.4.1 Wall Mounting with Gooseneck Tube The following figures show how cables run through the tube in different ways. Cables exposed Cables recessed Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) •... - Page 39 Installation Guide Tools Needed: • Tool for drilling • Tool for screwing Follow the steps to mount the dome with the gooseneck tube. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can be threaded through the cable entry hole on the tube. 2) Fix the Gooseneck Tube on the wall with proper screws and screw anchors (not supplied).
-
Page 40: Mini Pendant Mount
Installation Guide 4.4.2 Mini Pendant Mount Items Needed: • Dome Camera • Mini Pendant Mount and other equipped items (optional accessory) • Waterproof Rubber (standard accessory for the outdoor dome) • Screws and Screw Anchors for fixing the Mini Pendant Mount (not supplied) Tools Needed: •... -
Page 41: Wall Box Mounting
Installation Guide Mount with the supplied screws and washers. 6) Connect the cables to the dome camera. Then attach the dome to the top holder and fix them with the supplied screw. 4.4.3 Wall Box Mounting Items Needed: • Dome Camera •... -
Page 42: Corner Mount
Installation Guide washers. Then adjust the waterproof rubber to the junction of straight tube and top holder. 6) Connect the cables to the dome camera. Then attach the dome to the top holder and fix them with the supplied screw. Wall Box Mounting: Wall Box Mount + Gooseneck Tube + Waterproof Rubber Corner Mount 4.5.1... -
Page 43: Corner Thin/Wide Box Mounting
Installation Guide standard/mini mounting plate and gooseneck tube/mini pendant mount. 1) Make a cable entry hole on the wall to recess the cables. Otherwise, cables can be threaded through the cable entry hole on the tube. 2) Fix the Corner Standard/Mini Mounting Plate on corner wall with proper screws and screw anchors (not supplied). - Page 44 Installation Guide Items Needed: • Dome Camera • Gooseneck Tube and other equipped items (optional accessory) • Corner Thin/Wide Box (optional accessory) • Waterproof Rubber (standard accessory for the outdoor dome) • Screws and Screw Anchors for fixing the Corner Thin/Wide Box (not supplied) Tools Needed: •...
-
Page 45: Pole Mount
Installation Guide Corner Box Mounting: Corner Thin/Wide Box + Gooseneck Tube + Waterproof Rubber Pole Mount 4.6.1 Pole Thin/Wide Direct Mounting The dome can be installed on a pole with a thin/wide direct mounting accessory and a gooseneck. Items Needed: •... -
Page 46: Pole Thin/Wide Box Mounting
Installation Guide screws and washers. 3) Attach the waterproof rubber to the gooseneck tube. 4) Thread the cables through the gooseneck tube and the top holder. NOTE : After threading the cables, please block the cable entry hole with the supplied sponge(s) to avoid insects entering the tube. 5) Fix the top holder to the gooseneck tube with the supplied screws and washers. - Page 47 Installation Guide 2) Fix the gooseneck tube on the pole box with the supplied screws and washers. 3) Attach the waterproof rubber to the gooseneck tube. 4) Thread the cables through the gooseneck tube and the top holder. NOTE : After threading the cables, please block the cable entry hole with the supplied sponge(s) to avoid insects entering the tube.
-
Page 48: System Expansion
Installation Guide System Expansion Connecting with Connector Box (Indoor) Ideally being used in indoor installation circumstances, a Connector Box provides easy wiring and well organized connection between alarms, cameras and other devices, for easy installation. To connect the connector box with other devices: •... -
Page 49: Connecting With Power Box (Outdoor)
Installation Guide Connecting with Power Box (Outdoor) A power box contains a 24V AC adapter, two terminal blocks (for communication and power) and one alarm board. With an IP66 case, the Power Box is ideal for outdoor installation environment. Two models are available: 100~115V AC power input (P1030) and 220~230V AC (P2030). -
Page 50: Data Formats Transforming
Installation Guide Data Formats Transforming To integrate other surveillance devices with the high speed dome cameras, we provide three kinds of converter/repeater to transform the communication formats between devices. If a converter/repeater is used, the total network distance of the surveillance system can be extended, and the connected devices will also be protected. - Page 51 Installation Guide Outdoor Dome Application...
-
Page 52: Signal Distribution Unit
Installation Guide Signal Distribution Unit The RS-485 Signal Distribution Unit (SDU) is designed to relay control codes to speed dome cameras. It is capable of communicating with cameras up to 1.0 kilometers away. Additionally, the SDU can be installed in either “star” or “daisy chain”... -
Page 53: Coaxial Telemetry
Installation Guide Coaxial Telemetry The Coaxial Telemetry is a low-cost solution to long distance connection between dome cameras and controlling devices (e.g. DVR and keyboard). It simplifies the work of wiring by transmitting video and RS-485 control signals via one BNC line, so that to bring users economical benefits. The following is the coaxial telemetry application diagram. -
Page 54: System Integration
Installation Guide System Integration The dome camera is allowed to be integrated into other suppliers' surveillance systems with large set of built-in protocols. Refer to the following sections for more information. Using Pelco Keyboard The speed dome camera can be controlled through a Pelco keyboard which built in with D protocol and P protocol. -
Page 55: Using Philips Allegiant Keyboard
Installation Guide Cable Definition (D Protocol Keyboard to PTZ Camera) T x+ T x - T x+ T x- Rx + For D Protoc ol Keyb oa rd For Sp e ed Dom e Using Philips Allegiant Keyboard The dome cameras can be integrated into Philips Allegiant systems through D77R3 repeaters. -
Page 56: Appendix A: Technical Specification
Installation Guide Appendix A: Technical Specification Items DH500 DH600 CAMERA CCD Sensor 1/4" EXview CCD Optical Zoom Digital Zoom 1×~ 10× variable NTSC 380k Effective Pixels 440k Horizontal Resolution 470 TVL Scanning System NTSC / PAL Synchronization Internal / Line Lock 1.0 Vp-p / 75 Ω, BNC Video Output Minimum Illumination... -
Page 57: Installation Guide
Installation Guide ∅172 x 260 mm (6.8 x 10.2 Inches); ∅133 x 173 mm (5.2 x 6.8 Inches) ∅190 x 260 mm (7.5 x 10.2 Inches) w/ Dimension sunshield Weight 1.2 kg (2.6 lbs) 2.1 kg (4.6 lbs) Power Source DC12V/AC24V ±... - Page 58 All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
