This Quick Guide is for quick installing and connecting the network Speed Dome IP Camera. For details, please refer
to the camera's User Manual and Installation Guide.

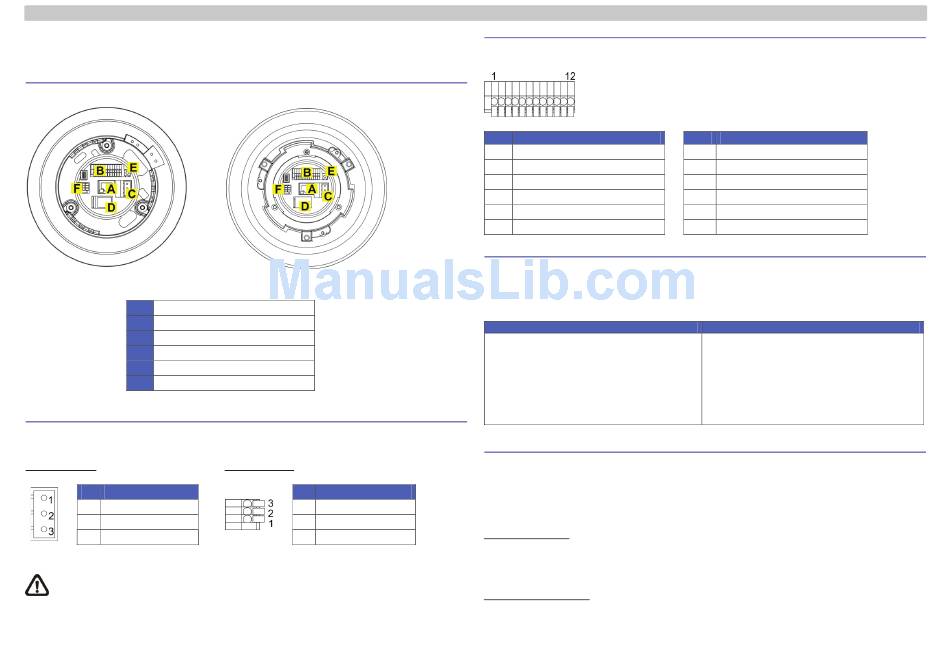

Switch Definition
Indoor
A
RJ-45 Connector
B
ALARM I/O
C
Power
D
Micro SD Card Slot
E
Factory Reset Button
F
Audio I/O
Power & Audio Connector Definition
Please refer to the illustrations below to connect power core through the supplied power adaptor, and set up the audio
according to the Audio pin definition.
Power Connector
Pin
Definition
1
AC 24_1
2
FG
3
AC 24_2
To power up the Camera, please connect the Ethernet cable to the Camera's Ethernet Port and plug the
other end of the cable into an IEEE 802.3at High Power over Ethernet (PoE Plus) Switch. If there is a need
to operate the Heater for Outdoor Models, please plug the AC 24V cable into the Camera's Power Connector
to power up the Camera instead.
Full HD Speed Dome IP Camera Quick Guide
Outdoor
Audio Connector
Pin
Definition
1
LINE_OUT
2
GND
3
LINE_IN
Alarm I/O Connector Definition
When cabling, please refer to the table below for pin definition of the Alarm I/O setting
Pin
Definition
ALARM_OUT_NO_1
1
ALARM_OUT_NC_1
2
ALARM_OUT_COM_1
3
GND
4
5
ALARM_OUT_NO_2
6
ALARM_OUT_NC_2
Before Login to the Camera
A client program will be automatically installed on your PC when connecting to the network Speed Dome Camera.
Before logging in to the Dome Camera, please ensure downloading the ActiveX control is allowed by either changing
the ActiveX controls and plug-ins or setting Internet's security level to default. For further details, please refer to the
network Speed Dome Camera's Software Guide.
ActiveX Controls and Plug-ins Settings
Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the
browser. Then Click <Internet Options>.
Step 3: Click the <Security> tab and select "Internet",
and click <Custom level> to change ActiveX
settings.
Step 4: Set "ActiveX controls and plug-ins" items to
<Prompt> or <Enable>.
Camera Login
The network Speed Dome Camera's default IP address is: 192.168.0.250. Therefore, to access the camera for the
first time, set the PC's IP address as: 192.168.0.XXX; for example:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
Login ID & Password
• Key in the camera's IP address in the URL bar of the Web browser window and press "Enter."
• Enter the default user name (Admin) and password (1234) in the prompt request dialogue. Note that user name is
case sensitive.
Install the ActiveX Control
• After connecting to the network Speed Dome Camera, the request for installing the ActiveX control will appear just
below the URL bar.
• Right Click on the information bar, and click "Install ActiveX Control..." to permit ActiveX control installation.
Pin
Definition
7
ALARM_OUT_COM_2
8
GND

9
ALARM_IN_4
ALARM_IN_3
10
11
ALARM_IN_2
12
ALARM_IN_1
Internet Security Level
Step 1: Start the IE.
Step 2: Select <Tools> from the main menu of the
browser. Then Click <Internet Options>.
Step 3: Click the <Security> tab and select "Internet."
Step 4: Down the page, press "Default Level" and click
"OK" to confirm the setting. Close the browser
window, and open a new one later for
accessing the IP Camera
