- Page 1 BC600-70 IN-CEILING 2-WAY SPEAKER (8 OHM OR 70/100 VOLT READY) I n s t a l l a t i o n & O p e r a t i o n M a n u a l...
-
Page 2: Break-In Period
This manual contains features, setup recommendations and specifications for the Destination Audio BC600-70 In-ceiling 2-way (8 Ohm 70/100 Volt Ready) speaker. It is recommended you thoroughly read through the material contained in this manual before connecting your speakers. -
Page 3: Installation

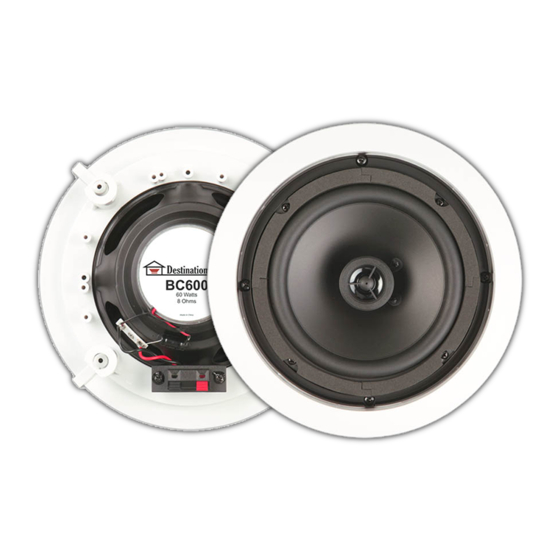

¾-inch soft swivel dome tweeter for great sound on a budget. Other amenities include a UL listed integral rear enclosure and a built-in multi-tap transformer, enabling the BC600-70 to be used with either 8 Ohm or 70/100 Volt audio systems. The BC600-70 provides full-range performance while exceed- ing building code compliance. - Page 4 A: The BC600-70 can be used in a 70/100 volt system or as a standard 8 Ohm in-ceiling speaker. To properly set the speaker to a 70/100 volt system or as a standard 8 Ohm operation slide the switch to the proper position on the face of the speaker.
-
Page 5: Wiring Diagrams
Wiring Diagrams CAUTION: If your amplifier isn’t capable of handling the impedance of all con- nected speakers, this may result in overloading the amplifier and may cause pos- sible damage to the amplifier. Check your amplifier’s documentation for proper impedance levels. Parallel Connection A parallel connection exists when speakers are connected directly to an ampli- fier (as shown in the illustration below). -
Page 6: Specifications
Specifications Model: BC600-70 Series: Builder System Type: In-ceiling 2-way Speaker (8 Ohm or 70/100 Volt Ready) Frequency Response: 58Hz-20kHz ±3dB Sensitivity: 88dB (2.83V/1 meter) Recommended Power: 2-60 Watts Woofer(s): (1) 6½” (165mm) Polygraphite Cone Tweeter(s): (1) ¾” (19mm) Silk Dome Swivel... -
Page 7: Troubleshooting
Warranty Your BC600-70 In-ceiling 2-way speaker is covered by a limited warranty against defects in materials and workmanship for a period of 10 years. This warranty is provided by the authorized Destination Audio dealer where the speaker was purchased. - Page 8 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.destinationaudio.com It is Destination Audio policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. © Copyright...
