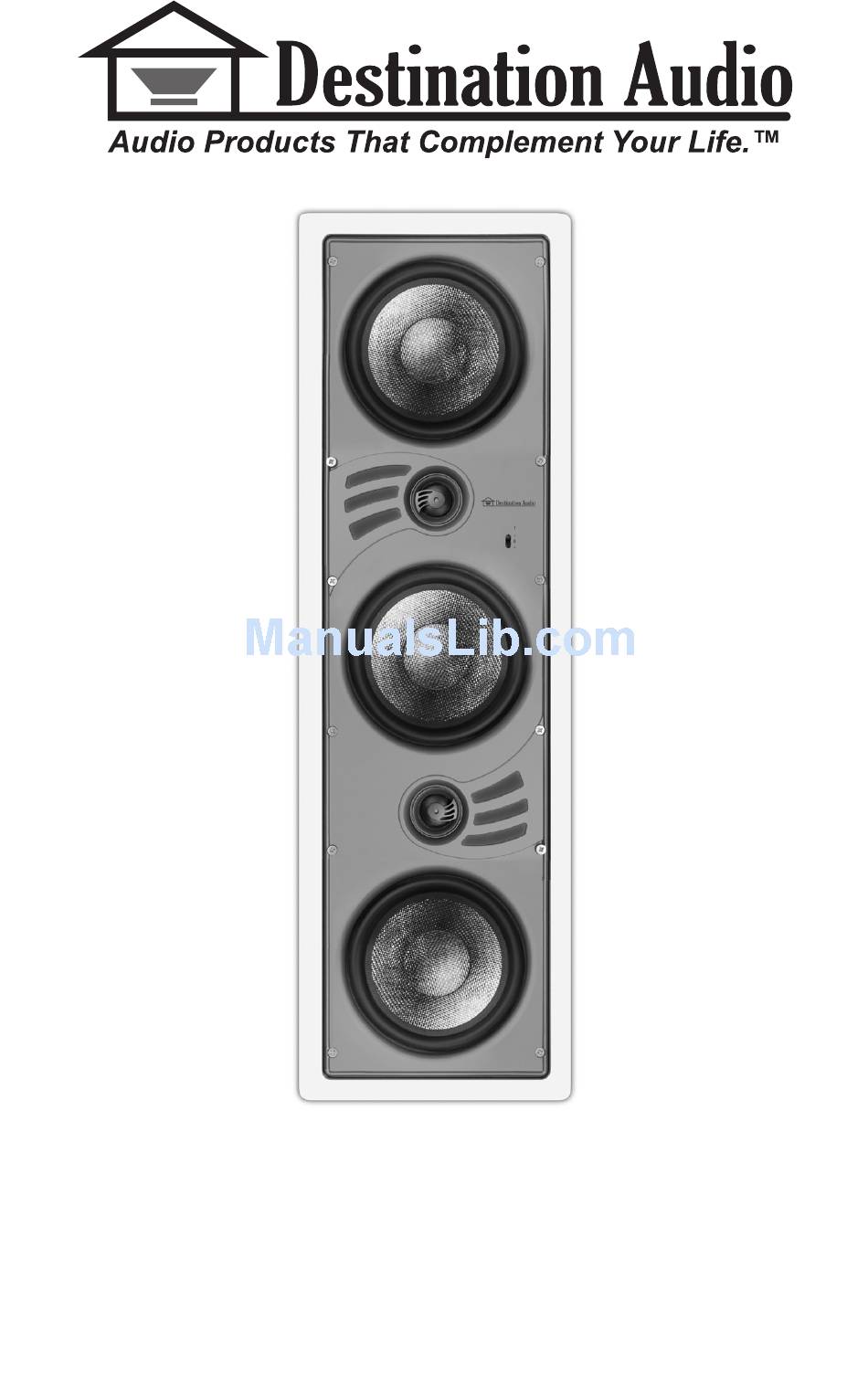

- Page 1 ALW583 LCR IN-WALL SPEAKER I n s t a l l a t i o n & O p e r a t i o n M a n u a l...
-
Page 3: Speaker Placement
The distance from the listening position to each speaker should be close to the distance that separates the two main speakers. The ALW583 has the unique ability to perform double-duty as both a center-channel speaker and as a main front left or right speaker for a surround sound system. - Page 4 Speaker Placement (continued) Pre-wiring the Speaker Pre-wiring with an install bracket (optional) 1. Determine placement of speakers in the room. 2. Install the speaker bracket by nailing or stapling the wings of the speaker bracket to the studs of the wall or ceiling. The bracket has a ½-inch lip that should face into the room. This lip will provide a guide for the sheetrock installers to cut the hole for the speaker.
-
Page 5: Installing The Speaker
Pre-wiring the Speaker (continued) Pre-wiring without an install bracket 1. Determine the location of the speakers 2. Run speaker wire from the audio equipment location to the speaker location. Make sure you have plenty of wire at the speaker location to connect to the speaker, three feet is recommended. -
Page 6: Wiring Diagram
Wiring Diagram... - Page 7 Wiring Diagram (continued)
-
Page 8: Speaker Adjustment
Speaker Adjustment The ALW583 has two pivoting tweeters and a +3/0/-3 dB gain switch. To select a setting on the gain switch simply slide the switch up, down or position it to the middle to obtain the desired sound. Depending upon your listening area, you may find the sound more pleasing by pointing the tweeters in a particular direction. -
Page 9: Troubleshooting
Warranty Your Destination Audio ALW583 LCR In-wall speaker is covered by a limited warranty against defects in materials and workmanship for a period of 10 (ten) years from the original date of purchase. This warranty is provided by the authorized Destination Audio dealer where the speaker was purchased. - Page 12 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.destinationaudio.com It is Destination Audio policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. Copyright © 2008-2009 Destination Audio. All Rights Reserved.
