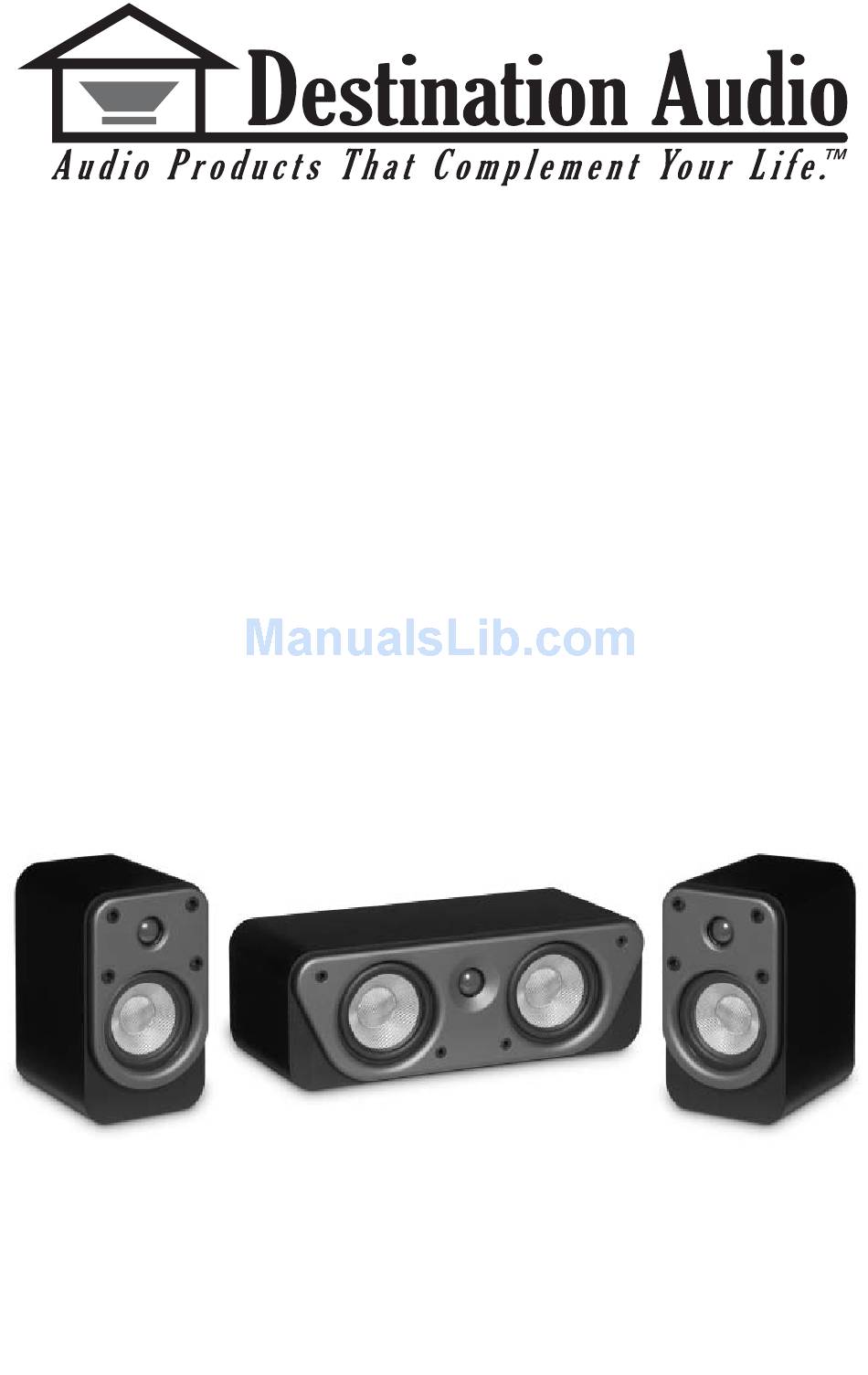

- Page 1 CS500 / CS500C COMPACT SPEAKERS I n s t a l l a t i o n & O p e r a t i o n M a n u a l...
-
Page 2: Break-In Period
Destination Audio speaker design process. This manual contains setup recommendations and specifications for the CS500 and CS500C compact theater speakers. It is highly recommended you thoroughly read through the material contained in this manual before connecting your speakers. - Page 3 This device operates 900% faster than a fuse and self-resets when the volume level or amount of distortion is reduced. The CS500 and CS500C enclosures have a narrow profile to minimize the impact the cabinet has on the audio signal. The speakers virtually disappear, leaving only a wide, deep sound stage with pinpoint imaging typical of much higher priced speakers.
-
Page 4: System Setup
(i.e.: a triangle). The Destination Audio CS500 and CS500C compact theater speakers can also be hung on a wall or placed in bookshelves to better match your décor. - Page 5 System Setup (continued) NOTE: There are several different surround formats available. Dolby Pro-Logic, Pro-Logic II, Dolby Digital and DTS generally have a 5-speaker plus subwoofer setup. Dolby Digital EX and DTS ES add an additional center rear speaker. Some newer receivers also offer the use of 7 or more effects channels. Please consult your audio/video professional to determine which surround format and system is best for you and how many speakers you will require.
- Page 6 Attaching Speaker Wires When using a banana jack to attach speaker wires to the binding post terminals, insert the speaker wire into the banana jack. Next insert the banana jack into the hole provided in the top of the terminal, and then continue to tighten the nut until secure.
-
Page 7: Specifications
Specifications Model CS500 CS500C Frequency 100Hz – 20Hz ±3dB 100Hz – 20Hz ±3dB Response: Sensitivity: 84dB (2.83V@1m) 85dB (2.83V@1m) Recommended 35-100 Watts 35-120 Watts Power: Woofer: " Aluminized Fiberglass Matrix Dual " Aluminized Fiberglass Matrix Tweeter: " Poly Silk Dome "... -
Page 8: Warranty
Warranty Your Destination Audio CS500 and CS500C speakers are covered by a limited warranty against defects in materials and workmanship for a period of five (5) years from the original date of purchase. This warranty is provided by the authorized Destination Audio dealer where the speaker was purchased. Warranty repair will be performed only when your purchase receipt is presented as proof of ownership and date of purchase. - Page 10 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.destinationaudio.com It is Destination Audio policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. Copyright © 2007 Destination Audio. All Rights Reserved.
