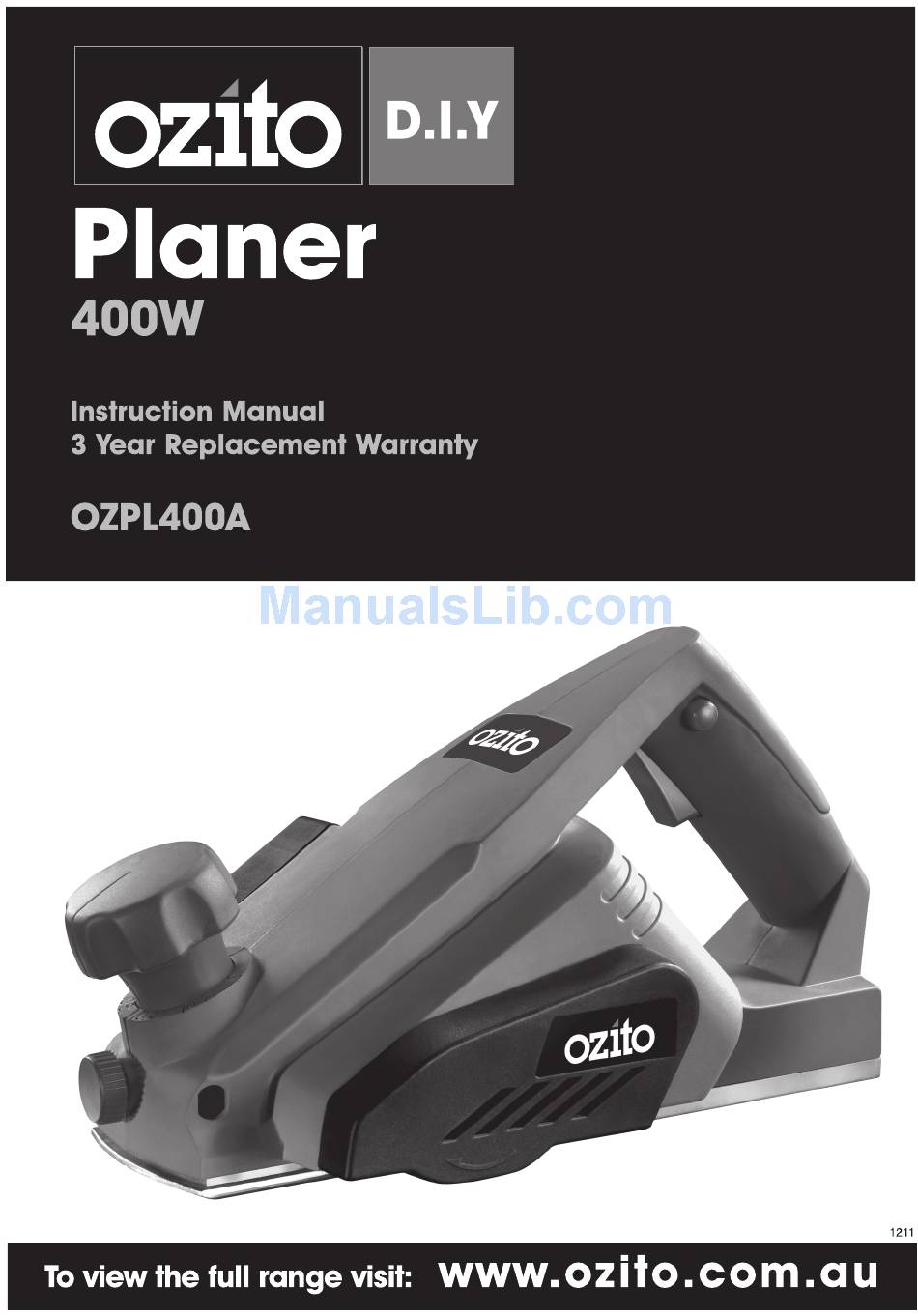

Summary of Contents for Ozito OZPL400A
-
Page 2: Know Your Product
SPECIFICATIONS – MODEL NO. OZPL400A Motor size: 400W Input: 230 – 240V ~ 50Hz No load speed: 16000/min Planing width: 82mm Planing depth: 0 – 1mm Rebating depth: 0 – 2mm Blade type: 82 mm HSS blades KNOW YOUR PRODUCT 1. -
Page 3: Safety Instructions
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 6: Additional Safety Instructions For Planers
ADDITIONAL SAFETY INSTRUCTIONS FOR PLANERS Wait for the cutter to stop before setting the tool down. An exposed cutter may engage the surface leading to possible loss of control and serious injury. Recommendation that the tool always be supplied via a residual current device with a rated residual current of 30 mA or less. -
Page 7: Operation
OPERATION Switch ALWAYS PICK UP YOUR PLANER BEFORE DEPRESSING THE SWITCH. The planer is started by first depressing the lock off button on the side of the handle and then the trigger switch. The planer will not start unless the lock off button is depressed. - Page 8 OPERATION (cont.) Edge Chamfering Your planer has a precision machined groove in the front shoe for planing along a corner of the wood. It is a good idea to try a scrap piece of wood before doing final pieces. CHANGING AND ADJUSTING BLADES For best results, keep the blades clean and replace when necessary.
-
Page 9: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by... - Page 10 CONTENTS 1 x Planer OZPL400A 1 x Spanner 1 x Instruction manual 1 X Guide fence OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone:1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...
-
Page 11: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
