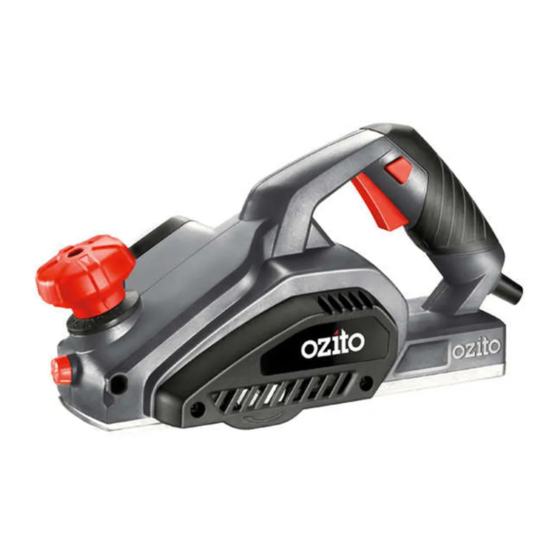

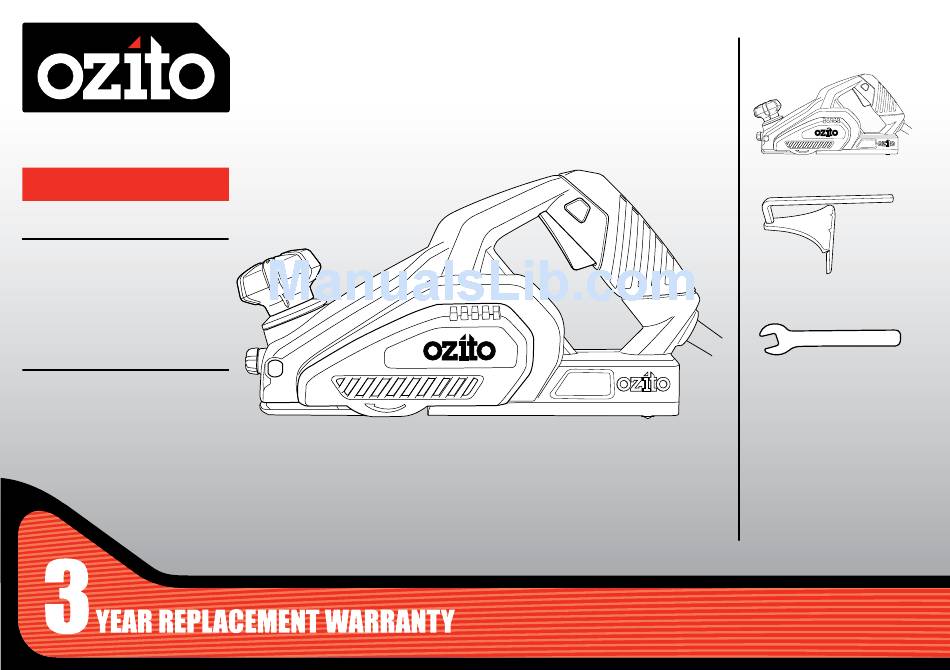

- Page 1 WHAT’S IN THE BOX PLANER Planer 400W INSTRUCTION MANUAL SPECIFICATIONS Input Power: 400W Guide Fence No Load Speed: 16,000 / min Planing Width: 82mm Blade Type: HSS Blades Planing Depth: 0-1mm Rebate Depth: 0-2mm Weight: 2.15kg ozito.com.au Spanner PLR-2000...
- Page 2 KNOW YOUR PRODUCT SETUP & PREPARATION PLANER 1. ADJUSTING PLANING DEPTH 1. Fence Securing Knob 5. Lock Off Button 2. Depth Adjustment Knob 6. Rear Shoe Before you make any adjustments, make sure the power cord 3. Front Shoe 7. Base Park Shoe is disconnected from the electricity supply 4.
- Page 3 OPERATION 2. ON/OFF SWITCH 3. REBATING Fitting of the Guide Fence The tool is recommended for use with a residual current device with a rated residual current of 30mA or less. 2. Insert guide fence to the 1. Loosen fence required depth.
- Page 4 4. CHAMFERING 5. BLADES The planer has a precision machined groove in the front shoe for Changing Blades planing along the corner of your workpiece. Before you make any adjustments, make sure the power cord has been disconnected from the electricity supply. The blades that come fitted to the tool are 82mm HSS blades.
- Page 5 Switch, Power SPPLR2000-31 Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the planer by an unauthorised person or by mishandling of the planer. Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.
- Page 6 Tool: 400W Planer SPARE PARTS Model No. PLR-2000 55 56 29 30 31 32 40 41 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No.
- Page 7 The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. Using an Extension Lead Always use an approved extension lead suitable for the power input of this tool.
- Page 8 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0812...
