Page 1: Operating Instructions

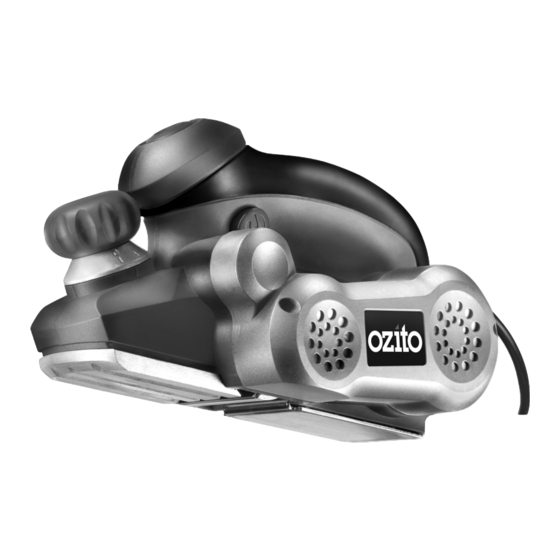

PALM PLANER 280W MODEL NO. OZPPL280WA OPERATING INSTRUCTIONS w w w. o z i t o . c o m . a u To view our full range visit... -
Page 2: Specifications
SPECIFICATIONS – MODEL NO. OZPPL280WA Motor size: 280W Input: 230 – 240V ~ 50Hz No load speed: 18000 /min Planing width: 50 mm Planing depth: 0 – 0.6 mm Blade type: 50 mm TCT reversible slither blades Weight: 1.4kg Features:... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION………………………………………... Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 OPERATION …………………………………………….. Page 8 MAINTENANCE …………….………………………….. Page 10 CONTENTS ……………………………………………... Page 11 WARRANTY……………………………………………… Page 12... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Warning! Read all instructions, Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 GENERAL SAFETY INSTRUCTIONS (cont.) d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR PLANERS Warning! Use of this tool can generate dust containing chemicals known to cause cancer, birth defects or other reproductive harm. Use appropriate respiratory protection. • Recommendation for the use of a residual current device with a rated residual current device of 30mA or less for extra protection against electric shock.
-
Page 8: Operation
TOOL OPERATION Switch ALWAYS PICK UP YOUR PALM PLANER BEFORE DEPRESSING THE SWITCH. The palm planer is started by first depressing the lock-off button (2) on the top of the handle and then depress the On/Off switch (3). The palm planer will not start unless the lock off button (2) is depressed. - Page 9 TOOL OPERATION (cont.) Dust Bag Regularly check and empty the dust bag for best results. Changing And Adjusting Blades For best results, keep the blades clean and replace when necessary. To Change Blades Before you make any adjustments, make sure the power cord has been disconnected from the electricity supply.
-
Page 10: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 11: Contents
CONTENTS 1 x Palm Planer OZPPL280WA 1 x 8mm Spanner 1 x Operation manual 1 x Material collection bag 2 x TCT Blades (fitted) OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme Victoria, Australia, 3175 Telephone: 1800 069 486 Website: www.ozito.com.au... -
Page 12: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
