Summary of Contents for Ozito OZPL400A

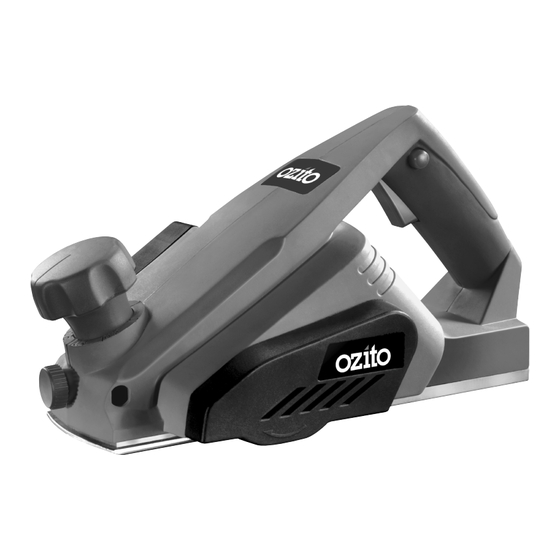

- Page 1 Planer 400 Watt Operation Manual 3 Year Replacement Warranty OZPL400A 0109 www.ozito.com.au To view the full range visit:...
- Page 2 SPECIFICATIONS – MODEL NO. OZPL400A Motor size: 400W Input: 230 – 240V ~ 50Hz No load speed: 16000 rpm Planing width: 82 mm Planing depth: 0 – 1 mm Rebating depth: 0 – 2 mm Blade type: 82 mm HSS blades...
-
Page 3: Safety Instructions
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. - Page 4 GENERAL 1. Keep work areas clean. Cluttered work areas and benches can cause accidents. 2. Consider work area environment. Do not expose your tool to high humidity or rain. Do not use your tool in damp or wet conditions. Keep the work area well lit.
- Page 5 GENERAL (cont.) 13.Check for damaged parts. Before use carefully check the tool and power lead for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation. Ensure that the tool will operate properly and perform its intended function.
-
Page 6: Additional Safety Instructions For Planers
ADDITIONAL SAFETY INSTRUCTIONS FOR PLANERS WARNING: Use of this tool can generate dust containing chemicals known to cause cancer, birth defects or other reproductive harm. Use appropriate respiratory protection. • Be sure to read the instruction manual thoroughly before using this tool. •... -
Page 7: Operation
OPERATION Switch ALWAYS PICK UP YOUR PLANER BEFORE DEPRESSING THE SWITCH. The planer is started by first depressing the lock off button on the side of the handle and then the trigger switch. The planer will not start unless the lock off button is depressed. - Page 8 OPERATION (cont.) Edge Chamfering Your planer has a precision machined groove in the front shoe for planing along a corner of the wood. It is a good idea to try a scrap piece of wood before doing final pieces. CHANGING AND ADJUSTING BLADES For best results, keep the blades clean and replace when necessary.
-
Page 9: Maintenance
Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by... - Page 10 CONTENTS 1 x Planer OZPL400A 1 x Spanner 1 x Operation manual 1 X Guide fence OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone:1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...
-
Page 11: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
