Ozito OZPL650A Operation Manual

Ozito OZPL650A Operation Manual

Planer 82mm - 650 watt

Advertisement

Planer
82mm - 650 Watt
Operation Manual
3 Year Replacement Warranty
OZPL650A
0209
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OZPL650A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ozito OZPL650A

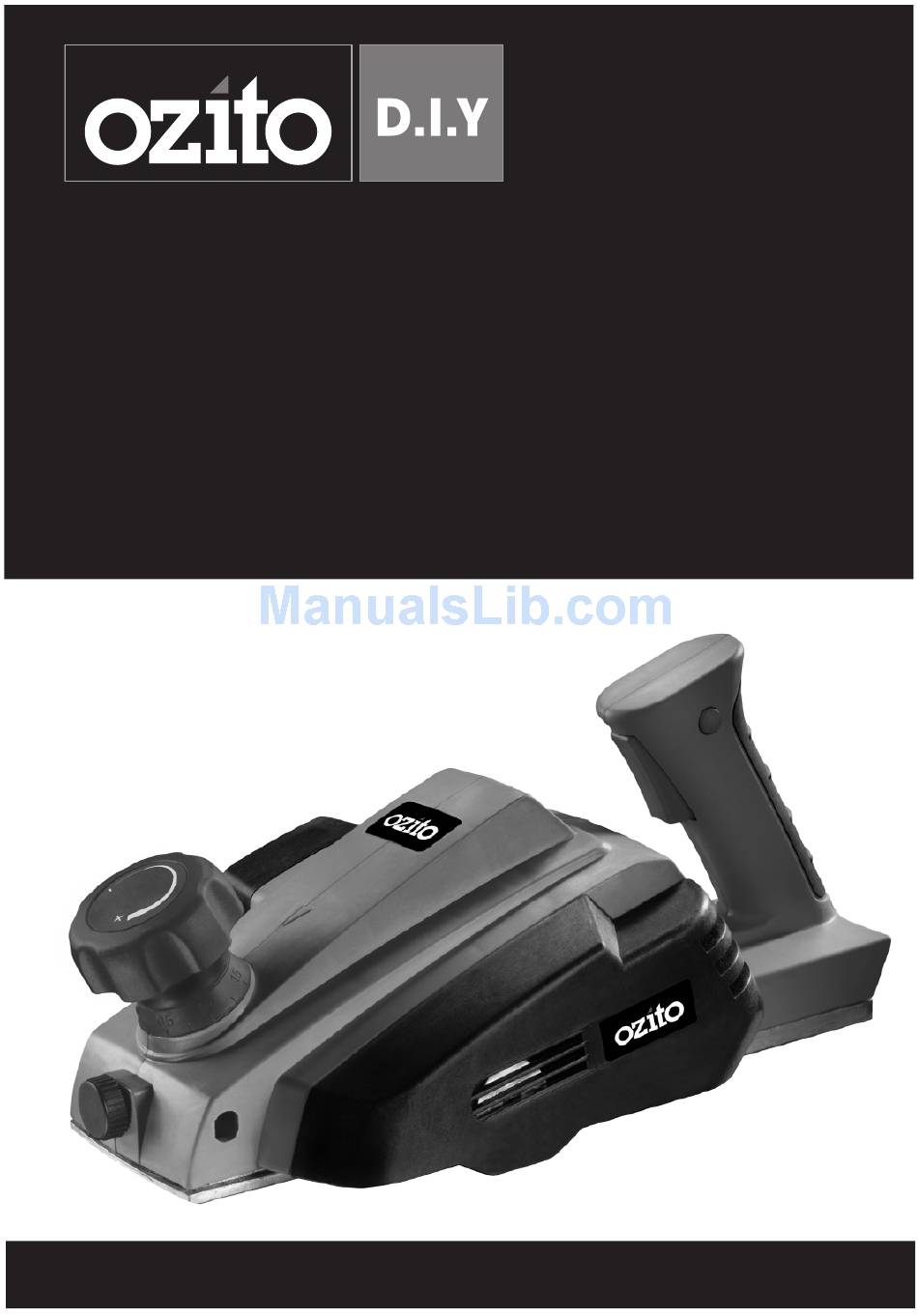

  • Page 1 Planer 82mm - 650 Watt Operation Manual 3 Year Replacement Warranty OZPL650A 0209 www.ozito.com.au To view the full range visit:...
  • Page 2 SPECIFICATIONS – MODEL NO. OZPL650A Motor size: 650W Input: 230 - 240V ~ 50Hz No load speed: 17,000 /min Planing width: 82mm Planing depth: 0 – 2mm Rebating depth: 0 – 8mm Blade type: 82mm Tungsten carbide reversible slither blades...
  • Page 3: Safety Instructions

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 4 GENERAL 1. Keep work areas clean. Cluttered work areas and benches can cause accidents. 2. Consider work area environment. Do not expose your tool to high humidity or rain. Do not use your tool in damp or wet conditions. Keep the work area well lit.
  • Page 5 GENERAL (cont.) 13.Check for damaged parts. Before use carefully check the tool and power lead for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation. Ensure that the tool will operate properly and perform its intended function.
  • Page 6: Additional Safety Instructions For Planers

    ADDITIONAL SAFETY INSTRUCTIONS FOR PLANERS WARNING: Use of this tool can generate dust containing chemicals known to cause cancer, birth defects or other reproductive harm. Use appropriate respiratory protection. • Be sure to read the instruction manual thoroughly before using this tool. •...
  • Page 7: Operation

    OPERATION Switch ALWAYS PICK UP YOUR PLANER BEFORE TURNING IT ON. The planer is started by first depressing the lock off button on the side of the handle and then the trigger switch. The planer will not start unless the lock off button is depressed.
  • Page 8 OPERATION (cont.) Planing Tips For a smoother appearance, fasten a piece of scrap wood to the end of the piece you are planing. Don't stop planing until the cutting blades of the planer are past your work piece and into the scrap material. Rebating Your planer can make rebate cuts up to 8mm.
  • Page 9: Maintenance

    Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by...
  • Page 10: Caring For The Environment

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Planer OZPL650A 1 x Spanner 1 x Operation manual 1 x Guide fence...
  • Page 11: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
