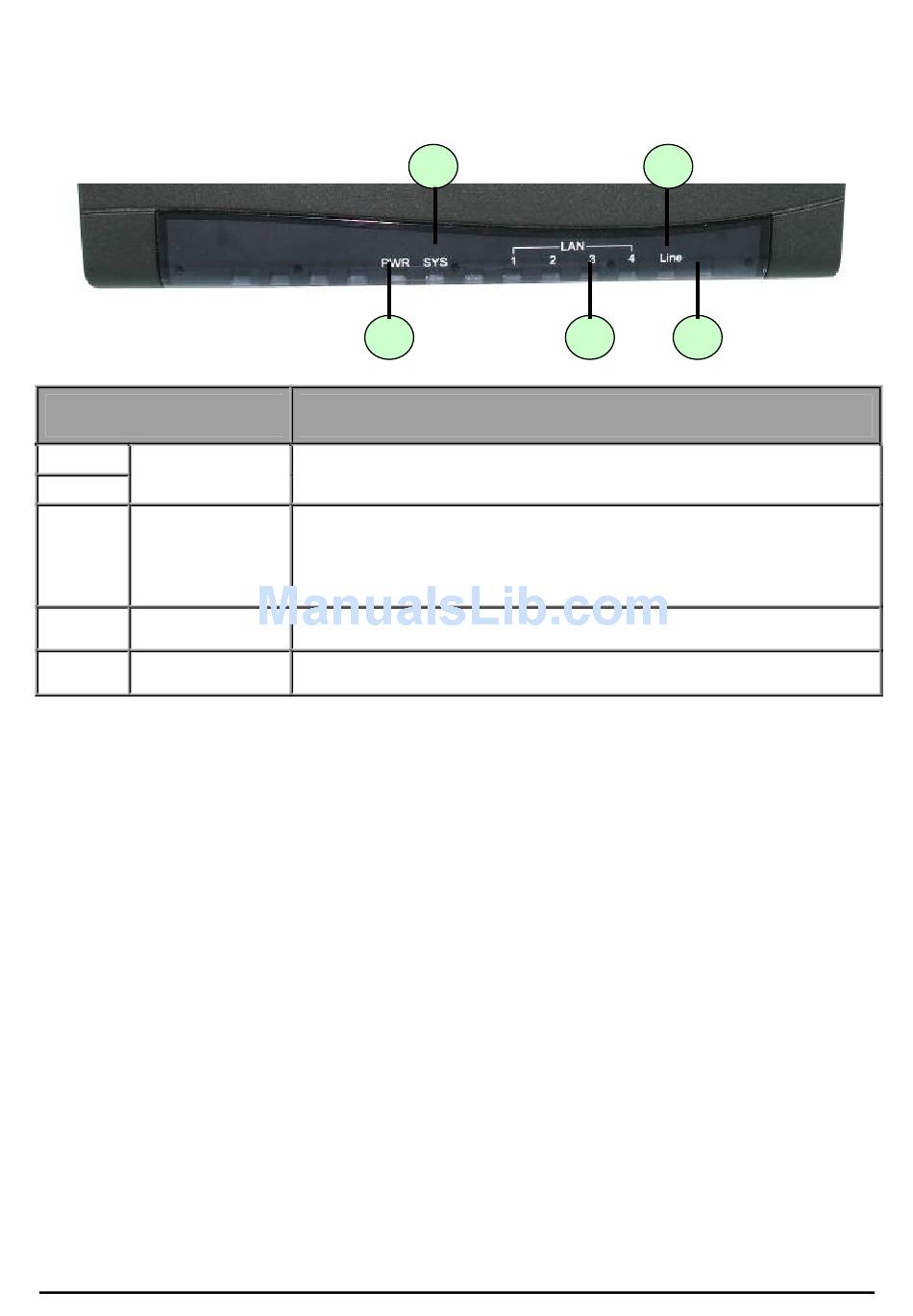

The Front LEDs of the NB724

LED
1
LINE 1 & 2
2
LAN Port
3
1X — 4X
(RJ-45 connector)
4 SYS
5 PWR
4
5
Lit when successfully connected to the SHDSL line and it is
synchronized.
Lit when connected to an Ethernet device.
Green for 100Mbps; Orange for 10Mbps.
Blinking when data is Transmitted / Received.
Lit when the system is ready.
Lit when power is ON.
SHDSL VPN Router
