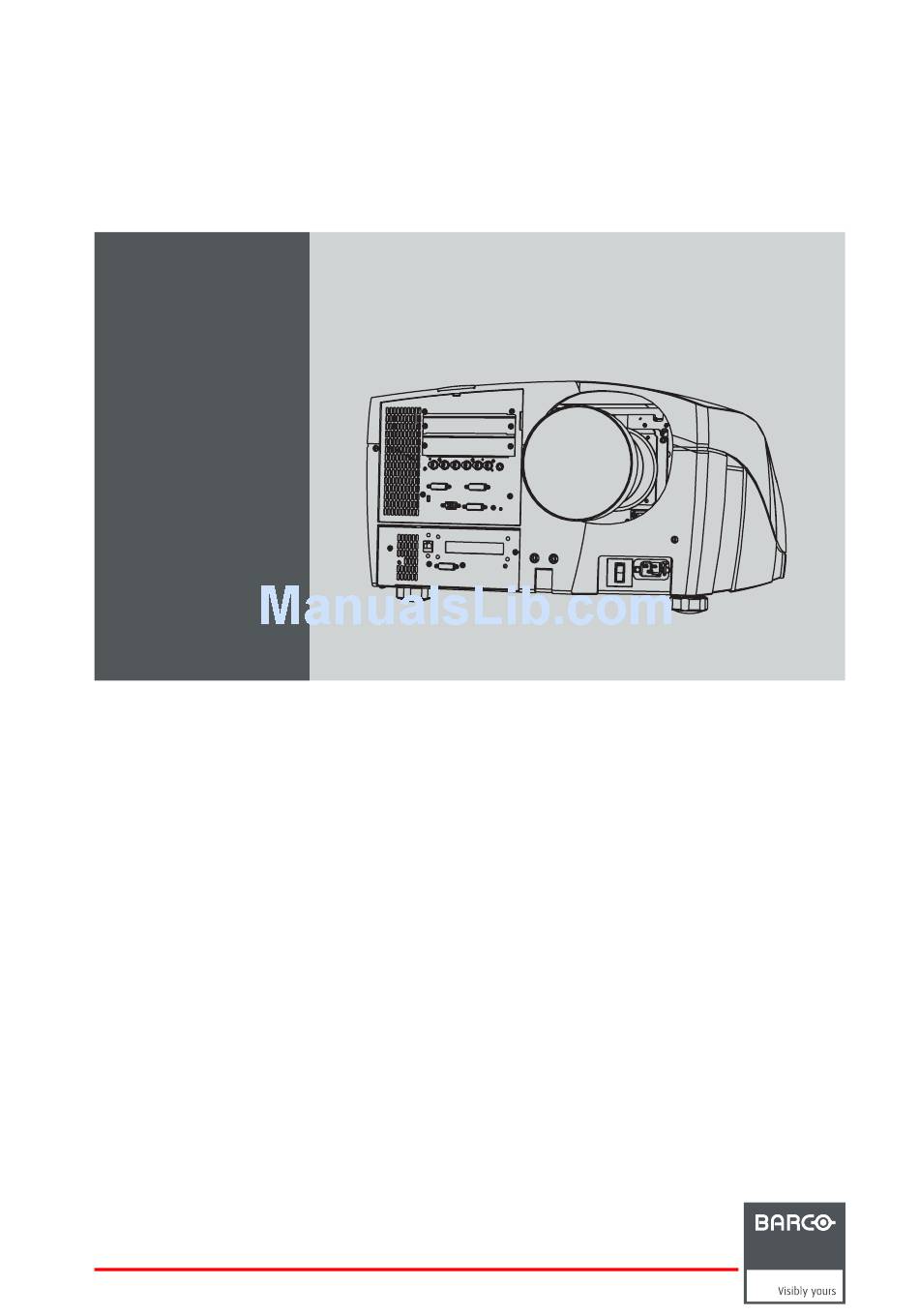

Page 1 Galaxy NW-12, Galaxy NW-7 User guide R9040410 R9040405 R59770288/10 20/06/2013...
Page 2 Barco nv Advanced Visualization Systems Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.84.86 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...
Page 3: Disposal Information
Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and ﬁtness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
Page 4 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justiﬁed notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
Page 5: Table Of Contents
Image settings ....................... . 62 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 6 Slider box position ......................137 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 7 List of images......................215 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 8 Table of contents R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 9: Introduction
About the Galaxy NW series The Barco Galaxy NW series projector is the world’s ﬁrst active stereoscopic projector with Windows desktop integration that can project 2D mono and 3D stereo images simultaneously with a native WUXGA (1920 x 1200) resolution. It is a network-centric projector, which greatly increases its ease-of-use in image critical and virtual reality applications with large amount of data.
Page 10 1. Introduction R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 11: Packaging
3. Remove the cardboard cover 4. Remove the large cardboard 5. Remove the foam parts 6. Loosen and remove the 3 screws spacers ﬁxing the projector to the wooden board 7. Remove the projector from the board R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 12 Save the original shipping carton and packing material, they will be necessary if you ever have to ship your projector. For maximum protection, repack your projector as it was originally packed at the factory. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 13: Installation Guidelines
Special care should be used when DLP projectors are used in the same room as performant laser equipment. Direct or indirect hitting of a laser beam on to the lens can severely damage the Digital MicroMirror Devices™ in which case there is a loss of warranty R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 14: Air Flow Guidelines
Always insure there is enough space between the bottom of the projector and the ﬂoor, to allow air to enter the projector. ARNING Do not touch this Air Outlet when the projector is switched on. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 15: Projector Position
Image 3-4 Projector tilt range Free space Service area Make sure that sufﬁcient free space (area free from obstacles - see the image below) should be available around the projector for maintenance and service activities. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 16: Dimensions: Free Space Around The Projector
3. Installation guidelines 200 mm 200 mm 500 mm 200 mm Image 3-5 Dimensions: free space around the projector R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 17: Installation
Lens installation • Projector conﬁguration • Positioning the projector • Connections • Controls overview Projector dimensions Dimensions are given in mm and inch (1inch = 25.4 mm) weight (without lens) : 70kg (175 lbs) R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 18: Battery Installation In The Rcu
The batteries (not yet installed to save the battery life time) are delivered inside the plastic bag with the power cord. How to install 1. Remove the battery cover on the backside of the remote control by pushing the indicated handle a little towards the bottom of the RCU. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 19: Lens Installation
PD = (1.14 x SW) + 0.18 PD = (1.14 x SW) + 7.26 TLD+ (1.5–2.0:1) = (1.42 x SW) + 0.08 = (1.42 x SW) + 3.20 = (1.88 x SW) + 0.12 = (1.88 x SW) + 4.90 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 20: Shift Capabilities
Horizontal shift TLD+ (0.73:1) up/down : 22% left/right : 9% TLD+ (1.2:1) up/down : 113% left/right : 54% TLD+ (1.5-2.0:1) TLD+ (2.0-2.8:1) TLD+ (2.8-4.5:1) TLD (4.5-7.5:1) Table 4-3 Maximum shift range in function of lens R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 21: Lens Installation
Note: Install the lens and the lens interface plate with their screening UP or TOP oriented in the same direction Caution: Mind the orientation of the lens interface plate in relation to the lens. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 22: Assembling The Lens, Screening Up To The Top Side
Insert and tighten the 4 screws with one hand while supporting the lens with the other hand Caution: Mind the orientation of the lens assembly: the screenings UP and TOP must be oriented upwards (table conﬁgura- tion!). R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 23: Projector Conﬁguration
Projectors in ceiling conﬁguration must have their second pump being connected mechanically and electrically! If no second pump is present in the projector, the corresponding kit must be installed ﬁrst. Contact a Barco trained and certiﬁed technician. The different conﬁgurations Depending on the installation the projector can be mounted in different ways, the 4 different conﬁgurations are:...
Page 24: Positioning The Projector
On-Axis or Off-Axis conﬁguration. Several parameters can be calculated determining the position in any installation. C D = S H /2 + B -A Image 4-10 ON-Axis projector installation Side view Top view Back view Optical axis projection lens Projector Screen Floor R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 25: Off-Axis Projector Installation
Side view Top view Back view Optical axis projection lens Projector Screen Floor A 100% Off-Axis position means that the position of the centre of the lens is shifted by half the screen height. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 26: Connections
1. Use the supplied power cord to connect the projector to the power outlet. 2. Plug the female power connector into the male connector at the front of the projector, secure the connection with the locking spring. Image 4-12 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 27: The Front Panel
Layer 2: RGB, YUV & Video input board (ﬁxed) • Layer 3: twin dual DVI input board (ﬁxed) • Layer 4: Stereo input board (ﬁxed) • Layer 5: DVI output and RS232 board (ﬁxed) R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 28: Connecting An Rgb Signal
The bottom system section holds : • Ethernet RJ45 connection • DVI desktop input • LCD display 4.5.3 Connecting an RGB signal How to connect an RGB signal ? 1. Connect the BNC connectors to the projector’s RGB input R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 29: Connecting A Component Video Signal
A component video signal can also be mentioned in the following way: • • PR Y PB • (R-Y) Y (B-Y) How to connect a component video signal ? 1. Connect the BNC connectors to the projector’s PR Y PB input R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 30: Connecting A Dvi Signal
Connecting a YUV signal 4.5.5 Connecting a DVI signal How to connect a DVI signal ? 1. Connect the DVI cable to the projector’s DVI input Image 4-18 Connecting a DVI signal to DVI-1 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 31: Connecting A Composite Video Signal
POWER V H S Image 4-20 Connecting a composite video signal 4.5.7 Connecting an S-Video signal How to connect an S-Video signal ? 1. Connect the mini DIN connector to the projector’s S-Video input R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 32: Connecting A Source To The Desktop Input
An Ethernet connection must also be set to allow Desktop integration The projector can be connected to a LAN or can be connected to a desktop PC via a crossed cable (as indicated above). R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 33: Dvi Output
4. Installation The desktop can be enabled/disabled, "Desktop", page 129 Using the desktop input makes only sense when using the Barco Desktop integration software. The Desktop integration software is covered in the Desktop integration User Guide. 4.5.9 DVI output DVI output...
Page 34: Stereo Input Connections
IR Emitter IR Emitter Image Generator Image Generator Active Glasses Image Generator Image 4-25 2. Connect the BNC connector to the stereo IR emitter Stereo settings Different stereo settings have to be done : R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 35: Active Inﬁtec
The projector can be connected to a network allowing it to be accessed from any connected network device. The Ethernet connection can be used to upload/download projector software and/or to set up communication (TCP-packets) with the projector. This network can be a local area network or a small dedicated network R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 36: Crossed Cable Connection
PC. See the Desktop integration software User Guide. How to connect the projector ? 1. Connect the RJ 45 male plug to the projector’s RJ 45 female connector Image 4-27 Crossed cable connection R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 37: Network Settings
IP address from the DHCP server, the startup time will be delayed by upto ﬁve minutes. After this time, a time-out occurs if the network detection fails, and the projector starts up without any network connection. What can be done? These settings are used to set the Ethernet Communication parameters. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 38 3. Push the ↓ key to pull down the Installation menu. 4. Push the cursor key ↑ or ↓ to highlight Network settings and press ENTER to select. Image 4-29 A dialog box will be displayed. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 39: Rs232 Communication
Data communications: sending data to the projector or copying the data from the projector to a memory device (hard disc, ﬂoppy, etc.). How to connect the RS232 ports? 1. Connect the D9 connector from the RS232 cable to the RS Input on the projector. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 40: Multichannel Installations
The linking of the projectors to allow CLO and Dynacolor information interchange is done via the Ethernet connection. To set the projector as Master see “Setup of the linked projectors in a multichannel system”. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 41: Linked Dynacolor
4.5.13.3 Linked stereo Linking stereo in a multichannel system The genlocking for stereo is done using a coax link. The projectors are connected in a daisy chain. Only the output side may drive IR-emitters. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 42: Connections : Linked Stereo
IR Emitter IR Emitter CadWall Active Glasses Image 4-34 Connections : linked stereo The stereo out sync signal available on the BNC output can be disabled, see “Stereo Sync out” in the instal- lation menu. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 43: Controls Overview
To leave the selected menu or item (go upwards to previous menu) RCU operation Lights up when a button on the remote control is pressed. (This is a visual indicator to check indication led the operation of the remote control) R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 44: Lcd Display
The LCD display on the bottom of the front panel allows to inform the user on the status of the projector and other information like warnings etc. Galaxy NW-12 standby DESKTOP INPUT Image 4-37 LCD Display See the Appendix for a listing of the existing error messages. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 45: Setup
2. The software will be initialized. This may take up to 30 seconds. During this phase the LCD display is lit (1). The initialization is followed by the keypad lighting up brieﬂy (5 seconds) and the projector Standby status (2) . Galaxy NW-12 standby Image 5-2 Switch ON sequence R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 46: Starting Up The Projector
How to start up the projector ? 1. Press the Standby button on the RCU or on the local keypad R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 47: Startup Sequence
The progression is shown with the asterisk characters adding up (2). This is followed by the projector Power on mode (3). standby Galaxy NW-12 Galaxy NW-12 Power on Galaxy NW-12 Image 5-7 Startup sequence R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 48: Setting Up The Remote Control Unit Address
“0” or “1” (by default “0”). In other words, an RCU set to address “0” will always control a projector regardless of its projector address (since it uses the common address). R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 49: Setting Up The Projector Address (Only If Necessary)
6. Enter the new projector address with the digit keys on the RCU, the local keypad or the cursor keys. How to change the common address ? 1. Proceed in the same way as for the projector address R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 50: Setting Up The Orientation
All these lens parameters can be adjusted using the RCU, the local keypad or in the Installation menu of the projector’s OSD. • Zoom (only for motorized lenses) • Focus (only for motorized lenses) • horizontal/vertical Shift The lens can also be adjusted via the dedicated keys on the remote. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 51 1. Press MENU to activate the Tool bar 2. Press → to select the Installation 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Lens adjustments... Image 5-14 5. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 52: Setup The Baud Rate For Serial Communication
4. Use ↑ or ↓ to select RS232 baud rate Image 5-17 5. Press → to pull down the menu 6. Use ↓ or ↑ to select the desired baud rate 7. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 53: Preferences
This means that the automatic startup allows immediate restart of the projector after a power failure (breakdown), i.e. without passing through the standby state, by recovering the previous settings (previous source,...). This function can be disabled if undesired or inadequate for safety reasons. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 54: Change Password
1. Press MENU to activate the Tool bar 2. Press → to select the Installation item 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Change password... R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 55: Setup Of The Linked Projectors In A Multichannel System
This information has to be declared in the Master projector since this projector must know all the projectors it has to talk to. The linked projector menu in the Slave projectors will remain greyed out. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 56 1. Press MENU to activate the Tool bar 2. Press → to select the Installation item 3. Press ↓ to Pull down the Installation menu 4. Use ↑ or ↓ to select Linked projectors... Image 5-22 5. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 57 A dialog box is displayed Image 5-23 How to set a projector to Master ? 1. In the linked projector menu of the projector to be set as Master, Select the Master check box and press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 58 The Dynacolor options are used to perform the Dynacolor linking, see Dynacolor adjustment in the Display Setup menu. To clear an IP address or Host name from the text box use the C button R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 59: Getting Started
1. Use the Image setting buttons on the RCU AUTO IMAGE O IMAGE DIGI DIGI ZOOM ZOOM PHASE PHASE IQ-PC IQ-PC TINT TINT Fire W Fire Wire ire COLOR COLOR VIDEO VIDEO S-VIDEO S-VIDEO BRIGHTN BRIGHTN PC PC CONTR CONTR Image 6-2 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 60 6. Getting started R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 61: Advanced
This password can be changed in the Installation menu. How to pull down a menu ? 1. Use ↓ to pull down a menu How to pull down a submenu ? 1. Use → to pull down a submenu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 62: Using The Dialog Boxes
2. Press ← or → to select the digit to be changed. 3. Press ↓ or ↑ to increase or decrease the value. To conﬁrm the changes always press ENTER. Use ↓ or ↑ to browse between the different ﬁelds. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 63: Source Selection
The menu will contain one item Lx Video, x being the layer on which the composite video is connected (for example L2 Video if the signal is connected to layer 2) 3. Use ↑ or ↓ to select Lx Video R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 64: S-Video
3) 3. Use ↑ or ↓ to select Lx S-Video Image 7-5 4. Press ENTER to conﬁrm your choice A bullet indicates the selected composite video source which now appears on the screen. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 65: Rgb-Yuv
Select DVI when in presence of digital data signal connected to the DVI input of the projector. These signals are often available on a PC or other image generator. How to select a DVI input ? 1. Press MENU to activate the Tool bar 2. Press ↓ to Pull down the Source Selection menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 66: Image
3. Press ↓ to Pull down the Image menu 4. Use ↑ or ↓ to select settings 5. Press → to pull down the menu 6. Use ↑ or ↓ to select Contrast 7. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 67: Setting The Brightness
6. Use ↑ or ↓ to select Color 7. Press ENTER On the screen appears now a slider box Image 7-10 8. Use ←or → , the numeric keys on the remote, or the keypad to change the color R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 68: Tint (Ntsc Video Signals Only)
How to adjust the Gamma 1. Press MENU to activate the Tool bar 2. Press → to select the Image item 3. Press ↓ to Pull down the Image menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 69: Phase (Rgb Signals Only)
3. Press ↓ to Pull down the Image menu 4. Use ↑ or ↓ to select settings 5. Press → to pull down the menu 6. Use ↑ or ↓ to select Noise Reduction 7. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 70: Gain Control On Video
10.Use ↓ or ↑ to enable (ON) or disable (OFF) the Automatic Gain on Video 11. Press ENTER A white bullet shows the active setting Image 7-16 The AGC can be disturbing in case of Macrovision encoded signals, therefore the AGC can be disabled (OFF) at any time R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 71: Manual Gain Control On Video
Some DVD sources may even use the anamorphic 16:9 or anamorphic 2.35:1 to take advantage of the higher vertical resolution offered by the 4:3 ratio. The term “anamorphic” means that the original wide screen image is squeezed in order to ﬁt the 4:3 aspect ratio. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 72: Common Non- Anamorphic Aspect Ratios In (Non-Hdtv) Dvd Sources
The aspect ratio setting forces the projector to project an image using a deﬁned aspect ratio : • Auto • • 16:9 • 16:10 • • Custom The settings do not refer to the aspect ratio of the source ! R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 73 The aspect ratio setting only affects the active source window, the desktop being locked on the native aspect ratio. How to change the Aspect ratio ? 1. Press MENU to activate the Tool bar 2. Press → to select Image 3. Press ↓ to Pull down the Image menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 74 6. Use ↑ or ↓ to select Custom 7. Press ENTER to conﬁrm A dialog box is displayed Image 7-26 8. Enter the values for width and height of the image The image aspect ratio is updated. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 75: Color Temperature
When transporting signals, there always is a risk of deterioration of the information contained in the signals. The alterations of the three color signals will happen independently i.e. the colors will end to be unbalanced. 0.7V Black level Image 7-28 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 76 100% black image (image B). The black balance can be done automatically with Automatic Black level. The changeover from min to max is indicated by the apparition of bright spots, also called “digital noise” R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 77: Performing Black Input Balance
4. Press ↓ to Pull down the Image menu 5. Use ↑ or ↓ to select Input balance 6. Press → to pull down the menu 7. Use ↓ or ↑ to select Black level... R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 78 4. Press ↓ to Pull down the Image menu 5. Use ↑ or ↓ to select Input balance 6. Press → to pull down the menu 7. Use ↓ or ↑ to select White level... R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 79: Input Stereo Sync
With Swapped Fields we can swap the left and right ﬁelds of the stereo image at the input stage i.e. the left ﬁeld will be processed in the projector as left ﬁeld or as right ﬁeld and the right ﬁeld processed as left ﬁeld or right ﬁeld. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 80: Stereo Swapped Fields
Image 7-38 7. Press ENTER A white bullet shows the active setting How to select a ﬁeld ? 1. Press MENU to activate the Tool bar 2. Press → to select the Image item R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 81: Passive Inﬁtec
Note: It takes some time before the Passive Inﬁtec ﬁlter has fully moved into the light path. How to move the Passive Inﬁtec ﬁlter out of the light path? 1. In the OSD, highlight Image > Passive Inﬁtec > Off R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 82: Passive To Active Stereo
1. Connect each active stereo DVI input signal to a different input layer on the projector. 2. Check the presence of the input signals in the Source selection menu: select a different source (e.g. L1 PC). A Barco logo is visible in front of both corresponding DVI input connectors if the signals are present and detected.
Page 83 7. Store the settings by clicking Apply or store the settings and leave the menu by clicking OK. How to display an active stereo image starting from two passive stereo input signals? 1. Browse to Image > Passive to Active Stereo... and click Enter. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 84 1. Make sure that both previous procedures in this section have been performed in a correct way. 2. Open the Source selection drop down menu: both the connectors that have been linked to the Sources should have a bullet to indicate that they are currently displayed. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 85: Image Files
L3 DVI-1 L3 DVI-2 Image 7-49 Two sources displayed simultaneously (bullet); one source available (Barco logo) 3. Browse to Installation > Scaled patterns and select Moving Hatch... Image 7-50 You should now see the Moving Hatch pattern and the Left image content at the same time.
Page 86: Load File
2. Press → to select the Image ﬁles item 3. Press ↓ to Pull down the Image ﬁles menu 4. Use ↑ or ↓ to select Load Image 7-52 5. Press ENTER A dialog box is displayed R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 87: Forced File Load
5. Press → to open the menu 6. Use ↑ or ↓ to select the desired layer (for example Layer 1) 7. Press → to open the menu 8. Use ↑ or ↓ to select the desired input R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 88: Auto Image
The operation takes about 20 seconds (depending on ﬁle) • Full scan: tracking is done over the full range. The operation takes about 1.5 minutes (depending on ﬁle) How to launch Auto Image? 1. Press MENU to activate the Tool bar R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 89: Edit File
1. Press MENU to activate the Tool bar 2. Press → to select the Image ﬁles item 3. Press ↓ to Pull down the Image ﬁles menu 4. Use ↑ or ↓ to select Edit R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 90: Which Items Can Be Adjusted
Horizontal start in pixels • Horizontal period in ns • Active vertical lines • Vertical start in lines Advanced settings for Video sources The advanced button enables the advanced settings for a video source. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 91 Clamp width : allows to set the width of clamp pulse in the clamping circuit It is recommended to use the default values. Advanced settings for Digital Data sources (DVI and HDSDI) The advanced button enables the advanced settings for a DVI source. Image 7-61 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 92: Save As (Create A Custom File)
5. Press ENTER A dialog box is displayed Use ←or →, ↓ or ↑ the numeric keys on the remote, or the keypad to edit and change the ﬁle name, conﬁrm with ENTER. Image 7-64 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 93: Rename File
1. Press MENU to activate the Tool bar 2. Press → to select the Image ﬁles item 3. Press ↓ to Pull down the Image ﬁles menu 4. Use ↑ or ↓ to select copy R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 94: Delete
1. Press MENU to activate the Tool bar 2. Press → to select the Image ﬁles item 3. Press ↓ to Pull down the Image ﬁles menu 4. Use ↑ or ↓ to select delete Image 7-69 5. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 95: Geometry
The ﬁle notation in the Geometry ﬁles menu describes a ﬁle path. For example : /Standard/Dist_ﬁle1.xml /Standard/Dist_file1.xml file extension = xml file name Type of file : standard or custom Image 7-71 Geometry ﬁle notation R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 96: Accessing The Geometry Menu
The geometry adjustment consists of the entire image divided in 33x33 regions that can be shifted to the desired location. 11 12 13 14 15 16 17 18 19 20 21 22 Image 7-73 The screen is divided in 33x33 regions R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 97: Geometry Levels
Geometry levels Level Hierarchy The fact that the adjustment affects other points means that a certain hierarchy must be respected when adjusting the geometry. The hierarchy or levels are indicated in the following image R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 98: Load
How to load a geometry ﬁle ? 1. Press MENU to activate the Tool bar 2. Press → to select Geometry 3. Press ↓ to Pull down the Geometry menu 4. Press ↓ to select Load R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 99: Edit
1. Press MENU to activate the Tool bar 2. Press → to select Geometry 3. Press ↓ to Pull down the Geometry menu 4. Press ↓or ↑ to select Edit 5. Press → to open the Edit menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 100: Geometry Edit Wizard
When entering the Edit mode, the Edit dialog box is displayed. When selecting a point in a certain adjustment, a yellow box shows the selection and a blue dotted box is placed around the selected grid point, indicating the interaction zone. Image 7-78 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 101 Depending on the geometry mode, the dialog box may slightly differ, the dialog box below is for a 2x2 mode adjustment. Image 7-80 Field Description Notes /adjustment Level 2x2 gives the selected geometry adjustment. In this case, a 2x2 adjustment R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 102: Geometry Edit Modes
Edit mode : allows to select the desired control (edit box, ...) in the dialog box. • Change mode : allows to change the values in the controls (edit box, radio buttons, ...) of the dialog box. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 103 7. Advanced Image 7-82 Image 7-83 Image 7-84 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 104: Editing A Geometry File
A 3x3 mode adjustment gives the following new points to be adjusted ( the 4 points of the 2x2 mode being already adjusted : they are therefore left out of the grid). Note that in this mode, 2 levels are involved, the level 2 and the level 3. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 105 11 12 13 14 15 16 17 18 19 20 21 22 Image 7-87 How to start up the geometry edit ? 1. Start up the Geometry Edit menu 2. Press ↓ to select 2x2... 3. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 106 A dialog box is displayed. The Select mode is enabled and the top/left (row = 0 ; colom = 0) corner is selected Image 7-88 Image 7-89 How to select another point ? 1. Press → to select the next adjustment point R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 107 7. Advanced The column is adapted to 32 Image 7-90 Image 7-91 2. Press ↓ to select the next adjustment point The row is adapted to 32 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 108 7. Advanced Image 7-92 Image 7-93 3. Press ← to select the next adjustment point R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 109 How to adjust using the Adjust mode ? Adjusting point (row =0 ; column =0) by 100 (pixels) along the x axis in the 2x2 mode 1. Press ENTER to go to the Adjust Mode The Adjust mode is selected R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 110 How to adjust using the Edit and Change mode ? Adjusting point (row =0 ; column =0) by 100 (pixels) along the x axis in the 2x2 mode 1. Press 2 times ENTER to go to the Edit Mode R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 111: Axis Link
The image is distorted along the X axis. Notice the unaffected regions. 7.6.6.5 Axis link What is AxisLink ? When AxisLink is set to On, the adjustment coordinate system will coincide with the edges of the distorted image. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 112 Following example will show a basic 2x2 adjustment with AxisLink set On and Off. Start with a non distorted image, assume the left top corner is selected. Image 7-100 Shift the left top corner +300 pixels to the left. Image 7-101 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 113 The coordinate system used for the adjustment is absolute. AxisLink [ON] AxisLink [OFF] 216,300 300,300 Image 7-102 How to set AxisLink ON ? 1. Start up the Geometry Edit menu 2. The Edit mode is selected R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 114: Shift Adjustment
A dialog box is displayed. Note that In the shift adjustment, the Adjust mode is selected by default (instead of the Select mode for the other geometry adjustments). 4. Press ENTER to go to the Edit Mode R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 115 7. Advanced The Edit mode is selected Image 7-105 5. Use ↑ and ↓ to select the PixelsX edit box The PixelsX edit box is focused Image 7-106 6. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 116: Transport Delay
The Transport Delay is the interval between the time at which an image frame is received from the ﬁrst FPGA of the PMP and the time at which the processing of this frame starts in the second FPGA of the PMP. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 117: Transport Delay
How to set Transport Delay to manual or automatic ? 1. Start up the Geometry Edit menu 2. Push the cursor key ↑ or ↓ to highlight Transport Delay... and press ENTER to select. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 118: Sharpness
7.6.6.8 Sharpness What can be done ? In some extreme warping conditions digital noise may appear in the warped regions. The sharpness adjustment in the Geometry menu allows to get rid of these perturbations. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 119: Geometry Reset
1. Start the Geometry Edit menu 2. Push ↓ or ↑ to select Reset 3. Push the → key to pull down the menu. 4. Push ↓ or ↑ to highlight Reset all levels..R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 120: Restore To A Level
Restore to a level means that all the higher level geometry corrections are reset (all geometry correction values are set to 0). The correction values of the level and all the lower levels are kept. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 121: Geometry Restore Example : Restoring To A 9X9 Level
1. Start the Geometry Edit menu 2. Push ↓ or ↑ to select Reset 3. Push the → key to pull down the menu. 4. Push ↓ or ↑ to highlight the desired level to restore, Restore to ..R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 122: Rename A Geometry File
5. Press BACK to return to the Geometry Edit menu. 7.6.7 Rename a Geometry File How to rename a geometry ﬁle ? 1. Start up the Geometry menu 2. Press ↓ to select Rename Image 7-119 3. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 123: Copy A Geometry File
6. Press BACK to return to the Geometry Edit menu 7.6.8 Copy a Geometry File How to Copy a Geometry File? 1. Start up the Geometry menu 2. Press ↓ to select Copy Image 7-121 3. Press ENTER A dialog box is displayed R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 124: Delete A Geometry File
Delete a Geometry File How to Delete a Geometry File? 1. Start up the Geometry menu 2. Press ↓ to select Delete Image 7-123 3. Press ENTER A dialog box is displayed Image 7-124 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 125: Lamps
Warning Time set at which a warning is generated. Using the lamp longer than the maximum run time may damage the projector Number of strikes Total times the lamp is started up Hardware : R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 126: Lamp Runtime Warning
When the Warning messages are disabled in the hidden Service menu, the lamp runtime warning will only be displayed at the next startup of the projector, not during a session. Enabling or disabling TextBox does not affect the display of the lamp runtime warning. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 127: Lamp Power Mode
3. Press ↓ to Pull down the Lamp menu 4. Use ↑ or ↓ to select Lamp Power Mode 5. Press → to Pull down the menu 6. Use ↑ or ↓ to select Normal/Economic R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 128: Constant Light Output (Clo)
60% of the maximum light output, one will be able to operate during approximately 500 hours with a constant light output, image 7-132. Relative Light Output (%) Runtime (hrs) 1000 Image 7-131 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 129: Clo Target
Two targets can be set : one for the standard mode and one for the Inﬁtec mode. How to set the CLO target ? 1. Press MENU to activate the Tool bar 2. Press → to select the Lamp item 3. Press ↓ to Pull down the Lamp menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 130: Linked Clo
“Linked Projectors” SLAVE Follows the master projector to adjust the CLO no linking ( note : if CLO mode is ON, it will applied on the projector itself) Table 7-7 CLO Settings R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 131: General
How to pause the image display? 1. Press MENU to activate the Tool bar 2. Press → to select General 3. Press ↓ to Pull down the General menu 4. Use ↑ or ↓ to select Pause R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 132: Freeze
How to enable the timer ? 1. Press MENU to activate the Tool bar 2. Press → to select General 3. Press ↓ to Pull down the General menu 4. Use ↑ or ↓ to select Standby Timer R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 133: Desktop
7. Press ENTER The desktop is displayed if the desktop PC is connected (see connections) Using Desktop makes only sense when using the Barco Desktop integration software. The Desktop integra- tion software is covered in the Desktop integration User Guide.
Page 134: Display Setup
Image 7-142 7. Press ENTER A white bullet shows the active setting 7.9.2 Stereo display settings Overview • Introduction • Stereo Mode It is not possible to show an interlaced source in stereoscopic mode. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 135: Introduction
STEREO MODE = always active @120Hz @2Xf source @120Hz @f source @120Hz ASYNC SYNC ASYNC SYNC ASYNC f(Hz) Image 7-145 Mono source : Full screen synchronous representation ON and Stereo Mode = Always Active R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 136: Stereo Mode
(stereo or mono) INFITEC the display is always driven in Inﬁtec mode (inﬁtec wheel system is activated) independently of the source (stereo or mono) Table 7-8 Stereo Mode R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 137: Full Screen Synchronous Representation Settings
In the asynchronous mode, the display will be refreshed at a ﬁxed vertical frequency depending on the OSD setting, instead of the vertical frequency of the displayed source. The maximal vertical refresh rate of the display is 120Hz. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 138 5. Press → to open the menu 6. Use ↑ or ↓ to select Mode 7. Press → to open the menu 8. Use ↑ or ↓ to select ON to enable or OFF to disable 9. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 139: Asynchronous Frequency
5. Press → to open the menu 6. Use ↑ or ↓ to select Asynchronous frequency 7. Press → to open the menu 8. Use ↑ or ↓ to select Low or High 9. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 140: Menu Bar Position
This can be useful in applications where the bottom image content is not displayed ( soft edge region). How to center the menu ? 1. Press MENU to activate the Tool bar 2. Press → to select the Display setup item R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 141: Slider Box Position
A slider box is displayed. Use the 4 arrow keys to drag the box to the desired position. There is a coarse and a ﬁne adjustment of the position, use ENTER (when slider box is displayed) to switch between the two. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 142: Dynacolor
Red, Green, and Blue. These parameters are used by the DynaColor™ adjustment in the projector. Image 7-157 The projector color gamut is deﬁned by the triangle formed by the x, y coordinates of Red Green and Blue R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 143: The Color Gamut Of Each Projector Will Differ
Common Color Gamut The Common Color Gamut In a basic setup with 2 projectors, the perimeter of the Common Color Gamut is described by the 6 points of intersection of the 2 separate color gamuts. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 144: The Common Color Gamut
These are the colors the projector displays when no color changes are made Red x, y Coördinates for the Red point Green x, y Coördinates for the Green point Blue x, y Coördinates for the Blue point White x, y Coördinates for the White point R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 145 This starts the calibration procedure for the measured points of the current set (Changing these settings may seriously affect the performance of the projector). Default Desired This will reset the desired parameters to no color change values (measured values). This can be interesting to recalculate the secondary colors. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 146: Choosing Dynacolor Sets
This set is automatically selected when the Inﬁtec ﬁlter moves into the projector light path. In the following procedures we will only explain the selection of Set 1. The same procedure applies for Set 2. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 147: Enabling Dynacolor
4. Use ↑ or ↓ to select Dynacolor 5. Press → to open the menu 6. Use ↑ or ↓ to select Enable 7. Press → to open the menu 8. Use ↑ or ↓ to select ON R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 148: Linking Dynacolor
7.9.7.4 Linking DynaColor AUTION Only to be done by Barco trained and qualiﬁed engineers. What can be done? To calculate the common color triangle of multiple projectors and apply it to the selected DynaColor™ set in each of the projectors, we can use Linked DynaColor™...
Page 149: Matching Inﬁtec A And Inﬁtec B
3. Press ↓ to Pull down the Display setup menu 4. Use ↑ or ↓ to select Dynacolor 5. Press → to open the menu 6. Use ↑ or ↓ to select Matching Inﬁtec A/B R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 150: Changing Color Reproduction
Due to the tolerance on optical components the X, Y value of the primary colors of different devices is slightly different. Image 7-166 Color triangle: native color gamut of a device R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 151: Moving The Desired White Point
Moving the desired white point AUTION Color ﬁne tuning may only be done by Barco trained and qualiﬁed engineers. Fine tuning the color of the projected image 1. In the OSD, navigate to the active Dynacolor set: Display setup > Dynacolor > or Adjust Set 1...> Adjust Set 2... or Adjust Inﬁtec A...
Page 152 Image 7-168 3. In the Dynacolor Set dialog, enter a well-considered new value for X and/or Y of White. Image 7-169 Note: Make sure that the new [X, Y]-position is within the desired color triangle. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 153: Black Color Matching
4. The same procedure applies for the other sets. 7.9.7.7 Black Color Matching AUTION May only to be done by Barco trained and qualiﬁed engineers! Never change the values if not needed. Altered color values will not guarantee optimal image reproduction. Overview •...
Page 154: Black Color Adjustment For Set 1
6. Use ↑ or ↓ to select Black Color matching 7. Press → to open the menu 8. Use ↑ or ↓ to select for example Set1 Image 7-171 9. Press ENTER A dialog box is displayed Image 7-172 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 155: Stereo System Setup
Blanking Time Left Shutter Open Closed Right Shutter Open Closed Image 7-173 Opening/closing times of the shutters in sync with the blanking time Closing these shutters too late and/or opening too early will cause Cross-Talk. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 156: Shutters Closing Too Late And/Or Opening Too Early Cause Cross-Talk
Adjusting the Dark Time will allow an easy synchronization of the Blanking Period of the DLP mirrors with the opening/closing time of the shutters in the Stereo Glasses. How to adjust the Dark time ? 1. Press MENU to activate the Tool bar R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 157: Invert Stereo
This menu allows to set the stereo emitter output signal. With Invert stereo we can swap the left and right stereo sync at the stereo output mismatch with the stereo emitters can this way be anulated. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 158: Inverted Stereo
6. Use ↓ or ↑ to select Invert stereo Image 7-179 7. Press → to Pull down the menu 8. Press ↓ to enable ON or disable OFF the Invert stereo 9. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 159: Stereo Phase
3. Press ↓ to Pull down the Display setup menu 4. Use ↑ or ↓ to select Stereo 5. Press → to pull down the menu 6. Use ↓ or ↑ to select Stereo Phase... R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 160: Soft Edge
The principle of edge blending is achieved by linear modulation of the light output in the overlap zone so that the light output in that zone equals the light output of the rest of the image. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 161: Soft Edge Adjustments
This high number of adjustment points allow to meet any complicated soft required for special curved screens. The default soft edge size (prior to the adjustment) corresponds to 12.5% of the image. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 162: Soft Edge : Adjustment Points
7. Advanced Image 7-185 Soft edge : adjustment points Image 7-186 Soft edge : points numbering, Top and bottom side edges R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 163: Soft Edge : Points Numbering, Left And Right Side Edges
6 will only affect the adjusted point (called local points). The image below shows the levels in the left side soft edge zone. Level1 Level2 Level5 Level3 Level6 Level4 Image 7-188 Side Soft edge zone: levels R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 164: Accessing The Soft Edge Menu
5. Push the → key to pull down the menu. Image 7-190 7.9.9.4 Soft edge edit Overview • The soft edge edit wizard • The soft edge edit modes • Creating/editing a soft edge • Alpha planes R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 165: The Soft Edge Edit Wizard
• Edit mode : allows to select the desired control (edit box, ...) in the dialog box. • Change mode : allows to change the values in the edit boxes of the dialog box. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 166 7. Advanced Image 7-192 Image 7-193 Image 7-194 Image 7-195 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 167: Creating/Editing A Soft Edge
The soft edge dialog box will be displayed. How to select the soft edge type ? The internal soft edge type is selected by default 1. Push ↓or ↑ to select the Internal check box R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 168 The item is focused Image 7-197 2. Press ENTER The internal soft edge is selected Image 7-198 How to enable the soft edges ? 1. Push ↓or ↑ to select the desired Edges check box R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 169 The default soft edge is applied on the selected edges How to select the source (background) ? 1. Push ↓or ↑ to select the desired Source check box. in this case we will perform the adjustment on a Full white background. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 170 7. Advanced The item is focused Image 7-201 2. Press ENTER The selected check box is checked and a full white image is displayed with the soft edges on the 4 sides Image 7-202 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 171 7. Advanced Image 7-203 How to enable the adjustment guide ? 1. Push ↓or ↑ to select the check box ON to enable the adjustment guide The item is focused Image 7-204 2. Press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 172 The selected check box is checked and the guide is displayed (vertical and horizontal grey scale bars) Image 7-205 Image 7-206 How to set the hierarchy level ? 1. Push ↓or ↑ to select the hierarchy level slider box R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 173 The edit ﬁeld is put in the edit mode 6. Use the arrows or the digits to ﬁll in the desired x position of the selected point (in this case the left top point of level 1) 7. Press ENTER to conﬁrm R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 174: Alpha Planes
2. Push the cursor key ← or → to highlight Display setup 3. Push the ↓ key to pull down the menu. 4. Push ↓or ↑ to select Soft edge and alpha beta planes 5. Push the → key to pull down the menu. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 175: Black Level
CLO: in this case the light power is matched over the different projectors, see CLO in the Lamps section Black level : this will act on the brightness of the “black” color of the image part situated outside the soft edge zones. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 176: Internal Black Level
Internal black level can be adjusted via the projector’s software using a dialog box. The dialog box allows to add an offset to the black level of the image in the zones outside the soft edge zones. The range goes from 0 to 255. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 177: Beta Planes
Beta planes. Practically, about 6 MB will be available for the Alpha + Beta plane. The Beta plane will only be applied if it has been activated in the Black level... menu’s dialog box (see proce- dure below) R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 178: Blanking
3. Push the ↓ key to pull down the menu 4. Push ↓or ↑ to select Soft edge 5. Push the → key to pull down the menu. 6. Push the cursor key ← or → to highlight Edit... R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 179: Autoimage Setup
1. Press MENU to activate the Tool bar 2. Press → to select the Display setup item 3. Press ↓ to Pull down the Display setup menu 4. Use ↑ or ↓ to select AutoImage setup R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 180: True Motion Reproduction (Tmr)
5. Press → to open the menu 6. Use ↓ or ↑ to go to enable (ON) or disable (OFF) True motion reproduction 7. Press ENTER to select A white bullet shows the active setting R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 181: Installation
An optional Inﬁtec™ wheel assembly is needed to be installed ﬁrst (by default not present) in the Galaxy NW-7 and then adjusted through OSD. Projectors Galaxy NW-12 and Galaxy NH-12 have the Inﬁtec™ wheel assembly installed on it initially (by de- fault from factory) and thus only require an adjustment through OSD.
Page 182: Internal Patterns
7.10.2 Internal Patterns Overview The projector is equipped with different internal patterns which can be used for adjustment purposes. Geometry adjustments can not be used on these internal patterns. Image 7-223 Image 7-224 Outline Hatch R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 183: Color Bars
Gray Levels Red Levels Green Levels Blue Levels Image 7-230 Purity How to select an internal pattern ? 1. Press MENU to activate the Tool bar 2. Press → to select the Installation menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 184: Scaled Patterns
The active selection is shown with a white bullet 7.10.3 Scaled patterns Overview Unlike the Internal Patterns, the Scaled Patterns will be distorted according to the active Geometry File. Image 7-232 Image 7-233 Scaled patterns : Geometry Scaled patterns : Gray levels R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 185: Scaled Patterns : Stereo Pattern
4. Use ↑ or ↓ to select Internal Patterns Image 7-235 5. Press → to Pull down the menu 6. Use ↑ or ↓ to select the desired pattern 7. Press ENTER The active selection is shown with a white bullet R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 186: Formatter Patterns
4. Use ↑ or ↓ to select Formatter Patterns Image 7-238 5. Press → to Pull down the menu 6. Use ↑ or ↓ to select the desired pattern 7. Press ENTER The active selection is shown with a white bullet R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 187: Stereo Sync Out
(horizontal or vertical, depending on the setting) of this color. E.g. If you change the vertical convergence setting for green from 0 to 1, the green information of the hori- zontal top line will be lost. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 188 The dialog box to adjust the convergence is displayed. Image 7-241 How to adjust the convergence? 1. In the box Adjustment guide go to the radio button On and hit Enter This will switch on the internal pattern. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 189: Service
6. Fill in the key by using the digit and the arrow keys 7.11.3 Calibration of CLO sensor How to calibrate the CLO sensor ? 1. See the service manual for the complete procedure R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 190: Operation Options
An hourglass icon that is displayed during processing For safety reasons, the warning messages Lamp runtime warning and Lamp runtime exceeded will always pop up during start-up of the projector. They can only be suppressed during projector runtime. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 191 7. Press → to pull down the Warning Messages menu 8. Use ↑ or ↓ to select On or Off 9. Press ENTER to conﬁrm Image 7-245 A white bullet shows the active setting R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 192 7. Advanced R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 193: Maintenance
Qualiﬁed Product Specialist Visually check all cables and connectors on damage Operator Every year Clean the projector covers Operator Clean the projector lens housing Operator Evaluate the brightness: clean optics if required Qualiﬁed Product Expert R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 194: Visual Checks
If they can not solve the issue or if they are not sure about the way to proceed, they can escalate the issue to a Product Specialist, a Product Expert or to Barco Helpdesk http://www.barco.com/en/Support. Visual check of the projector housing 1.
Page 195: Cleaning Housing And Mechanical Structure
If smears occur when cleaning lenses, replace the cloth by a clean one. Smears are the ﬁrst indication of a dirty cloth. Do not leave the cleaning cloth in either an open room or lab coat pocket, as doing so can contaminate the cloth. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 196: Checking The Cooling Liquid Level
This procedure may only be performed by qualiﬁed technical service personnel. ARNING Electrical shock hazard! Make sure to switch off and unplug the projector before starting any of these procedures! Never remove any cover while the projector is on. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 197: Lamp Description
The projector type determines the lamps to be used. Projector type Description Article number Galaxy NH-12, Galaxy NW-12, NW-12, New Xenon lamp R9834080 iD LH-12, iCON NH-12 Refurbished Xenon lamp R9834090 Galaxy NW-7 New Xenon lamp R9834085 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 198: Removing The Rear Cover
Philips Ph2 How to remove the rear cover? 1. Remove the ﬁxing screw Image 8-3 Rear cover: ﬁxing screw 2. Lift the back side of the rear cover and pull it backward to remove it R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 199: Removing The Fan Outlet
Image 8-7 Fan outlet: ﬁxing screw 3. Take out the fan outlet by lifting it Image 8-8 Fan outlet: lift to remove 8.6.4 Removing the lamp Necessary tools Slotted screwdriver 4 mm or 6 mm R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 200: Lamp: Fixing Screws
Use the handle at the rear side of the lamp. Image 8-10 Lamp: removing 5. Lift the lamp to remove it Tip: Use the handle at the top side of the lamp. Image 8-11 Image 8-12 Lamp: removing Lamp: removed R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 201: Installing The Lamp
2. Push the lamp down until it is at the bottom of the projector Image 8-15 Lamp: installation 3. Slide the lamp to the right side of the projector (= towards the connector) Image 8-16 Lamp: installation 4. Push the lamp to plug in the connectors R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 202: Installing The Fan Outlet
Slotted screwdriver 5 mm How to install the fan outlet? 1. Put the fan outlet in the right position Image 8-18 Fan outlet: installing 2. Fix the fan outlet to the projector using the ﬁxing screw R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 203: Installing The Rear Cover
2. Slide the rear cover forward and bring the back side down Image 8-21 Image 8-22 Image 8-23 Installing the rear cover: step 2 Installing the rear cover: step 3 Installing the rear cover: step 4 3. Fix the rear cover using the ﬁxing screw R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 204: Installing The Rear Cover: Step 5
8. Maintenance Image 8-24 Installing the rear cover: step 5 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 205: Trouble Shooting
H: hardware error If ever you have to contact Barco’s Helpdesk concerning an error code, make sure to mention the preﬁx and both digits, since this data is most useful for Barco engineers to determine which actions have to be taken.
Page 206 PB supply error ++5V PB supply error +27V PB supply error +17V PB supply error ++3V3 vs. –5V PB supply error ++3V3 XFAN XFAN supply error +24V XFAN XFAN supply error ++12V XFAN XFAN supply error R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 207: Trouble Shooting Through The Osd
3. Press ↓ to Pull down the menu 4. Use ↑ or ↓ to select Diagnostics 5. Press → to pull down the menu 6. Use ↑ or ↓ to select I C and press ENTER R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 208 4. Use ↑ or ↓ to select Diagnostics 5. Press → to pull down the menu 6. Use ↑ or ↓ to select Lamps and power supply and press ENTER Image 9-4 A text box is displayed Image 9-5 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 209 3. Press ↓ to Pull down the menu 4. Use ↑ or ↓ to select Diagnostics 5. Press → to pull down the menu Use ↑ or ↓ to select Cooling... and press ENTER Image 9-8 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 210 1. Press MENU to activate the Tool bar 2. Press → to select the Service item 3. Press ↓ to Pull down the menu 4. Use ↑ or ↓ to select Operation options 5. Press → to pull down the menu R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 211: Basic Troubleshooting Guide
It is a ﬁrst level tool which implies that it will not be possible to come to a solution at all times. If no solution can be found by using this troubleshooting guide, please contact your dealer. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 212: Basic Troubleshooting Guide
BAD BRIGHTNESS or CONTRAST Clean the projector lens Set Lamp power mode to Normal Remove blocking objects Program the correct address NO CONTROL NO RCU CONTROL Insert new batteries Image 9-13 Basic troubleshooting guide R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 213: Image Files
2. Name: name of file, contains the settings. 3. Ltot: total lines in one field 4. Lact: active lines in one field. 5. Ptot : total pixels on one horizontal line. 6. Pact: active pixels on one horizontal line. R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 214 1334 1280 2240 1600 WUXGA_2@60.xml 1490 1200 2624 1920 1920x1440@60.xml 1500 1440 2600 1920 QXGA@56.xml 1586 1536 2784 2048 QXGA@60.xml 1589 1536 2800 2048 UXGAP1@59.xml 1620 1600 1252 1200 UXGAP2@60.xml 1656 1600 1648 1200 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 215: Index
22, 24–25, 27–29, 36–37 edit component video rename composite video save desktop input ﬁles linking 36–37 geometry free space dynacolor maintenance stereo service power freeze frequency S-Video asynchronous stereo Galaxy NW-7 Connections 22, 26, 31 front panel R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 216 Linked CLO input 24–25 Linked Dynacolor component video Linked projectors Linked stereo input balance linking Input stereo sync DynaColor installation 9, 11, 15, 17, 19, 22–23, 39, 50, 178, 180, 182–183 liquid cooling level R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 217 Starting up the projector phase status bar Positioning stereo 77–78, 131, 183 Power connection Introduction power up passive Inﬁtec preferences passive to active automatic startup R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 218 Stereo Introduction types Stereo Mode lamp Display setup stereo mode StereoCreator Stereo sync out Unpacking StereoCreator video Temperature automatic gain control Ambient gain control Textbox The soft edge edit wizard Timer tint warning messages R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...
Page 219: List Of Images
Two sources displayed simultaneously (bullet); one source available (Barco logo) .......
Page 220 Basic troubleshooting guide..................208 R59770288 GALAXY NW-12, GALAXY NW-7 20/06/2013...

This manual is also suitable for:

Galaxy nw-7

Barco Galaxy NW-12 User Manual

Table of Contents

1 Introduction

2 Packaging

3 Installation Guidelines

4 Installation

5 Setup

6 Getting Started

7 Advanced

8 Maintenance

9 Trouble Shooting

10 Image Files

Index

Quick Links

Chapters

Troubleshooting

Related Manuals for Barco Galaxy NW-12

Summary of Contents for Barco Galaxy NW-12
