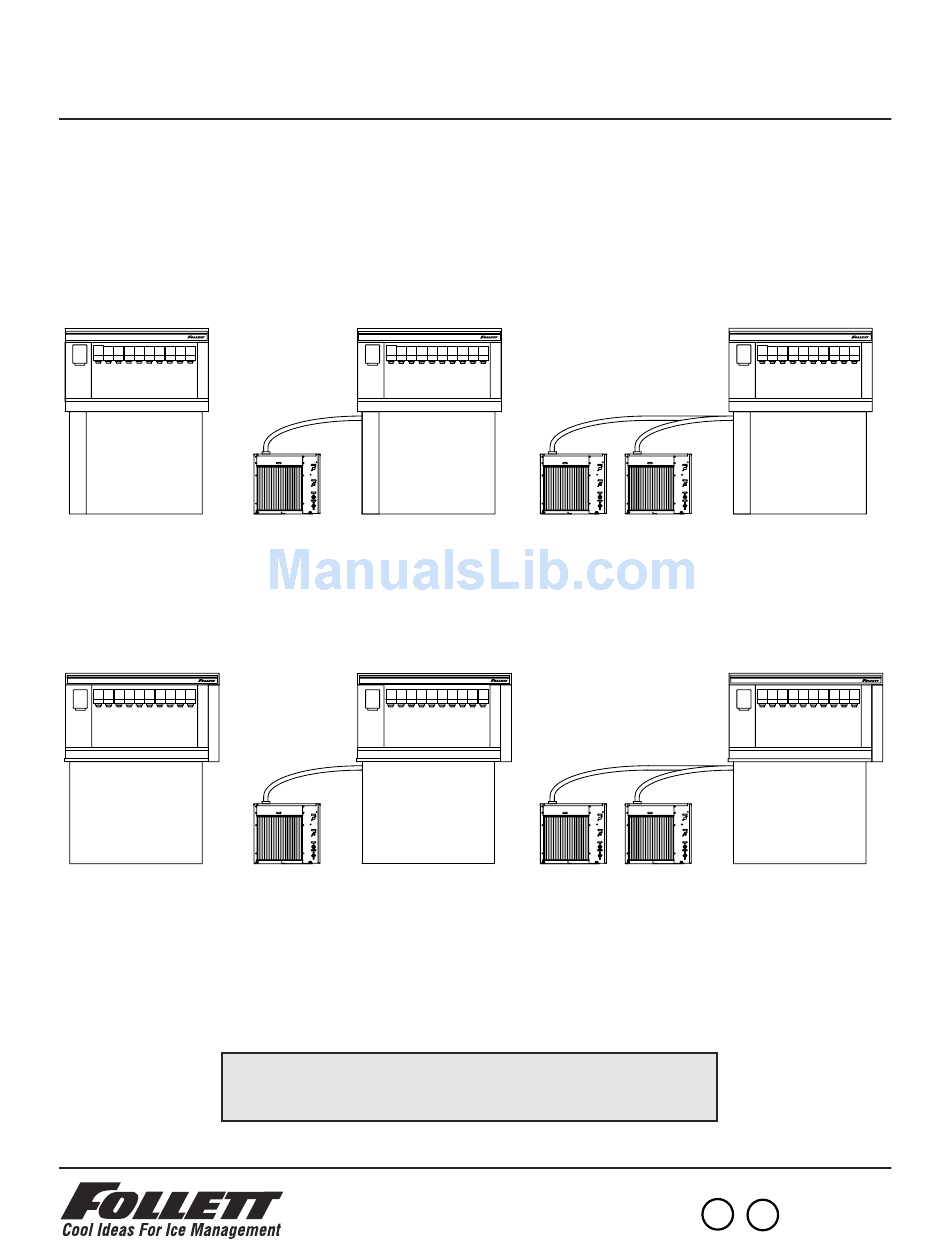

U300 series – Single-sided dispensers
Model U300
Model U300B
UD300 series – Dual-sided dispensers
Model UD300
Following installation, please forward this manual
Ice and Beverage Dispensers
Installation, Operation and Service Manual
Model U300R400A/W
Model U300BR400A/W
Model UD300R400A/W
to the appropriate operations person.
801 Church Lane • PO Box D, Easton, PA 18044, USA
Toll free (800) 523-9361 • (888) 2-FOLLETT
(610) 252-7301 • Fax (610) 250-0696 • www.follettice.com
U300/UD300 Series
Service numbers above B22205
Model U300R800A/W
Model U300BR800A/W
Model UD300R800A/W
U L
®
U L
C
®
00109173R00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett U300 Series
Summary of Contents for Follett U300 Series
- Page 1 Model UD300R800A/W Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • PO Box D, Easton, PA 18044, USA Toll free (800) 523-9361 • (888) 2-FOLLETT ® ® (610) 252-7301 • Fax (610) 250-0696 • www.follettice.com...
-
Page 3: Table Of Contents
Follett receives the equipment at the factory in Easton, PA within 30 days of the issue of the return authorization number. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s expense, new packaging. -
Page 4: Welcome To Follett Corporation
Before you begin After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary. -
Page 5: Specifications
Drains should be hard piped and insulated. Maintain at least 1/4" per foot (6mm per 304mm run) slope on drain line run. Water disconnect within 10 feet (3m) of dispenser is suggested for automatic load units. Follett recommends use of a Follett model AFSYSTMFL4S water filter on icemakers connected to automatic fill dispensers. Icemaker... - Page 6 Dimensions and clearances U300 series single-sided dispensers Required clearances 60" (1524mm) minimum above counter for installation if dispenser will be dropped into counter 49" (1245mm) minimum above counter for auger removal 12" (305mm) minimum on ice chute side for service 12"...
- Page 7 UD300 series dual-sided dispensers Required clearances 60" (1524mm) above counter for installation if dispenser will be dropped into counter 49" (1245mm) above counter for all units after installation for auger cleaning and servicing 12" (305mm) on dispense chute side of all models for connections 12"...
-
Page 8: Installation
36" (915mm) counters do not require this accessory piece. 1. Check that dispenser location meets all requirements in this manual and cut counter as shown. Plan View Plan View U300 series single-sided dispensers UD300 series dual-sided dispensers counter cut-out counter cut-out... -
Page 9: Electrical Connections
Electrical connections Model Electrical connection Circuit(s) required U300, U300B, UD300 Hard wiring of dispenser required 115V, 60Hz, 1 phase Max. fuse dispenser – 20 amps U300R400A/W, U300BR400A/W, Dispenser power – hard wiring 115V, 60Hz, 1 phase UD300R400A/W required (2) circuits required Bin signal –... -
Page 10: Connecting Beverage Lines
1. Follow detailed cleaning instructions in service manual before operating dispenser. 2. On units with Follett integral ice water bath beverage cooling (“B” models) only, slowly pour water into ice waterbath area to fill empty bath and submerge coils. Coils are submerged when water starts to flow out overflow drain. -
Page 11: Operation
In automatic load units, ice is manufactured in either one or two Follett remote icemakers. These icemakers may be located up to 20 ft (6m) away from the dispenser. Extruded ice is transported through a tube and pushed to the storage compartment of the dispenser. -
Page 12: Cleaning
Cleaning Using solutions below, clean and sanitize storage area and beverage lines before starting unit and on a routine basis as noted below. Note: Always disonnect power before cleaning dispenser. Do not run plastic parts through a dishwasher. Solution A: Combine 1 oz (250ml) bleach with 2 gal (8L) hot water or use Ecolab Mikro-chlor Cleaner per manufacturers instructions. - Page 13 Recommended daily dispenser cleaning 1. Remove all debris from drain pan. 2. Pour 1 gallon (4L) hot water into drain pan to keep drain lines clear. Recommended weekly dispenser cleaning 1. Remove drain pan and grille and wash with Solution A. Rinse thoroughly. 2.
-
Page 14: Service
Service Dispense chute assembly Dispense chute cover removal quick release pins gate 1. Remove top cover. gate assembly assembly springs 2. Remove two screws from top cover and pull cover forward and down to remove. 3. On push button units, disconnect plug on harness. Auger motor assembly removal 1. -
Page 15: Wiring Diagrams
Wiring diagrams U300 series – single sided models AUGER MOTOR DISPENSE PL2-1 PL1-1 PL1-2 PL2-2 BLACK BLACK GRAY ORANGE PURPLE PURPLE BLUE POWER TOP LID DRAIN SWITCH SWITCH SWITCH WHEEL MOTOR PL3-2 PL3-3 PURPLE WHITE BATHPUMP ORANGE MOTOR READY PL5-1... - Page 16 UD300 series – dual-sided models JUNCTION JUNCTION 115V 115V DISPENSE WHEEL MOTOR PL13 PL12 PL12 PL13 POWER DRAIN PAN DRAIN PAN AUGER MOTOR SWITCH SWITCH SWITCH BLUE GREEN (DP-NO) (DP-NO) TRANSFORMER #1 WHITE BLACK 115 VOLTS 24 VOLTS DISPENSE SWITCH #1 DISPENSE RELAY BLUE YELLOW...
-
Page 17: Troubleshooting
(page 18). 4. Check that all drains are clear. Note: For units equipped with Follett compressed nugget icemaker, see Icemaker Operation and Service Manual for service and troubleshooting information. Possible cause... - Page 18 Operational Status The chart below shows the operational status of various parts when certain switches are turned off or accessories are removed. Condition Pump Solenoids Auger Wheel Beverage valves Top lid off Drain pan off On/off switch in OFF position Beverage switch in OFF position...
-
Page 19: Replacement Parts
Dual-side dispenser Plan View Reference # Description Part # Lid, with graphics, single-sided 501930 Lid, with graphics, dual-sided 501931 Graphics, “Follett” 501938 Access panel, tower, single-sided 501944 Access panel, tower, dual-sided 501945 Not shown Cover, ice opening (below drain pan) 501934... - Page 20 Top View Top View lower ring auger tube seal reinforcing countertop Front View section auger tube Reference # Description Part # Motor, auger (includes capacitor) 501984 Bracket, auger motor hold-down 502047 Not shown Bracket, auger motor stabilizer, single-sided models 502060 Not shown Bracket, auger motor stabilizer, dual-sided models 502113...
- Page 21 U300 dispense assembly U300 dispense assembly Side View Top View Reference # Description Part # Gate, dispense 501955 Linkage pin, gate/solenoid 502096 Pin, quick release, 3" (77mm), gate and lever 501949 Chute, ice 501952 Solenoid 501961 Not shown Boot, solenoid 502098 Dispense mechanism assembly 501948...
- Page 22 Electrical components Top View ready (orange) BEVERAGE BATH CONTROL BOARD DETAIL Front View Side View BEV. BATH INDICATOR WARM COLD Reference # Description Part # Transformer, 24V 502058 Relay, dispense 501826 Strips, terminal 502472 Switches (power and icemaker) 502209 Board, circuit and probe (one unit) 502473 Bracket, probe 00111484...
- Page 24 801 Church Lane • PO Box D, Easton, PA 18044, USA Toll free (800) 523-9361 • (888) 2-FOLLETT 00109173R00 (610) 252-7301 • Fax (610) 250-0696 • www.follettice.com 1/03 ® ®...
