Follett U300 Installation Manual
U300/ud300 series ice and beverage dispensers
Hide thumbs
Also See for U300:
- Operation manual (17 pages) ,
- Installation, operation and service manual (24 pages)
Advertisement
Quick Links
Order parts online
www.follettice.com

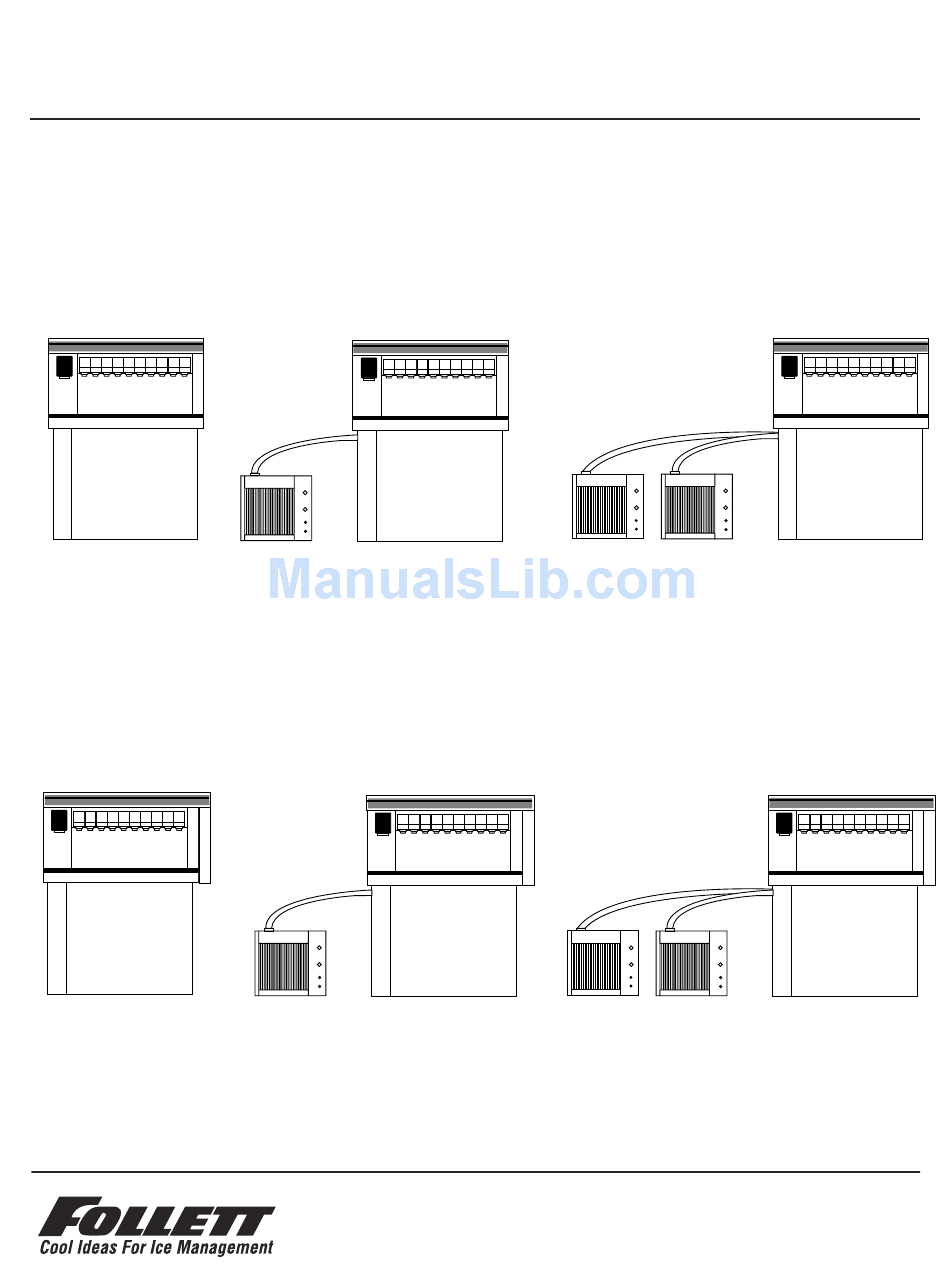

Single-sided dispensers
Model U300
Model U300B
Dual-sided dispensers
Model UD300
and Beverage Dispensers
Model U300R400A/W
Model U300BR400A/W
Model UD300R400A/W
801 Church Lane • PO Box D, Easton, PA 18044, USA
Toll free (800) 523-9361 • (888) 2-FOLLETT
(610) 252-7301 • Fax (610) 250-0696 • www.follettice.com
U300/UD300 Series Ice
Installation Manual
Service Numbers Below B22204
Model U300BR800A/W
Model UD300R800A/W
Model U300R800A/W
208601R01
Advertisement
Related Manuals for Follett U300
Summary of Contents for Follett U300
- Page 1 Model U300B Model U300BR400A/W Model U300BR800A/W Dual-sided dispensers Model UD300 Model UD300R400A/W Model UD300R800A/W 801 Church Lane • PO Box D, Easton, PA 18044, USA Toll free (800) 523-9361 • (888) 2-FOLLETT (610) 252-7301 • Fax (610) 250-0696 • www.follettice.com 208601R01...
-
Page 2: Welcome To Follett
Before you begin • After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in filing a claim, if necessary. - Page 3 • Equipment ground required • Electric disconnect suggested within 10 ft (3m) of dispenser and icemaker(s) Single-sided dispensers U300 – dispenser 6.0 amps U300B – dispenser 7.0 amps U300R400A/W – dispenser 6.0 amps, icemaker 11.0 amps U300BR400A/W – dispenser 7.0 amps, icemaker 11.0 amps U300R800A/W –...
-
Page 4: Required Clearances
U300 series single-sided dispensers Required clearances • 60" (1524mm) above counter for installation if dispenser will be dropped into counter • 49" (1245mm) above counter for all units after installation for auger cleaning and servicing • 12" (305mm) on dispense chute side of all models for connections Front view •... - Page 5 UD300 series dual-sided dispensers Required clearances • 60" (1524mm) above counter for installation, if dispenser will be dropped into counter • 49" (1245mm) above counter for all units after installation for auger cleaning and servicing • 12" (305mm) on dispense chute side of all models for connections •...
- Page 6 Electrical hookup information Model Electrical Connection Circuit(s) required U300 115V, 60Hz, 1 phase U300B • Hard wiring of dispenser Max. fuse dispenser – 15 amps. UD300 required U300R400A/W 115V, 60Hz, 1 phase U300BR400A/W • Dispenser power – hard wiring (2) circuits required...
- Page 7 FIELD WIRING DIAGRAM IS INTENDED TO AID ELECTRICIAN OR TECHNICIAN IN UNDERSTANDING HOW EQUIPMENT WORKS. ALL FIELD WIRING MUST BE INSTALLED IN ACCORDANCE WITH NEC AND LOCAL U300 DISPENSER ELECTRICAL CODES. 20 AMP FUSED DISCONNECT RIGHT JUNCTION BOX LEFT JUNCTION BOX...
- Page 8 If you need this collar and it was not included with dispenser, please call Follett to obtain it. All U300/UD300 dispensers must be installed level in both directions to ensure proper operation and must be supported from below with supplied 6" (153mm) legs, or with channels installed at site.
- Page 9 Installing U300/UD300 series dispenser in counter All U300/UD300 dispensers must be installed level in both directions to ensure proper operation and must be supported from below with supplied 6" (153mm) leg accessory, or with channels installed at site. Do not hang dispenser on flange. These dispensers weigh approximately 325 lbs (147kg).
- Page 10 Installing remote icemaker(s) (automatic load models only) Correct installation of remote icemaker(s) is critical to proper performance of icemaker and dispenser. Refer to installation manual packed with icemaker for important details on ice transport tube run, ventilation requirements for air-cooled remote icemakers and other installation requirements.
- Page 11 Solution temperature must be 75˚ – 125˚F (24˚ - 52˚C). Cleaning bin and dispenser components 1. Refer to disassembly instructions provided in U300 Operation and Service Manual and remove wheel, baffles, drive shaft and agitators from bin storage area.
- Page 12 Warning: Failure to remove all sanitizer may result in health hazard. Final start-up – all models 1. On models with Follett integral ice-waterbath beverage cooling only, remove dispenser top, connect hose to cold water supply, and carefully fill empty bath with cold water to submerge coils.
