SCR-60
JAPAN
OWNER'S MANUAL
MANUALLY TUNED STEREO RADIO WITH
COMPACT DISC PLAYER DIGITAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCR-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Premier SCR-60

Summary of Contents for Premier SCR-60

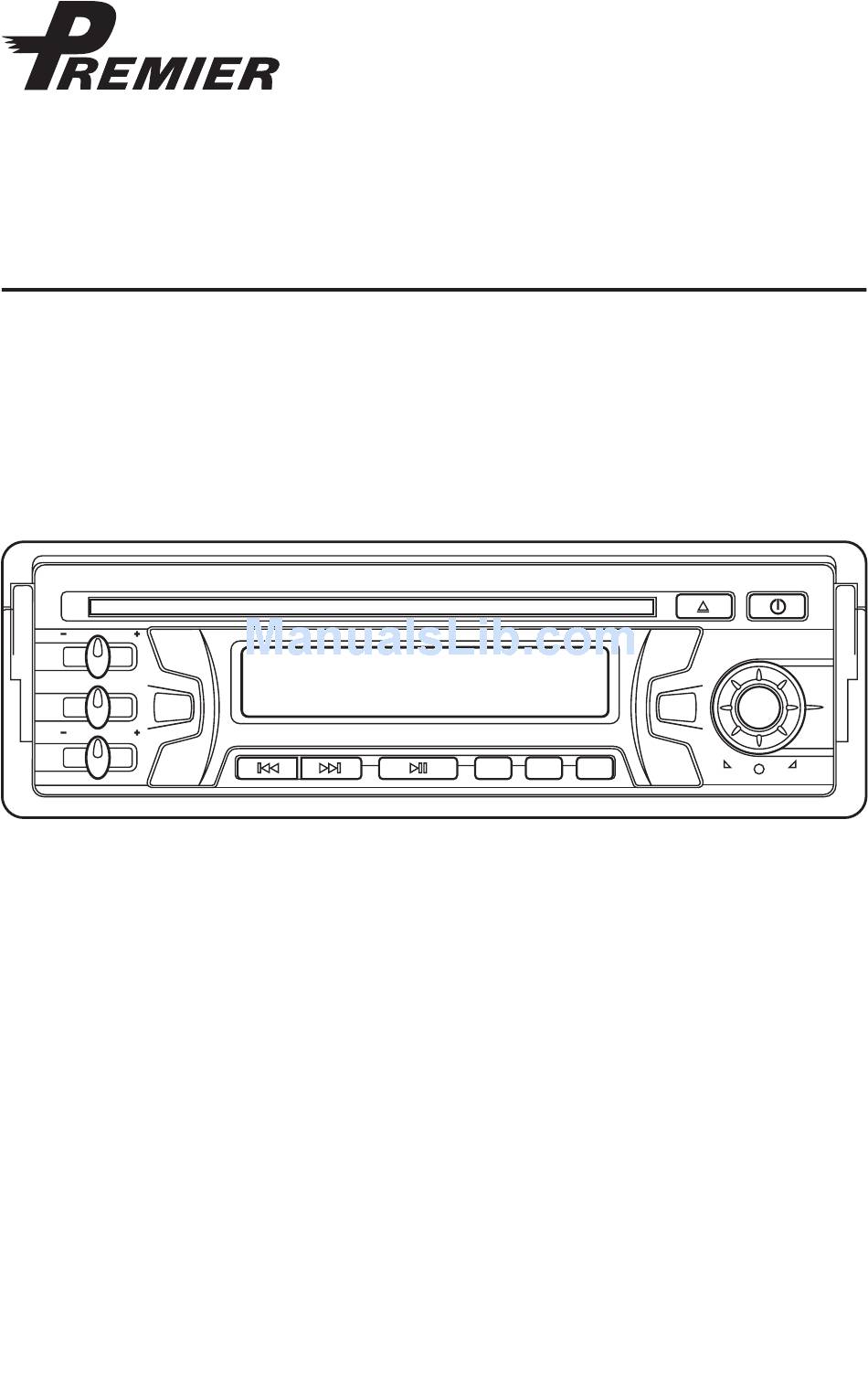

  • Page 1 ® SCR-60 JAPAN OWNER’S MANUAL MANUALLY TUNED STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL...

  • Page 2: Table Of Contents

    CONTENTS Installation .....................3 Remove The Unit From The Dash Board ............4 Operation .......................5 Radio Operation ....................6 CD Operation....................7 Wiring Connection ..................8 Specification....................8...

  • Page 3: Installation

    INSTALLATION Here is the installation diagram. DASH BOARD HEX NUT METAL MOUNTING STRAP SPRING HEX BOLT WASHER TAPPING SCREW PLAIN WASHER CONSOLE SLIDE BRACKET HOUSING Precautions Fire Wall 1. Choose the mounting location where the unit will not interfere with the normal driving functions of the driver.

  • Page 4: Remove The Unit From The Dash Board

    REMOVE THE UNIT FROM THE DASH BOARD 1. Remove the metal strap attached to the back of the unit. 2. Disconnect all the wires of the unit and the antenna plug. 3. Lift up the handle and pull the trim plate out. SLEEVE HANDLE TRIM PLATE...

  • Page 5: Operation

    OPERATION 9 10 GENERAL OPERATION ON/OFF Press PWR button (1) to turn on the unit. Press it again to turn it off. BALANCE Slide the button (2) left or right to adjust sound balance between left and right speakers. VOLUME Slide the button (3) to left or right to adjust volume level.

  • Page 6: Radio Operation

    RADIO OPERATION BAND Press BND button (7) to change bands as below: SELECT STATION Rotate the TUNING knob (8) clockwise or anti-clockwise to adjust the frequency upward or downward. LOCAL/DISTANT Press the LOC/RPT button (9) to select between local setting for reception of strong station and distant setting for reception of weak stations when tuning.

  • Page 7: Cd Operation

    CD OPERATION DISC PLAY Gently insert a compact disc with the label side facing up into the disc slot (13). The disc is then automatically loaded into the unit and starts playing with the first track of the disc. The digital display will indicate the track number and the time of the track. EJECT Press (eject) button (12) to stop CD play and eject CD from the slot.

  • Page 8: Wiring Connection

    WIRING CONNECTION MAIN UNIT ANTENNA CONNECTOR RCA CABLE Rch RED POWER YELLOW Lch WHITE ANTENNA FUSE IGNITION B(+) GREEN GREY LEFT RIGHT SPEAKER SPEAKER BLACK GROUND/SPK.COMMON Note: After ACC turn off, turn on the unit again, it will return to FM mode. SPECIFICATION General Power Supply Requirements -------------------------------- DC 12 Volts, Negative Ground...
