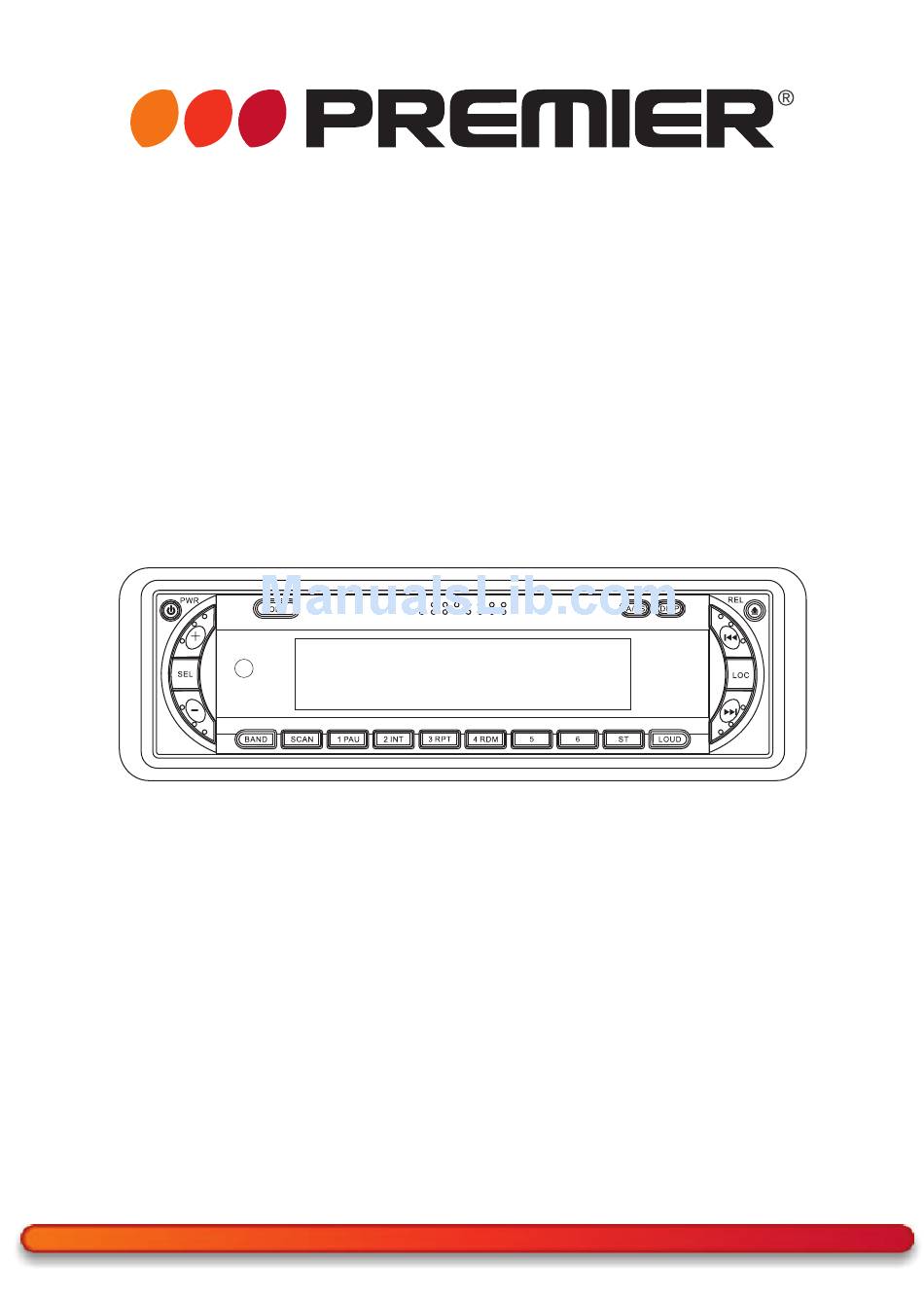

INSTRUCTION MANUAL
Car Stereo CD/CDR/CDRW/MP3 Player
with PLL AM/FM Stereo Radio
Fold Down Front Panel System
SCR-0471MP3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCR-0471MP3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Premier SCR-0471MP3

  • Page 1 INSTRUCTION MANUAL Car Stereo CD/CDR/CDRW/MP3 Player with PLL AM/FM Stereo Radio Fold Down Front Panel System SCR-0471MP3...
  • Page 2: Locations Of Controls

    LOCATIONS OF CONTROLS (1-6) 1. POWER ON/OFF 2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/ ENTER POWER MODE FADER / AUDIO DSP/BEEP/SEEK/VOL LAST (SEL) 3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER TUNE/SEEK 4. PRESET STATIONS (1,2,3,4,5,6) 5. STEREO/MONO BUTTON (ST) BAND DISPLAY 6. LOUDNESS BUTTON (LD) PAUSE 7.
  • Page 3: Iso Connector

    ISO CONNECTOR RCA Jack Line Out : White (left) Red (right) RCA Jack Line In : White (left) Red (right) CONNECTOR A 4.YELLOW: MEMORY +12V 5.BLUE: AUTO ANTENNA OUTPUT 7.RED: +12V (TO IGNITION KEY) 8.BLACK: GROUND Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.
  • Page 4: To Support The Unit

    TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE 3. DASH BOARD 4. HEX NUT 5. LOCK WASHER Dashboard 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen.
  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS 1. POWER ON/OFF Insert the front panel in the unit and push Power button in order to switch on the unit. Push button newly in order to switch off the unit and push REL button (15) to release the front panel. Note: Never release the front panel when the unit is on.
  • Page 6 4. PRESET STATIONS (1,2,3,4,5,6) (A) RADIO MODE: 1. Press BAND to select the desired band, FM1, FM2, FM3, AM1, Am2. 2. Tune in the desired station by using Automatic Tuning or Manual Tuning. 3. Keep the desired preset number buttons (4) pressed until the radio bleeps (2 seconds). 4.
  • Page 7 13. “SCAN” AUTOMATIC TUNING CONTROL (SCN) This key is operated as RADIO SCAN The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode. 14. LCD DISPLAY The Liquid Crystal Display will display the current state of the unit. CD/MP3 CONTROL LOCATION OF PARTS 11.
  • Page 8: Specifications

    3. Searching Character: • Press “A/PS” 3 times, then character search mode is activated. • Press enter “SEL” button, then “A” character is displayed. • With “ ” knob, you can select the letter you want. • Press enter “SEL” key longer than 2 secretary. •...
  • Page 9: Estimado Cliente

    MANUAL DE INSTRUCCIONES REPRODUCTOR DE CD/CDR/CDRW/MP3 Y RADIO PAR AUTO SCR-0471MP3 ESTIMADO CLIENTE Felicitaciones por su compra! Por favor lea cuidadosamente este manual, y guárdelo para su futura referencia. Si necesita soporte adicional, no dude en escribir a: info@premiermundo.com...
  • Page 10: Ubicación De Los Controles

    UBICACIÓN DE LOS CONTROLES (1-6) 1. ECENDIDO/APAGADO 2. SELECTOR DE FUNCIÓN: BAJOS/AGUDOS/BALANCE/ ENTER POWER MODE INTENSIDAD/AUDIO DSP/BEEP/BUSCAR/VOL/ULTIMA (ELEGIR) TUNE/SEEK 3. SUBIR VOL. / BAJAR VOL./ AJUSTE BAJOS / AGUDOS / BALANCE / INTENSIDAD BAND DISPLAY 4. EMISORAS PREDEFINIDAS (1,2, 3, 4, 5, 6) 5.
  • Page 11: Mantenimiento

    CONECTOR ISO Salida de línea RCA: Blanca (izquierda), Roja (derecha). Salida RCA Line In: CONECTOR A Blanca (izquierda) Roja (derecha). 4.AMARILLO: MEMORIA +12V 5.AZUL: ANTENA AUTOMÁTICA 7.ROJO: +12V (LLAVE DE ENCENDIDO) 8.NRGRO: TIERRA NOTA: (Conector A Nro. 7) debe ser conectado con la llave de encendido del vehículo para evitar que la batería se desgaste cuando el automóvil no sea usado por mucho tiempo.
  • Page 12 1. EQUIPO SOPORTE DEL EQUIPO 2. CAJUELA REMOVIBLE 3. TABLERO 4. TUERCA HEXAGONAL 5. ARANDELA DE BLOQUEO Tablero 6. ARANDELA PLANA 7. CHASIS DEL AUTOMÓVIL 8. TRINCHA DE SOPORTE TRASERA 9. TORNILLO DE PRESIÓN 10. PERNO HEX. M5 X 15 PANEL FRONTAL REMOVIBLE El panel frontal de este equipo puede ser removido para evitar robos.
  • Page 13: Instrucciones De Uso

    INSTRUCCIONES DE USO 1. ENCENDIDO/APAGADO Coloque el panel frontal y oprima el botón de encendido para encender el equipo. Vuelva a presionar este botón ( ) para apagar el equipo y el botón REL (15) para quitar el panel frontal. NOTA: Nunca quite el panel frontal mientras el equipo estéen funcionamiento.
  • Page 14 4. ESTACIONES PREDEFINIDAS (1, 2, 3, 4, 5, 6) (A) MODO DE RADIO: 1. Presione el botón BAND para elegir una banda (FM1, FM2, FM3, AM1, AM2). 2. Sintonice una radioemisora usando el sintonizador automático o el sintonizador manual. 3. Mantenga presionado uno de los botones numéricos (4) hasta que el equipo emita un pitido (2 segundos).
  • Page 15 12. BÚSQUEDA / SINTONIZACIÓN AUTOMÁTICA (AS/PS) Al presionar momentaneamente este botón la radio irá cambiando de una a otra emisora predefinida. Una vez activa la función, la radio se detendrá durante 5 segundos en las frecuencias cuya se.al esté lo suficientemente fuerte, y luego seguirá...
  • Page 16 parpadear y pueda ser introducido • Introduzca el segundo dígito usando la perilla “ ” • La pista elegida empezará a reproducirse 2. Búsqueda de archivos por nombre: • Presione dos veces el botón A/PS para activar el modo de búsqueda •...
