Summary of Contents for Premier SCR-29MP3

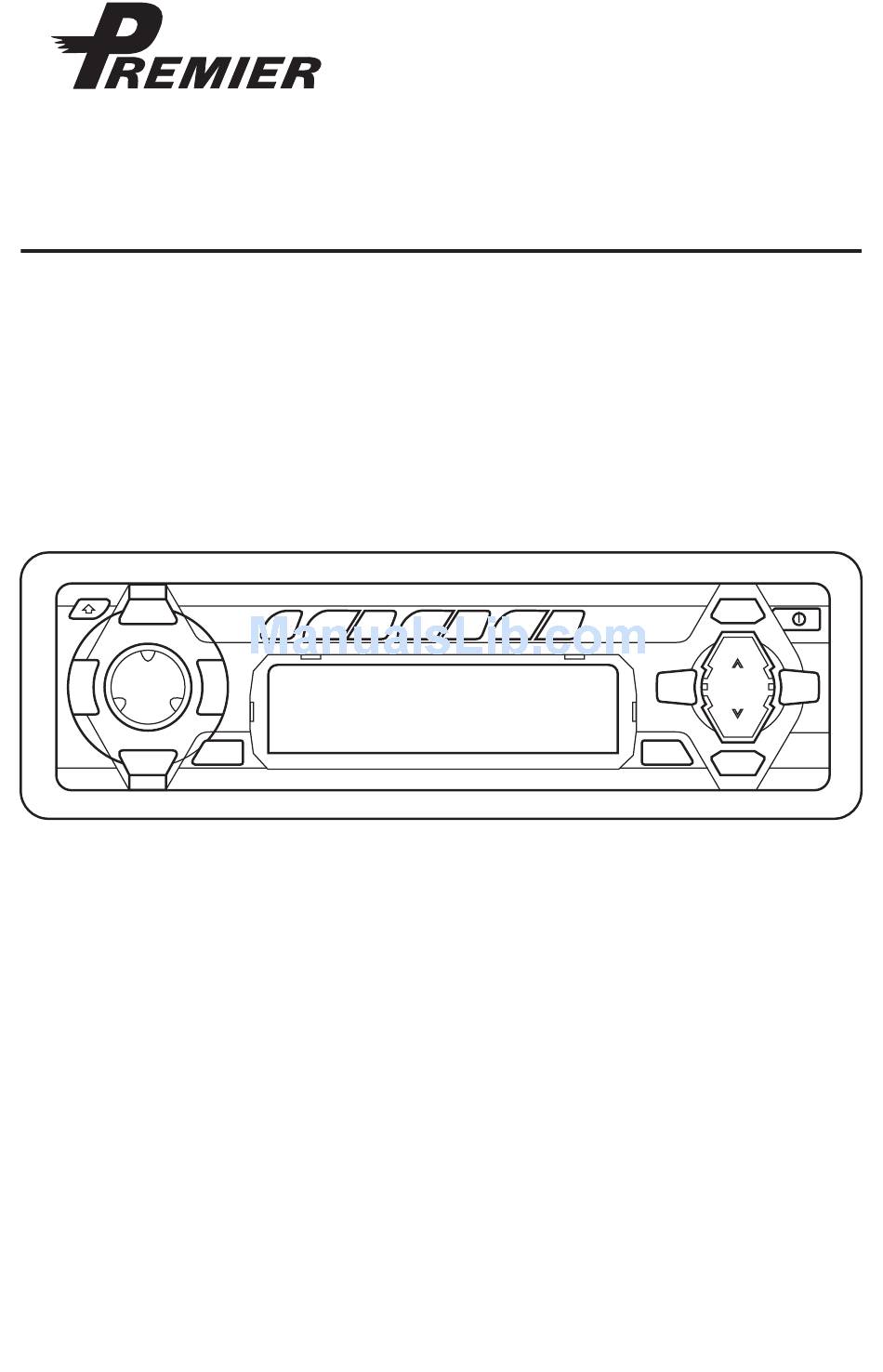

- Page 1 ® SCR-29MP3 JAPAN OWNER’S MANUAL Mobile Audio System • PLL Synthesizer Stereo Radio • Digital Compact Disc Player • Automatically Memory Storing • Preset Equalization • Remote Control • Multi-color LCD Display...
-
Page 2: Table Of Contents
CONTENTS Installation .....................3 DIN Front-Mount (Method A) ..................3 Installing the unit ....................3 Removing the unit .....................4 DIN Rear-Mount (Method B) ...................4 Using the Detachable Front Panel ..............5 Wiring Connection ..................7 Operation .......................8 Remote Control.....................9 Specification....................15 Trouble Shooting ..................16... -
Page 3: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •... -
Page 4: Removing The Unit
1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can (Fig. 2) be bent by hand to the desired angle. 7. -
Page 5: Using The Detachable Front Panel
USING THE DETACHABLE FRONT PANEL To Detach the Front Panel 1. Press the open button (OPEN), then the front panel will be folded down. Open 2. Remove the front panel by pulling its middle-hand side outward. Front Panel 3. For safekeeping, store the front panel in the supplied protective case immediately after being removed. - Page 6 To Re-install the Front Panel 1. Push the front panel into the main body. A ‘click’ sound should be heard. 2. Note that if the front panel fails to lock in position properly, press control button may not function and LCD display may be missing some segments. Pressing the open button and then re-install the front panel again.
-
Page 7: Wiring Connection
WIRING CONNECTION MAIN UNIT ANTENNA CONNECTOR IGNITION SWITCH (B+) YELLOW MEMORY CHOKE Rch RED BACK-UP BLACK Lch WHITE GROUND (B–) BLUE POWER ANTENNA GREY WHITE FRONT Lch FRONT Rch SPEAKER SPEAKER WHITE/BLACK GREY/BLACK GREEN VIOLET REAR Lch REAR Rch SPEAKER SPEAKER GREEN/BLACK VIOLET/BLACK... -
Page 8: Operation
OPERATION 11 24 GENERAL OPERATION (1) ON/OFF Press the PWR button (1) to turn the unit, press it again to turn it off. Unit can also be turned on by pressing any one of the function key, except the eject and reset keys) (2) OPEN BUTTON Press the OPEN button (2) to slide down the front panel, then to detach the removable... - Page 9 has not been adjusted for several seconds, display returns to normal radio or CD display. (Bass) (Treble) (Balance) (Fader) (Volume) Bass Press SEL button (3) for one time. Adjust bass level by using VOL (4) button. Treble Press SEL button (3) for two times. Adjust treble level by using VOL (4) button. Balance Press SEL button (3) for three times.
- Page 10 RADIO OPERATION (9) BAND SELECTION At tuner mode, press the BND button (9) shortly to select the desired band. The reception band will change in the following order: (10) LOCAL/DISTANT Press the LOC button (10) to switch to reception of the local station with strong signals or distant station with weak signals.
- Page 11 CD OPERATION (11) SELECT TRACKS During CD operation, press TUNE/SEEK/TRACK button (11) to move to the previous track or the following track. Track number shows on display. During CD operation, hold TUNE/SEEK/TRACK button (11) to fast forward or fast reverse. CD play starts from when you release the button. (14) PAUSE PLAYING Press PAU button (14) to pause CD player.
- Page 12 MP3 OPERATION During MP3 operation, these buttons serve the followings: 1. “Searching track directly” in Digital Audio CD. 2. “Searching File Name” in Digital Audio CD. 3. “Searching File or directory” by file directory structure in Digital Audio CD. AMS button is assigned as Digital Audio Mode selection button in single CDP mode. When pressed, it is activated as selecting each mode of Digital Audio.
-
Page 13: Remote Control Handset
REMOTE CONTROL HANDSET CONTROL & FUNCTION KEYS 1. POWER = Power ON/OFF button 2. MOD (7) = Mode Button (S, T, U, 7 For MP3 Operation) 3. S (SEL) = Select Button (Character Shift Right For MP3 Operation) 4. DSP (0) = Display Button (_, –, +, 0 For MP3 Operation) 5. -
Page 14: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 155 (D) x 50 (H) mm Tone Controls - Bass (at 100 Hz) : +10 dB / –10 dB - Treble (at 10 KHz) : +10 dB / –10 dB Maximum Output Power : 25W x 4 (ch) -
Page 15: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution No power. The car ignition switch is If the power supply is properly not on.
