Summary of Contents for Premier SCR-5381USDR

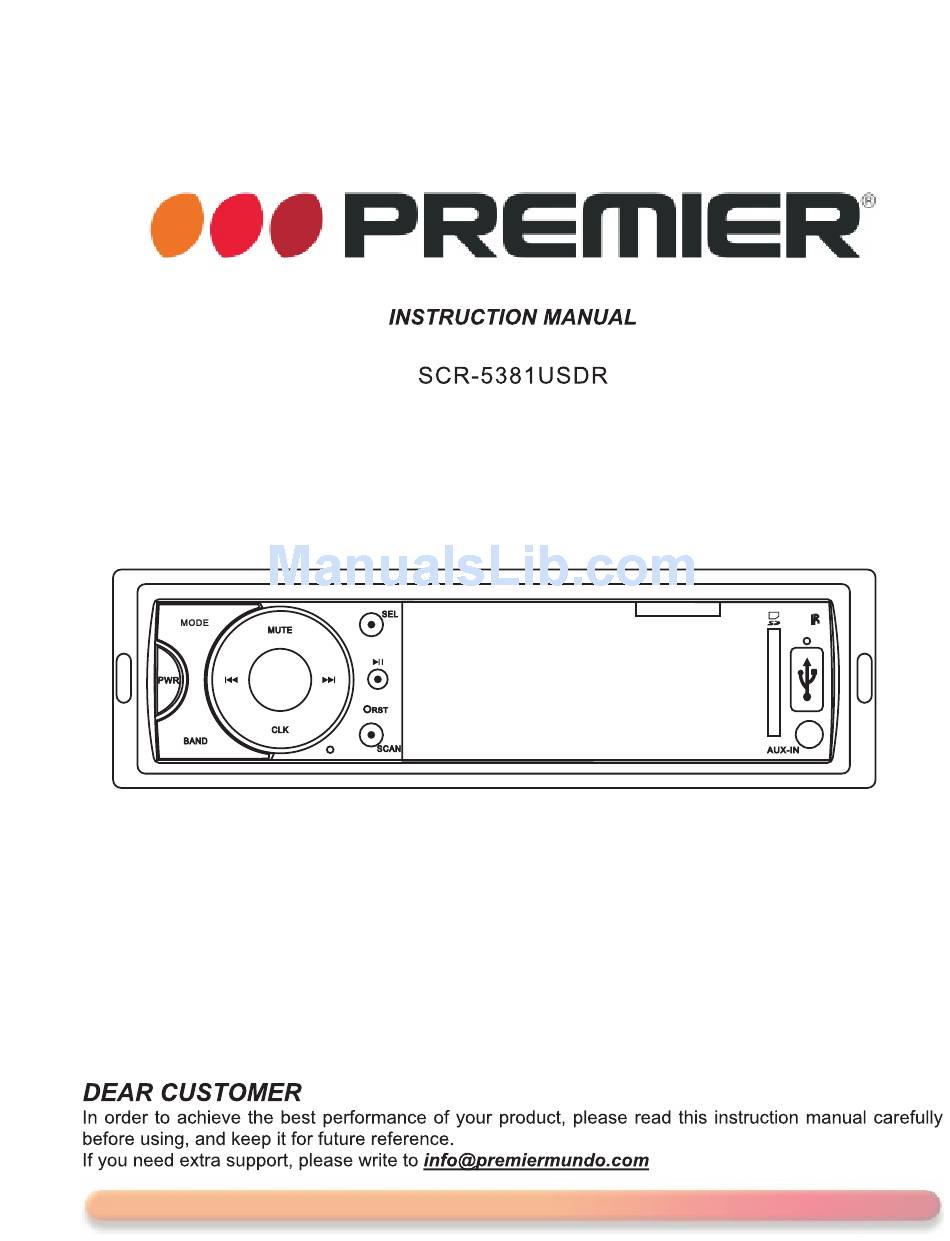

- Page 1 MULTIMEDIA CAR AUDIO...
- Page 3 1.POWER Turn the unit on by pressing any button on the unit. When the system is on, press this button to turn the unit off. 2.MODE Press the MODE button to switch between input modes: RADIO / AUX IN and SD-Card and USB. 3.BAND Press to switch between radio bands that are available: FM1, FM2, FM3 and AM.
-
Page 4: Sd/Mmc Card Slot
9.SCAN To find pre-stored stations. 10.SEL Repeatedly SEL button to select your desired mode in the sequence below: → → → → → → FM Bass Treble Balance Fader Loud EQ Turn the volume control to change the configuration of these functions. -
Page 5: Remote Controller
Remote Controller (Power)button Press the button to turn power on/off. 2.MODE(mode switch)button When the power is on, each time the button is pressed, the mode switches between RADIO/USB/SD MMC/AUX. (Mute)button Press the button to turn off volume output, repress the button to resume previous volume level. - Page 6 4.Number button The function is the same as the function of number buttons on panel. In USB or SD-Card mode, press to select the track you want to play. 5.EQ(equalizer adjust)/AMS button → → → → EQ function: POP ROCK JAZZ CLASSIC EQ OFF.
- Page 7 Comprehensive Functions 1.There are 18FM stations pre-stored in the unit(6 stations each on the FM1/FM2/FM3 band). (Optional: and 12AM stations pre-stored in the unit(6 stations each on the AM1/AM2 band). 2.Excellent anti-interference electronic tuning radio system. 3.In FM stereo status, the stereo indicators lights up. Receiving FM 87.5-107.9MHZ Range:...
- Page 8 General frequency..20HZ-20KHZ Power Input....12V Speaker Impedance ..4-8Ω Distortion (1kHz) ..<1% Channel Separation ..>55dB Max Power Output...7W 4CH Balancing Channels..<3dB FM RADIO frequency..87.5MHZ-107.9MHZ sensitivity..<10dB AM RADIO frequency..530MHZ-1710MHZ sensitivity..<38dB...
- Page 9 Schematic Diagram...
- Page 10 Schematic Diagram...
- Page 11 Schematic Diagram...
