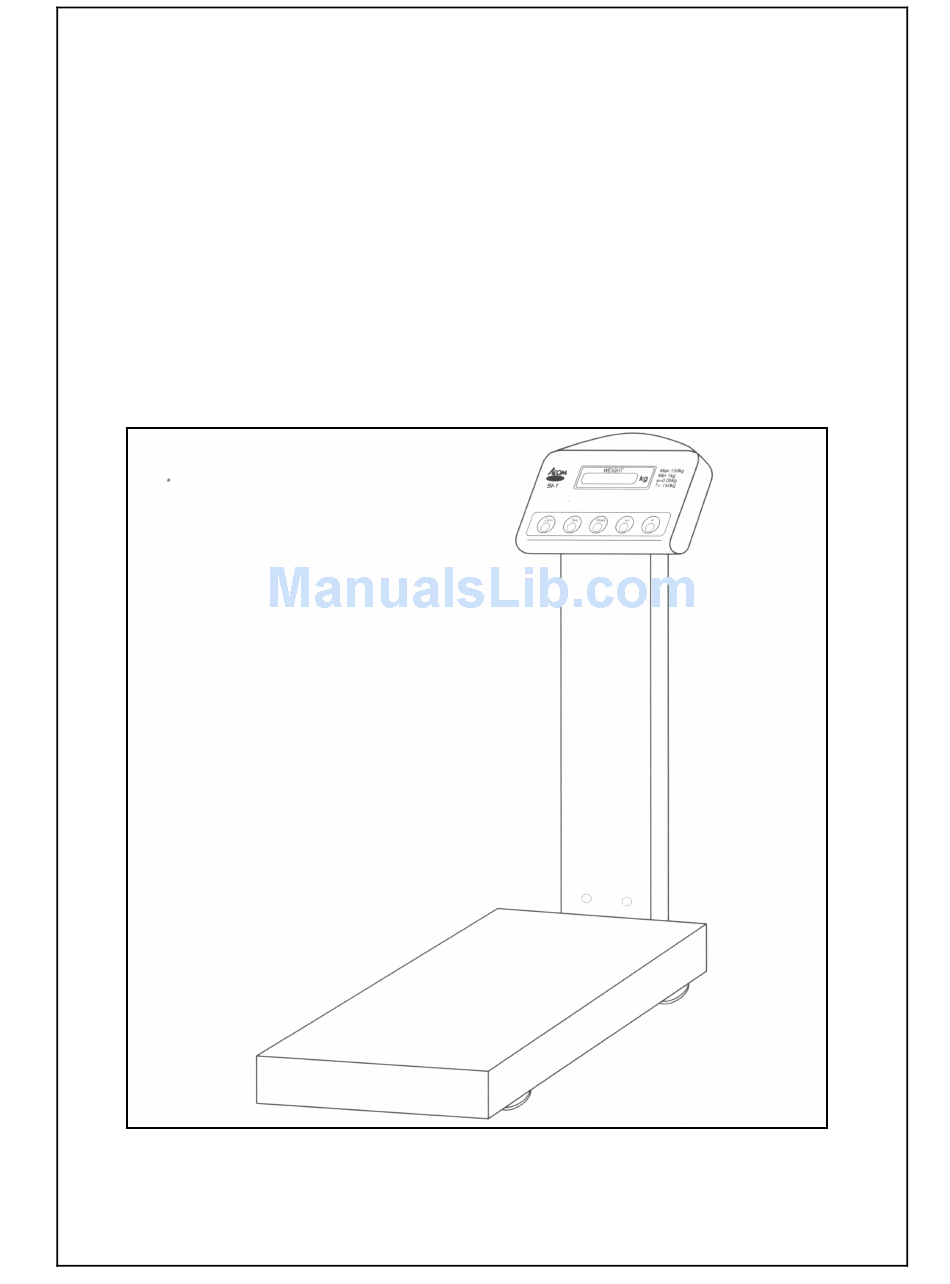

- Page 1 A A A A O W N E R ’ S M A N U A L MODEL: SI-1 BENCH SCALE VER 1.00...
-
Page 2: Table Of Contents
OPERATING THE SCALE ..........TROUBLESHOOTING & ERROR MESSAGES ..... PREFACE Corporation would like to thank you for purchasing our model SI-1 Advanced Bench scale. We are committed to creating high quality low maintenance products and supplying our customers with diligent customer service. -
Page 3: Specifications
Specifications Model: SI-1 Maximum Capacity: 150 lb (60 kg) 300 lb (150 kg) Minimum Graduation: 0.05 lb (0.02 kg) 0.1 lb (0.05 kg) Maximum Tare: Full Capacity External Resolution: 1/3,000 A/D Conversion Rate: 9 Updates / second (adjustable) Units & Modes:... -
Page 4: Function Keys
Function Keys ZERO Zero key, used to manually set the zero point. TARE Tare key, used to enter tares and clear tares. Mode key, used to toggle between the different weighing units, MODE counting features, and Limit mode. Set key, used to sample the Piece Weight in Counting mode, and to set the limits for Limit mode. -
Page 5: Unpacking & Assembly
Unpacking & Assembly Your SI-1 scale should come with the following: Parts Name Units IN CARTON BOX STYROFOAM BODY POLY BAG MANUAL POLY BAG AC ADAPTER ADAPTER BOX MANUAL DISPLAY COLUMN PLATFORM 3-10 INDICATOR 3-11 INDICATOR POLY BAG 3-15 SILICA DESICANT... -
Page 6: Safety Precautions
Safety Precautions Place the scale on a flat and rigid surface Place the scale far from strong RF interference Level the scale using its adjustable feet Do not subject the platter to sudden impacts Do not spill the water or any other liquid on the scale Do not use any solvents to clean the scale Do not leave the scale in direct sunlight Operating the Scale... - Page 7 Simple Weighing 1. Make sure that the scale is at ZERO and STABLE 2. Place a load on the platter 3. After the STABLE indicator turns on you may read the weight 4. Remove the load Entering Tares 1. Make sure that the scale is at ZERO and STABLE 2.
- Page 8 12. Remove sample from the platter and repeat steps 10 thru 12 as many times as necessary or proceed to step 13 13. If necessary, follow directions for removing a tare Parts Counting Specifications SI-1 150 lb (60 kg) 300 lb (150 kg) 0.05 lb (0.02 kg) 0.1 lb (0.05 kg)
-
Page 9: Troubleshooting & Error Messages
Troubleshooting & Error Messages Error Message Table Definition Solution Display Turn scale on with nothing on or obstructing the platter. ZEro Initial zero point failure. Turn scale on with the platter properly placed on the scale. PROM failure. Contact Service. A/D Converter failure. - Page 10 Acom America, Inc. 404 Paulding Avenue Northvale, NJ 07647 www.acomamerica.com 800-10006-020000 Copyright 2001, All rights reserved.
