  • Page 2 This Manual will help you to get started with setting up your notebook. For more detailed information, please visit our website at http://www.aorus.com. All specifications are subject to the manufacturer's configuration at the time of shipping and may change without prior notice,written or otherwise.

  • Page 3: Switching On The Power

    Switching on the Power After you turn on the notebook for the very first time, do not turn it off until the operating system has been ® configured. Please note that the volume for the audio will not function until Windows Setup has completed.

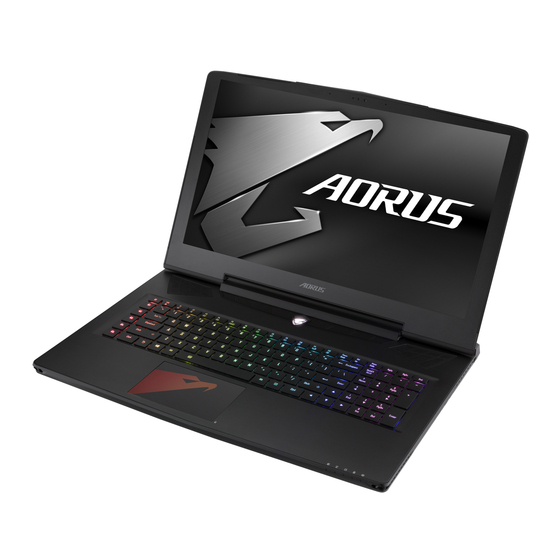

  • Page 4 Your AORUS Notebook Tour Webcam Status LED Indicator Webcam Light sensor Microphone Power Button TouchPad Battery Indicator Button  LED Indicators   Press the right button of touchpad while power off, hibernate mode to check the remaining battery power.
  • Page 5 Speaker SD Card Reader USB 3.0 Port HDMI Port Mini Display Port DC-in Jack USB Port Subwoofer...
  • Page 6 Hotkeys The computer employs hotkeys or key combinations to access most of the computer’s controls like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination. Hotkey Function Description Fn + F1...
  • Page 7 X7 equipped with many unique features, providing user an exceptional gaming experiences. Surround Port Surround port is located on the left side of X7. User may connect X7 up to three external monitors with HDMI, mini Display and Surround port, presenting true visual surround effect and enjoy outstanding gaming experience.

  • Page 8: Hardware Upgrade

    Hardware Upgrade X7 supports up to two mSATA SSD and one 2.5 inch hard drive, and four SO-DIMM memory slot. User may upgrade memory or carry X7 to nearest repair center to upgrade; Please visit AORUS official website for compatible memory brands.

  • Page 9: Battery Protection

    8GB single: installed on the 1st memory slot. 4GB/8GB two: Install on the 1st and the 3rd memory slot. 4GB/8GB three: installed on the 1st, the 2nd and the 3rd memory slot. 4GB/8GB four: mounted on four memory slots. Battery Protection When battery is in use for a period of time (not connected to power source and in high performance mode), Mass power discharging on battery in a short period of time may cause battery to run at high temperature and may shorten its lifespan.
  • Page 10 X7 Command & Control Command & Control is a software that integrates a list of basic settings to a single interface, providing user a faster and better experience when customization is needed. Hotkey Function Description Enable or disable GPU SLI, when slave GPU turns off, it may GPU SLI Switch increase battery life.
  • Page 11 Brightness Setting Adjust Screen brightness. Wi-Fi Switch Turn ON or OFF Wi-Fi connection. Bluetooth Switch Turn On or Off Bluetooth connection. Adjust the power plan by user usage in order to obtain maximum Power Plan Setting battery life or performance. External Monitor Switch between the computer screen and the external display Setting...
  • Page 12 Macro Hub Instruction Welcome to use Macro Hub! Macro Hub makes it much easier for you to control your Macro Key on AORUS X7. You can deal with complex key stroke combination by just one press on macro key, which brings you benefit both in work and game.
  • Page 13 Using Macro Hub Set Macro Key to basic function a. Click the G button on the left-top of the keyboard to switch to the Macro Key group you would like to use b. Click the Macro Key function brick c. Double-click the function you would like to us(ex. open browser) in the basic function area.
  • Page 14 d. The overview of macro record panel (you can record your own macro here) Start recording: Click when you’re about to record the macro Stop recording: Click to stop the record of macro Macro Name: Set the name of this macro Import icon: Set icon for this macro.
  • Page 15 e. Start to record macro: When you click start button, the macro hub will start to record macro. All movement you made(mouse/keyboard) will be shown in the movement list. You can decide to use “pause” key or mouse click on stop button to stop recording based on your record range f.
  • Page 16 Setup Your System for RAID 0/1 WARNING ● Please backup your data before you build and run RAID 0/1 on your system. ● RAID 1 needs two storage drives of the same specification and capacity in your laptop. ● RAID 0 needs two storage drives of the same specification in your laptop. Different capacity is acceptable. •...
  • Page 17 • Inser t the dr iver disk to your optic al dr ive and r un the install of “System Backup” (for none-ODD model, please use USB ODD device or download from http:// www.AORUS.com • Run the “System Backup” after finishing the install. • Select your USB disk from the drop-down list and start to create the recovery USB disk.

  • Page 18: System Recovery (Restore Your Laptop Operating System)

    Recovery Guide System Recovery (Restore your laptop operating system) When something is going wrong with the laptop operating system, the storage of the laptop has a hidden partition containing a full back up image of the operating system that can be used to restore the system to factory default settings.
  • Page 19 A progress indicator bar will show on the window when the recovery process is running. Please make sure the AC- adapter is plugged in and do not turn off the laptop. Reboot the laptop after the system recovery is complete. Windows 8.1 Recovery Guide Turn off and restart the laptop.

  • Page 20: Advanced Options

    Choose “Troubleshoot” to enter the recovery settings. (Also you can choose “Continue” to exit recovery system and continue to Windows 8.1 for files or data backup.) There are two options for system recovery ˙ Refresh your PC You can refresh your laptop to improve the system stability without losing your files. ˙...

  • Page 21: Startup Settings

    Change Windows Startup behavior. Appendix Warranty & Service: „ Warranty and service and related information please refer to the warranty card or service website as the below link: http://www.aorus.com/ FAQ: „ FAQ (Frequent Asked Questions) please refer to the below link: http://www.aorus.com/...
