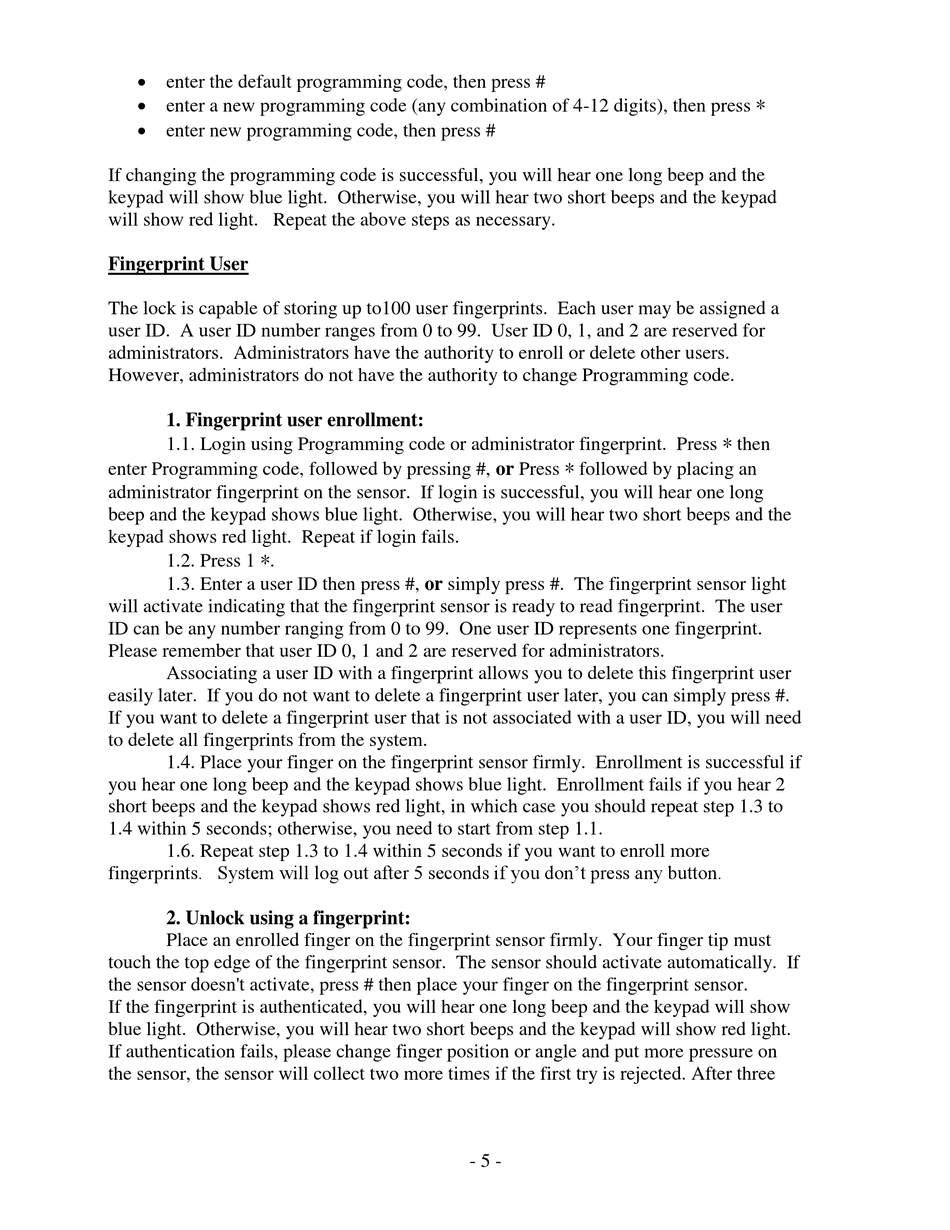

 enter the default programming code, then press #
 enter a new programming code (any combination of 4-12 digits), then press *
 enter new programming code, then press #
If changing the programming code is successful, you will hear one long beep and the
keypad will show blue light. Otherwise, you will hear two short beeps and the keypad
will show red light. Repeat the above steps as necessary.
Fingerprint User
The lock is capable of storing up to100 user fingerprints. Each user may be assigned a
user ID. A user ID number ranges from 0 to 99. User ID 0, 1, and 2 are reserved for
administrators. Administrators have the authority to enroll or delete other users.
However, administrators do not have the authority to change Programming code.

1. Fingerprint user enrollment:

1.1. Login using Programming code or administrator fingerprint. Press * then
enter Programming code, followed by pressing #, or Press * followed by placing an
administrator fingerprint on the sensor. If login is successful, you will hear one long
beep and the keypad shows blue light. Otherwise, you will hear two short beeps and the
keypad shows red light. Repeat if login fails.
1.2. Press 1 *.
1.3. Enter a user ID then press #, or simply press #. The fingerprint sensor light
will activate indicating that the fingerprint sensor is ready to read fingerprint. The user
ID can be any number ranging from 0 to 99. One user ID represents one fingerprint.
Please remember that user ID 0, 1 and 2 are reserved for administrators.
Associating a user ID with a fingerprint allows you to delete this fingerprint user
easily later. If you do not want to delete a fingerprint user later, you can simply press #.
If you want to delete a fingerprint user that is not associated with a user ID, you will need
to delete all fingerprints from the system.
1.4. Place your finger on the fingerprint sensor firmly. Enrollment is successful if
you hear one long beep and the keypad shows blue light. Enrollment fails if you hear 2
short beeps and the keypad shows red light, in which case you should repeat step 1.3 to
1.4 within 5 seconds; otherwise, you need to start from step 1.1.
1.6. Repeat step 1.3 to 1.4 within 5 seconds if you want to enroll more
fingerprints. System will log out after 5 seconds if you don't press any button.

2. Unlock using a fingerprint:

Place an enrolled finger on the fingerprint sensor firmly. Your finger tip must
touch the top edge of the fingerprint sensor. The sensor should activate automatically. If
the sensor doesn't activate, press # then place your finger on the fingerprint sensor.
If the fingerprint is authenticated, you will hear one long beep and the keypad will show
blue light. Otherwise, you will hear two short beeps and the keypad will show red light.
If authentication fails, please change finger position or angle and put more pressure on
the sensor, the sensor will collect two more times if the first try is rejected. After three
- 5 -
