The
owner friendly
phone system for small business
®
VS Hardware
Specification Guide

Advertisement

Table of Contents
loading

Related Manuals for Talkswitch owner friendly

Summary of Contents for Talkswitch owner friendly

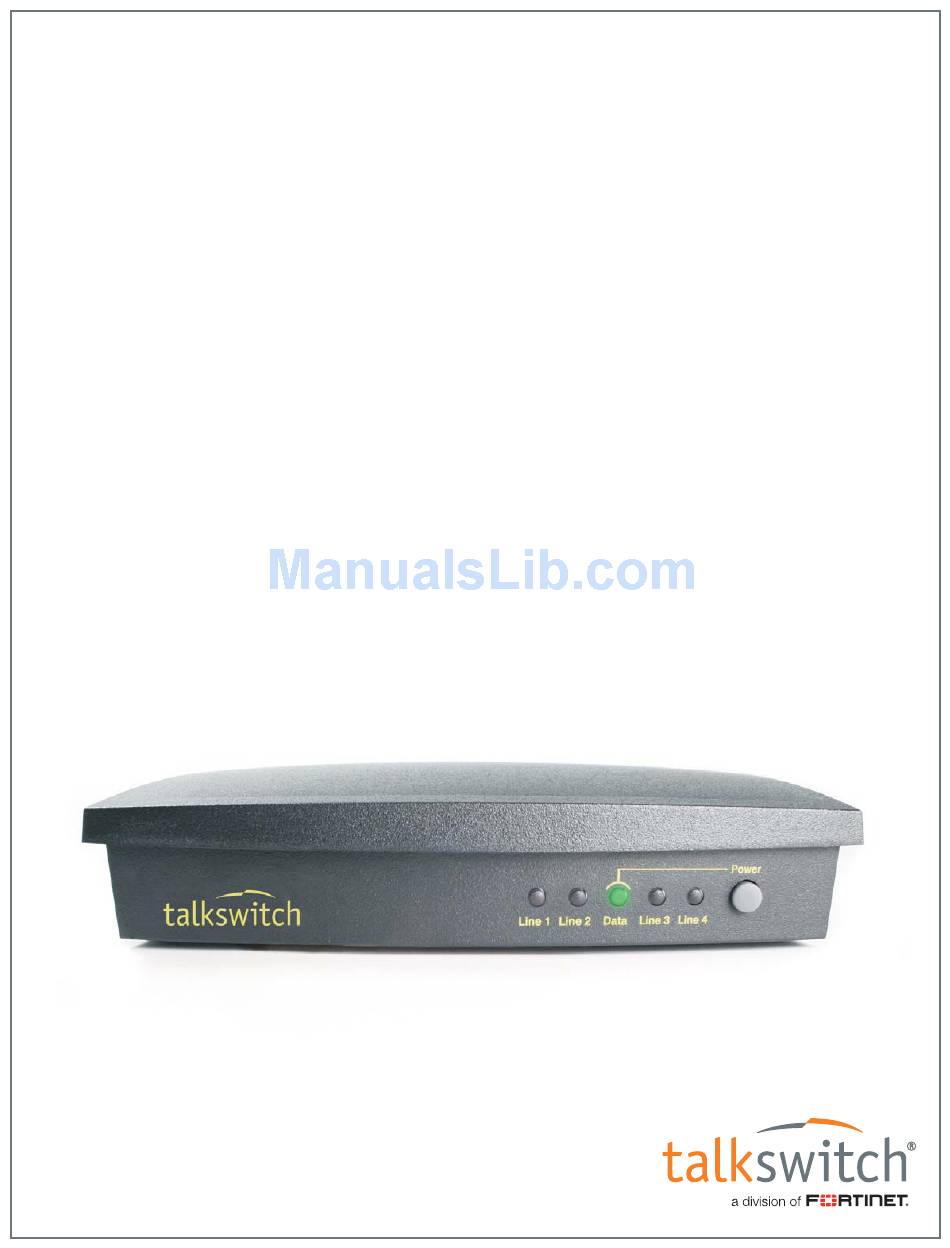

  • Page 1 ® VS Hardware Specification Guide...
  • Page 2 Copyright © 2012 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiGuard®, FortiCare®, FortiManager®, FortiAnalyzer®, and TalkSwitch® are registered trademarks of Fortinet, Inc. and other Fortinet names herein may also be registered trademarks and/or common law trademarks of Fortinet. Other product or company names may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    TA BLE OF CO NTENTS INTRODUCTION ..................1 What you should know .
  • Page 4 SAFETY AND REGULATORY INFORMATION ............. . 15 Safety Precautions.

  • Page 5: Introduction

    Internet. If your organization does not have someone with this IT skill set, we recommend the use of an outside IT technician. If you are installing a single, non-VoIP system, anyone with basic computer skills can use the TalkSwitch Start Guide and this guide to perform a full installation and configuration.

  • Page 6: Power And Lightning Surge Protection

    Power and lightning surge protection Surge protection devices are recommended to protect the system in areas subject to lightning or power surges. Please consult your reseller for recommended surge protection devices. If the system has been supplied with surge protection devices to meet local regulatory requirements, these devices must be installed as described in their installation instructions.

  • Page 7: Specifications

    SP E CI F I CA TI O NS INTERFACES TalkSwitch models 240vs 244vs 248vs 280vs 284vs 288vs Telephone lines (FXO) Analog extensions (FXS) VoIP ports VoIP numbers Local extensions expandable expandable expandable expandable expandable expandable (Analog and IP) to 24...

  • Page 8: Analog Extension Specifications

    ANALOG EXTENSION SPECIFICATIONS Connector type RJ-11, 2-pin Trunk type Loop start Either 600 Ω, 900 Ω, TBR21, BT complex, AU complex or ZA complex, Interface impedance depending on region. 0–600 Ω Loop range Flash supported On-hook voltage 35 V Off-hook loop voltage source 35 V Off-hook loop current 23 mA to 40 mA...

  • Page 9: Regulatory Approvals

    REGULATORY APPROVALS ACTA TIA/EIA/IS-968A and FCC Part 68, Industry Canada CS-03 FCC Part 15B, Industry Canada ICES-003 Power adapter complies with UL and CSA Reduction of Hazardous Substances (RoHS) Directive 2002/95/EC VOIP FEATURES (models with VoIP lines only) • Embedded SIP server and user agents •...

  • Page 10: Installation

    INSTALLA TI O N UPGRADING SYSTEMS As your business grows, you can add capacity for telephone lines, VoIP lines and extensions to the systems. You can add capacity in several ways: Add units to your network: Up to 4 units can be combined for more line and extension capacity. Add an upgrade to your system: Some models can be upgraded.

  • Page 11: What The Flashing Lights Mean

    What the flashing lights mean A unit flashes the lights on the front panel in patterns to show system activity and diagnostic conditions, as described in Chapter 6 of the TalkSwitch User Guide. Unit back panel The PF box between E4 and L1 represents power failure support. In the event of a power failure or loss of power to the system, extension jack E4 is able to receive and make calls on Line 1.

  • Page 12: Home/Office Wiring Instructions

    HOME/OFF ICE WIRING INSTRUCTIONS This section describes phone wiring for North America, and is provided as reference information for other countries and regions. UNITED KINGDOM — To connect telephones with BT style plugs, it is recommended that extensions are wired through a master socket or an in-line adapter with a capacitor. This also ensures compatibility with some telephones that require 3-wire connections for the telephone to ring.

  • Page 13: Demarcation Point

    Demarcation point The demarcation point is the point of interconnection between the telephone company facilities and your building. Location: It is usually a box located inside the building, within 15 feet of the incoming phone wiring. In newer houses, it may be located near the fuse box.

  • Page 14: Home And Home Office Wiring Prior To Adding Your Phone System

    HOME AND HOME OFFICE WIRING PRIOR TO ADDING YOUR PHONE SYSTEM Incoming phone lines Residential building All phones are connected together in a single loop (or in multiple loops). The phones are all wired to Line 1. If you have two or more incoming lines, the phones can be wired to Line 1, Line 2 or even both lines for two-line phones.
  • Page 15 Connecting to phone lines Using one telephone line Using single-line phones single-line phone cord — 2 pins single-line phone cords — 2 pins wall jack to the phone system L1 Using a two-line phone two-line phone cord — 4 pins Connecting to the rear panel If you have two lines, you will need to connect them to jack L1 and jack L2.

  • Page 16: The System Controls Incoming Lines And Phones

    The system controls incoming lines and phones Advantages • Home phone system and office phone system are integrated together. • Calls to the home can be forwarded to the office and vice versa. • The home phones have all the call handling capability as the office phones including voicemail, call cascade, mode scheduling, call forwarding etc.
  • Page 17 Adding an extension block To system extension To house loops 1. Add an extension block next to the demarcation point. 2. Connect the house loops and the phone cable from the demarcation point to the posts of the extension block. V S H A R D W A R E S P E C I F I C A T I O N G U I D E...
  • Page 18 Connecting to the system To extension block, use a single-line phone cable from jack E4 Connecting to the From demarcation point, rear panel use a single-line phone cable from the demarcation point to jack L1 Ext 113: To fax machine (optional) from jack E3 Ext 112: To phone from jack E2 To office extensions, Ext 111: To phone from jack E1...

  • Page 19: Safety And Regulatory Information

    SA FET Y A N D RE G U L A TO R Y I N FO R M A TI O N SAFETY PRECAUTIONS Before using the system, please review and ensure the following safety instructions are adhered to: 1.

  • Page 20: Important Notices

    IMPORTANT NOTICES CE Compliance The product models listed below comply with the essential requirements of the European “Radio and Telecom Terminal Equipment” (R&TTE) directive 1999/5/EC, and are for connection to regular telephone lines (PSTN).This equipment has been tested and found to comply with the following standards: EN55022:1998 + amendment A1:2000 + amendment A2:2003, Class B EN55024:1998 + amendment A1:2001 + amendment A2:2003 EN60950–1:2001, first edition...

  • Page 21: Acta Tia/Eia/Is-968A, Fcc Part 68 And Ic Cs-03

    ACTA TIA/EIA/IS-968A, FCC Part 68 and IC CS-03 Notice: The Industry Canada label identifies certified equipment. This certification means the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The department does not guarantee the equipment will operate to the user’s satisfaction.

  • Page 22: Icasa

    ICASA For all ICASA license enquiries, please contact your South African authorized distributor for your phone system. RoHS Compliance This equipment conforms with the Reduction of Hazardous Substances (RoHS) Directive 2002/95/EC. The RoHS directive provides for restriction or elimination of the following substances: •...
