KT&C KVR-H410AN User Manual

Kt&c h.264 dvr 4/9/16 user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ver. H_R1_1.1_ENG
For safe use of system and to prevent product failure or accident, please read this
manual carefully before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KVR-H410AN and is the answer not in the manual?

Questions and answers

Related Manuals for KT&C KVR-H410AN

Summary of Contents for KT&C KVR-H410AN

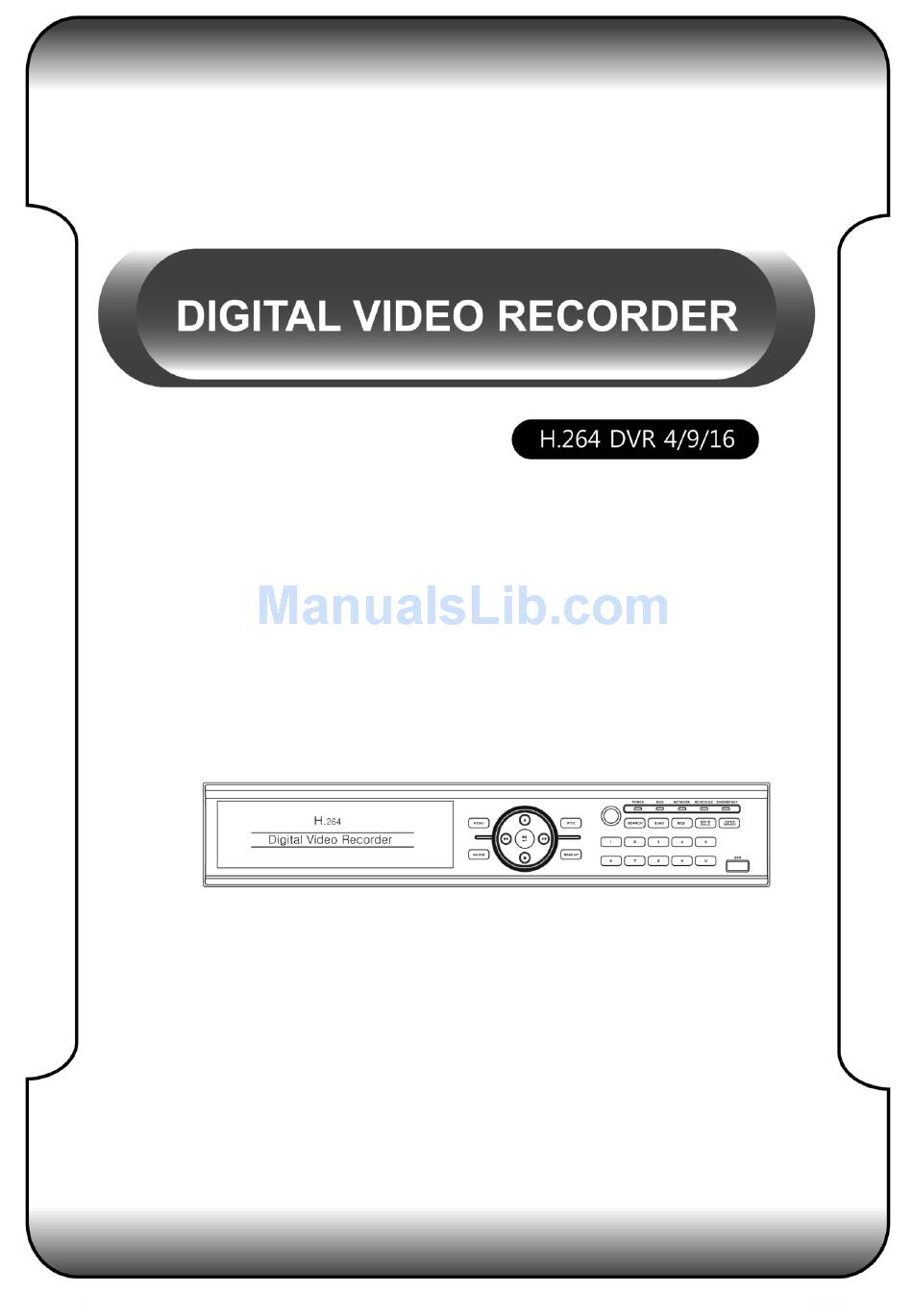

  • Page 1 Ver. H_R1_1.1_ENG For safe use of system and to prevent product failure or accident, please read this manual carefully before use.

  • Page 2: Before Usage

    Before Usage This product has been designed and manufactured to assure personal safety. Improper use can result in electronic shock or fire hazard. The safeguards incorporated in this product will be protected you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by user.

  • Page 3: Table Of Contents

    CONTENTS 1. Summary Feature …………………………………………………………………………………………………… 6 2. Installation ∙ Contents ………………………………………………………………………………………………… 7 ∙ Rear panel ……………………………………………………………………………………………… 8 ∙ Video Input……………………………………………………………………………………………… 9 ∙ Loop Throughout put………………………………………………………………………………… 10 ∙ VGA output …………………………………………………………………………………………… 10 ∙ RS-485 connection (PTZ camera)………………………………………………………………… 10 ∙ RS-485 (Ext. keyboard connection)……………………………………………………………… 11 ∙...
  • Page 4 ∙ Camera Setup…………………………………………………………………………………………… 36 ∙ Camera Title…………………………………………………………………………………………… 37 ∙ PTZ Setup……………………………………………………………………………………………… 37 ∙ PTZ Touring…………………………………………………………………………………………… 39 ∙ How to use PTZ……………………………………………………………………………………… 40 ∙ Serial port setup……………………………………………………………………………………… 44 8. Display setup ∙ OSD……………………………………………………………………………………………………… 45 ∙ Split Mode……………………………………………………………………………………………… 45 ∙ Display…………………………………………………………………………………………………… 50 9.

  • Page 5: Feature

    1 — Summary Feature This Stand Alone Digital Video Recorder is capable of high quality of video and audio data recording and provides various ways of data search by Calendar, Date/Time and event. Also the system allows remote user to access in order to monitor and control multiple local DVRs via TCP/IP / LAN connection.

  • Page 6: Rear Panel

    Battery remote controller Size 1.5V DIGITAL VIDEO RECORD Adaptor Accessories. ㆍ Digital Video Recorder (1EA) ㆍ Fixing screw (8pcs) ㆍ Program CD (1EA) ㆍ Manual (1EA) ㆍ Power code (1EA) ㆍ Remote controller) ㆍ Battery AAA (1.5V 2EA) ㆍ Adaptor (1EA) [Note] Check the accessories before use.
  • Page 7 ( KVR-H410AN ) ( KVR-H920AN ) ( KVR-H1640AN )

  • Page 8: Video Input

    [1] Video Input [2] Loop Through [3] RJ-45(Ethernet) [4] USB 2.0 port [5] RS-485 [6] Alarm output [7] Sensor Input [8] Serial Port (RS-232) [9] Audio Input [10] Audio output [11] S-Video [12] VGA Out [13] Composite Out [14] SPOT OUT [15] Power Input [16] Power switch Video Input...

  • Page 9: Rs-485 Connection (Ptz Camera)

    RS-485 connection (PTZ camera) PTZ Camera Connect the PTZ camera which is supporting its protocol as per the above diagram. RS-485 (External keyboard connection) Connect the external keyboard that should be purchased by the DVR manufacturer. Alarm out connection DVR supports 1 alarm output as above diagram. Sensor connection...

  • Page 10: Usb Port

    DVR supports 4 Sensor input as above diagram. RJ-45 port (Internet connection) The network connection can be made through the 10/100/1000Mb Ethernet connector by RJ- USB port DVR supports two USB 2.0 port on front and rear panel for mouse control, firmware upgrade and backup use.

  • Page 11: System Configuration

    3 — System configuration Front panel button (Front button) (Mouse menu icon)
  • Page 12 (Remote controller) [1] MENU · Call main menu · Move back to previous menu [2] PTZ Button to call PTZ controller menu, PTZ channel must be selected as full screen first. [3] IR Receiver Receive the IR signal from remote controller. [4] SEARCH Call search menu to playback record image.
  • Page 13 Select an audio channel. [10] AUTO SEQUENCE To display each camera in sequence, display duration is selectable in DISPLAY menu. [11] BACKUP Call backup menu to start recorded data archiving to external media. [12] Channel / Numeric button Refer to the “Front direction button” page. [13] LED LED shows the status of operating.

  • Page 14: Front Direction Key

    Front direction key [1] Left button ∙ Menu move to left ∙ Reverse playback speed control [2] Upper button ∙ Menu move to up ∙ Change split mode in live [3] Playback and Confirmation button • Confirm the configuration in setup menu. •...

  • Page 15: Icon

    Icon Daylight Saving Time Network connection icon Emergency recording Sensor recording Schedule recording Motion detection Key lock status icon Video Loss Auto sequence icon Record icon Internet connection icon De-interlace icon How to setup the remote controller ID In order to use remote controller, the ID must be same both DVR and remote controller. By assigning DVR ID, it allows the user to control multiple DVRs with one remote controller.
  • Page 16 [3] Remote controller ID menu displays as above image when you click ID button of remote controller. ∙ DVR ID : It displays current ID of the system. ∙ “00” : Input the same ID number of DVR and press “Confirm” [Note] ∙...

  • Page 17: System Configuration

    4 — System configuration INFORMATION [1] Language : Select a language [2] REMOCON ID : Assign the ID of remote controller, so that user can separately control multiple DVR unit with one controller. (ID range: 0 ~ 99) [3] MOUSE Sensitivity : Mouse sensitivity level can be adjusted at user’s convenience. (Basic Level 1;...

  • Page 18: Date/Time

    Date/Time [1] YY / MM / DD : select a display format. • ASIA : YYYY/MM/DD --> 2006/05/31 • US : MM/DD/YYYY --> 05/31/2006 • EURO : DD/MM/YYYY --> 31/05/2006 [2] Daylight Saving Time : It is commonly called as “Summer time”. During the period, user can change system time 1 hour early or late.

  • Page 19: Disk Manager

    [1] User ID : Able to input max. 8 user’s account. [2] User Group : Select a group which is defined by functionality. ∙ admin : Able to use all functions. ∙ power User : Able to use Configuration, Search, Backup. ∙...

  • Page 20: Upgrade

    [1] Disk1 : Priority disk drive information.. • Main Disk : Use as a recording disk. • Mirror Disk : Use as a mirroring disk. • None : No use. [2] DISK2 : Secondary disk drive or ODD (CD/DVD-RW) information. In case of using ODD, “RW Write”...

  • Page 21: Button Setup

    menu. Copy firmware USB Memory Stick [NOTE] Do not turn off power or remove USB stick while backup is being procedure. Button Setup Button setup (Front, Mouse, Remote controller and Button beep) [1] Button Beep : It makes beep sound while the button is pressed. [2] Auto Key Lock : It prohobits button use.

  • Page 22: Default Setting

    DEFAULT SETTING • Default Setting : Except major configuration (Network, Password), parameters are initialized. • Factory Setting : All parameters are initialized. Configuration • Configuration Upload : Upload a configuration file to DVR. • Configuration Download : Save a configuration file of DVR.

  • Page 23: Log Out

    LOG OUT In live mode, press “CONFIRM” button for 4 second to log out. 5. — RECORD Record Set up recording resolution, frame and quality on each channel. 1] Pre Recording In case of event, DVR can record the image priot to 5~6 second from event time. [2] Water Mark : To protect forgery or edit of image, check a Watermark.

  • Page 24: Schedule Record

    [7] Post REC : Duration of event recording. [8] Audio : Select a channel for audio recording. (AUDIO RECORD ON) (AUDIO RECORD OFF) Schedule Record Set up the recording schedule. [1] Select a channel. [2] Choose a recording mode and designate the time and date. Motion : Record when motion detectected.
  • Page 25 Choose a day on the calendar and set up schedule using by direction button and “CONFIRM” button. [1] Channel : Select a channel. [2] Choose a date to register holiday on calendar. [3] Select a event icon then set the time.

  • Page 26: N/W Setup ∙ Ip Address

    [4] Clear Holiday : To delete registered holiday, select a date using “START” and “FINISH” and press ”CLEAR”. [5] Applied channel : To apply configured holiday schedule to all or individual channel. ① Save holiday schedule. ② Apply to all channel ③...
  • Page 27 [1] DHCP : It uses for dynamic IP user (On). The static IP user does not need the DHCP function (Off) [2] IP Address : The dynamic IP user does not set it up. If you use the static IP, input the following information after ask it to ISP. [Sample] ㆍIP ADDRESS : 192.168.010.003 ㆍSUBNET MASK : 255.255.255.000...

  • Page 28: Ddns Option

    [6] Web Server Port Since there is Built-in webserver, if you know the IP address, you can direct connect to DVR through web browser. The default port is 80. (Example) You can use with fixed IP and DNS service -Fixed IP. If the DVR IP is 192.168.010.003, you can simply enter ‘http://192.168.010.003 80’...

  • Page 29: E-Mail Setup

    E-Mail Setup It notice the event to the user. E-mail setup It is the basic setup for e-mail sending. Since it will not send the mail if the setup is wrong, please be cereful. [1] Mail server(SMTP SERVER) : Mail sending server. Input the mail server address of user. Input the send mail(”SMTP) address.

  • Page 30: E-Mail Notification

    E-Mail Notification [1] Mail Title : Input the mail title. [2] Interval : If you make the time setup in event cases, the DVR doesn’t send the e-mail repeatedly during the selected duration. It is to prohibit the mass e-mail sending in frequent events.

  • Page 31: Camera Setup

    7 — Camera setup Camera setup It is the setup of camera usage and color. [1] Covert : It is the Covert setup. [2] AGC (Automatic Gain Control) : It setup the automatic gain control of camera to get the proper bright.

  • Page 32: Ptz Setup

    If you click the channel, virtual keyboard show up. PTZ setup It is for PTZ camera setup. • Model : Select the PTZ model. • ID : Select the PTZ ID. (Refer to the PTZ manual) Advanced (Detailed PTZ setup) It is for the PTZ speed control setup.

  • Page 33: Ptz Touring

    Serial Port Select the PTZ communication port( RS-232 or RS-485) Revers Control ▷ PAN : Select the reverse movement of PAN (right and left). ▷ TILT : Select the reverse movement of TILT (up and down). Speed ▷ Pan Speed : Speed control of right and left ▷...

  • Page 34: How To Use Ptz

    [1] Select Channel. [2] Select the PTZ preset as per the number and select the speed to move. [3] Select the moving speed. [3] Maintain : Select the time to hold the camera movement after camera moved to this location. If you call the touring after above setup, the PTZ moves to the saved position by sequence.
  • Page 35 (2) Menu call by mouse : Select the PTZ camera installed channel and click the right button of mouse and click the PTZ icon as follows then, it will show “+” (3) Menu call from remote controller : Select the PTZ camera installed channel and press ‘PTZ’...
  • Page 36 ( PTZ control screen ) How to operate PTZ (1) Operating in front. • The camera can be moved by direction key. • Every time when you press enter, the modes are changing(pan, tilt, zoom, focus) then use the right and left key for moving. - P/T : Camera moving.
  • Page 37 (3) Operating by remote controller • The camera can be moved by direction key. • By pressing the ‘enter’ key, the menu changes then, select right/left. - P/T : Camera moving. - Z : Camera zoom-in/out - F : Focus control. PAN/TILT ADVANCED MENU Once you call the PTZ menu, if you click it once again, the advanced setup menu shows.

  • Page 38: Serial Port Setup

    (3 It is for PTZ maximize or minimize. (4 It is for Camera focus. (5) It is for Auto-focus. (6). If you enter the preset number and press ‘enter’, the camera will move to selected preset (7) It supports touring as per the preset numbers saved (12) It is for calling the OSD menu from PTZ itself.

  • Page 39: Display Setup ∙ Osd

    [1] RS-485: It is for ‘External keyboard’ and ‘PTZ. Since the setup is different as per the device, please check their manual for Baud Rate / Parity / Stop Bit setup [2] RS-232: Set up the following information before use. ∙...
  • Page 40 16 Split mode(16Ch DVR) • Auto Loss Skip : It skips video loss 13 Split mode(16Ch DVR) • Auto Loss Skip : It skips video loss • 3 sec : Sequencing time selection of divided screen. • If you click the channel number, you can change the channel order. 10 Split mode(16Ch DVR)
  • Page 41 • Auto Loss Skip : It skips video loss • 3 sec : Sequencing time selection of divided screen. • If you click the channel number, you can change the channel order. 9 Split mode(16Ch/9Ch DVR) • Auto Loss Skip : It skips video loss •...
  • Page 42 8 Split mode(16Ch/9Ch DVR) • Auto Loss Skip : It skips video loss • 3 sec : Sequencing time selection of divided screen. • If you click the channel number, you can change the channel order. 6 Split mode(16Ch/9Ch DVR) •...

  • Page 43: Display

    4 Split mode(16Ch/9Ch/4Ch DVR) • Auto Loss Skip : It skips video loss • 3 sec : Sequencing time selection of divided screen. • If you click the channel number, you can change the channel order. 1Split mode(16Ch/9Ch/4Ch DVR) • Auto Loss Skip : It skips video loss •...

  • Page 44: Event Setup Sensor

    • Normal : It makes the video output as per the display resolution. • VGA : It is for LCD monitor output. • Small : Since the output resolution is different as per the LCD, CRT, check whether the screen shows well. 9 —...

  • Page 45: Alarm

    [1] Sensor Input : Select the sensor usage. (sensor use) (Sensor not use) [2] Input Type: Select the sensor input type. N/Open (NORMAL OPEN) : The contact is normally opened but closed when the signal is generated. N/Close (NORMAL CLOSE) : The contact is normally closed but opend when the signal is generated.

  • Page 46: Motion Detection

    ( Motion detection) (Sensor detection) (Video Loss) The output time continuous as as per the event selected on each channel. Motion Detection It is the motion detection setup menu. If there is the movement, it makes an event record as per the area and sensitivity setup.
  • Page 47 [1] CH : Motion detection ON/OFF selection. [2] Sensitivity : Sensitivity setup. Before your actual record appliying, please test the response as per the different sensitivity. [3] Detection Area The cursor moving by the direction key and if press “enter”, this block is designated for motion detection.

  • Page 48: Internal Buzzer

    INTERNAL BUZZER ( Motion detection) (Sensor detection) (Video Loss) The output time continuous as as per the event selected on each channel. It is spot out setup. It can be monitored by the separate monitor such as one channel SPOT OUT displaying, sequencing, event pop-up etc.,...

  • Page 49: Audio

    • ▷Mode : Select the output mode. Auto Loss Skip : If there is no video input, it skips from sequencing. • Spot Mode : It works when the selected event is happened. - Event : It pop-up the event channel. - Sequaence : It sequences for all channel as per the designated duration.

  • Page 50: Search

    [4] AUTO : Audio output is automatic in selected channel. [5] OFF : Audio listening OFF 10 — Search Search It supports the various way of search mode such as Calendar, Date/Time, Event, etc. [1] How to call menu : Select the “SEARCH” button from the front, remote controller, mouse menu.

  • Page 51: Calendar Search

    (4) Go to first : It searches the first recorded data on HDD. (5) Go to last : It searches the last recorded data on HDD. Calendar serach It searches by the calendar. [1] Disk : Select the HDD to search. [2] If the DVR read the recorded data, it shows it as calendar.

  • Page 52: Event Search

    [1] Camera : Select the channel to search. [2] Disk : Select the HDD to search. [3] Date/Time : input the date/time to search. Event search It searches event recorded data. ( The channel display is different as per the 16Ch/9Ch/4Ch DVR) [1] Camera : Select the channel to search.

  • Page 53: Back-Up

    [1] Playback or Pause [2] Reverse playback and its speed control ( Only “I” frame is playback in reverse playback ) [3] Speed control of playback [4] Stop button( It stops the current function and move to the upper menu) [Mouse using] [1] It searches 5 minutes back.
  • Page 54 [1] Select the HDD to back-up either Main or Mirror. [2] Select the camera to back-up. [3] If you select the date to backup from calendar, it shows whether there is the recorded data on selected date. [4] Select the Hour and Minute to search.
  • Page 55 [5] Click the ‘Start’ button once you select the backup time and click ‘end’ time for backup ending.Then, click ‘NEXT’ button. [6] Select the backup device and option. • Device selection : Select the backup device. - USB : It is for backup to USB stick. - CD / DVD-RW : •...
  • Page 56 - Backup Viewer : It backup with the backup viewer. - Audio : It backup with audio information. • Backup Size - Device : It shows the available space of the backup device. - DATA : It shows the data size of the selected image.

  • Page 57: 11 - Appendix

    11 — Appendix 16ch Operating System Embedded Linux Compression H.264 Audio compression G723.1 Video standard NTSC / PAL Input 16Ch Output Loop Out (4/9/16 ), Composite (1), Spot(1), S-VHS(1) VGA(1) Video In/Out Resolution Max. 1280 x 1024 Display TV, CCTV, VGA Monitor (Selectable) Live Real Time view 1, 4, 6, 8, 9, 10, 13,...
  • Page 58 External Keyboard Multi-Language PTZ control by virtual joystick(operated by mouse) Etc. Backup Viewer auto copy & AVI export Power Adaptor 12V 5A Operating Temp. 0℃ ~ 40℃ Dimension 430 mm(W) X 54mm(H) X 315mm(D) Weight 3.5Kg...
