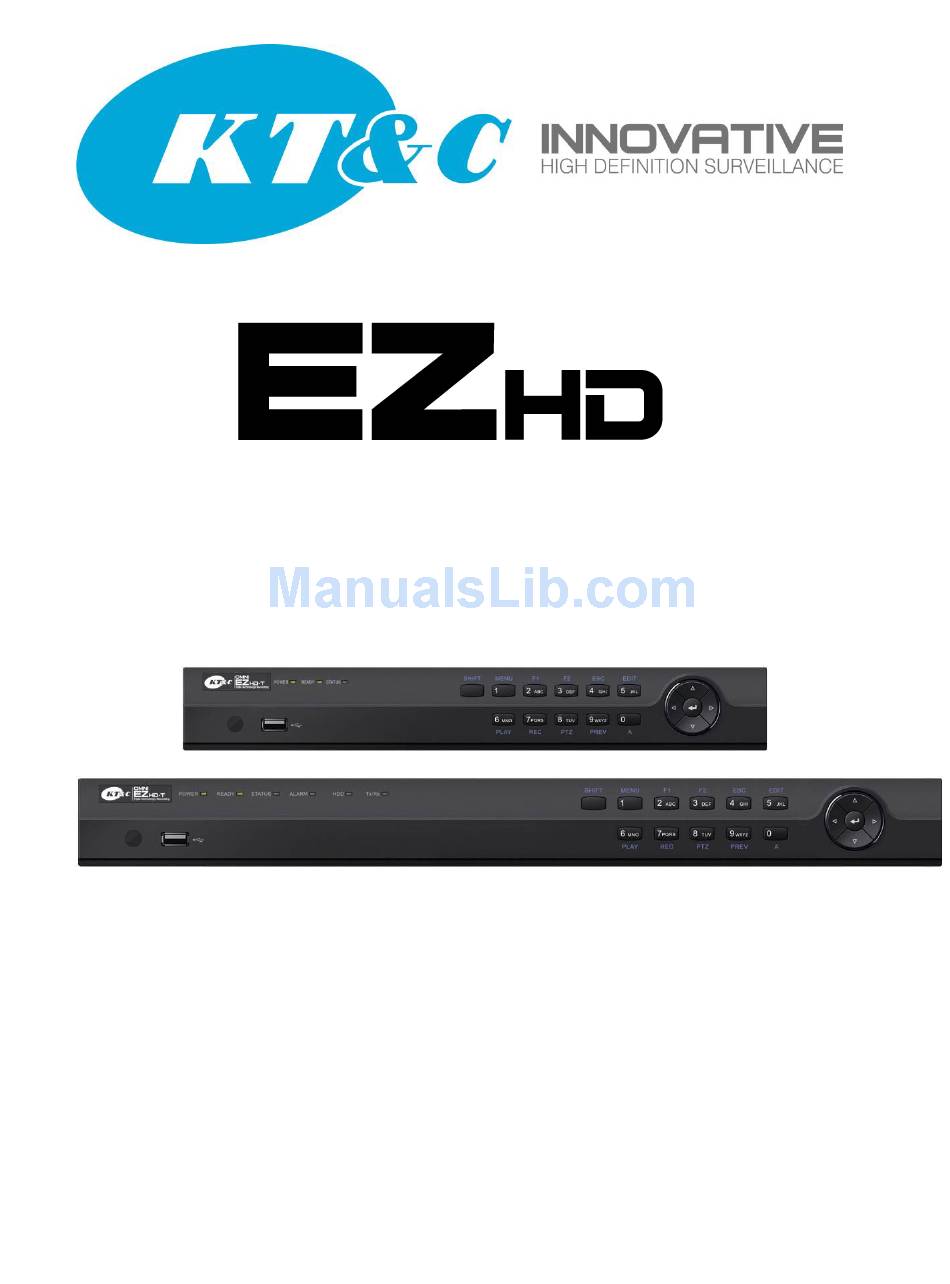

Page 1: Quick Installation Guide
“VL” Series Triple Technology Recorders 960H – EZHD – IP EZHD-TVL4 EZHD-TVL8 EZHD-TVL16 Quick Installation Guide... -
Page 2: Table Of Contents
EZHD-TVL4/8/16 DVR Quick Installation Guide TABLE OF CONTENTS DVR Pre-Installation ............................3 DVR Installation .............................. 4 Front Panels ..............................4 Rear Panels ............................... 6 RS-485 and Controller Connection ......................7 Specifications ..............................8 HDD Storage Calculation Chart ........................10 Accessing by Web Browser ..........................11 Logging In .............................. - Page 3 EZHD-TVL4/8/16 DVR Quick Installation Guide Regulatory information FCC information This equipment has been tested and found to comply with the limits for a digital device, pursuant to compliance: part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Dvr Pre-Installation
EZHD-TVL4/8/16 DVR Quick Installation Guide Thank you for selecting this KT&C EZHD Series product. For additional information please refer to the complete User Guide for this DVR series. End users should contact their KT&C Certified Dealer for service. Certified Dealers can obtain support directly from KT&C. -
Page 5: Dvr Installation
EZHD-TVL4/8/16 DVR Quick Installation Guide DVR Installation During the installation of the DVR: 1. Use brackets for rack mounting (where applicable; otherwise, use a suitable rack shelf). 2. Ensure there is ample room for audio and video cables. 3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter. 4. - Page 6 EZHD-TVL4/8/16 DVR Quick Installation Guide SHIFT Switches compound keys between the numeric/letter input and functional control. Enter numeral “1”; 1/MENU Access the main menu interface. Enter numeral “2”; Enter letters “ABC”; The F1 button can be used to select all items on the list; 2ABC/F1 In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the PTZ camera;...
-
Page 7: Rear Panels
EZHD-TVL4/8/16 DVR Quick Installation Guide Rear Panels The rear panels vary slightly for different models. Rear panel of 4ch/8ch/16ch DVR Description of Rear Panel Item Description VIDEO IN BNC interface for TVI and/or analog video input; adjusts automatically RCA connector – Line in AUDIO IN RCA connector –... -
Page 8: Rs-485 And Controller Connection
EZHD-TVL4/8/16 DVR Quick Installation Guide RS-485 and Controller Connection For 4ch/8ch/16ch DVR To connect PTZ to the DVR: 1. Disconnect pluggable block from the RS-485 terminal block. 2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part. Ensure signal cables are in tight. -
Page 9: Specifications
EZHD-TVL4/8/16 DVR Quick Installation Guide Specifications Model KEZ-TVL4 KEZ-TVL8 KEZ-TVL16 Analog EZHD/SD Inputs HD Video Resolutions EZHD / HD-TVI 720p30(25), 720p60(50), 1080p30(25) Analog CVBS Video Input Up to 960x480,720x480(NTSC); 960x576,720x576(PAL) Adaptive Ports Input Format Auto Detection, EZHD/SD can be mixed in any combination, at any time Intelligent Video Interface BNC Connector;... - Page 10 EZHD-TVL4/8/16 DVR Quick Installation Guide Alarm Action Buzzer, E-mail, Notify CMS Client (network permitting) Two-way audio Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output Input / Output 1ch Input / 1ch Output;...
-
Page 11: Hdd Storage Calculation Chart
EZHD-TVL4/8/16 DVR Quick Installation Guide Weight without HDDs 3.3 lb. / 1.5Kg 4.4 lb. / 2Kg Operating Temp 14°F~131°F (-10°C~55°C) Operating Humidity 10% ~ 90% Voltage 12VDC from included power supply, 4 pin DIN; power supply input voltage 100~220 VAC 50~60Hz Power Up to 15W Up to 20W... -
Page 12: Accessing By Web Browser
EZHD-TVL4/8/16 DVR Quick Installation Guide Menu Operation Menu Structure Playback Maintenance Export Manual Record Camera Shutdown Configuration Normal Record General Schedule General System Info Logout Event Advanced Encoding Image Network Shutdown Manual VQD Information Advanced Reboot Live View Import/Export Holiday Motion Upgrade Exceptions... -
Page 13: Live View
EZHD-TVL4/8/16 DVR Quick Installation Guide 4. Turn off the power switch on the rear panel when the note appears. After the device starting up, the wizard will guide you through the basic settings, including edting password, date and time settings, network settings, HDD initializing, and recording. Live View Some icons are provided on screen in Live View mode to indicate different camera status. - Page 14 EZHD-TVL4/8/16 DVR Quick Installation Guide The online cameras with same network segment will be displayed in the camera list. Click the button to add the camera. The added camera is marked in white while the camera not added is marked in yellow. Explanation of the icons Icon Explanation...
-
Page 15: Record
EZHD-TVL4/8/16 DVR Quick Installation Guide Record Before you start: Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. You may refer to the user manual for detailed information. Purpose: Two kinds of record types are introduced in the following section, including Instant Record and All-day Record. And for other record types, you may refer to the user manual for detailed information. -
Page 16: Backup
EZHD-TVL4/8/16 DVR Quick Installation Guide OPTION 2: 1. Enter the Playback menu. Right click a channel in live view mode and select Playback from the menu. 2. Playback management. The toolbar in the bottom part of Playback interface can be used to control playing process. Just check the channel or channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. -
Page 17: Logging In
EZHD-TVL4/8/16 DVR Quick Installation Guide 2. Enter Export interface, choose backup device and click the Export button to start exporting. 3. Check backup result. Choose the record file in Export interface and click button to check it. Accessing by Web Browser Logging In You can access the DVR from a web browser. -
Page 18: Live View
EZHD-TVL4/8/16 DVR Quick Installation Guide You may use one of the following listed web browsers: Internet Explorer 6.0, Internet Explorer 7.0, Internet Explorer 8.0, Internet Explorer 9.0, Internet Explorer 10.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions are 1024*768 and above. ... -
Page 19: Remote Recording At The Pc
EZHD-TVL4/8/16 DVR Quick Installation Guide 1. In the live view window, select an active window by clicking the mouse. 2. Double click a camera from the device list to start live view. 3. You can click the button on the toolbar to start/stop the live view from all cameras on the device list. Refer to the following table for the description of buttons on the live view window: Icon Description... -
Page 20: Local Recording (In The Dvr) Using The Web Interface
EZHD-TVL4/8/16 DVR Quick Installation Guide Local Recording (in the DVR) using the Web Interface Two recording types can be configured: Manual and Scheduled. This section describes the configuration for scheduled recording. Steps: 1. Click Configuration > Remote Configuration > Camera Settings > Schedule Settings to enter the Record Schedule settings interface. -
Page 21: Playback Using The Web Interface
EZHD-TVL4/8/16 DVR Quick Installation Guide Playback using the Web Interface Interface Introduction Name Description Channel List Displays the list of channels and the playing status of each channel. Playback Window Displays the image of channel. Play Control Bar: Play control operations are supported. Time Line Displays the time bar and the records marked with different colors. -
Page 22: Log S
EZHD-TVL4/8/16 DVR Quick Installation Guide Video clip Open/Close audio Full Screen Reverse play 6. You can drag the progress bar with the mouse to locate the exact playback point. You can also input the time in the textbox and click button to locate the playback point.
