Summary of Contents for KT&C Omni960-4
-

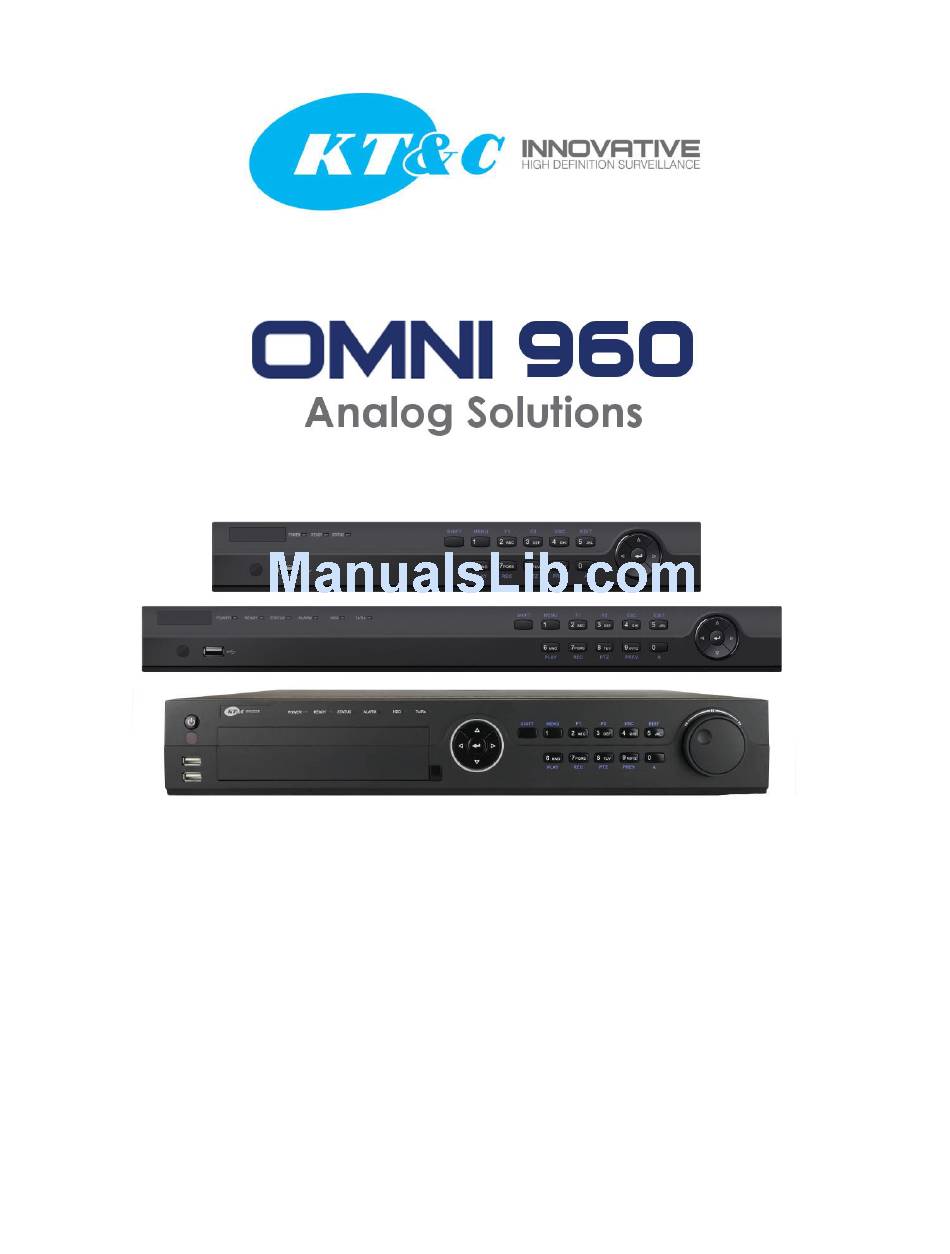

Page 1: Quick Installation Guide
Digital Video Recorders Omni960-4 Omni960-8 Omni960-16 Omni960-32 Quick Installation Guide Revised October, 2014... -
Page 2: Table Of Contents
Wiring of Alarm Output ..........................10 Alarm Connection ............................10 RS-485 Connections ............................11 Specifications ................................ 12 Specifications for OMNI960-4/8/16 ....................... 12 Specifications for OMNI960-32 ........................13 HDD Storage Calculation Chart ......................... 14 Menu Operation ..............................15 Menu Structure ............................... 15 Startup and Shutdown ............................. -
Page 3: Dvr Pre-Installation
Quick Installation OMNI960 Series Digital Video Recorders Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact your dealer. KT&C Certified Dealers can contact KT&C directly. DVR Pre-Installation OMNI960 Series DVRs are highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the DVR. - Page 4 Quick Installation OMNI960 Series Digital Video Recorders 3. Connect the HDD to the motherboard of the DVR with the included data cable. 4. Connect the power cable to the HDD. 5. Re-install the cover of the DVR and fasten screws. Revised October, 2014...
-
Page 5: Front Panels
Quick Installation OMNI960 Series Digital Video Recorders Front Panels OMNI960-4/8/16 The front panel of the 1RU chassis model DVRs is shown below: Table 1: Description of 1RU Chassis Control Panel Buttons Name Function Description USB Interface Connect to USB mouse or USB flash memory. - Page 6 Quick Installation OMNI960 Series Digital Video Recorders Enter letters “ABC”; The F1 button can be used to select all items on the list; In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the PTZ camera; In live view or playback mode, the F1 button can be used to switch between main and spot video output.
-
Page 7: Omni960-32
Quick Installation OMNI960 Series Digital Video Recorders OMNI960-32 The front panel of the 1.5RU 32 channel model is shown below: Table 2: Description of 1.5RU Chassis Control Panel Buttons Name Function Description POWER ON/OFF Power on/off switch. USB Interface Connect to USB mouse or USB flash memory. IR Receiver Receiver for IR remote control. - Page 8 Quick Installation OMNI960 Series Digital Video Recorders Enter letters “DEF”; In PTZ Control mode, the F1 button can be used to zoom in (zoom+) the PTZ camera; The F2 button can be used to cycle through tab pages. Enter numeral “4”; Enter letters “GHI”;...
-
Page 9: Rear Panels
Quick Installation OMNI960 Series Digital Video Recorders Rear Panels OMNI960-4 OMNI960-8 OMNI960-16 Table 3: Description of 4/8/16 Channel Rear Panels Item Description VIDEO IN BNC connector for analog video input. VIDEO OUT BNC connector for video output. Connects USB mouse or USB flash memory devices. -
Page 10: Omni960-32
Quick Installation OMNI960 Series Digital Video Recorders OMNI960-32 Table 4 Description of 32 Channel Rear Panel Item Description BNC connector for video output. MAIN VIDEO OUT SPOT VIDEO OUT BNC connector for spot video output. VIDEO IN BNC connector for analog video input. RCA connector for audio output. -
Page 11: Peripheral Connections
Quick Installation OMNI960 Series Digital Video Recorders Peripheral Connections Wiring of Alarm Input (OMNI960-32 only). The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. Note: If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device. Wiring of Alarm Output To connect to an alarm output (AC or DC load), use the following diagram: DC Load Connection Diagram... -
Page 12: Rs-485 Connections
Quick Installation OMNI960 Series Digital Video Recorders RS-485 Connections For OMNI960-4/8/16 DVRs To connect PTZ to the DVR: 1. Disconnect pluggable block from the RS-485 terminal block. 2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part. Ensure signal cables are in tight. -
Page 13: Specifications
Quick Installation OMNI960 Series Digital Video Recorders Specifications Specifications for OMNI960-4/8/16 Model OMNI960-4 OMNI960-8 OMNI960-16 Video compression H.264 Video input 4-ch 8-ch 16-ch BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive Video input interface Video/Audio input Audio compression G.711 1-ch, RCA (2.0 Vp-p, 1 kΩ) Audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) -
Page 14: Specifications For Omni960-32
Quick Installation OMNI960 Series Digital Video Recorders Specifications for OMNI960-32 Video compression H.264 Video input 32-ch BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive Video input interface Video/Audio input Audio compression G.711u 4-ch, RCA (2.0 Vp-p, 1 kΩ) Audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) Two-way audio input 1-ch, resolution:... -
Page 15: Hdd Storage Calculation Chart
Quick Installation OMNI960 Series Digital Video Recorders HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate (Kbps) Storage Used (MB) 1024 1280 1536... -
Page 16: Menu Operation
Quick Installation OMNI960 Series Digital Video Recorders Menu Operation Menu Structure Menu Playback Export Manual Record Camera Maintenance Shutdown Configuration Logout Lock Normal Normal Record General Schedule General System Info Event Event Advanced Encoding Image Network Shutdown Alarm Log Information Advanced Alarm Reboot... -
Page 17: Using The Setup Wizard
Quick Installation OMNI960 Series Digital Video Recorders Using the Setup Wizard The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard starts once the device has loaded. Operating the Setup Wizard: 1. Select the system resolution from the dropdown menu. The default resolution is 1280×1024/60Hz. Click Apply to save the resolution settings. - Page 18 Quick Installation OMNI960 Series Digital Video Recorders Table 4 Top Level Menu Choices Name Description Menu Enter the main system menu by left-clicking the mouse on this choice Single Screen Switch to the single full screen by choosing channel number from the dropdown list. Multi-screen Adjust the screen layout by choosing from the dropdown list.
-
Page 19: Ptz Control
Quick Installation OMNI960 Series Digital Video Recorders Use the mouse wheel to double-click on the screen again to switch to the Aux output, or click Cancel to cancel the operation. On the aux output monitor, you can do some basic operation on the live view mode for the Aux output, including recording, live view, image settings, switch to main monitor, and no operation is allowed for the main output. -
Page 20: Record
Quick Installation OMNI960 Series Digital Video Recorders Stop the patrol or Minimize Exit pattern movement windows Record You can use the right-click menu in live view mode to configure recording for all channels. 1. In the live view mode, use the mouse to right-click on the window to access the following menu: 2. -
Page 21: All-Day Playback By Channel
Quick Installation OMNI960 Series Digital Video Recorders All-day Playback by channel 1. Enter the All-day Playback menu. Mouse: right-click a channel in live view mode and select All-day Playback from the menu. Press PLAY button on the front panel or IR remote control to play back record files of the channel under single-screen live view. Under multi-screen live view, record files of the top left channel (not masked) will be played back. -
Page 22: Backup
Quick Installation OMNI960 Series Digital Video Recorders Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. To export recorded files: 1. Click Menu>Export to enter Video Export interface. Choose the channel (s) you want to back up and click the Quick Export button. - Page 23 Quick Installation OMNI960 Series Digital Video Recorders 3. Check backup result. Choose the record file in Export interface and click the button to check it. Revised October, 2014...
- Page 24 Quick Installation OMNI960 Series Digital Video Recorders Revised October, 2014...
