Downloaded From projector-manual.com Viewsonic Manuals

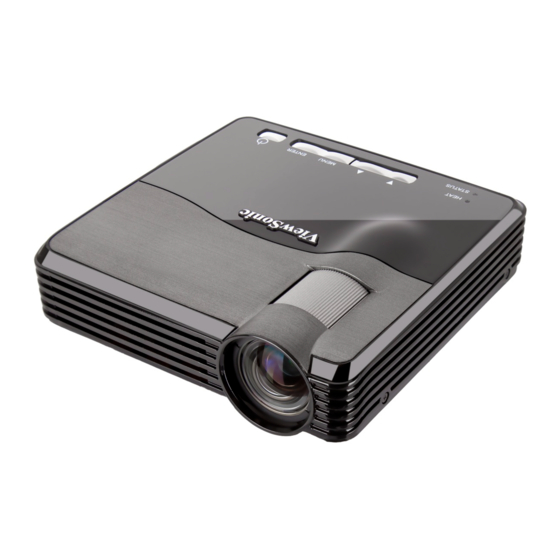

PLED-W200
LED Projector

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specific languages using the Regional selection
box in the upper right corner of our website. Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual
Model No. VS13903

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic PLED-W200

Summary of Contents for ViewSonic PLED-W200

  • Page 1: User Guide

    Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.

  • Page 2: Compliance Information

    If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 3: Important Safety Instructions

    Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 4 3. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 5: Copyright Information

    DDC are trademarks of VESA. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omis- sions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

  • Page 6: Table Of Contents

    Cleaning the lens ..........................43 Cleaning the projector housing ......................43 Specifications ..................44 Dimensions ............................45 Appendix ....................46 LED Indicator Messages ........................46 Compatibility modes ..........................47 Troubleshooting ........................... 48 IR control code ............................. 49 Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 7: Introduction

    • User-friendly, multi-language on-screen display Note • The information in this manual is subject to change without notices. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 8: Package Contents

    • For maximum protection of the product, please save the original shipping carton and packing materials and repack your product as it was originally packed at the factory if you need to ship it. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 9: Projector Overview

    3. Focus ring 4. Control panel Rear/bottom view 10 11 5. Rear IR remote control sensor 6. AC adapter inlet 7. SD card slot 8. Mini-B USB jack 9. Multi-input socket 10. Tripod socket 11. Elevator foot Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 10: Using The Product

    Navigate left/right to select items in options mode. • When the projector is in music playback mode: Select previous/next options. • When the projector is in video full screen: Fast forward/rewind the video at the intervals of 2X, 4X, 8X, 16X, 32X. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 11 Start to work for the selected item. • When the projector is in video full screen: Play or pause a video. • When the projector is in photo full screen: Start/stop slideshow. Power Turn the projector on or off. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 12: Connection Ports

    Connection ports 1. SD card slot Supports photo, music, video and Office viewer. 2. Mini-B USB jack Supports USB display. 3. Multi-input socket Supports RGB (PC)/component video (YPbPr/ YCbCr) /composite video/audio input. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 13: Remote Control

    Adjust the volume level. 6. MENU Display on-screen display menus. 7. Mute Cut off the sound temporarily. 8. Color Mode Select the picture setup mode. 9. Aspect Select the display aspect ratio. 10. Freeze Freeze the projected image. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 14 • Play/pause key • Stop key • Next/fast-forward key Note • The keys for remote control operation on SD Card source are framed in red color. See "Displaying files with SD card" on page 30 for details. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 15: Replacing The Battery

    Battery should not be in or near to fire or water, keep batteries in a dark, cool and dry place. • If suspect battery leakage, wipe out the leakage and then replace a new battery. If the leakage adheres to your body or clothes, rinse well with water immediately. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 16: Remote Control Operation

    Operate the remote control from a position where the remote sensor is visible. • Do not drop the remote control or jolt it. • Keep the remote control out of locations with excessively high temperature or humidity. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 17: Connection

    In the connections shown above, some cables may not be included with the projector (see "Package contents" on page 6). They are commercially available from electronics stores. • For detailed connection methods, see pages 16-19. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 18: Connecting A Computer

    Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 19 3. If computer's screen can't be projected, please go to "My Computer", find the “USB Display” (same as using a flash disk drive), then double click it to install the USB driver. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 20: Connecting A Component Video Source Device

    4. If you wish to make use of the projector speaker, take a suitable audio cable and connect one end of the cable to the audio output sockets of the Video source device, and the other end to the audio input socket of the multi-input cable. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 21: Connecting A Composite Video Source Device

    4. If you wish to make use of the projector speaker, take a suitable audio cable and connect one end of the cable to the audio output sockets of the Video source device, and the other end to the audio input socket of the multi-input cable. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 22: Operation

    You will see a message "Power off? Press Power again" appear on the screen. 2. Press again to confirm. 3. Disconnect the power cord from the wall socket if the projector will not be used in an extended period of time. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 23: Adjusting The Projector Height

    To avoid damaging the projector, make sure that the elevator foot is fully retracted before placing the projector in its carrying case. Adjusting the projector focus Focus ring Focus the image by rotating the focus ring. A still image is recommended for focusing. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 24: Adjusting Projection Image Size

    Keep a space of 30 cm or more between the sides of the projector. • Do not use the projector in a smoky environment. Smoke residue may build-up on critical parts and damage the projector or its performance Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 25: Menu Operation

    *2 It is only available when Auto Keystone is set to Off. *3 It is only available under computer mode. *4 It is only available under video mode. *5 It is only available when no source is connected. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 26: How To Operate

    5. Press MENU to return to the main menu. 6. To exit OSD, press MENU again. The OSD menu will close and the projector will automatically save the new settings. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 27 3 color (Red, Green, Blue) to customize user color temperature. Auto Keystone Automatically correct distorted images resulting from an angled projection. Keystone Manually correct distorted images resulting from an angled projection. Aspect Ratio Select how the picture fits on the screen: Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 28 Adjust the phase of the projector relative to the computer. H Position (Horizontal Position) Adjust the image left or right within the projection area. V Position (Vertical Position) Adjust the image up or down within the projection area. Overscan Remove noise around the image. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 29 Use this function to allow the fans operates at full speed continuously to achieve proper high altitude cooling of the projector. OSD Timeout Duration of OSD menu display countly starts (at idle state by second). Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 30 H. Frequency Display current image horizontal frequency. V. Frequency Display current image vertical frequency. LED Hours Display the LED’s elapsed operating time (in hours). LED Hours Reset Reset the LED Hour to 0 hours. Factory Default Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 31 Restore settings to factory default. The following settings will still remain: Auto Keystone, Keystone, Aspect Ratio, Projection, High Altitude, Language, LED Hours. Language Select the language used by the on-screen menu. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 32: Displaying Files With Sd Card

    4. Storages are classified into Music, Movie, Photo and Office Viewer items in the main menu page. Press on the keypad or on the remote control to select desired item and then press ENTER on the keypad or Enter on the remote control to enter different file browser. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 33 Enter to file browser mode. Navigate left to select items. Navigate right to select items. Note • When the projector is under the main menu page of SD Card, you can switch to USB source just once. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 34 • Remote control operation Button Operation Source Change sources except USB. Enter Play music. Exit Go back to the upper level of OSD. Navigate upward to select items. Navigate downward to select items. Page up Page down Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 35 Audio volume up. Play or pause music. Stop music playback. Play previous music. Play next music. Mute or unmute the sound. • Play type Normal play Shuffle play One track repeat play All tracks repeat play Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 36 Enter Play a video. Exit Go back to the upper level of OSD. Navigate upward to select items in file browser window. Navigate downward to select items in file browser window. Page up Page down Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 37 • Navigate right to select items when control bar is on. Audio volume down. Audio volume up. Play or pause a video. Stop video playback. Rewind the video at the intervals of 2X, 4X, 8X, 16X, 32X. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 38 Fast forward the video at the intervals of 2X, 4X, 8X, 16X, 32X. Mute or unmute the sound. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 39 Go back to the upper level of OSD. Navigate upward to select files or folders. Navigate downward to select files or folders. Navigate left to select files or folders. Navigate right to select files or folders. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 40 Go back to the upper level of OSD. Navigate upward to select files or folders. Navigate downward to select files or folders. Navigate left to select files or folders. Navigate right to select files or folders. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 41 Show control bar 5 seconds. Navigate left to select items when control bar is on. Navigate right to select items when control bar is on. Enter slideshow mode. Stop slideshow. Display previous file. Display next file. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 42 Go back to the upper level of OSD. Enter Open files or folders. Exit Go back to the upper level of OSD. Navigate upward to select files or folders. Navigate downward to select files or folders. Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 43 • Move to next page while page is not zoomed. • Move the display to bottom of the page while zoomed. Move the display to the right of the page. Move the display to the left of the page. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 44: Supported File Formats

    MP3, MP2, WMA, RA, AMR, APE, ASF, M4A, FLAC, OGG, WAV Items File Extension Codec Description Video H.264 MPEG-4 Divx Xvid H.263 MPEG-1 Max 1920 x 1080 30fps MPEG-2 Sorenson Spark M-JPEG Subtitles MKV build-in Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 45: Maintenance

    Make sure the lens is cool before cleaning. • Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners. • Do not use chemical sprays. • Use a soft cloth or lens paper only. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 46: Specifications

    Power consumption 48 W (Max.); < 0.5 W (Standby) Dimension (W x D x H) 129.7 x 126.8 x 39.6 mm Weight 408g (14.4oz) Note: Design and Specifications are subject to change without prior notice. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 47: Dimensions

    Dimensions 129.7 mm (W) x 126.8 mm (D) x 39.6 mm (H) 129.7 126.8 34.7 39.6 20.6 Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 48: Appendix

    Appendix LED Indicator Messages LED indicators Status/Problem Power LED (Blue) Temp LED (Red) Standby Solid Power on Flashing for 10 times then solid Fan error Solid Flashing Over temperature Solid Solid error Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 49: Compatibility Modes

    1440 x 900 59.9 WSXGA+ 1680 x 1050 65.3 1920 x 1080 66.6 Video: Compatibility H-Sync [KHz] V-Sync [Hz] 480i 15.734 480p 31.469 576i 15.625 576p 31.25 720p 45.0 720p 37.5 1080i 33.75 1080i 28.125 Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 50: Troubleshooting

    Use the remote control within the effective range. • Aim the remote control at the rear of the projector. • Move the remote control so it is more directly in rear of the projector and not as far to the side. Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 51: Ir Control Code

    IR control code System code: 83F4 Format : NEC Downloaded From projector-manual.com Viewsonic Manuals...

  • Page 52: Customer Support

    Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ T= 0800-54565 soporte@viewsonic.com...

  • Page 53: Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
  • Page 54 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: Damage to other property caused by any defects in the product, damages based upon inconvenience, ORVV RI XVH RI WKH SURGXFW ORVV RI WLPH ORVV RI SUR¿WV ORVV RI EXVLQHVV RSSRUWXQLW\ ORVV RI JRRGZLOO interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

  • Page 55: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 56 $Y )HUURFDUULO 6RQRUD  /&  %UHD &DQ\RQ 5RDG :DOQXW &$  86$ &RO  GH 1RYLHPEUH 7HO  (QJOLVK   6SDQLVK  Tijuana, Mexico )D[  (0DLO KWWSZZZYLHZVRQLFFRP  9LHZ6RQLF 0H[LFR /LPLWHG :DUUDQW\ 35-B/: 5HY $  Downloaded From projector-manual.com Viewsonic Manuals...
  • Page 57 Downloaded From projector-manual.com Viewsonic Manuals...
