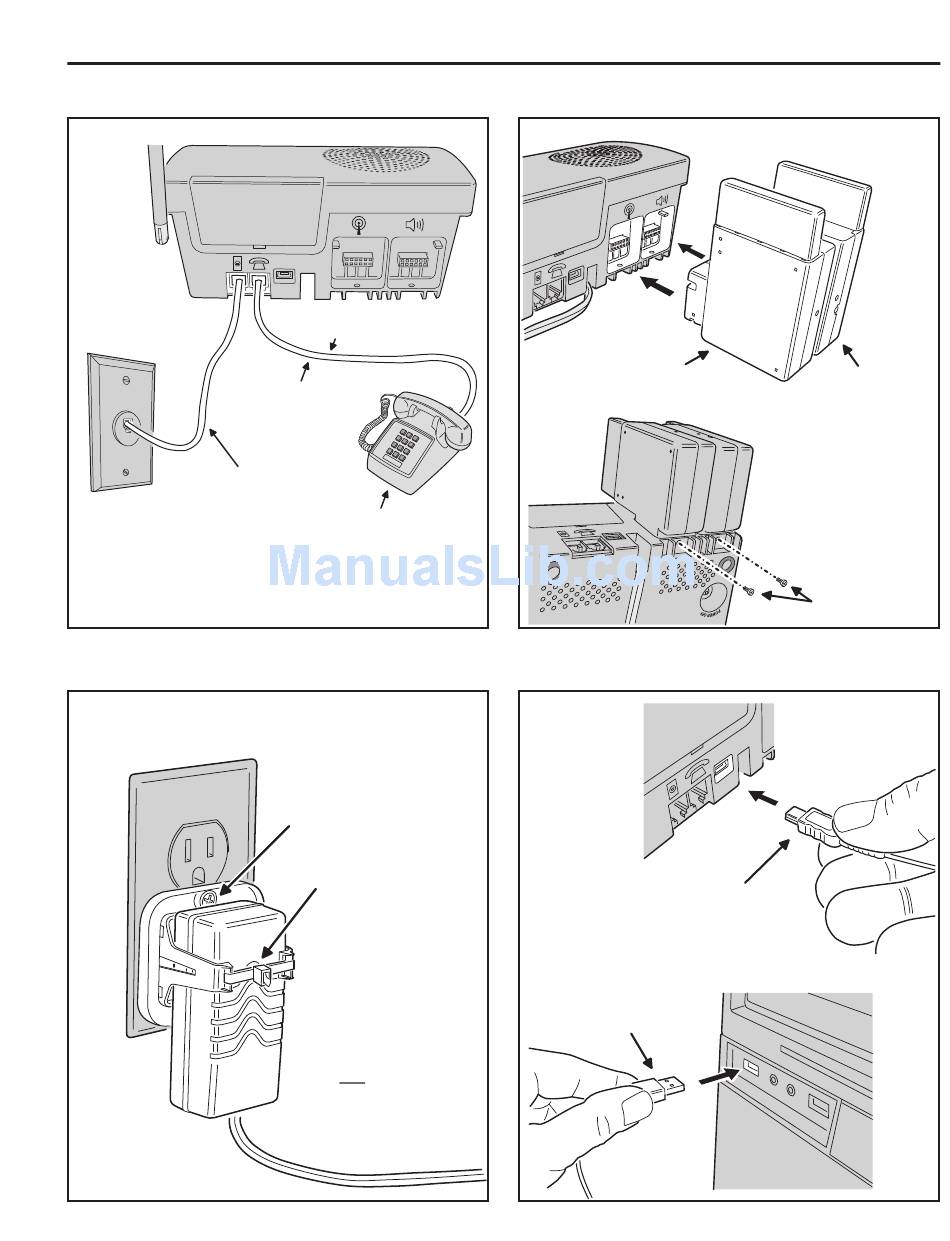

3. Console Connections

3.1 Telephone Connections

CONNECT THE HOUSE
TELEPHONE TO THE
CONNECT THE LINE IN JACK
TO THE TELEPHONE LINE
WALL JACK

3.3 Power Supply Installation

NOTE: THIS CONNECTION IS
OPTIONAL AND NOT REQUIRED
PHONE OUT JACK
NOTE: THE LOCAL TELEPHONE
OR ANY DEVICE CONNECTED TO
THE CONSOLE'S PHONE JACK
WILL BE DISCONNECTED FROM
THE TELEPHONE LINE WHILE
THE CONSOLE IS REPORTING TO
THE CENTRAL STATION
NOTE: FOR DECORA STYLE
OUTLETS, FLIP CLAMP OVER
ATTACH POWER SUPPLY
CLAMP TO OUTLET WITH
SCREW
SECURE POWER SUPPLY
TO CLAMP WITH A ZIP-TIE
CAUTION: BE SURE THE
OUTLET HAS 24-HOUR POWER
AND IS NOT CONTROLLED BY
A WALL SWITCH

3.2 Option Module Installation

OPTION MODULES PLUG INTO CONSOLE
CELLULAR
TELEPHONE
MODULE

3.4 Local Programming Connection

INSERT MINI-USB PLUG
INTO JACK ON REAR OF
THE PERS-4200 CONSOLE
INSERT USB PLUG
INTO PROGRAMMING
COMPUTER USB PORT
REMOTE
SPEAKER/MICROPHONE
MODULE
CAUTION!
BE SURE CONSOLE POWER
IS OFF BEFORE CONNECTING
THE OPTION MODULES
BE SURE TO
SECURE MODULES
WITH SCREWS!
FOR LOCAL
PROGRAMMING ONLY
