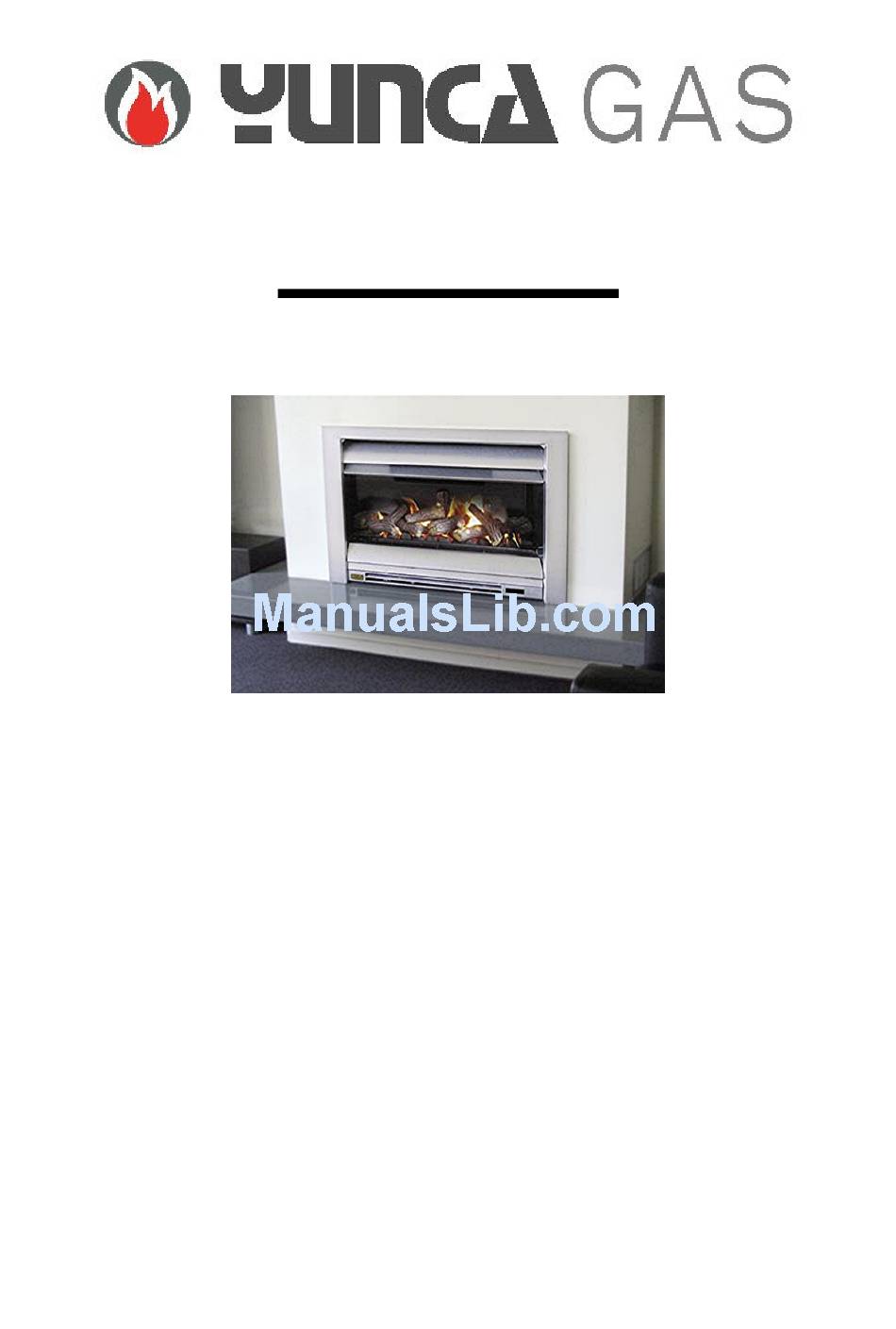

ALLURE
GAS OPEN FIRE
ELECTRONIC CONTROL INDOOR
MODELS 930 and 730
Also includes information for the 630 model
for which production was discontinued in 2010.
MAY 2010
INSTALLATION
OPERATION, MAINTENANCE &
WARRANTY INFORMATION
These instructions should be stored in a convenient safe place for ready reference.
Also available to download online at www.yunca.co.nz
Revised 26/05/10
ALLURE ELECTRONIC Install Ops May2010
Page 1 of 23
Advertisement
Table of Contents
Related Manuals for Yunca Gas ALLURE 930
Summary of Contents for Yunca Gas ALLURE 930
- Page 1 ALLURE GAS OPEN FIRE ELECTRONIC CONTROL INDOOR MODELS 930 and 730 Also includes information for the 630 model for which production was discontinued in 2010. MAY 2010 INSTALLATION OPERATION, MAINTENANCE & WARRANTY INFORMATION These instructions should be stored in a convenient safe place for ready reference. Also available to download online at www.yunca.co.nz Revised 26/05/10 ALLURE ELECTRONIC Install Ops May2010...
-
Page 2: Table Of Contents
Designed and built by: YUNCA GAS 2 Donald Street, Kaikorai Valley, Dunedin 9011. PO Box 500, Dunedin 9054. Phone 03 488 4342 Fax 03 488 1017 Email dunedin@yunca.co.nz www.yunca.co.nz CONTENTS PAGE INTRODUCTION CAUTIONS and MAINTENANCE INSTALLATION and SERVICE DIMENSIONS and CLEARANCES... -
Page 3: Cautions And Maintenance
Stainless Steel cleaners available from your local hardware store. MAINTENANCE YUNCA GAS HIGHLY RECOMMENDS THAT a qualified service person should conduct an annual inspection and undertake any maintenance required on your Yunca Allure. Its’ venting and installation must be checked to keep it running safely and efficiently. -
Page 4: Dimensions And Clearances
DIMENSIONS and CLEARANCES Diagrams on the following pages are not to scale. All measurements are in millimetres. The Yunca Allure flued gas fire is to be installed with clearances equal to, or greater than, those recommended on the following pages, and must comply with NZS 5261:2003/AG601 ZERO CLEARANCE FIREBOX MANTEL FLUE DIA... -
Page 5: Framing And Cladding
INSTALLATION INTO TIMBER FRAMED CHIMNEY CHASES: FRAME OUT INTO ROOM (requires ZERO CLEARANCE FLUE KIT) Note: Framing minimum width from side of zero clearance firebox to side wall is 130mm (on each side), i.e. the minimum width of the chimney chase shall be Dimension “B” + Dimension “C” + 260mm. -
Page 6: Flue Installation
ZERO CLEARANCE GAS FLUE KIT (3.6m): INSTALLATION INSTRUCTIONS Yunca Gas ALLURE OPEN FIRE 630, 730 ( ) 930 ( 150mm dia flue 200mm dia flue This flue kit has been manufactured in accordance with NZS 5261:2003. To ensure safety this flue kit must be installed as outlined in these instructions. - Page 7 TYPICAL FLUE INSTALLATION (FREESTANDING) N.B. Diagram is for INDOOR installations, NTS for illustration purposes (930 model uses 200mm flue, 250mm liner) CONDITIONS FOR FLUES. 1. The Flue Shall Extend to: a) In the case of a Pitched roof, not less than 600 mm above the Highest Point of the Roof.
-
Page 8: Placing Of Unit
PLACING The unit should be bolted to the floor to ensure no movement in the event of an earthquake or similar. (FIG 1) Laying of the gas pipes and the electrical supply may need to be completed before the heater is finally positioned. -
Page 9: Connection To Gas Supply & Testing Pressures
CONNECTION TO GAS SUPPLY AND TESTING PRESSURES ELECTRICAL: The unit is connected to the mains supply (240 50Hz 0.5Amp) via the 3m flex with three-pin plug. GAS SUPPLY: Burn only the fuel for which the appliance is equipped. The data plate affixed to the base of the appliance specifies the gas type, which the appliance is factory equipped for. -
Page 10: Gas Pressure Testing
GAS PRESSURE TESTING Use pressure test point (Fig 1) on manifold A manometer is required to check the gas supply and operating pressures. To attach manometer, remove hearth, rear tray and baffle. This will expose the control valve so manometer tubes can be attached to the pressure taps as shown below. - Page 11 GAS PRESSURE TESTING (cont) Pilot Outlet (Fig 5) NOTE: Modulator pressure adjustments are factory set. It is not expected that adjustment will be required during installation. Setting Pressures: (Fig 4 and 5) MAXIMUM PRESSURE: The modulator is adjusted by screwing IN Brass Nut “ 5 “ to increase the outlet pressure and screwing OUT to decrease it.
-
Page 12: Removing Panels And Parts For Service
REMOVING PANELS GRATE Lift up and out. 2) HEARTH Lift up and out. 3) FASCIA FRONT Remove four side screws, two are just in from the sides at the top, and two at the bottom. Lift the fascia up slightly and pull forward. 3a) BOTTOM FASCIA STRIP (Not shown) This part may be fitted along the base of a regular three-sided fascia (shown above) to give a... - Page 13 REMOVING PARTS FOR SERVICE (FIRST TURN OFF GAS AND POWER) 1) Coals, Logs - Remove with care. 2) Grate - Lift up and out. 3) Hearth - Lift up and out. 4) Front Tray - Remove screw from centre hole and lift out. 5) Rear Tray - Remove screws from right and left side, lift out.
-
Page 14: Coal And Log Layout
LAYOUT FOR COALS: - ALL MODELS Layout shown is for the 930 model using 13 coals per row. The 730 model uses 10 coals per row, the 630 uses 8 coals per row (layout as shown below, from left to right). Coals are numbered on the base. - Page 15 LAYOUT FOR COALS & LOGS Coals 930: 13 x No1 730: 10 x No1 630: 8 x No1 13 x No2 10 x No2 8 x No2 Layout shown is for the 930 model using 13 coals per row. The 730 model uses 10 coals per row, the 630 uses 8 coals per row (layout as shown below, from left to right).
-
Page 16: Operation And Commissioning
COMMISSIONING When installed the installer should operate the YUNCA ALLURE to ensure that all features are operating correctly. Eg. On / Off operation, ramp up and down of fan speed and flame height. Refer below. Turning on your YUNCA ELECTRONIC ALLURE 1. -
Page 17: Maintenance
MAINTENANCE YUNCA GAS HIGHLY RECOMMENDS THAT a qualified service person should conduct an annual inspection and undertake any maintenance required on your Electronic Allure. The venting and installation must be checked to keep it running safely and efficiently. Procedures should be performed only by a qualified service person. - Page 18 Fault Finding continued: SYMPTOM PROBLEM CORRECTIVE ACTION Weak or improperly Adjust the height of Flame Rod. The flame should Pilot will not stay lit located pilot flame. engulf the top 6mm of the thermocouple. Check for carbon at pilot causing a short. Gas Popping noise Broken Ceramic Filter Replace ceramic filter...
- Page 19 Revised 26/05/10 ALLURE ELECTRONIC Install Ops May2010 Page 19 of 23...
-
Page 20: Spare Parts List
Appendix B: Yunca Allure Electronic – Spare parts: PART NUMBER PART NAME 6500L Injector (Pilot Jet) LPG 0.23 dia 6500N Injector (Pilot Jet) NAT 0.35 dia 6599GOA Injector 0.8 LPG 6599GOB Injector 0.7 LPG Injector 0.6 LPG 6599GOC Injector 1.2 NAT Injector 1.3 NAT 6599GOW Injector Washer... - Page 21 Appendix B: Yunca Allure – Spare parts continued: 630 model LPG MAIN JETS: 630 Model Natural Main Jets: ALL are 1.3mm dia. 730 model LPG MAIN JETS: 730 model Natural Main Jets: ALL are 1.2mm dia. 930 model LPG MAIN JETS: 930 model Natural Main Jets: ALL are 1.2mm dia.
-
Page 22: Appendix Cwarranty
APPENDIX C: Warranty: A limited Five-Year Warranty covers the Yunca Allure Electronic Gas Open Fire against defects in materials and workmanship. All gas and electrical components including Electronic Control Valve, Electronic Controller Assembly, burners, pilot assembly, tubing, fan and switches are warranted for a period of one year from date of purchase. -
Page 23: Warranty Registration
Purchase Date Purchasers’ Name. Purchasers’ Address City. Postcode Telephone Where Purchased. Installed By. Date. Manufactured by: Yunca Gas Dunedin PO Box 500 DUNEDIN 9054 Telephone (03) 488 4342 Email: dunedin@yunca.co.nz Web: www.yunca.co.nz Cut along here… MANUFACTURER COPY This section must be returned within 10 days of purchase.
