Amputee Legrest; External Push Handles; Foldable Push Handles - Invacare XLT Dynamic Manual

1-2.
Tools: 5 mm Allen key
1.
1.
2.
3.
38

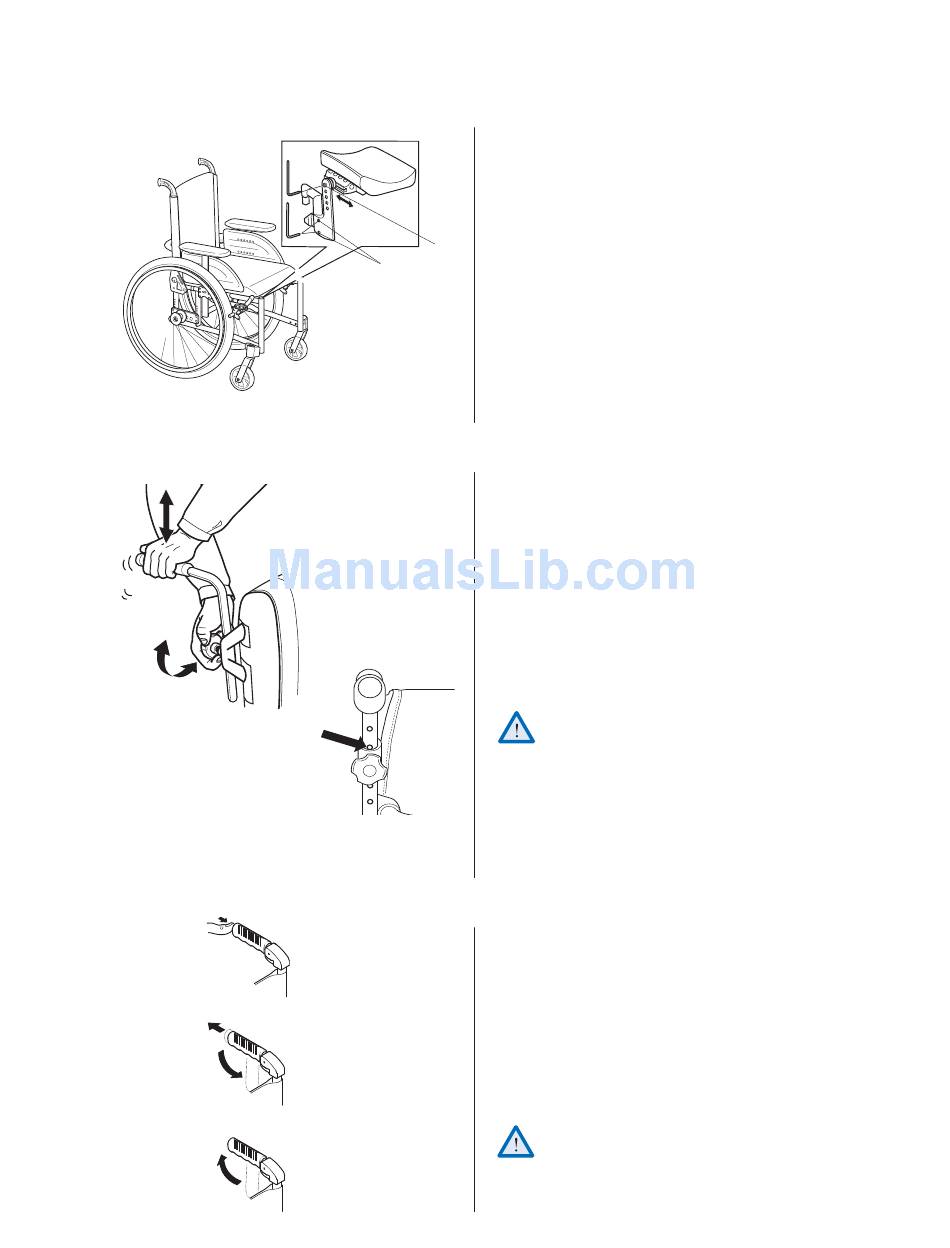

AMPUTEE LEGREST

A
B

EXTERNAL PUSH HANDLES

2.
A

FOLDABLE PUSH HANDLES

1. Attach the legrests by pushing the tube at the
upper part of the legrests down into the tubes
on the wheelchair. You must angle the legrests
outwards when inserting them. Lock the leg-
rests by turning them inwards. The legrests are
automatically locked so there is no risk of them
coming off the wheelchair.
2. Slacken screw (A), on the cushion's mount ing,
in order to adjust the cushion's angle and depth.
Slacken screws (B) in order to adjust the cushion
height.
Adjusting the height of the push handles
1. To raise or lower the height of the push han-
dles turn the knob and raise the handles to the
required height. Tighten when the correct posi-
tion is achieved.
2. When hole (A) is visible, just above the attachment,
the handle will be in the right "locking-position".
Make sure the push handles care securely
locked before use.
Folding down push handle
1. Press and hold the trigger, which is hidden under
the plastic handle, with your thumb.
2. Pull back the push handle and fold it down.
.
Folding up push handle
3. Pull the push handle upwards until it has snapped
into place.
Make sure that the push handles have snapped
into position, so that they cannot accidentally
fold down again when the wheelchair is being
pushed.
®
INVACARE XLT
