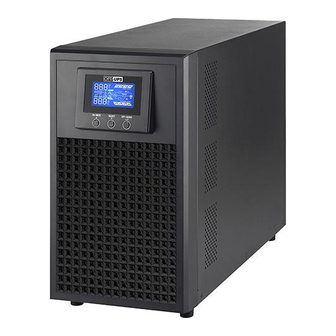

DS-E Series£ ¨ 1~6KVA£ ©

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS1000E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OPTI-UPS DS1000E

  • Page 1: User Manual

    DS-E Series£ ¨ 1~6KVA£ © User Manual...
  • Page 3 ¡ ¾ NOTE¡ ¿ Please carefully read the user’s manual before operation for the sake of understanding correct operation of the instrument. Please keep the manual handy for future reference. WARNING The input and output of the instrument is with danger high voltages which may endanger the safety of life.
  • Page 5: Table Of Contents

    1.5 Precautions ..........................4 2 .Structure and Basic Principles ......................6 2.1 General Structure........................6 2.1.1 DS1000E Series Front Panel, Rear Panel Structure ............6 2.1.2 DS2000E Series Front Panel, Rear Panel Structure ............7 2.1.3 DS3000E Series Front Panel, Rear Panel Structure ............7 2.1.4 DS6000E Series Display Interface, Front Panel, Rear Panel Structure ......8...
  • Page 6 4.2 UPS Start-up Sequence......................20 4.3 Daily Start-up and Shutdown ....................21 4.4 Battery Daily Maintenance .......................21 4.5 Battery Changing ........................22 4.6 Maintenance Guide........................22 4.6.1 Safety Precaution ......................23 4.6.2 Preventive and Regular Maintenance ................23 4.6.3 FAQ ..........................24 4.7 Troubleshooting ........................26 4.7.1 Overview ........................26 4.7.2 Troubleshooting......................26 5 .
  • Page 7: Overview

    1. Overview 1.1 Profile DS-E series UPS are total high frequency, pure online and intellectualized UPS. They are also ideal power guarantee for file server, enterprise server, central server, microcomputer, concentrator, telecommunication system, data center, medical facilities and those requiring high quality power protections. They can be widely used in many key business areas such as post &...
  • Page 8: Performance Index

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual 1.3 Performance Index The main performance index of DS-E Series is shown in Table 1-1,Table 1-2. Table 1-1 UPS Main Performance Index Index Model DS1000E DS1000EL DS2000E DS2000EL DS3000E DS3000EL Rating Voltage (V)
  • Page 9: Primary Functions And Characteristics

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual Table 1-2 UPS Main Performance Index Index Model DS6000E DS6000EL Rating Voltage (V) Rating frequency (Hz) 50 or 60 (setup when leaving factory) Input mode Single-phase three-line Battery voltage (V) Capacity (VA) 6000 Voltage 230±2% Frequency...
  • Page 10: Precautions

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual long-distance power on/off function, as well as supporting SNMP network adaptor (outlaid, connecting UPS through RS232 interface), which enables UPS to directly become network fresh blood. 2£ ® High input power factor: Adopt advanced active PFC technique, which alleviates load on electric network and represents green power supply of new generation.
  • Page 11 DS-E Series£ ¨ 1~6KVA£ © User’s Manual 5£ ® The electric power of this UPS has multiple sources. Before maintaining, cut the alternating current, exterior battery or interior battery's air switch to isolate the input energy. 6£ ® Even if the AC power supply has been cut off, the danger from battery's high voltage inside the UPS still exists.
  • Page 12: Structure And Basic Principles

    2 .Structure and Basic Principles 2.1 General Structure 2.1.1 DS1000E Series Front Panel, Rear Panel Structure Front and rear panel structure of the main unit of DS1000E and DS1000EL are illustrated in Fig. 2-1. UPS Operation RS232 Port Status Indicator...
  • Page 13: Ds2000E Series Front Panel, Rear Panel Structure

    100% POWER FAULT Fig. 2-2 DS1000E Panel Indicator 2.1.2 DS2000E Series Front Panel, Rear Panel Structure Front and rear panel structure of the main unit of DS2000E and DS2000EL are illustrated in Fig. 2-3. Inside which the switch on rear panel is composed of switch for commercial power input and switch for storage battery.
  • Page 14: Ds6000E Series Display Interface, Front Panel, Rear Panel Structure

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual commercial power input switch and switch for storage battery. The upper switch is for storage battery, and the lower one is AC input switch. Input line bank and output line bank each has three connecting terminals, which in turn, from left to right (rear view), are live wire (L), neutral wire (N) and ground wire (GND).
  • Page 15 DS-E Series£ ¨ 1~6KVA£ © User’s Manual “INV.” : Inverter normal, light on, abnormal off. ¢ Ú ¢ Û “OUTPUT” : UPS has output, light on; no output off. ¢ Ü “BYPASS” :UPS in status of bypass supply, light on; in status of inversion, off. ¢...
  • Page 16 DS-E Series£ ¨ 1~6KVA£ © User’s Manual DISPLAY BYPASS RS232 RS232 INPUT LINE INV. OUTPUT FAULT SELECT FANS FANS AIR INLETS BATTERY 电 BATTERY SWITCH 开/ ON 关/ OFF LINE SWITCH ¥ « 电 POWER AIR INLETS LINE-BAR COVER Fig.2-4 DS6000E/DS6000EL Front Panel and Rear Panel Structure DISPLAY RS232 BYPASS...
  • Page 17: Basic Principles

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual 2.2 Basic Principles When commercial power is normal, DS-E series UPS input, through PFC, increases the voltage to ± 360V stabilized DC voltage, which supplies DC/AC inverter and transmits stable AC 230V, while at the same time completing the charging of the battery.
  • Page 18: Equipment Installation

    3 .Equipment Installation 3.1 Site and Environment Requirements Before UPS installation, the site and environment of equipment room should meet the essential conditions for safe and normal operation of equipment as defined in this section. If the customer’s site conditions are not accord with the minimum requirement of safe equipment operation, the customer should make corresponding changes to the site conditions, and install the equipment only after meeting the conditions of safe and normal equipment operation.
  • Page 19: Procedures Of Dismantling Cases

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual 3.2 Procedures of Dismantling Cases When installing the equipment, the packing should be removed after carrying the equipment to the installation site. The packing of UPS equipment and fittings (battery, etc.) should be wooden case and carton. Check the UPS equipment and fittings against the shipping list.
  • Page 20: Selection Of Cable

    The distribution box should be better to be manufactured by professional company. Please refer to Table 3-1. Table 3-1 Recommended Sectional input air switch DS1000E DS2000E DS3000E DS6000E...
  • Page 21: Selection Of Input And Output Power Cord Diameter

    To connect UPS cable only after confirming that all air switches on UPS are in disconnection condition, and the equipment is properly installed. 3.5.1 DS1000E Series All input and output connection methods of DS1000E series are shown in Fig. 3-2.
  • Page 22: Ds2000E Series

    Commercial power input Fig. 3-2 DS1000E Series connection Schematic The AC input and output of DS1000E series only adopt the socket. Please insert the power input wire in the commercial power socket directly, and insert the load power cord into the output socket.
  • Page 23: Ds3000E Series

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual For long time-delay UPS, battery input expansion line is required to be connected. Refer to the relevant content of the battery box installation and cable connection. 3.5.3 DS3000E Series AC input of DS3000E series adopts line bank, and the AC output adopts socket and line bank.
  • Page 24: Inspection Of Electric Connection

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual OUTPUT INPUT BATTERY Battery - AC input "L" 120VDC Grouding Battery + AC input "N" AC Output "L" AC Output "N" Fig. 3-6 DS6000EL/DS6000E EXT Wiring Illustration 3.5.5 Inspection of Electric Connection 1£ ® Inspection of AC input wire: Whether the AC wire color spectrum is normative.
  • Page 25 DS-E Series£ ¨ 1~6KVA£ © User’s Manual 6£ ® If the UPS is installed with remote monitoring equipment, examine whether the connection of relevant RS232 serial port is correct. 7£ ® Examine whether the wiring is in order, whether the cable binding accord with the technical criterion.
  • Page 26: Equipment Use And Maintenance

    For DS2000E, DS3000E,DS6000E series, turn the air switch at the back to “ON” position. £ ¨ Step 2 of direct operation of DS1000E series£ © 2£ ® Press the "ON" button on the UPS panel to start UPS, the "INV"...
  • Page 27: Daily Start-Up And Shutdown

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual 4.3 Daily Start-up and Shutdown During daily operation, operate as per the following for start-up or shut down: 1£ ® Press the "ON" button on the UPS panel to start UPS, after 10 seconds, turn on the computer or other instrument.
  • Page 28: Battery Changing

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual use oil substance or organic solvent such as gasoline and thinner, etc. 7£ ® Battery and battery unit should be kept away from ignition source as well as all electrical equipment that may easily cause spark, to avoid causing unnecessary loss.
  • Page 29: Safety Precaution

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual some procedures that are frequently performed. These procedures are used to prevent system failure as well as to obtain best operating efficiency. Remedial maintenance includes searching for system malfunction to facilitate effective repair. 4.6.1 Safety Precaution In order to securely and successfully conduct system maintenance, relevant safety precautions must be observed and necessary tools and testing...
  • Page 30: Faq

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual 4£ ® Perform periodic inspection on battery voltage and UPS working status. 4.6.3 FAQ If the UPS fails to work properly after starting, please don't jump to the conclusion of UPS failure. Please refer to the following and try to solve the problem.
  • Page 31 DS-E Series£ ¨ 1~6KVA£ © User’s Manual Cause: £ ¨ 1£ © UPS severe overload or output circuit short circuit. Reduce the load to an adequate amount, or check the cause for short circuit. In many cases, it is caused by output adapter short circuit or input short-circuit fault owing to equipment damage.
  • Page 32: Troubleshooting

    DS-E Series£ ¨ 1~6KVA£ © User’s Manual 4.7 Troubleshooting 4.7.1 Overview In the case of device failure, first of all, find out any obvious damage and try to determine what causes the failure: device problem or external environment (such as temperature, humidity and load). Always check these external factors before coming to the conclusion of UPS system damage.
  • Page 33 DS-E Series£ ¨ 1~6KVA£ © User’s Manual Possible cause: Poor earth connection as a result of much too high floating voltage of the zero line and earth wire. 5£ ® All of panel indicator lamps are off. Possible cause: Poor connection or malfunction of display control panel.
  • Page 34: Packing, Transportation And Storage

    ( L × W × H) is: 615mm×310mm×450mm£ ¨ DS2000E£ ¬ DS3000E£ © and 570mm×270mm×310mm £ ¨ DS1000E £ © . Pay attention to laying direction requirements for each part when packing. The side faces of the carton are printed with such direction marks as keep dry, handle with care, this end up, pile number limit, as well as equipment model and other relevant information.
