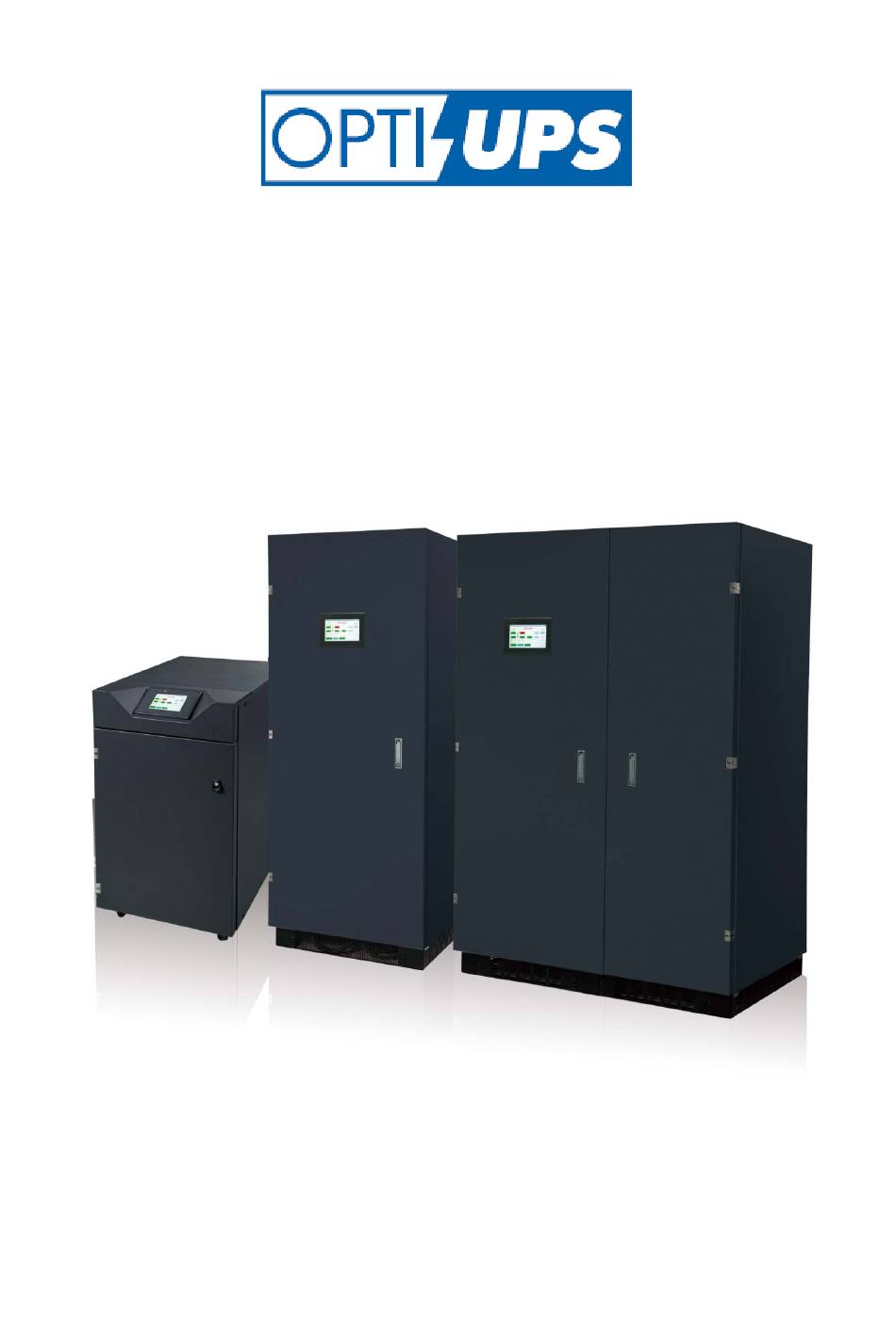

DS-C33 II Series
User's Manual
www.opti-ups.com

Advertisement

Table of Contents
loading

Related Manuals for OPTI-UPS DS-C33 II Series

Summary of Contents for OPTI-UPS DS-C33 II Series

  • Page 1 DS-C33 II Series User’s Manual www.opti-ups.com...

  • Page 2: Table Of Contents

    Contents 1. Preface ................................3 1-1 Introduction ............................3 1-2 Safe Instructions and Warnings ......................3 2. System Framework............................4 2-1 Block Diagram ............................4 2-2 System Major Module Function Introduction..................5 2-3 System Operation Modes ........................6 3. Touch Display Panel (HMI, Human Machine Interface) ................. 8 3-1 Introduction ............................

  • Page 3: Preface

    1. Preface 1-1 Introduction DS-C33 II series features an advanced DSP chip as a system core processor. Wide range capacity from 10KVA to 200KVA meets a verity of load demands and extends the capacity up to 400KVA through paralleling. High reliability and rapid transient response fit for critical equipments such as semiconductor, SMT and communication facilities, etc.

  • Page 4: System Framework

    2. System Framework 2-1 Block Diagram (5) (6) (7) (9) (10) (11) (12) Fig. 2-1 Secondary (Bypass) AC Mains NFB (S1 NFB) Primary AC Mains NFB (S2 NFB) Input Fuse Three-phase AC Inductor Rectifier/ Charger Battery Auxiliary Relay Battery MS (Magnetic Switch) Manual Bypass Maintenance NFB (S4 NFB) Inverter Module (10) Inverter Isolation Transformer...

  • Page 5: System Major Module Function Introduction

    2-2 System Major Module Function Introduction 2-2-1 Rectifier (1) Utilization of SCRs inverts AC voltage to DC voltage. (2) Combination of CPLD and DSP make the rectifier more stable and reliable. (3) Over-voltage protection. (4) DC voltage soft starter. (5) Float charging and equalization charging modes support. (6) Float charging time is adjustable and available on the display panel.

  • Page 6: System Operation Modes

    2-3 System Operation Modes 2-3-1 Normal Operation Fig. 2-3-1 Normal Operation AC mains power goes through the rectifier, the inverter, the STS to the load. 2-3-2 Bypass Operation Fig. 2-3-2 Bypass Operation AC mains power goes through the bypass path and the STS to the load. 2-3-3 Battery Supply Operation Fig.
  • Page 7 2-3-4 Maintenance Bypass Operation Fig. 2-3-4 Maintenance Bypass Operation AC mains power goes through the maintenance bypass switch to the load. This mode is only for trained professionals to do regular system and cleaning maintenance. 2-3-5 EPO Switch Fig. 2-3-5 EPO Switch UPS is going to be turned off and outputs no power in this mode for emergency.

  • Page 8: Touch Display Panel (Hmi, Human Machine Interface)

    3. Touch Display Panel (HMI, Human Machine Interface) 3-1 Introduction Fig. 3-1 DS-C33 II has an 800x480px TFT touch screen display panel. It can be set and controlled, and its status and information are displayed on the display panel shown as Fig.3-1. 3-2 LCD Panel The display consists of main control, event log, user set, maintenance staff, advanced set, calibrate set and spec./service categories (tabs) and their corresponding pages.
  • Page 9 3-2-2 Event log Up to 2400 events with time in total can be recorded on 6 pages shown as Fig.3-2-2-1. These are helpful for maintenance engineers to find root causes and solve issues fast. More functions: (1) PIP (Picture in picture) event log Different events are shown in separate windows as in Fig.3-2-2-2. (2) Logs can be exported to a portable disk.
  • Page 10 3-2-3 User set User settings are available for end users to set/select language, battery test, charging mode, communication mode, password, dry contact programming, brand name/ hotline shown as Fig. 3-2-3-1. Password is required for access to this function and the default password is 000000. Successful access is shown as Fig.
  • Page 11 3-2-4 Maintenance staff This function is only for professionals or qualified technicians. Professionals or qualified technicians will use the information to find the fault root causes and solve issues timely. Operations are shown as Fig. 3-2-4-1. Fig. 3-2-4-1 3-2-5 Advanced set Advanced settings are available for professionals to set parameters such as model, input system, reserve voltage, I/O transformer, input voltage, output system, output voltage, output frequency, charge current, equalization mode time, battery data, other data, event log set, other set, reload data, save data, export set...
  • Page 12 3-2-6 Calibrate set Calibration settings are available for professionals to set voltage, current and temperature, etc shown as Fig. 3-2-6-1. This function requires an advanced set password. Press Save Data and Enter buttons to avoid being reset by other people. Fig.

  • Page 13: Fixation And Installation

    4. Fixation and Installation 4-1 Fixation 4-1-1 Transportation (1) Fig. 4-1-1a and Fig. 4-1-1b represent the packing. (2) UPS should be placed in the way indicated by the arrow on the carton. (3) In order to avoid danger during transportation, UPS or battery packs should be fastened tightly by ropes and placed in the center of truck front end as Fig.
  • Page 14 U.P.S Fig. 4-1-1c Fig. 4-1-1d Fig. 4-1-1e...
  • Page 15 4-1-2 Unpacking (1) Cut off packing ropes and take out packing coverings as Fig. 4-1-2a, 4-1-2b and 4-1-2c illustrate. (2) Unwrap PE coating. (3) Unscrew screws of L fixers screwed on the pallet as Fig. 4-1-2d and 4-1-2e illustrate. (4) Follow the arrow marks to unload the UPS as Fig. 4-1-2 illustrates. Fig.
  • Page 16 Fig. 4-1-3b and Fig.4-1-3c. (4) The BTU values for DS-C33 II series shown as table 4-1-3d. (5) The chamber for UPS placement should be sufficiently lit and equipped with an emergency fire extinction system.
  • Page 17 4-1-4 Outline and Dimension 10 / 15 / 20 / 30K  120V / 208V & 220V / 380V Models...
  • Page 18 45 / 60K  120V / 208V Models 45 / 60 / 80 / 100 / 120K  220V / 380V Models...
  • Page 19 80 / 100 / 120K  120V / 208V Models...
  • Page 20 160 / 200K  220V / 380V Models...

  • Page 21: Installation

    4-2 Installation 4-2-1 UPS Input / Output Specifications Frequency Topology Voltage Input 50 / 60Hz 3p3w and PE 220Vac, 380Vac 3p4w and PE 110 / 190Vac, 115 / 200Vac, 120 / 208Vac, 127 / 220Vac, 220 / 380Vac, 230 / 400Vac, 240 / 415Vac, 254 / 440Vac Output 50 / 60Hz 3p3w and PE...
  • Page 22 4-2-2 Cable Specifications 600V PVC Insulated Hard Copper Stranded Wire Safe Current Table (60℃ Insulation, Ambient Temperature under 30℃) Number of Number of Sectional Area Sectional Area Type Strands/ Safe Current Strands/ Safe Current Diameter Diameter 7 / 0.8 19 / 2.3 7 / 1.0 19 / 2.6 7 / 1.2...
  • Page 23 4-2-4 Terminal Definitions (1) I/R : Rectifier Input R Phase (2) I/S : Rectifier Input S Phase (3) I/T : Rectifier Input T Phase (4) I/N : Input Neutral Line (5) I2/R : Slave UPS Input R Phase (from slave UPS input R phase for paralleling system) (6) I2/S : Slave UPS Input S Phase (from slave UPS input S phase for paralleling system) (7) I2/T : Slave UPS Input T Phase (from slave UPS input T phase for paralleling system) (8) BP/R : Bypass Input R Phase...
  • Page 24 4-2-6 Terminals 10 / 15 / 20 / 30K  120V / 208V & 220V / 380V Models Master / Slave UPS I2/R I2/S I2/T BP/R BP/S BP/T BP/N 45 / 60K  120V / 208V Models 45 / 60 / 80 / 100/ 120K  220V / 380V Models Master UPS I2/R I2/S...
  • Page 25 80 / 100 / 120K  120V / 208V Models Slave UPS BP/R BP/S BP/T BP/N...

  • Page 26: Operation Procedures

    5. Operation Procedures 5-1 Power-on 5-1-1 Initial Power-on Procedures (1) Switches BAT Switch: for switching on/off batteries. SPS Switch: for switching on/off the power board. S1 Switch: for switching on/off the second AC mains power or the bypass of the model with an input transformer.
  • Page 27 5-1-2 Normal Power-on Procedures When the initial power-on procedure is done and the UPS is turned on. Press Inverter ON button on the HMI control panel and Yes button on the pop-up window to restart the UPS. It will be turned on after 3 minutes.

  • Page 28: Power-Off

    5-2 Power-off 5-2-1 Normal Power-off Procedures Press Inverter OFF button on the HMI control panel and Yes button on the pop-up window to shut down the UPS. UPS operation mode changes from inverter to bypass, and a dialogue window pops up for this status.
  • Page 29 Fig. 5-3 Maintenance Bypass Workflow *) for 10K~30KVA models, fuses must be installed before the initial power-on operation.

  • Page 30: Dry Contact Communication

    5-6 Dry Contact Communication (1) PCB-3308 Dry contact layout shown as Fig. 5-7-1. (2) PCB-3308 Dry contact function definitions listed in Table 5-7-2. Fig. 5-7-1 Dry Contact Layout Contact +12V USER0 +12V INV STS_NO EXT. SHUTDOWN INV STS_COM USER1 +12V INV STS_NC EXT.

  • Page 31: Maintenance And Storage

    6. Maintenance and Storage (1) Clean the UPS placement chamber and the UPS itself from dust every 6 months. (2) Recharge and discharge batteries every 3 months to maintain their lifetime. (3) Pay attention to the temperature and humidity of the chamber. (4) When storing a UPS, disconnect all cables (take out the fuses or batteries for battery-inbuilt models) and wrap the UPS with PE coating.

  • Page 32: Specifications

    8. Specifications DS10K DS15K DS20K DS30K DS45K DS60K DS80K DS100K DS120K DS160K DS200K Model C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II Capacity 10KVA 15KVA 20KVA 30KVA 45KVA 60KVA 80KVA 100KVA 120KVA 160KVA 200KVA...
  • Page 33 DS10K DS15K DS20K DS30K DS45K DS60K DS80K DS100K DS120K DS160K DS200K Model C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II C33 II DC192V (12V × 16pcs) DC360V DC384V Battery Configuration DC360V (12V ×...

  • Page 34: Contact Information

    OPTI-UPS Europe: Tel: +31-40-401-50-00 Tel: +31-40-262-80-57 Fax: +31-40-254-60-06 eu@opti-ups.com www.opti-ups.com OPTI-UPS Middle East: Tel: +9714-8819-838 Fax: +9714-8819-938 mea@opti-ups.com www.opti-ups.com OPTI-UPS Australia & New Zealand: Tel: +64-9-441-6470 Fax: +64-9-441-6490 aunz@opti-ups.com www.opti-ups.com OPTI-UPS Germany: Tel : +49-7071-5495-148 Fax: +49-7071-5495-149 germany@opti-ups.com www.opti-ups.com OPTI-UPS Japan:...
