Clever Little Box avid2 Installation Manual page 2

Introduction:
Before installation please remove the Facia Trim Plate from around the front edge of the unit. This
can be refitted once the installation is finished and any decorating is completed.
The compact depth of the AVID2 unit will allow installation into standard UK 2-gang EO boxes, with
a minimum of 35mm depth.
These may be galvanised metal for installation in solid construction walls, plastic drylining (with
lugs) or may be installed into surface mounting Dado-type trunking systems using the appropriate
fixings.

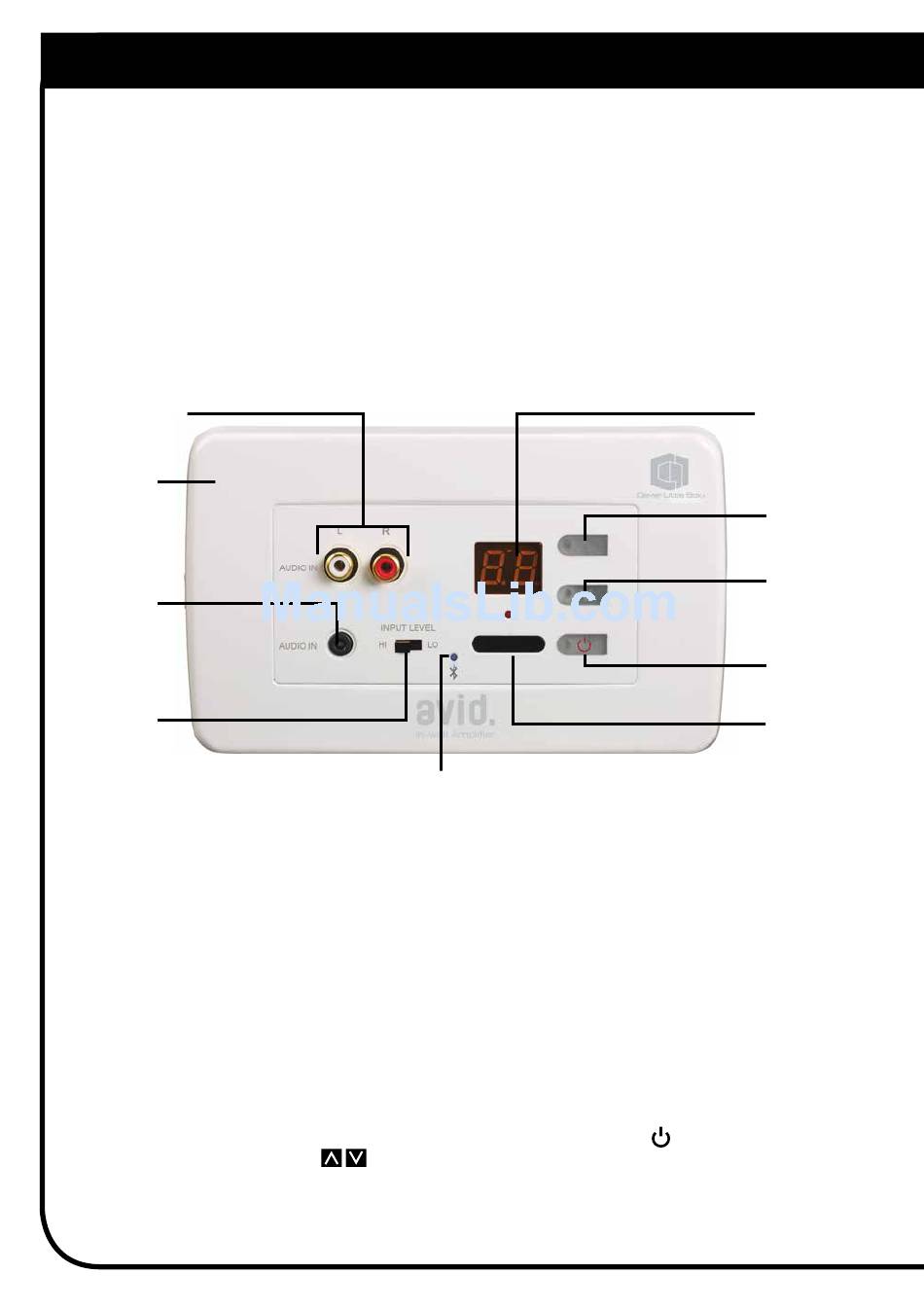

Front Panel Controls and Connectivity:
Stereo Phono
Inputs
Fascia
Trim
Plate
3.5mm
Jack
Input
Hi/Lo Line
Level
Sensitivity
Switch
Bluetooth connectivity is provided via a receiver allowing any Bluetooth enabled device using A2DP
profile to be paired with the AVID2. A blue LED provides indication of the Bluetooth function.
as follows:
Blink LED= Pairing Mode
Solid LED= Connected
See User Instructions for Bluetooth Connection Instructions
Two types of wired input are provided via the front panel; a Stereo 3.5mm Jack and Stereo Phono
Inputs; the Stereo 3.5mm Jack Input has a signal-operated priority over the Stereo Phono Inputs.
The Hi/Lo switch adjusts the input sensitivity from 1v (Line Level) to 200mv (average Headphone
output level), allowing the interface of generic MP3, CD and media players without loss of system
volume level.
3 illuminated buttons allow basic control of the AVID2, the bottom button (
function, the up/down buttons (
A clear LCD Display shows the desired volume level between 0 (no output) to 20 (maximum
output).
Bluetooth
LED Indicator
) control Volume Up and Volume Down.
Audio Level
Display
Volume
Level
Up
Volume
Level
Down
ON/OFF
Switch
IR
Receiver
Window
) controls the ON/OFF
