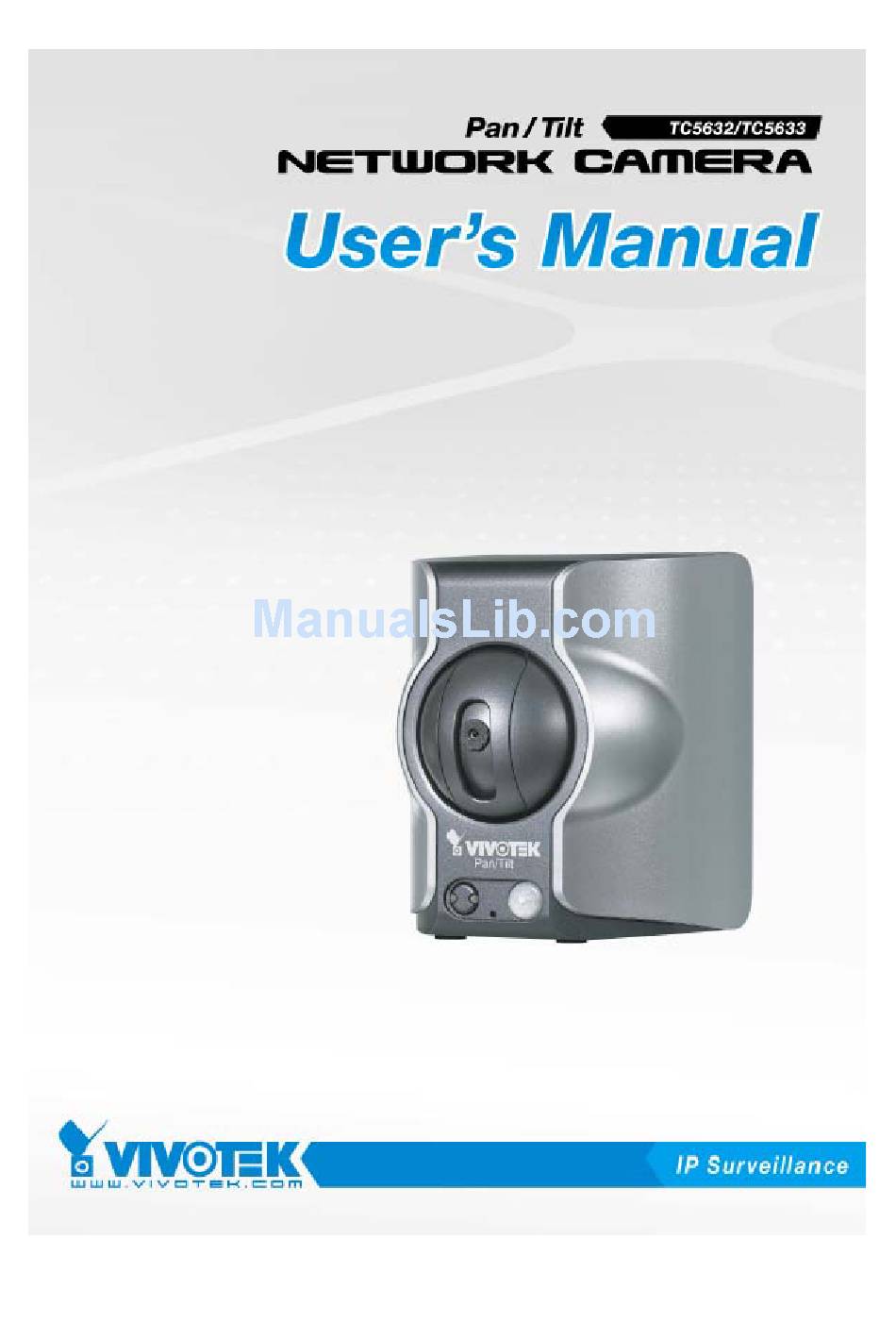

Vivotek TC5632 User Manual

Vivotek TC5632 User Manual

Pan/tilt network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC5632 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek TC5632

Summary of Contents for Vivotek TC5632

  • Page 2 Product name: Wireless Network Camera with Pan/Tilt(TC5632/TC5633) Release Date: 2008/01/04 Manual Revision: 1.00 Web site: www.vivotek.com Email: technical@vivotek.com sales@vivotek.com © 2008 VIVOTEK INC. All rights reserved - 1 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 3: Before You Use This Product

    For paragraphs preceded by the reader should use caution to understand completely the warnings. Ignoring the warnings may result in serious hazards or injuries. - 2 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 4: Table Of Contents

    Security settings ................29 Network settings................31 Network type ................31 HTTP ..................32 RTSP Streaming ................. 32 WLAN Configuration (TC5633 only) ..........35 DDNS..................... 38 Access List ..................39 Audio and Video................41 - 3 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 5 Recall ..................78 Application page CGI command ............ 78 Capture single snapshot .............. 81 Account management ..............82 System logs................83 Configuration file ................ 84 Upgrade firmware ............... 84 C. Technical specifications ..............86 - 4 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 6: Package Contents

    Package Contents - 5 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 7: Installation

    The Ethernet cable should meet the specs of UTP Category 5 and not exceed 100 meters in length. Connect the power adapter jack to the Network Camera before plugging in to the power socket. This will reduce the risk of accidental electric shock. - 6 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 8: To Install In Ethernet

    This Network Camera provides a general I/O terminal block with one digital input and one digital output device control. The pin definition is as below. 1. Power 2. Digital output 3. Digital input 4. ground - 7 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 9: Software Installation

    The Administrator should immediately implement a new password as a matter of prudent security practice. Once the Administrator’s password is saved, the Network Camera will ask for the user’s name and password - 8 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 10: How To Use

    The foreground is the login window and the background shows the message if authentication fails. The user may check the option box to save the password for future convenience. This option is not available to the Administrator for obvious reason. - 9 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 11: Installing Plug-In

    If the web browser does not allow the user to continue to install, check the Internet security option and lower the security levels or contact your IT or networking supervisor for help. - 10 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 12 - 11 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 13: Primary User's Capability

    Click on the configuration link to the left of the image window to enter the configuration page. The Configuration: “Snapshot” The button provides users a fast way to capture a single image of the video from the Network Camera. “Client Settings” - 12 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 14: The Camera View

    “Disable digital zoom” The checkbox selection allows users to disable/enable the digital zoom function. “Zoom Factors” The range of zoom factor is from 100% to 400%, users can select any integer factor inside this area. - 13 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 15 “Pause” The option will pause the video, but the connection remains. The button is the same one as “Play”. “Stop” The option will disconnect to the Network Camera. “Play volume” Click on this button can adjust the audio volume. - 14 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 16: Privacy Mode

    This helps to protect people’s privacy when they do not want to be seen by the camera. When the privacy mode is activated, the Status LED blinks in blue. To disable it, press the privacy button again. - 15 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 17 - 16 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 18: Client Settings

    Using multicast protocol can reduce traffic by simultaneously delivering a single stream of information to several clients. Please enable multicast options first from configuration page. And make sure your router support this technology. - 17 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 19 PC and will be used for the next connection. If the network environment is changed, or the user wants to let the web browser to detect again, manually select the UDP protocol, save, and return HOME to re-connect. - 18 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 20 <url> http://<Network Camera>/client.html <Network Camera> is the domain name or the original IP address of the Network Camera. - 19 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 21: Administrator's Capability

    The three factors, “Maximum frame rate”, “Constant bit rate”, and “Fix quality” on the Audio and Video Configuration page, are correlative to allow for achieving the best performance possible. - 20 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 22 Select the “Configure for mobile viewing” option will change the range of other related video settings. For Best Real-time Video Images To achieve good real-time visual effect, the network bandwidth should be large - 21 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 23: Only Quality Images Will Do

    “Fix bit rate”. You can also fix the bandwidth according to your actual network speed and adjust the frame rate. Start from 30 fps down for best results but not below 15 fps. If the image qualities are not improved, select a lower bandwidth setting. - 22 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 24: Opening Accounts For New Users

    This password is used to identify the administrator. Then add an account with user name and password for your friends in ○ . Network Camera can provide twenty accounts for your valuable customers or friends. You may delete some users from ○ - 23 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 25: Build A Security Application

    12.Set the delay before detecting next motion to avoid continuous false alarms following the original event, 13.Set the number of pre-event and post-event images to be uploaded, 14.Check the window name set in step 5, 15.Check the way to upload snapshot, - 24 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 26: Software Revision Upgrade

    Click on save to validate. Software revision upgrade Customers can obtain the up-to-date software from the web site of Vivotek. An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below.

  • Page 27: Definitions In Configuration

    If the Administrator also wants to set certain options through the URL, read the reference appendix for details. <url> http://<Network Camera>/setup/config.html <Network Camera> is the domain name or original IP address of the Network - 26 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 28 Camera. <url> http://<Network Camera>/setup/system.html <Network Camera> is the domain name or original IP address of the Network Camera. - 27 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 29: System Parameters

    “Digital output” Select Grounded or Open to define normal status of the digital output. The current status is shown, too. Remember to click on to immediately validate the changes. Otherwise, the correct time will not be synchronized. - 28 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 30: Security Settings

    The new user will be displayed in the user name list. There is a maximum of twenty user accounts. “Manager user” Pull down the user list to find the user’s name and press complete. - 29 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 31 <url> http://<Network Camera>/setup/security.html <Network Camera> is the domain name or original IP address of the Network Camera. - 30 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 32: Network Settings

    “Enable UPnP presentation” Enable the UPnP camera short cut “Enable UPnP port forwarding” Enable uPnP port forwarding “PPPoE” If using the PPPoE interface , fill the following settings from ISP “User name” The login name of PPPoE account - 31 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 33: Http

    “Multicast rtcp video port” This port must be multicast video port plus 1. “Multicast audio port” This can be other than the default port 5562. It must be an even number. - 32 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 34 “Multicast rtcp audio port” This port must be multicast audio port plus 1. “Multicast TTL” This option indicates the Time-To-Live of multicast packets. - 33 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 35 <url> http://<Network Camera>/setup/network.html <Network Camera> is the domain name or original IP address of the Network Camera. - 34 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 36: Wlan Configuration (Tc5633 Only)

    ▶ “Open” – communicates the key across the network. ▶ “Shared” – allows communication only with other devices with identical WEP settings. “Key length” The administrator can select the key length among 64 or 128 bits. - 35 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 37 Some invalid settings may cause the system failing to respond. Change the configuration only if necessary and consult with your network supervisor or experienced users for correct settings. Once the system has lost contact, refer to Appendix A for reset and restore procedures. - 36 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 38 <url> http://<Network Camera>/setup/wireless.html <Network Camera> is the domain name or original IP address of the Network Camera. - 37 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 39: Ddns

    “Username” the following field must be input as “Password”. “Password/Key” Please input the password or key to get the DDNS service. “Save” Click on this button to save current settings for the DDNS service and UPnP function. <url> http://<Network Camera>/setup/ddns.html - 38 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 40: Access List

    Add button. If you want to remove an existing IP address range, just select from the pull-down menu and click on the Delete button. Both the Allow List and Deny List can have 20 entries. - 39 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 41 <url> http://<Network Camera>/setup/accesslist.html <Network Camera> is the domain name or original IP address of the Network Camera. - 40 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 42: Audio And Video

    “Overlay title and time stamp on video” Check it the title is shown on video. Image Settings This session shows how to tune “Brightness”, “Contrast”, “Saturation”, “Sharpness” and “White balance” for video compensation. - 41 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 43 Adjust the image contrast in 11 steps from +5 ~ -5. The default value is set to 0. Saturation Adjust the image color saturation in 7 steps from +1 ~ -5. The default value is set to Sharpness - 42 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 44 To preview the effects, click Preview. Upon confirmation, click Save to save the settings and click Close to quit the image settings window. Clicking Restore returns to original settings without incorporating the changes. - 43 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 45: Audio Settings

    Audio settings “Mute” To turn off audio “Internal microphone input gain” Modify the gain of the internal audio input “Audio type” Select audio codec “AAC” or “GSM-AMR” and the bit rate - 44 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 46 <url> http://<Network Camera>/setup/audiovideo.html <Network Camera> is the domain name or original IP address of the Network Camera. - 45 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 47: Camera Control

    “Pan speed” This controls the range of the horizontal movement of the camera. The greater the value, the greater angular movement when performing the “Left” or “Right” functions. “Tilt speed” This controls the range of the vertical movement of the camera. The - 46 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 48: Preset Function Area

    The button is valid for “Auto pan/patrol speed”, “Enable IR control”, “Dwelling time” and “Patrol selections”. In other words, after changing these settings, and the “Save” button is not clicked, the new setting of the camera will not take effect. - 47 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 49: Motion Detection

    Higher sensitivity and small percentage will allow easier motion detection. The following figure shows the screen when is clicked. The monitoring window has been outlined in red and the graphic bar goes red since the goldfish is moving. - 48 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 50 - 49 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 51: Application

    If using the same media in different events and the events trigger almost simultaneously, the servers in the second triggered event will not receive any media; there would be only notifications. - 50 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 52: Event

    There are four kinds of trigger supported. “Video motion detection” Select the windows which need to be monitored. “Periodic” The event is triggered in specified intervals. The unit of trigger interval is minute. - 51 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 53: Server

    “Trigger DO” Check it to trigger digital output for specific seconds when event is triggered. “Server name” Check it to sending the selected media when event is triggered. Server “Server name” The unique name for server - 52 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 54 “Password” This granted password on the external HTTP server. After input the setting of server, user can click on to test whether the setting is correct. The testing result will be shown in a pop-up window. - 53 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 55: Media

    “File name prefix” The prefix name will be added on the file name of the snapshot images. “Add date and time suffix to file name” Check it to add timing information as file - 54 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 56 “Maximum duration” The maximal recording file duration in seconds “Maximum file size” The maximal file size would be generated. “File name prefix” The prefix name will be added on the file name of the video clip. - 55 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 57: System Log

    In the “Current log”, it displays the current system log file. The content of the log provides useful information about configuration and connection after system boot- - 56 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 58: Viewing System Parameters

    Viewing system parameters Click on this link on the configuration page to view the entire system’s parameter set. The content is the same as those in CONFIG.INI. - 57 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 59 - 58 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 60: Maintenance

    Remote Controller. Please note that there is no confirming message box after clicking on the “Calibrate” button, the Network Camera will calibrate immediately. “Upgrade firmware” Select the firmware file and click upgrade button - 59 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 61 - 60 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 62: Appendix

    RESET: Click on the button. RESTORE: 1. Press on the button continuously. 2. Wait for all LED blink fast. 3. Free the button. Restoring the factory defaults will erase any previous settings. - 61 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 63: Url Commands Of The Network Camera

    When query parameter values, the current parameter value are returned. Successful control requests returns parameter pairs as follows. Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n - 62 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 64: Set Server Parameter Values

    [&<parameter>=<value>…][&return=<return page>] parameter value description <group>_<name>. value to assigned Assign <value> parameter <group>_<name>.. <return page> Redirect to the page <return page> after the return parameter is assigned. The <return page> can be a - 63 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 65 If you omit this parameter, it will redirect to an empty page. (note: The return page can be a general HTML file(.htm, .html) or a Vivotek server script executable (.vspx) file. It can not be a CGI command. It can not have any extra parameters. This parameter must be...

  • Page 66: Available Parameters On The Server

    NTP automatic update interval. <0> serialnumber <mac address> 12 characters mac address without hyphen connected firmwareversion <text string shorter The version of firmware, including model, than 39 characters> company, and version number - 65 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 67 – Permit to change server’s configuration <blank> usercount 1 ~ 21 The current account number on the server including root.<1> Group: Network NAME VALUE DESCRIPTION type (r/w) PPPoE pppoeuser <text string shorter than PPPoE account user name - 66 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 68 SMTP server (r/w) address, string shorter <blank> than 40 characters> mailto2 <text string shorter than mail recipient address (r/w) 80 characters> <blank> mailuser2 <text string shorter than User name of secondary smtp server - 67 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 69 FTP server (r/w) 15 characters> <blank> ftpfolder2 <text string shorter than upload folder in secondary FTP server (r/w) 40 characters> <blank> ftppasvmode2 1 Enable passive mode of primary FTP server - 68 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 70 "2M", "5.5M", "11M", "6M", "9M", "12M", "18M", "24M", "36M", "48M", "54M", "Auto" 802.11g encrypt None data encryption (r/w) WEP data encryption WPA-PSK data encryption authmode Open Open mode (r/w) Shared Shared mode - 69 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 71 AES data encryption algorithm for WPA-PSK presharedkey <text string shorter than WPA-PSK key for encryption (r/w) 58 characters> <00000000> Group: IPFilter NAME VALUE DESCRIPTION allowstart_<0~9> 1.0.0.0 Allowed starting RTSP connection IP address (r/w) 255.255.255.255 <1.0.0.0> - 70 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 72 Video resolution 160 x 120 320x240 Video resolution 320 x 240 640x480 (for Video resolution 640 x 480 computer) color monochrome (r/w) color quality fix bit rate (r/w) fix quantization quant lowest quality of video - 71 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 73 25 fps 30 (for 60Hz only) set maximum frame rate to 30 fps mode synchronize with 50Hz utility (r/w) (in CMOS synchronize with 60Hz utility version only) whitebalance auto white balance - 72 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 74 AMR bitrate to 12.2K bps Group: Image NAME VALUE DESCRIPTION brightness <-5 ~ 5> Adjust brightness of image according to mode (r/w) settings. <0> saturation <+1 ~ 5> Adjust saturation of image according to mode - 73 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 75 Text string shorter than The name of patrol location (r/w) 40 characters. Group: Motion NAME VALUE DESCRIPTION enabled disable motion detection (r/w) enable motion detection winenabled_<0~2> 0 disable motion window #1 - 74 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 76 Enable or disable the dynamic dns. (r/w) <0> provider 1 ~ 6 dyndns.org (dynamic) (r/w) dyndns.org (custom) tzo.com dhs.org safe100.net dyn-interfree.it <1> hostname Text string shorter than Your dynamic hostname. (r/w) 127 characters. <blank> - 75 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 77 Group: App NAME VALUE DESCRIPTION scriptname <text string shorter than File name of script 255 characters> <script.vssx> enablescript Disable script (r/w) Enable script Group: Syslog NAME VALUE DESCRIPTION enableremotelog disable remote log - 76 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 78: Camera Control

    Move camera right speedpan -5 ~ 5 Set the pan speed speedtilt -5 ~ 5 Set the tilt speed speedapp -5 ~ 5 Set the auto pan/patrol speed auto Auto pan patrol Auto patrol - 77 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 79: Recall

    URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page. Application page CGI command Note: This request requires administrator privilege. Method: GET/POST - 78 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 80 Syntax (For snapshot): http://<servername>/cgi-bin/admin/gen-new-eventd-conf.cgi? [<prefix_app_index>_snapshot_enable=<value>] [&<prefix_app_index>_weekday=<value>] [&<prefix_app_index>_time_method=<value>] [&<prefix_app_index>_begin_time=<value>] [&<prefix_app_index>_end_time=<value>] [&<prefix_app_index>_prefix=<value>] [&<prefix_app_index>_trigger_type=<value>] [&<prefix_app_index>_md_win=<value>] [&<prefix_app_index>_md_prenum=<value>] [&<prefix_app_index>_md_postnum=<value>] [&<prefix_app_index>_md_delay=<value>] [&<prefix_app_index>_sq_interval=<value>] [&<prefix_app_index>_send_method=<value] [&<prefix_app_index>_ftp_suffix=<value>] Syntax (For videoclip): http://<servername>/cgi-bin/admin/gen-new-eventd-conf.cgi? [<prefix_app_index>_videoclip_enable=<value>] [&<prefix_app_index>_weekday=<value>] [&<prefix_app_index>_time_method=<value>] [&<prefix_app_index>_begin_time=<value>] [&<prefix_app_index>_end_time=<value>] [&<prefix_app_index>_prefix=<value>] [&<prefix_app_index>_trigger_type=<value>] [&<prefix_app_index>_maxsize=<value>] [&<prefix_app_index>_md_win=<value>] [&<prefix_app_index>_md_delay=<value>] [&<prefix_app_index>_sq_interval=<value>] [&<prefix_app_index>_send_method=<value>] - 79 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 81 24 hours full day time_method interval Select begin time and end time hh:mm Begin time of weekly schedule begin_time hh:mm End time of weekly schedule end_time <text string Snapshot/Videoclip file name prefix for both prefix - 80 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 82: Capture Single Snapshot

    Server will return the most up-to-date snapshot in JPEG format. The size and quality of image will be set according to the video settings on the server. Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n - 81 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 83: Account Management

    The name of user to add, delete or edit userpass <value> The password of new user to add or that of old user to modify. The default value is an empty string. - 82 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 84: System Logs

    System logs Note: This request require administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n - 83 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 85: Configuration File

    HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <configuration file length>\r\n \r\n <configuration data>\r\n Upgrade firmware Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> - 84 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 86 Server will accept the upload file named <file name> to be upgraded the firmware and return with <return page> if indicated. - 85 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 87: Technical Specifications

    Dimension 81mm (D) x 84mm (W) x 99mm (H) Video Compression: MJPEG & MPEG-4 Weight Streaming: Net: 271q (TC5632) Simultaneous dual-stream Net: 282g (TC5633) MPEG-4 streaming over UDP, TCP, or HTTP MPEG-4 multicast streaming LED Indicator MJPEG streaming over HTTP...
  • Page 88 EMI & Safety Supports audio mute CE, FCC Networking 10/100 Mbps Ethernet, RJ-45 Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, Telnet, DHCP, NTP, DNS, DDNS, and PPPoE Built-in 802.11b/g WLAN (TC5633) - 87 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 89: Technology License Notice

    819303; GB PAT. 819303; IT PAT. 819303; JP PAT. APP. 8-529817; NL PAT. 819303; SE PAT. 819303; US PAT. 5664053. THE LIST MAY BE UPDATED FROM TIME TO TIME BY LICENSORS AND A CURRENT VERSION OF WHICH IS AVAILABLE ON LICENSOR’S WEBSITE AT - 88 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 90 HTTP://WWW.VOICEAGE.COM. - 89 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 91 Vivotek Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Vivotek Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
