DigiPos PH-6000B User Manual

Pos system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

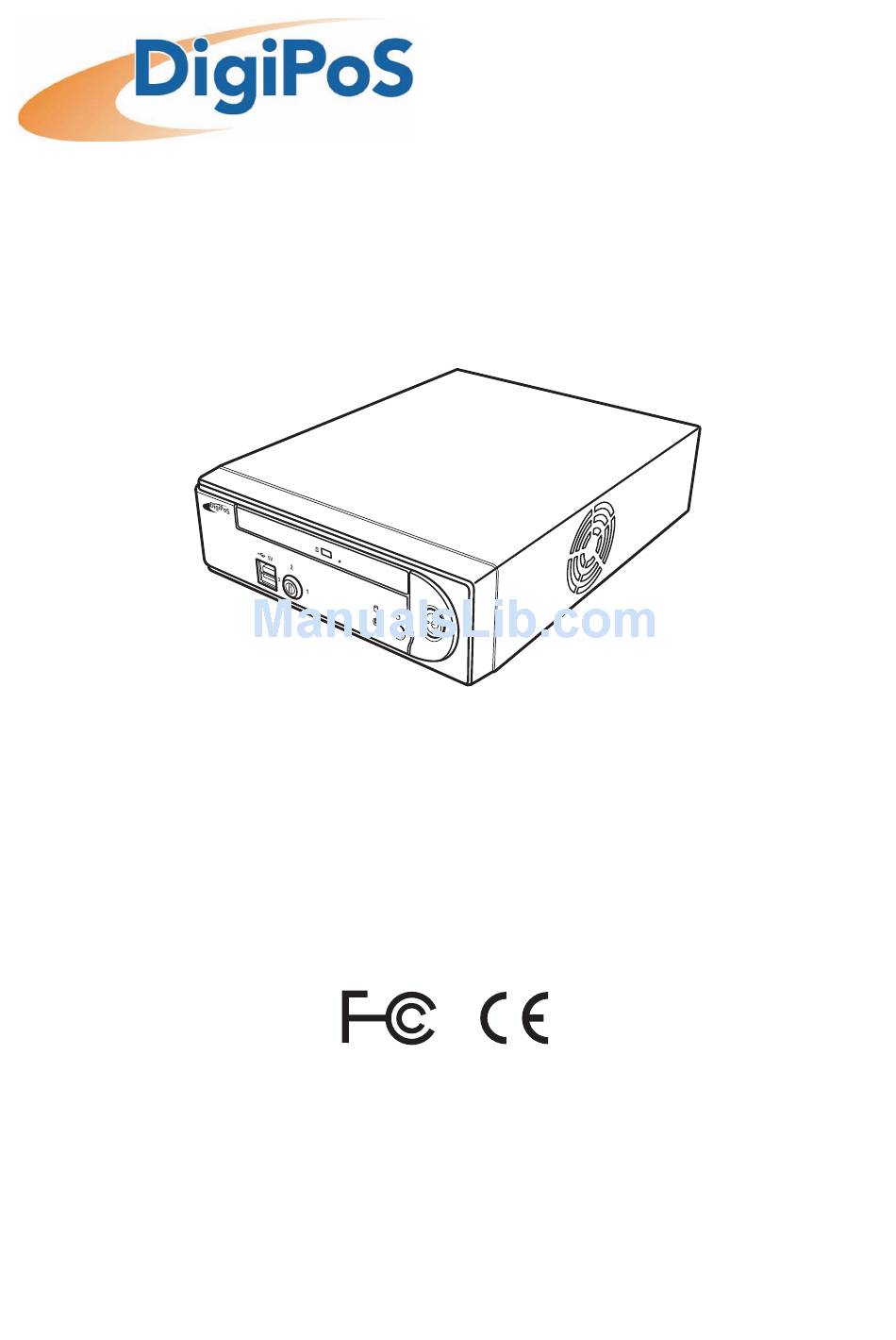

PH-6000B System
Designed for Retail PoS
Big impact. Small space.
User Guide
Release Version 1.0
July, 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH-6000B and is the answer not in the manual?

Questions and answers

Related Manuals for DigiPos PH-6000B

Summary of Contents for DigiPos PH-6000B

  • Page 1 PH-6000B System Designed for Retail PoS Big impact. Small space. User Guide Release Version 1.0 July, 2007...

  • Page 2: Table Of Contents

    Connecting a PS/2 Keyboard and Mouse ........9 Connecting to a Network ............10 Connecting Speakers .............10 Connecting a Microphone ............10 Using Your DigiPoS PH-6000B ........11 Powering on the DigiPoS PH-6000B ..........11 Power LED .................11 Reset Button ..............11 HDD Status LED ..............11 3-Position Keylock Operation ...........12...

  • Page 3: Preface

    (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if DigiPoS Systems has been advised of the possibility of such damages arising from any defect or error in this manual or product.

  • Page 4: Safety Instructions

    - Liquid has penetrated into the DigiPoS PH-6000B or the external power supply - The equipment has been exposed to moisture - The DigiPoS PH-6000B is not working properly or you can not get it to work according to the User Manual...

  • Page 5: Overview

    Overview Overview Congratulations on your purchase of the DigiPoS PH-6000B. You are now the owner of a state-of-the-art POS system. The DigiPoS PH-6000B offers unparalleled features, speed and performance combined with exceptional reliability. It is unrivalled by other conventional VIA/Intel based PCs within the EPoS industry.

  • Page 6: Front Side Components

    HDD status LED CD-ROM LED Reset button CD-ROM tray eject button Power button Emergency eject hole Power LED Rear Side Components VIA System (PH-6000B-300) 24V DC INPUT 7 8 9 10 11 12 Name Name Mouse port RJ45 LAN port...
  • Page 7 Overview Intel System (PH-6000B-700/ PH-6000B-800) 24V DC INPUT 6 7 8 9 10 11 Name Name Mouse port Line-out port Keyboard port Microphone port Three Serial (RS232) ports 12V PoweredUSB port VGA port 24V PoweredUSB port Four USB ports 24V DC input...

  • Page 8: Making Connections

    DigiPoS PH-6000B Making Connections By using the ports on the rear side of your DigiPoS PH-6000B, you can connect it to various devices. Refer to the procedures described in this section to make connections to these ports. Note: The PH-6000B-300 is used to illustrate the connections throughout this section.

  • Page 9: Connecting Usb Powered Devices

    The DigiPoS PH-6000B provides a wide range of output voltages from its PoweredUSB ports: 5V, 12V, and 24V. These ports allow the connected devices to be powered directly from your DigiPoS PH-6000B. You can also use these ports for standard USB data transmission.

  • Page 10: Connecting Usb Devices

    DigiPoS PH-6000B Using the 24V PoweredUSB port The 24V PoweredUSB port (red connector) is 24V DC located on the rear side of your DigiPoS PH-6000B. INPUT By using the 24V PoweredUSB port, you can connect printers powered by a 24V current.

  • Page 11: Connecting To A Network

    DigiPoS PH-6000B and the other end into an available wall outlet or hub as shown. 012520 Connecting Speakers The line-out port on the rear side of the DigiPoS PH- 6000B allows you to connect external speakers or 24V DC INPUT headphones.
  • Page 12 DigiPoS PH-6000B...

  • Page 13: Using Your Digipos Ph-6000B

    DigiPoS DigiPoS Power LED The blue power LED lights when your DigiPoS PH-6000B is turned on. See “Front Side Components” on page 5 for the location of the power LED. Reset Button If you encounter any problems or your DigiPoS PH-6000B malfunctions, simply press the reset button to restart the system.

  • Page 14: 3-Position Keylock Operation

    Using Your DigiPoS PH-6000B 3-Position Keylock Operation The DigiPoS PH-6000B has a keylock located on the front panel. This 3- position keylock provides an additional layer of security to your DigiPoS PH-6000B. Use the provided keys to control access to the power button, reset button, and CD-ROM.

  • Page 15: Specification

    DigiPoS PH-6000B Specification DigiPoS PH-6000B VIA System DigiPoS PH-6000B Intel System VIA C7 1GHz Intel Celeron M 600MHz / 1GHz Supports one DDRII 256MB/ Supports one DDR 256MB/512MB/ Memory 512MB/1G DIMM, may vary 1G DIMM, may vary according to according to the model the model Supports one 2.5”...
