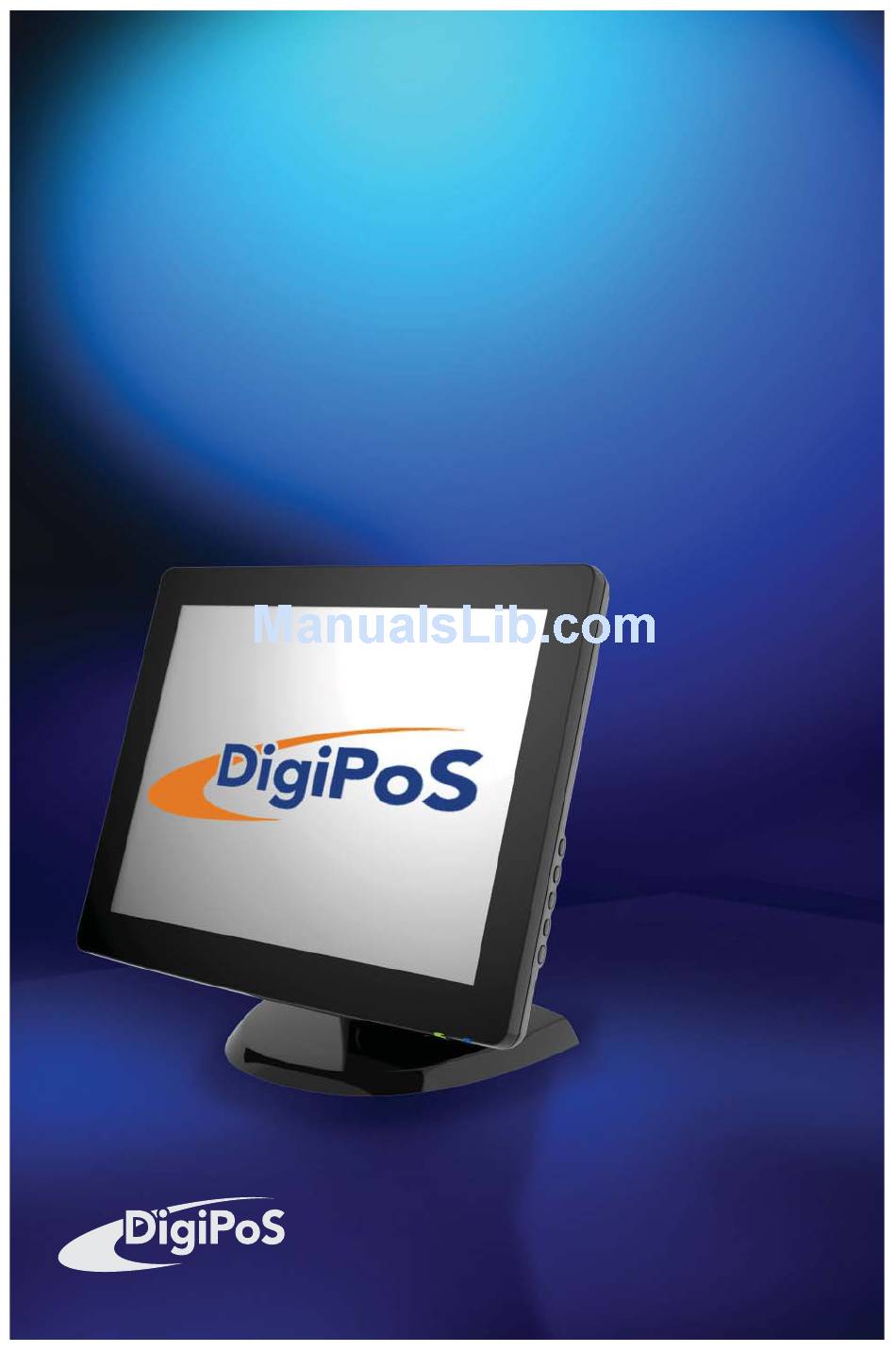

- Page 1 USER’s GUIDE Toccare AIO Touch POS Systems 2011 JULY, Rev.B...
-
Page 2: Important Recycle Instruction
The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission. -
Page 3: Table Of Contents
Table of Contents Usage Notice Precautions..........................1 Introduction About Toccare AIO TCA15 Touch POS Systems Series ............2 Touch Screen for TCA15R ......................2 Touch Screen for TCA15P ......................2 Package Overview ....................... 3 Installation Product Overview ......................4 Front View ........................4 Bottom View (Without Stand) ..................4 Making Connections ..................... -
Page 4: Usage Notice
Usage Notice Warning - To prevent the risk of fi re or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: About Toccare Aio Tca15 Touch Pos Systems Series

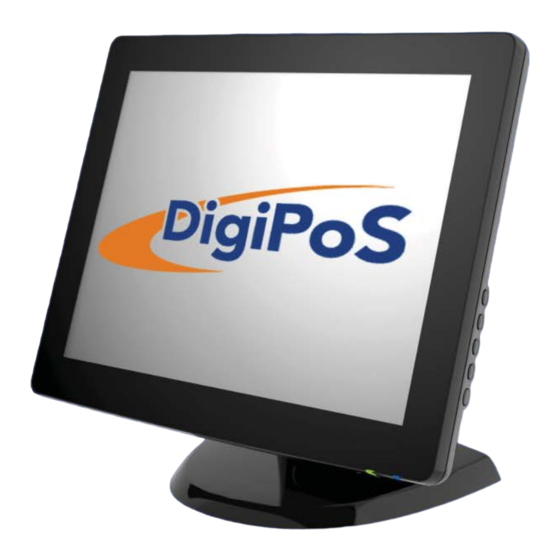

About Toccare AIO TCA15 Touch POS Systems Series The Toccare AIO TCA15 Touch POS system Series is All-in-One Touch computer model. The Toccare AIO TCA15 incorporates the Intel ® Atom processor D510, 1.66GHz, it has a 15" fl at LCDl screen with an touch function. -
Page 6: Package Overview
Package Overview Quick Start Guide CD Disk Toccare AIO DC Power Supply (Optional) -
Page 7: Installation
Installation Product Overview • Front View • Bottom View (Without Stand) Power LED HDD LED Cash Drawer 24V DC IN Powered USB 12V Second VGA Powered USB 24V RS-232 Gigabit Ethernet... -
Page 8: Making Connections
Making Connections To the Cash Drawer To a 12V USB Powered device, such as a VFD (Vacuum Fluorescent Display) and a customer display, and a MSR (Magnetic stripe Reader) To a 24V USB Powered device, such as a USB powered printer To USB devices, such as a USB flash driver, a USB keyboard, and a USB mouse. -
Page 9: Start Your Installation
Start Your Installation Remove the Back Cover Please follow these instructions to remove the cover on the back panel of the AIO so that you can hookup the cables to associated connector. Figure A 1. To remove the back cover, follow the arrows in fi gure A and pull out with your fi ngers and the cover should be removed from the stand. -
Page 10: Kensington Security Slot
Kensington Security Slot The computer can be secured to your desk or any other fi xed object with Kensington lock security products. The Kensington lock is not included. -
Page 11: Vesa Mount For Your Computer
VESA Mount for Your Computer This computer conforms to the VESA Flat Panel Mounting Physical Mounting Interface Standard which defi nes a physical mounting interface for fl at panel computers, and corresponding with the standard mounting devices of fl at panel computer, such as wall and table arms. -
Page 12: User Controls
User Controls Side Panel Controls Icon Key Name Reset Down Reset Power HDD LED Power LED Status Reset Brightness up Brightness down Reset Power On/Off Powered LED Display: Mode Indicator LED Blue LED OFF LED Blue Blink Sleep LED Green Blink HDD R/N... -
Page 13: Touch Computer Specifications
Touch Computer Specifi cations Note: Not all operating systems or options are supported in all regions. Please contact your service representative for details. Intel Atom processor D510,1.66GHz Processor 2 x SODIMM support DDR2 memory, Up to 4GB (accessible 3.2GB under OS) Intel ICH8-M Southbridge Intel Graphic Media Accelerator 3150... - Page 14 Removable base Touchscreen sealed to bezel and LCD Other features Security lock receptacle Peripheral Options May vary and Upgrades Battery Notice Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
-
Page 15: How To Use The Osd Menus
How to Use the OSD Menus Icon Key Name Reset Down Reset Power 1. Press the Power Button to boot up. 2. Adjust the dimming by pressing the "Up" or "Down" button. 3. Press the two Reset button simultaneously to re-boot the system. -
Page 16: Appendix
Appendix Troubleshooting If you are experiencing trouble with the AIO system, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected described in the "Installation"... -
Page 17: Product Dimensions
Product Dimensions 364.1 mm ► Front View 61.6 mm ► Side View 240.0 mm ► Top View... -
Page 18: Compatibility Modes
Compatibility Modes Mode Resolution H-Frequency(KHz) V-Frequency (Hz) VESA 800 x 600 37.88 VESA 1024 x 768 48.36...
