Contents of Package

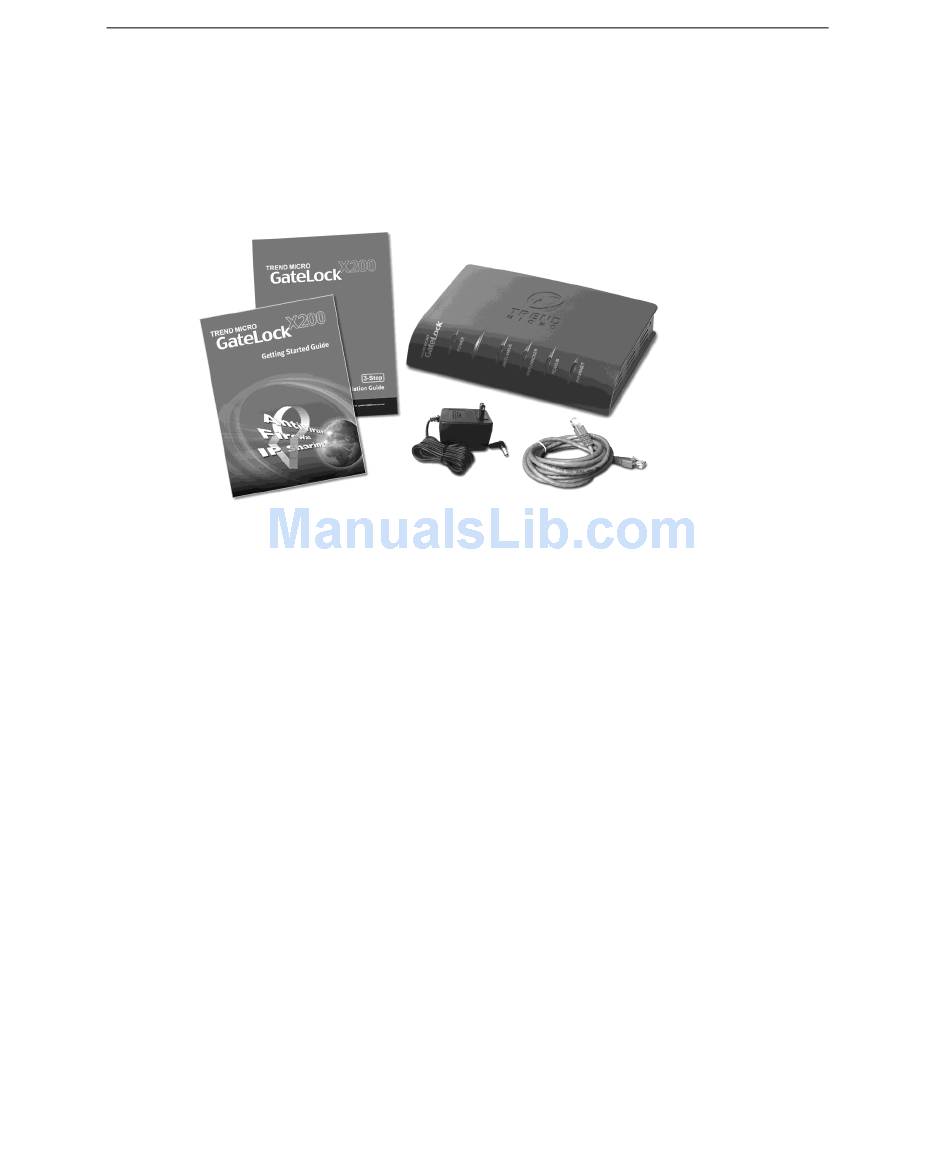

Illustrated below are the items included in your GateLock package.

1-1.

Contents of the GateLock Package

IGURE

• GateLock unit

• Power cord (connects GateLock to a power source)

• CAT5 UTP Ethernet cable (connects from local GateLock port to Ethernet port on

PC, or Uplink port on hub/switch)

• Trend Micro GateLock Quick Installation Guide

• This Trend Micro GateLock User's Guide

Figure 1-2 shows the back panel of your GateLock unit. This is where you make all

physical connections to GateLock: the power adapter, the network cable from your

PC or hub and the network cable to your xDSL/cable modem. The HUB-PC dip

switch and the Reset/Self-Test button are also found here.
