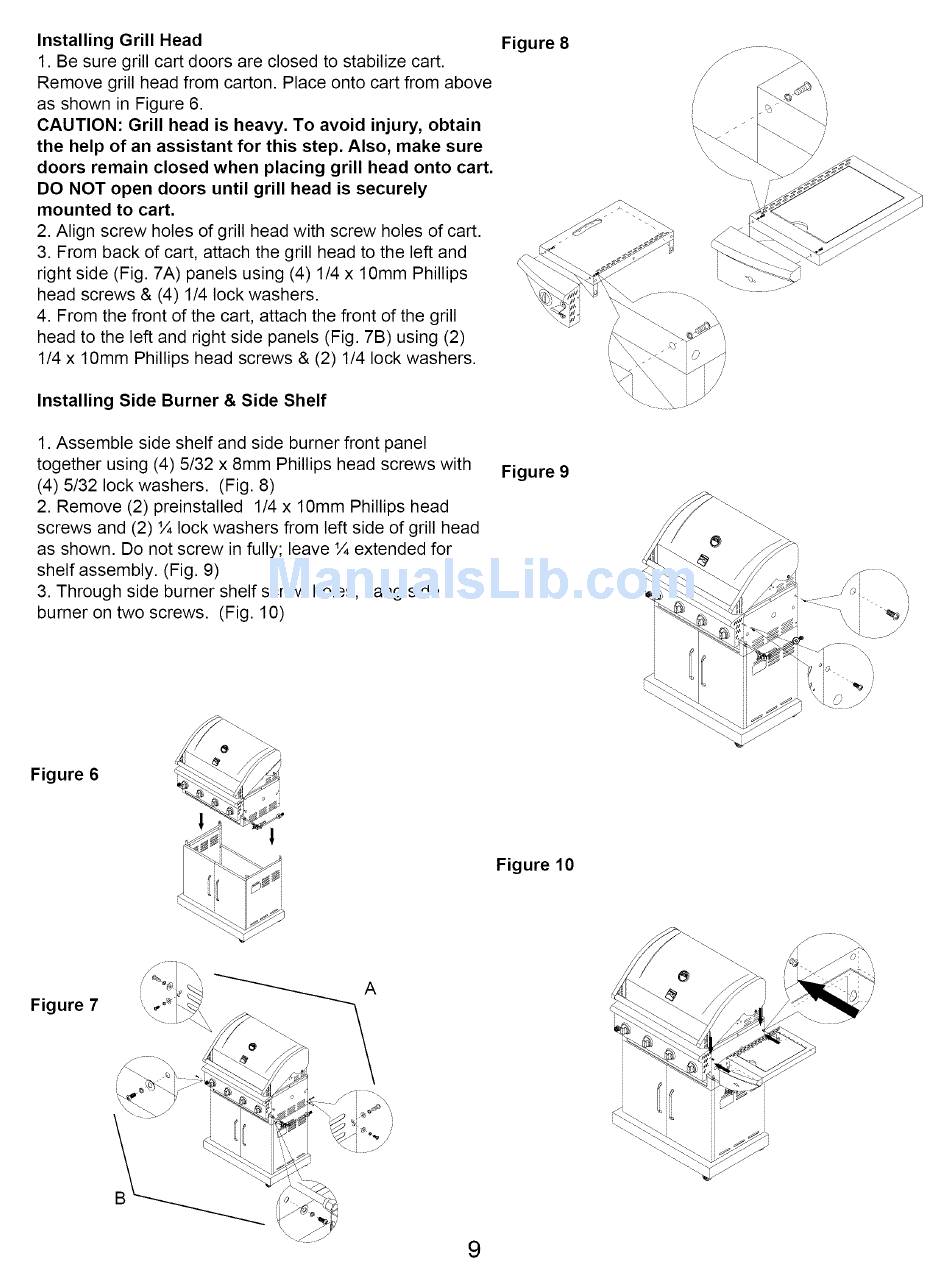

Installing Grill Head
1. Be sure grill cart doors are closed to stabilize cart.
Remove grill head from carton. Place onto cart from above
as shown in Figure 6.
CAUTION: Grill head is heavy. To avoid injury, obtain
the help of an assistant for this step. Also, make sure
doors remain closed when placing grill head onto cart.
DO NOT open doors until grill head is securely
mounted to cart.
2. Align screw holes of grill head with screw holes of cart.
3. From back of cart, attach the grill head to the left and
right side (Fig. 7A) panels using (4) 1/4 x 10mm Phillips
head screws & (4) 1/4 lock washers.
4. From the front of the cart, attach the front of the grill
head to the left and right side panels (Fig. 7B) using (2)
1/4 x 10mm Phillips head screws & (2) 1/4 lock washers.
Installing Side Burner & Side Shelf
1. Assemble side shelf and side burner front panel
together using (4) 5/32 x 8mm Phillips head screws with
(4) 5/32 lock washers. (Fig. 8)
2. Remove (2) preinstalled 1/4 x 10mm Phillips head
screws and (2) ¼ lock washers from left side of grill head
as shown. Do not screw in fully; leave ¼ extended for
shelf assembly. (Fig. 9)
3. Through side burner shelf screw holes, hang side
burner on two screws. (Fig. 10)
Figure 8
Figure 9
/
/
/
Figure 6
Figure 7
!
!
Figure 10
