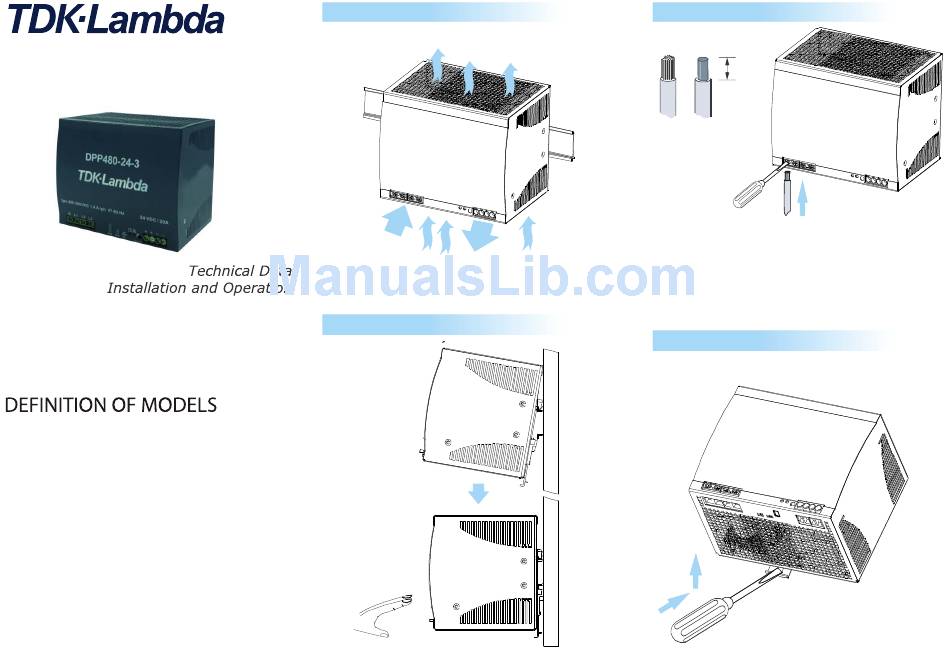

DPP480-XX-3
Din Rail Mountable
Switching Power Supply
Output Voltage
DPP480-24-3 : 24V output
DPP480-48-3 : 48V output
Fig. 1
Input
Out-
put
Fig. 2
Fig. 3
8mm
Connector size range
* AWG24 - 10
- Input connector can withstand torque at maximum
1.01Nm (9 pound-inches)
- Output connector can withstand torque at maximum
0.62Nm (5.5 pound-inches)
Use copper conductors only, 60/75
Max. Surrounding Air Temperature of 50 C
Fig. 4
o
C
o
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TDK-Lambda DPP480-XX-3
Summary of Contents for TDK-Lambda DPP480-XX-3
- Page 1 Fig. 1 Fig. 3 DPP480-XX-3 Din Rail Mountable Switching Power Supply Input Connector size range Out- * AWG24 - 10 - Input connector can withstand torque at maximum 1.01Nm (9 pound-inches) - Output connector can withstand torque at maximum 0.62Nm (5.5 pound-inches) Use copper conductors only, 60/75 Max.
-
Page 2: Safety Notes
Connection / Internal fuse Installation Safety notes Connection (See Fig. 3) Application Data for permitted loads, cable cross-sections and stripping: This unit is a primary switched-mode power supply designed Read Instructions! Use only commercial cables designed for the indicated for use in panel-board installations or building-in voltage and current values! applications where access to the supply is restricted (shock- Before working with this unit, read these instructions carefully...
