Winegard HD-6000 Instructions For Intallation

HOW TO PROVIDE LIGHTNING
PROTECTION FOR TV
ANTENNA AND SET
STEP 1. Mount the grounding block as close
as possible to where 75 ohm coaxial cable
downlead enters the house. See Fig.4.
STEP 2. The ground wires for both the
mast and the downlead should be copper
or aluninum wire, number eight (8) or larger.
See Figure 4.
STEP 3. The downlead wire from the
antenna to the grounding block and the
mast ground wire should be secured to the
house, spaced from four (4) to six (6) feet
apart. See Figure 4.
NOTE: In the case of a "ground up" antenna
installation, it may not be necessary to
ground the mast if the mast extends four
or more feet into the earth. Consult a TV
serviceman for the proper depth in your
location.
90 DAY LIMITED WARRANTY
The Winegard Company warrants this product against any defects in materials or
workmanship within 90 (ninety) days from date of purchase. No warranty claim will be honored
unless at the time the claim is made, you present proof of purchase to an authorized Winegard
dealer (if unknown, please contact Winegard Company, 3000 Kirkwood St., Burlington, IA
52601-2000, 800-288-8094).
Winegard Company (at its option) will either repair or replace the defective product at no
charge to you. This warranty covers parts, but does not cover any costs incurred in removal,
shipping or reinstallation of the product. The warranty does not extend to products which have
been subjected to misuse, improper installation, or damage caused by wind, lightning, ice or
other occurrences over which the manufacturer has no control.
The 90 Day Warranty is provided on the condition that the equipment is properly delivered
with all handling and freight charges prepaid to your Winegard dealer for repair or return
to our factory at the above address. Winegard dealers will arrange for the replacement or
repair and return to you, without charge, the product which failed due to defective material
or workmanship.
WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER
WARRANTIES, EXPRESS OR IMPLIED, MADE BY ANY OTHER PERSON.
ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED, OR STATUTORY INCLUDING
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY
ARE LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.
The foregoing shall be the sole and exclusive remedy of any person,whether in contract,
tort or otherwise, and Winegard shall not be liable for incidental or consequential damage or
commercial loss, or from any other loss or damage except as set forth above.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion
of limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state.
Printed in U.S.A. © Winegard Company 2002 Rev2 12-13 1450463

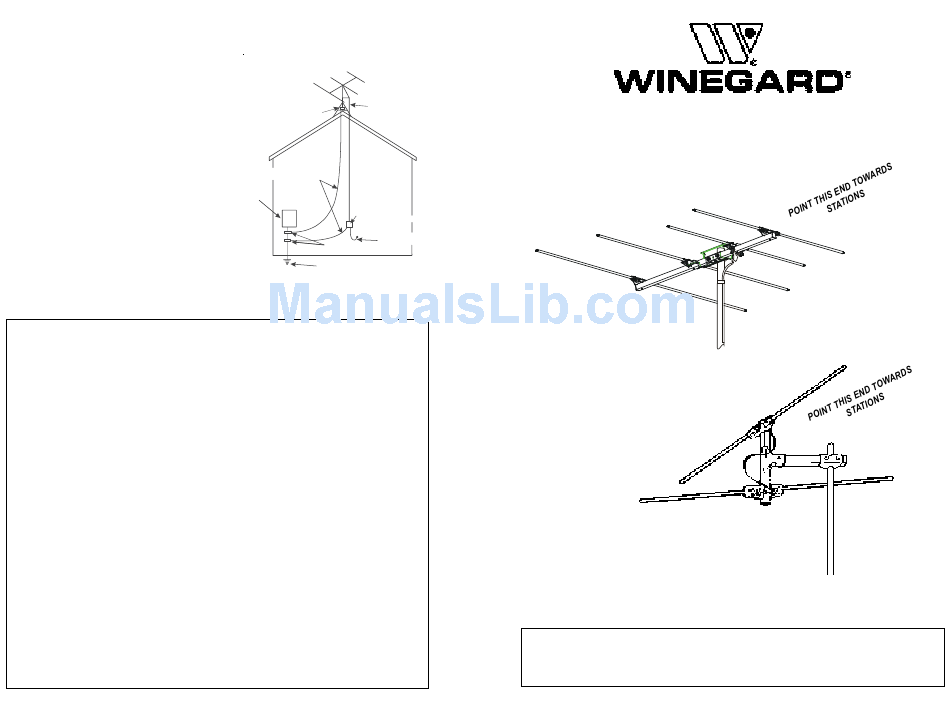

Fig. 4
Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
Antenna
Ground
Lead-In Wire
Clamp
Grounding Conductors
(NEC Section 810-21)
Electric
Service
Equipment
Antenna
Discharge Unit
(NEC Section 810-20)
(May substitute a 75 ohm
Coax Grounding Block)
Rain Drip Loop On
Lead-In To TV
Ground
Clamps
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
NEC - National Electrical Code
Rev. 2/08
INSTRUCTIONS
FM MODELS
HD-6000 & HD-6010
Register your product at winegard.com/myantenna
WARNING
INSTALLATION OF THIS ANTENNA NEAR POWER LINES IS DANGEROUS.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601-2000
FM
MODEL HD-6000
FM
MODEL HD-6010
