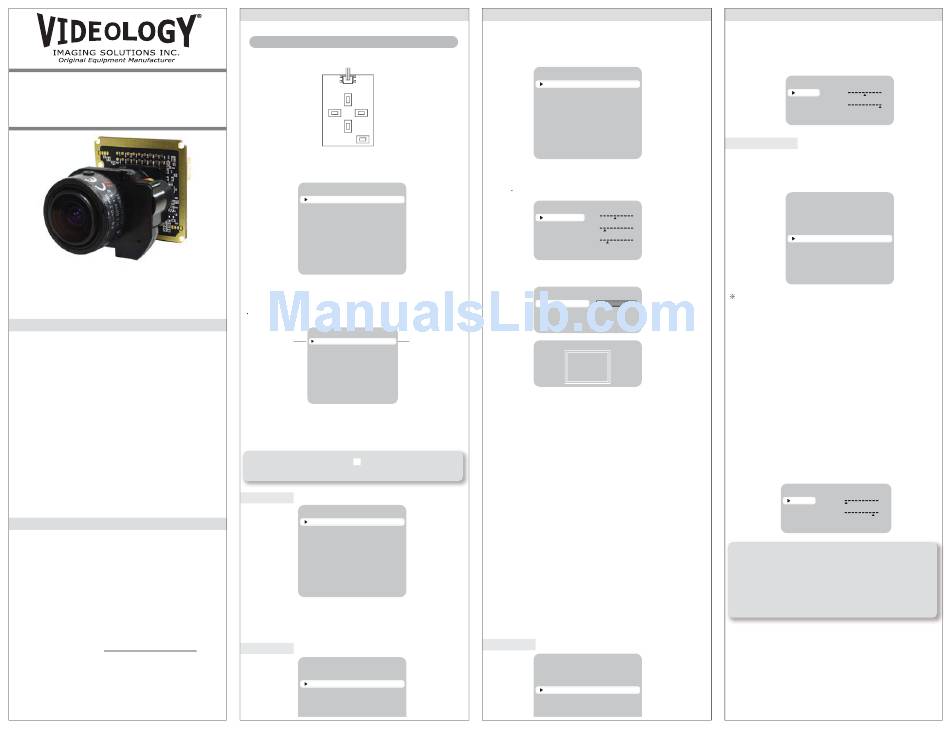

Videology 20C40xW User Manual

WDR Day/Night
Color Board Camera
shown with optional lens
MODELS (NTSC/PAL)
20/21C40xW analog output
20/21C40xWD digital output
PRODUCT FEATURES
• 1/3" Pixim CMOS progressive scan
• 690 TVL resolution
• Low 0.1 lux sensitivity
• Dynamic range to 120dB
• Global shutter
• Digital video output (see optional models)
• 3D motion adaptive noise reduction (DNR)
Features available via OSD control board (60ZRC10)
• Motion detection
• Day/night mode
• Digital pan/tilt/zoom (8x)
• Digital slow shutter (DSS)
• Push to set white balance
• Sens-up (2x-32x)
• NTSC/PAL selectable
• RS-485 (optional)
CONTACT INFORMATION
For technical assistance with this product, please
contact the supplier from whom the product was
purchased.
For OEM inquiries:
North/South America Europe
37M Lark Industrial Parkway Neutronenlaan 4
Greenville, RI 02828
NL-5405 NH Uden,
USA
Netherlands
Tel: (401) 949-5332 Tel: +31 (0) 413 256 261
Fax: (401) 949-5276 Fax: +31 (0) 413 251 712
Please visit our website at: http://www.videologyinc.com
VIDEOLOGY IMAGING SOLUTIONS is an ISO 9001 registered
video camera developer and manufacturer serving industrial,
machine vision, biometric, security, and specialty OEM markets.
Videology designs, develops, manufactures, and distributes
video, image acquisition, and display technologies and products
to OEMs worldwide.
01/18/11 INS-20C40XW Rev B Preliminary
How to Use the Camera
SETTINGS
Settings can be made using the 5 buttons located on the OSD
control board.
UP
LEFT RIGHT
SET
DOWN
1. Press the SET button on the control board to display the SETUP
window.
SETUP
PRESETS NORMAL
EXPOSURE..
WDR MIDDLE
WHITE BALANCE ATW
DAY/NIGHT AUTO..
IMAGE ADJ..
SPECIAL..
EXIT MENU.
2. Select an option from the list available by using the UP & DOWN
buttons on the control board.
The selected position is displayed in blue.
SETUP
PRESETS NORMAL
Select the function Change the status
using the UP or EXPOSURE.. using the LEFT or
DOWN buttons RIGHT buttons
WDR MIDDLE
WHITE BALANCE ATW
DAY/NIGHT AUTO..
IMAGE ADJ..
SPECIAL..
EXIT MENU.
3. Change the status by using the Left and Right buttons.
4. To finish and save the settings, select 'EXIT' and press the SET
button on the control board.
NOTE: An item with the .. icon has sub-menus.
To select a sub-menu, press the SET button.
PRESETS
SETUP
PRESETS NORMAL
EXPOSURE..
WDR MIDDLE
WHITE BALANCE ATW
DAY/NIGHT AUTO..
IMAGE ADJ..
SPECIAL..
EXIT MENU.
Three types of presets
NORMAL : default color balance
INDOOR : fluorescence color balance
OUTDOOR : outdoor color balance
EXPOSURE
SETUP
PRESETS NORMAL
EXPOSURE..
WDR MIDDLE
WHITE BALANCE ATW
How to Use the Camera
When the menu screen 'SETUP' is displayed, select 'EXPOSURE'
by using the UP & DOWN buttons so that the arrow indicates
'EXPOSURE'.
EXPOSURE
LENS DC..
FOCUS..
EXPOSURE MODE 60 i
AGC MIDDLE
DNR MIDDLE
HIGHLIGHT ON
COLOR ROLL LOW
SENS-UP 2X
PREVIOUS PAGE.
LENS
This function controls the screen's brightness.
DC / Manual : Select Lens Type
LENS MENU
DC GAIN
0 120 255
VIDEO GAIN
0 50 255
AI THRESH
-48 -24 60
PREVIOUS PAGE.
FOCUS
This function adjusts the DC & VIDEO lens focus
FOCUS DETECTOR
FOCUS METER
88
SET FOCUS REGION..
PREVIOUS PAGE.
SET FOCUS REGION
EXPOSURE MODE
Select the number of fields and number of exposure cycles.
60i/30p selectable
AGC (AUTO GAIN CONTROL)
In a dark situation, the higher the gain level, the brighter the screen,
but there will be more noise within the video .
OFF / LOW / MIDDLE / HIGH selectable
DNR (Digital Noise Reduction)
The level of background noise in low light decreases automatically
as the level of gain changes.
OFF / LOW / MIDDLE / HIGH selectable
HIGHLIGHT
To optimize the scene when high dynamic range lighting is
detected.
ON : bright parts of the image are most visible
OFF : dark parts of the image are most visible
COLOR ROLL
To control a detector that finds color fluorescent roll.
OFF / LOW / MIDDLE / HIGH selectable
SENS-UP
When it is night or dark, the camera automatically detects the light
level and maintains a clear picture if this mode is activated.
2X, 4X, 8X, 16X, 32X
OFF : Deactivates the SENS-UP function.
WDR
SETUP
PRESETS NORMAL
EXPOSURE..
WDR MIDDLE
WHITE BALANCE ATW
DAY/NIGHT AUTO..
IMAGE ADJ..
How to Use the Camera
WDR
When the image has simultaneous bright and dark areas, the
Wide Dynamic Range makes both areas distinct.
LOW / MIDDLE / HIGH / USER selectable
WDR LEVEL
BIAS 2 -30 30
LIMIT 36 0 36
PREVIOUS PAGE.
WHITE BALANCE
Use the White Balance function to adjust the screen colors.
1. Move the cursor to point to 'WHITE BAL' on the 'SETUP'
menu screen, select using the UP & DOWN buttons.
2. Select the desired mode by using the LEFT & RIGHT buttons.
SETUP
PRESETS NORMAL
EXPOSURE..
WDR MIDDLE
WHITE BALANCE ATW
DAY/NIGHT AUTO..
IMAGE ADJ..
SPECIAL..
EXIT MENU.
Select one of the following 5 modes:
ATW
The ATW mode continuously monitors.
INDOOR
Select for color temperature between 4000K˚ & 8500K˚
OUTDOOR
Select for color temperature between 2000K˚ & 11000K˚
AWB
To obtain the optimum state under the current luminance levels,
point the camera at a sheet of white paper and press the 'SET'
button. If the environment changes, including the light source,
the white balance will require re-adjustment.
MANUAL
Select to "fine-tune" the White Balance manually.
First set the White Balance with ATW or AWB. Then switch to
MANUAL, fine-tune and then press the 'SET' button to save.
MANUAL WHITE BALANCE
RED -18 -20 20
BLUE 13 -20 20
PREVIOUS PAGE.
NOTE: Under the following conditions, White Balance may
not work properly. In such cases, select the AWC mode.
1) When the color temperature of the subject environment has a very high
temperature range (e.g. clear sky, or sunset)
2) When the ambient illumination of the subject is low
3) If the camera is directed toward a fluorescent light, or is installed in a
place where illumination changes dramatically, the White Balance
operation may become unstable.
