Videology 24Z2.1W-10X-EXSDI Instruction Manual

IMAGING SOLUTIONS INC.
Original Equipment Manufacturer
Instruction Manual
2.4MP 10x Auto Focus Zoom Camera
with EX-SDI Video Output and WDR
MODELS
24Z2.1W-10X-EXSDI
PRODUCT FEATURES
• 1/3" 2.4 MP Image Sensor
• 1080p / 720p (60/ 50/ 30/ 25fps)
• Auto Focus Zoom
• 10x Optical Zoom, 32x Digital Zoom
• Real Time True WDR
• Digital Noise Reduction
• Extended SDI
▪ Transmissions to 500m (1650 ft.)
Note: Greater distances can be achieved with
higher grade cabling.
▪ Full HD digital format using standard cabling
(coax, cat5/6)
▪ Latency <1 fps.
▪ Power & control over same cable (with UTC only)
• HD-SDI
• CVBS analog video output
CONTACT INFORMATION
For technical assistance with this product, please
contact the supplier from whom the product was
purchased.
Please visit us at: http://www.videologyinc.com
VIDEOLOGY IMAGING SOLUTIONS is an ISO
9001 registered video camera developer and
manufacturer serving industrial, machine vision,
biometric, security, and specialty OEM markets.
Videology designs, develops, manufactures, and
distributes video, image acquisition, and display
technologies and products to OEMs worldwide.
For OEM inquiries:
North/South America Europe
37M Lark Industrial Neutronenlaan 4
Parkway NL-5405 NH Uden,
Greenville, RI 02828 Netherlands
Tel: (401) 949-5332 Tel: +31 (0) 413 256 261
Fax: (401) 949-5276 Fax: +31 (0) 413 251 712
01/07/17 INS-24Z2.1W-10X-EXSDI Rev A

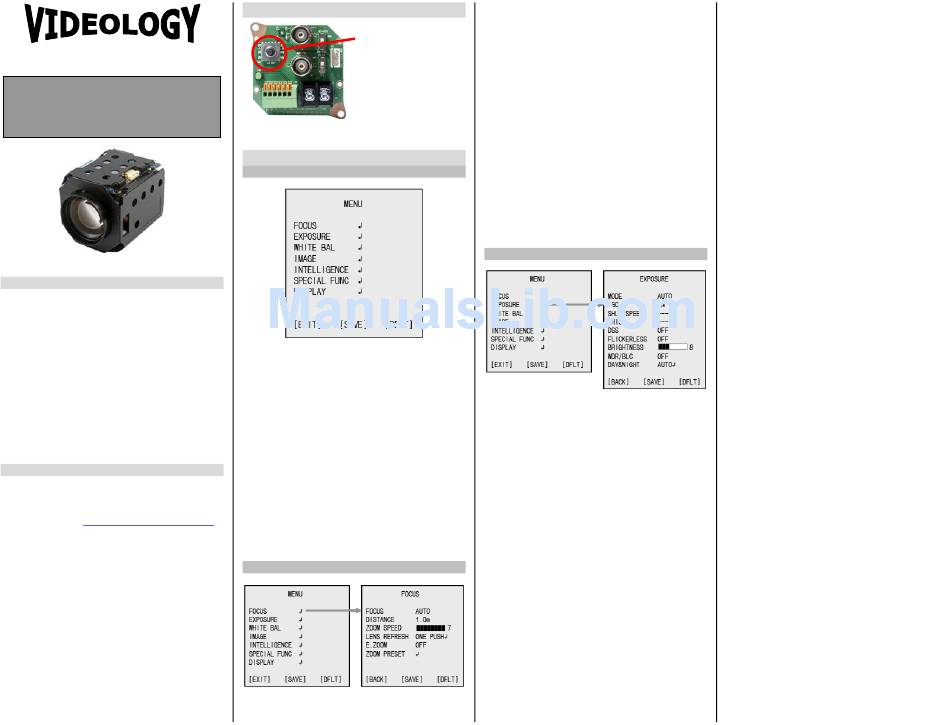

How to Use the Camera

Settings can be
implemented using the
miniature joystick
located on the optional
OSD control board
(60MC0001).
1. Press the joystick IN on the control board to
display the SETUP window.

Camera Setup

MAIN MENU
Functions can be setup using the "Menu Key
Command".
The menu consists of the "Main Menu" and "Sub
Menu".
The main menu is displayed where 7 camera
functions can be selected.
Upon pushing each main menu selection, the
sub-menu is displayed
To save the setting changes, select [SAVE].
To disregard the setting changes, select [EXIT]
(After select, Power off -> on)
To return to factory settings, select [DFLT]
FOCUS
FOCUS: Select auto focus mode
AUTO, ONE PUSH, MANUAL
►
DISTANCE: Select minimum distance in focus
between camera and object.
0.1 / 1.0 / 3.0 / 5.0 / 10.0 m
►
ZOOM SPEED: Select Zoom Speed
0 (Slow) ~ 7 (Fast)
►
LENS REFRESH: Lens origin calibrated
automatically.
ONE PUSH↲ / ON (1 day ~ 10 days)
►
E.ZOOM: Select maximum digital zoom
magnification.
OFF / ON
►
(max x2 ~ x19, x21, x23, x25, x28, x32)
ZOOM PRESET: Select zoom preset
PRESET #: Select Zoom preset number
►
(1 ~ 5)
MODE: OFF / ON ↲
►
▷ ON ↲: Adjust the Zoom Position
EXPOSURE
MODE: Select Exposure Mode
AUTO / IRIS.P / SHUT.P / MANUAL
►
AGC: Select Auto Gain Control
OFF / ON (AUTO, SHUT.P or IRIS.P Mode)
►
0 ~ 10 (MANUAL Mode)
►
SHUT SPEED: Can be set in SHUT.P or MANUAL
mode
60 / 50 fps mode
► x8, x4, x2, 1/60(50), 1/120(100), 1/250,
1/700, 1/1000, 1/1600, 1/2500, 1/5000,
1/7000, 1/10000, 1/30000 sec
30 / 25 fps mode
x4, x2, 1/30(25), 1/60(50), 1/120(100),
►
1/250, 1/700, 1/1000, 1/1600, 1/2500,
1/5000, 1/7000, 1/10000, 1/30000 sec
IRIS: Iris level can be set in IRIS.P or MANUAL
mode
0 ~ 20
►
DSS: Select maximum DSS Digital Slow Shutter
(
60 / 50 fps mode
OFF / x2, x4, x8
►
30 / 25 fps mode
► OFF / x2, x4
FLICKERLESS: Select flickerless mode
► OFF / ON (remove screen flicker)
BRIGHTNESS: Adjust brightness level
► 0 (dark) ~ 20 (bright) steps
WDR/BLC: Select WDR (Wide Dynamic Range)
or BLC (Back Light compensation)
WDR↲
►
▷ LEVEL: Adjust WDR level.
LOW, MID-LOW, MIDDLE, MID-HIGH, HIGH
►
WDR will not work in Manual Exposure
Mode or Shutter Priority Mode
When WDR is ON,
CVBS output is disabled
BLC↲
►
▷ POSITION: Adjust the window
position
▷ SIZE: Adjust the window size
WDR & BLC will not function at the same
time
If WDR is ON, BLC is OFF
If BLC is ON, WDR is OFF
BLC will not work in Manual Exposure Mode.
DAY & NIGHT: Select Day & Night
MODE: AUTO↲ / EXT-IN↲ / DAY / NIGHT↲
►
▷ AUTO
DELAY: 0 ~ 255 sec
►
THRS: 0 ~ 28
►
Day↔Night switching level in Auto Mode.
Switching in lower lux with lower threshold
level.
GAP: LOW, MID-LOW, MIDDLE, MID-HIGH,
►
HIGH
Margin between Day→Night switching level
and Night→Day switching level.
► IR DETECTION: Setting IR Detection mode.
(ON / OFF)
IR DET LEVEL: Setting IR Detection level.
►
(LOW, MID-LOW, MIDDLE, MID-HIGH,
HIGH)
BURST: OFF / ON
►
▷ EXT-IN
DELAY: 0 ~ 255 sec
►
BURST: OFF / ON
►
POLARITY: External Input polarity (ACTIVE
►
LOW / ACTIVE HIGH)
▷ NIGHT
BURST: OFF / ON
►
)
