5MP Camera with Flash
Prior to Using This Document: Videology reserves the right to modify the information in this
document as necessary and without notice. It is the user's responsibility to be certain they possess the
most recent version of this document by going to www.videologyinc.com, searching for the model
number, and comparing revision letters on the respective document, located in the document's footer.
For technical assistance with this product, please contact the supplier from whom the product was
purchased.
Videology Imaging Solutions, Inc. USA
37M Lark Industrial Parkway
Greenville, RI 02828
Tel: 401-949-5332
Fax: 401-949-5276
www.videologyinc.com
Doc # INS-SFT-15003
Revision: B
IMAGING SOLUTIONS INC.
Original Equipment Manufacturer
Instruction Manual
24C708AF
SFT-15003 Rev 2.1.0.0
Preliminary
Videology Imaging Solutions, B.V. Europe
Neutronenlaan 4
NL-5405 NH Uden, Netherlands
Tel: +31 (0) 413-256261
Fax: +31 (0) 413-251712
www.videology.nl
Issue Date: 08/12/2016
Page 1 of 30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24C708AF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videology 24C708AF

Summary of Contents for Videology 24C708AF

  • Page 1 SFT-15003 Rev 2.1.0.0 Preliminary Prior to Using This Document: Videology reserves the right to modify the information in this document as necessary and without notice. It is the user’s responsibility to be certain they possess the most recent version of this document by going to www.videologyinc.com, searching for the model number, and comparing revision letters on the respective document, located in the document’s footer.
  • Page 2 The Software is licensed, not sold, to you for use only under the terms of this Agreement. Videology grants to you, the purchaser, the right to use all or a portion of this Software provided that the Software is used only in conjunction with Videology's family of products.

  • Page 3: Table Of Contents

    Table of Contents Document History ........................4 About the Camera ........................4 Specifications .......................... 4 3.1. Flash Support ........................5 3.2. Still Image Capture ......................5 3.3. Camera / Flash ......................... 5 Viewer Installation ........................6 VIS Viewer ........................... 10 5.1.

  • Page 4: Document History

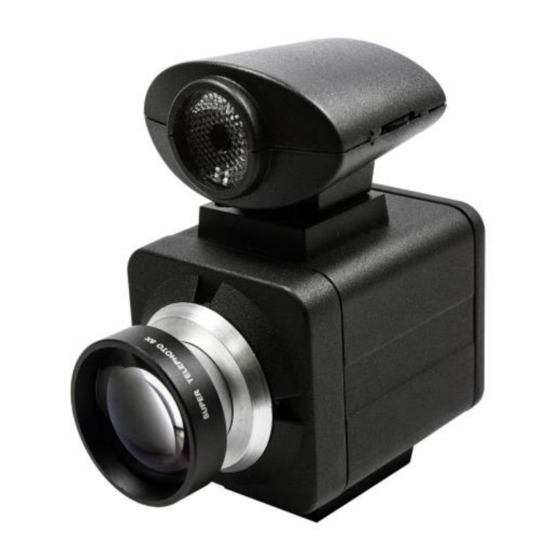

    1. Document History Revision Issue Date Reason 07-01-2013 Initial release 15-0003 06-30-2016 Software revision 2.1.0.0, updated manual (all 16-0081 sections) and added TWAIN instructions 2. About the Camera The 24C7085AF is a UVC compliant, robust, high resolution (up to 5 MP), USB, and autofocus camera ideally suited to Photo ID Badging applications.
